Isuzu
>>
2002
>>
Axiom 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
General Module
General Module
Alarm And Relay Control Unit:

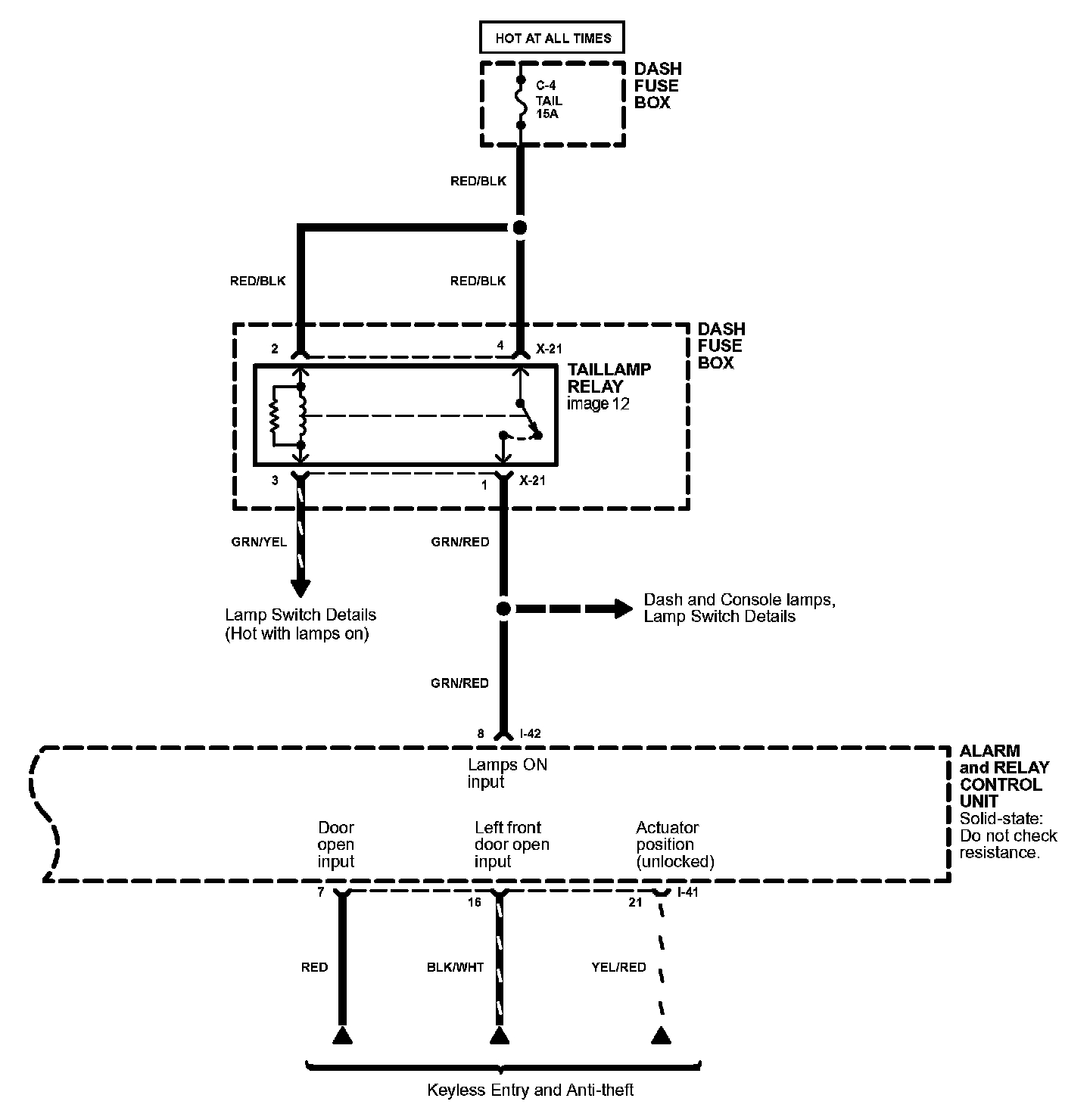

Alarm And Relay Controls Image 70:

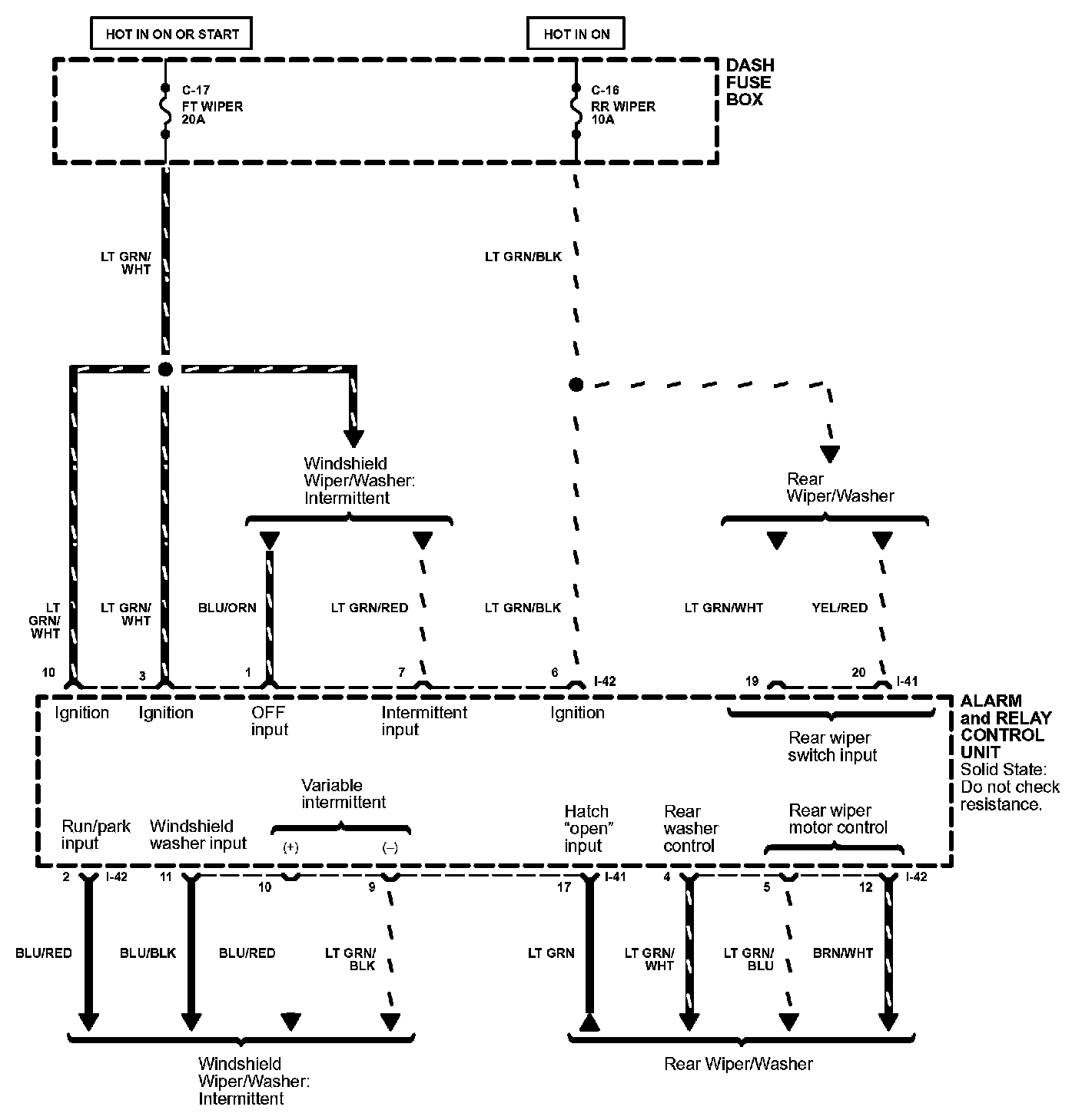

Alarm And Relay Controls Image 70-1:

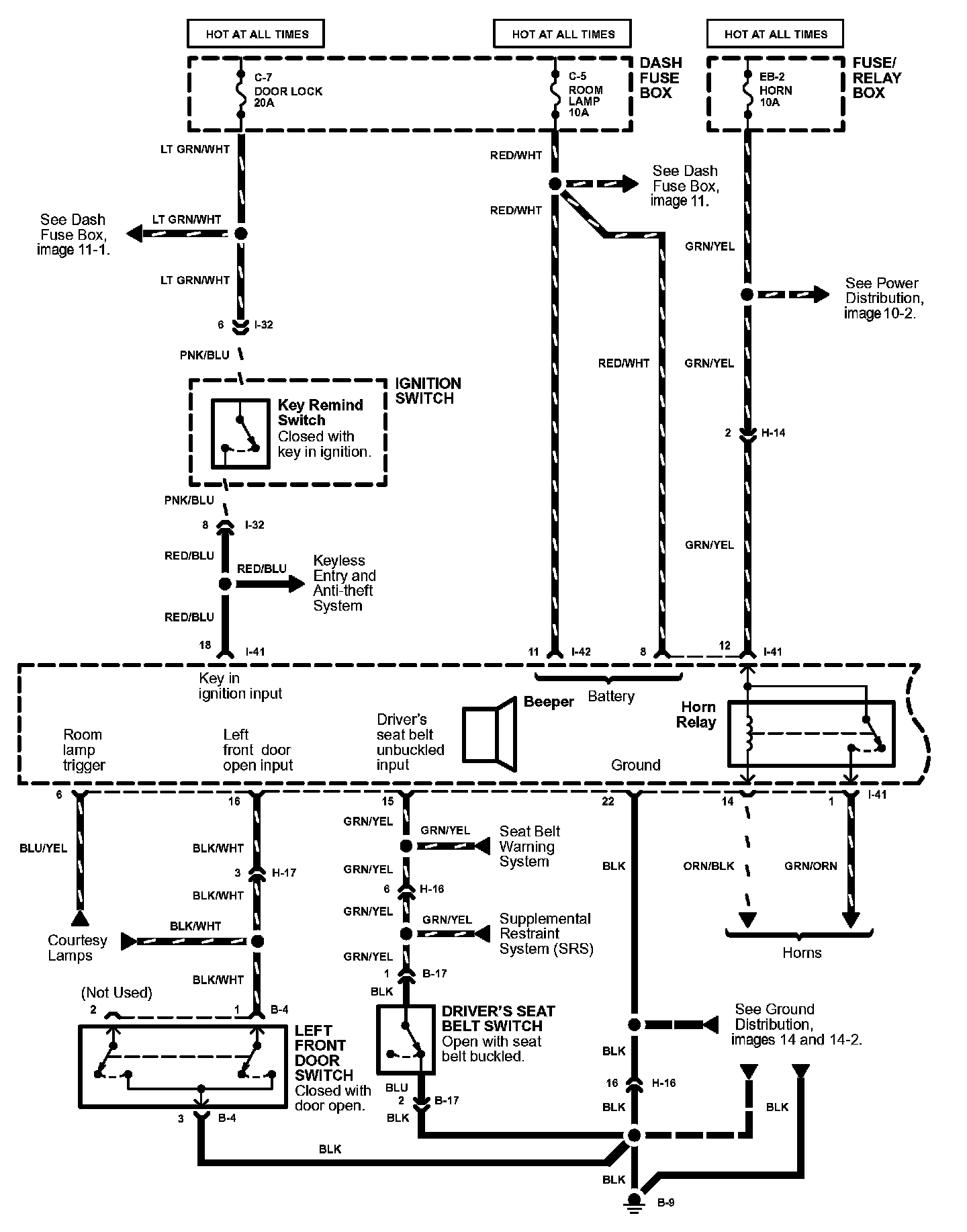

Alarm And Relay Controls Image 70-2:
