Isuzu
>>
2002
>>
Axiom 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

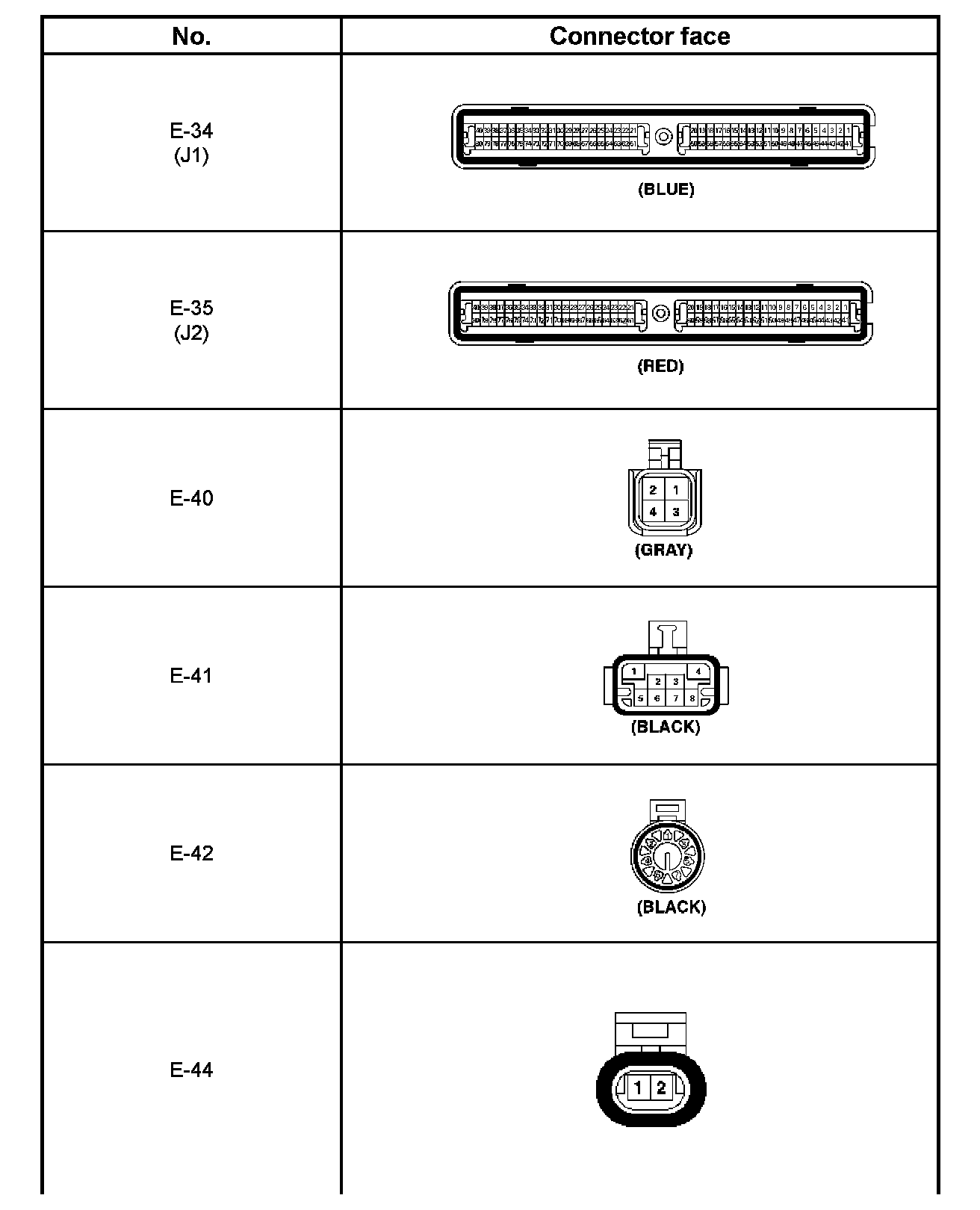

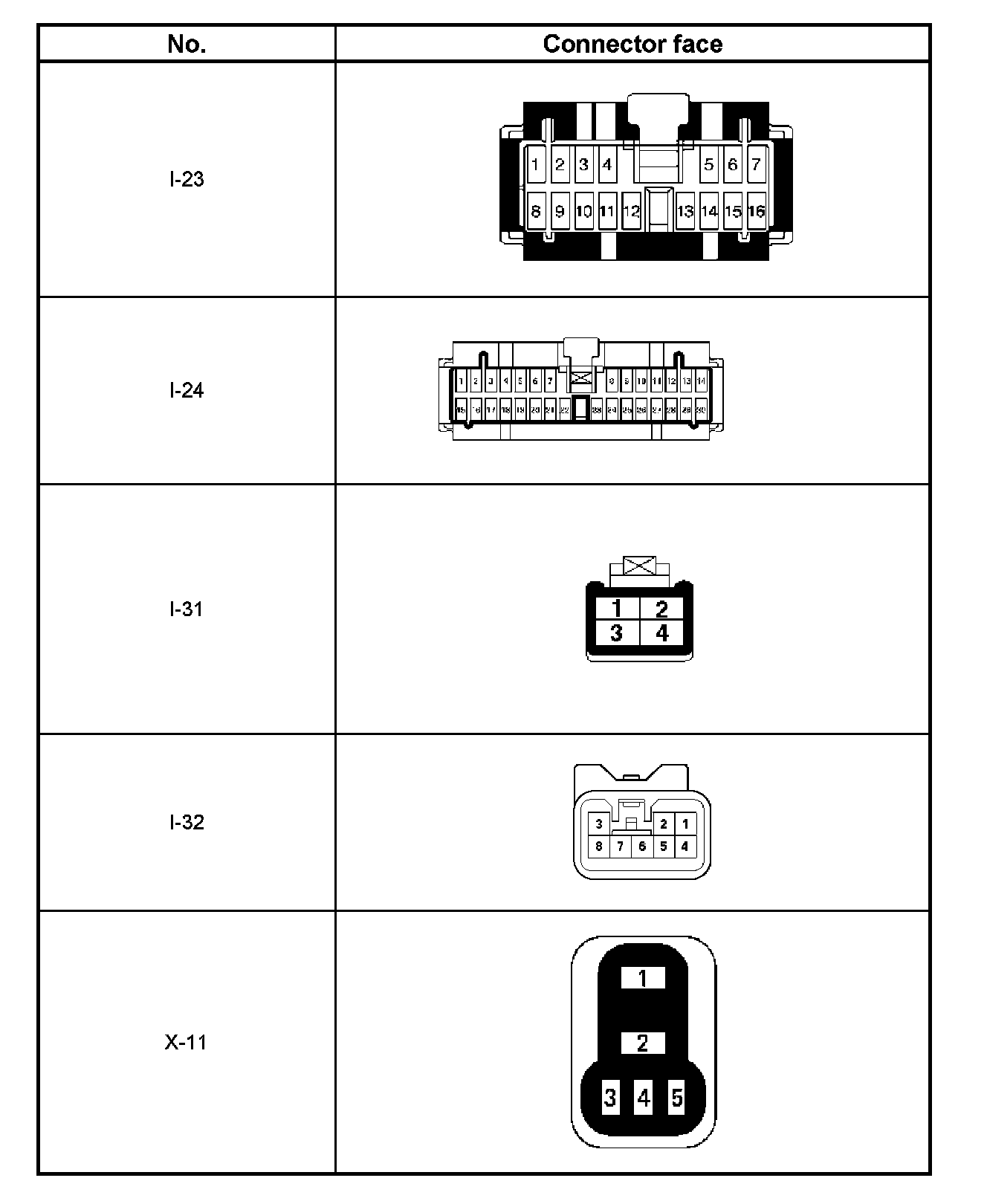

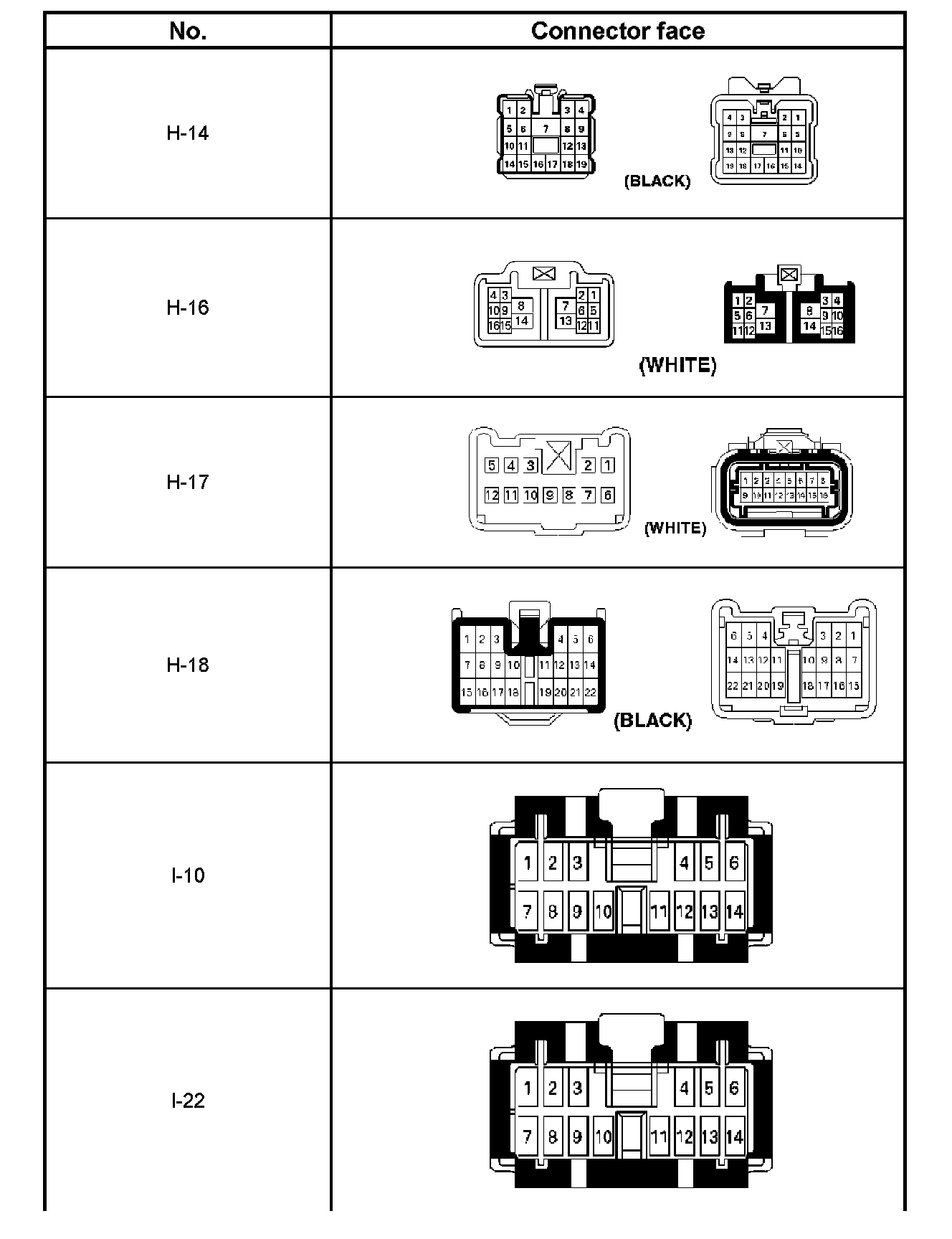

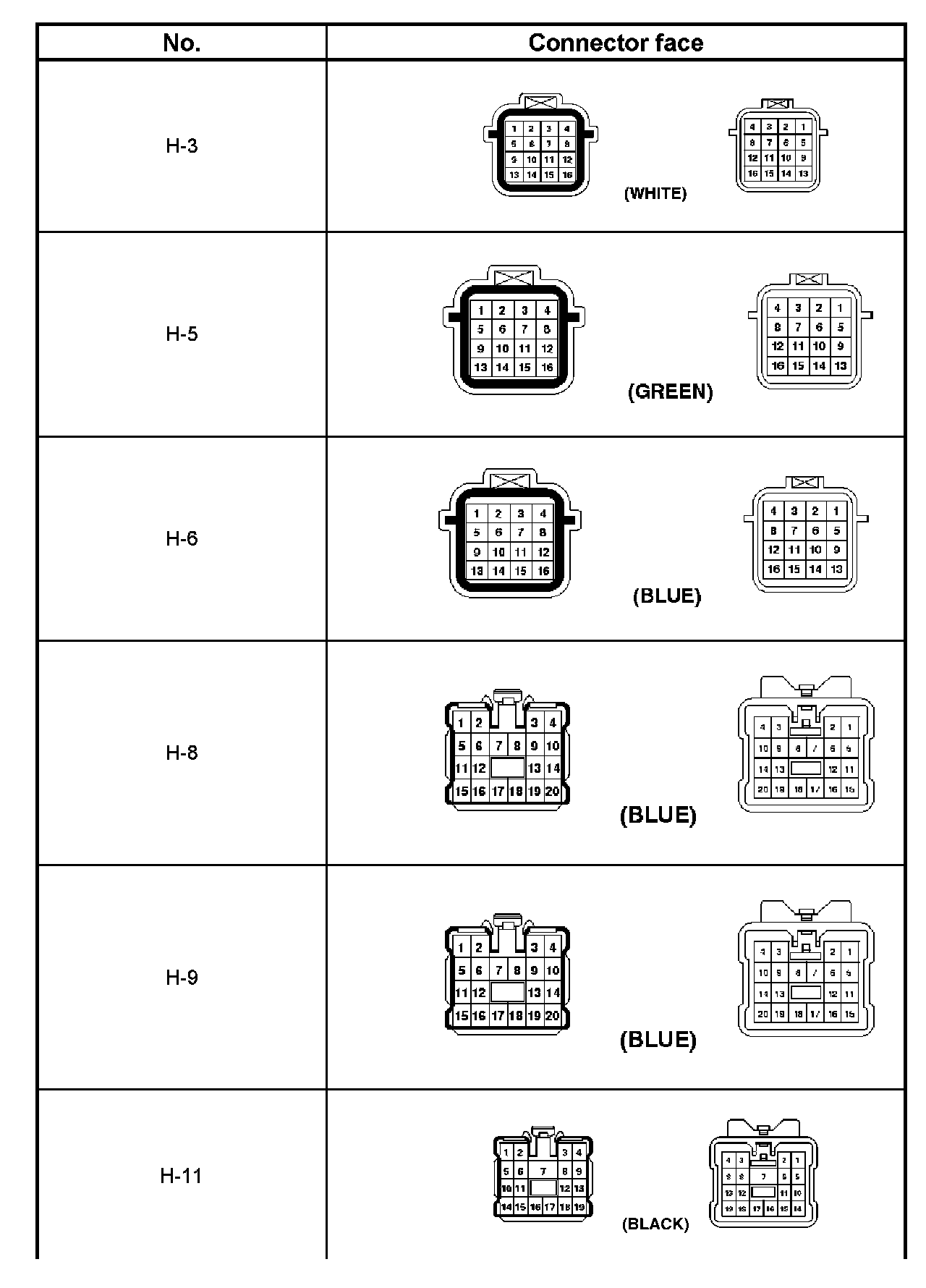

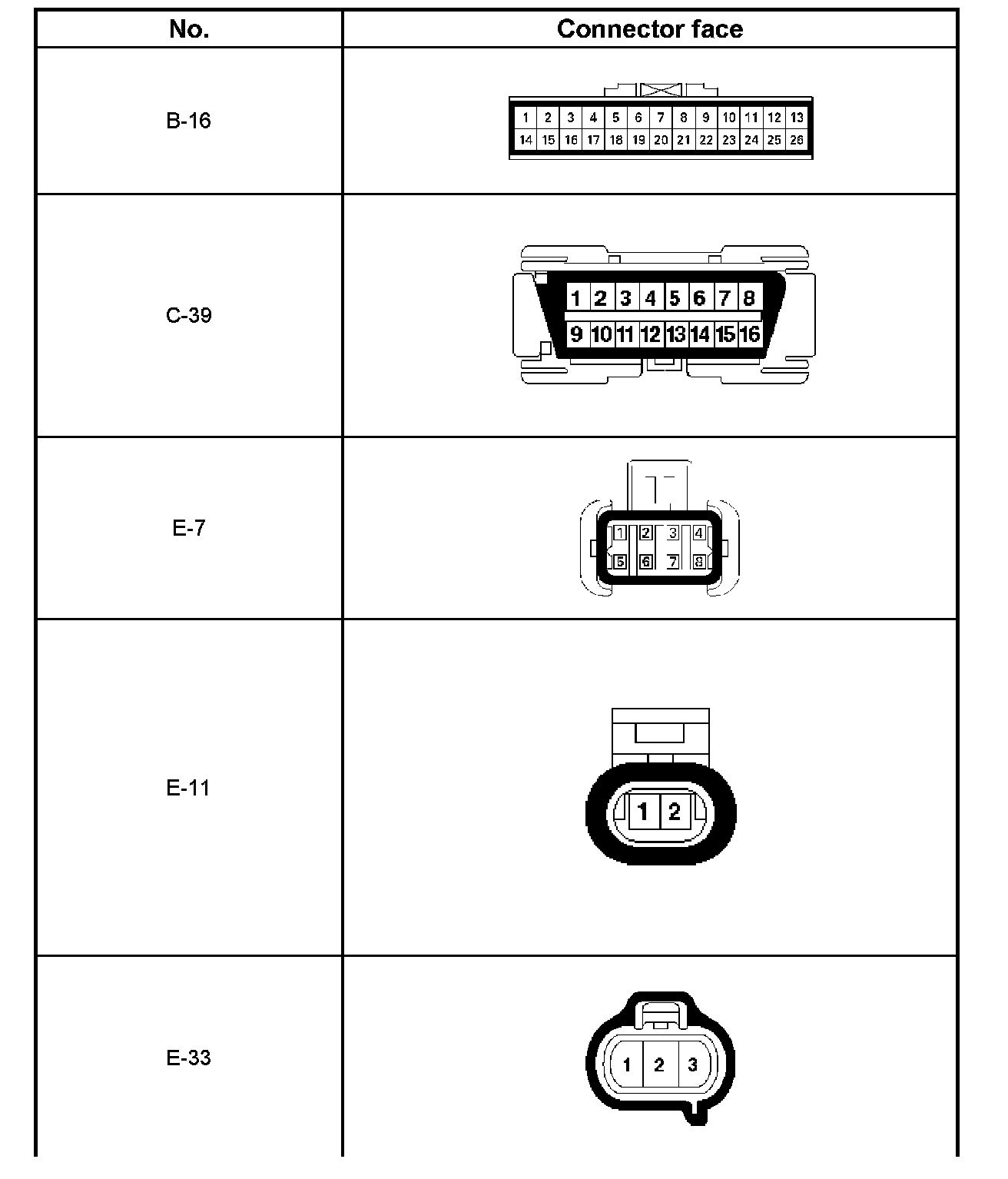

Harness Connector Faces
1 of 5
2 of 5
3 of 5
4 of 5
5 of 5
