Keyless Entry: Locations

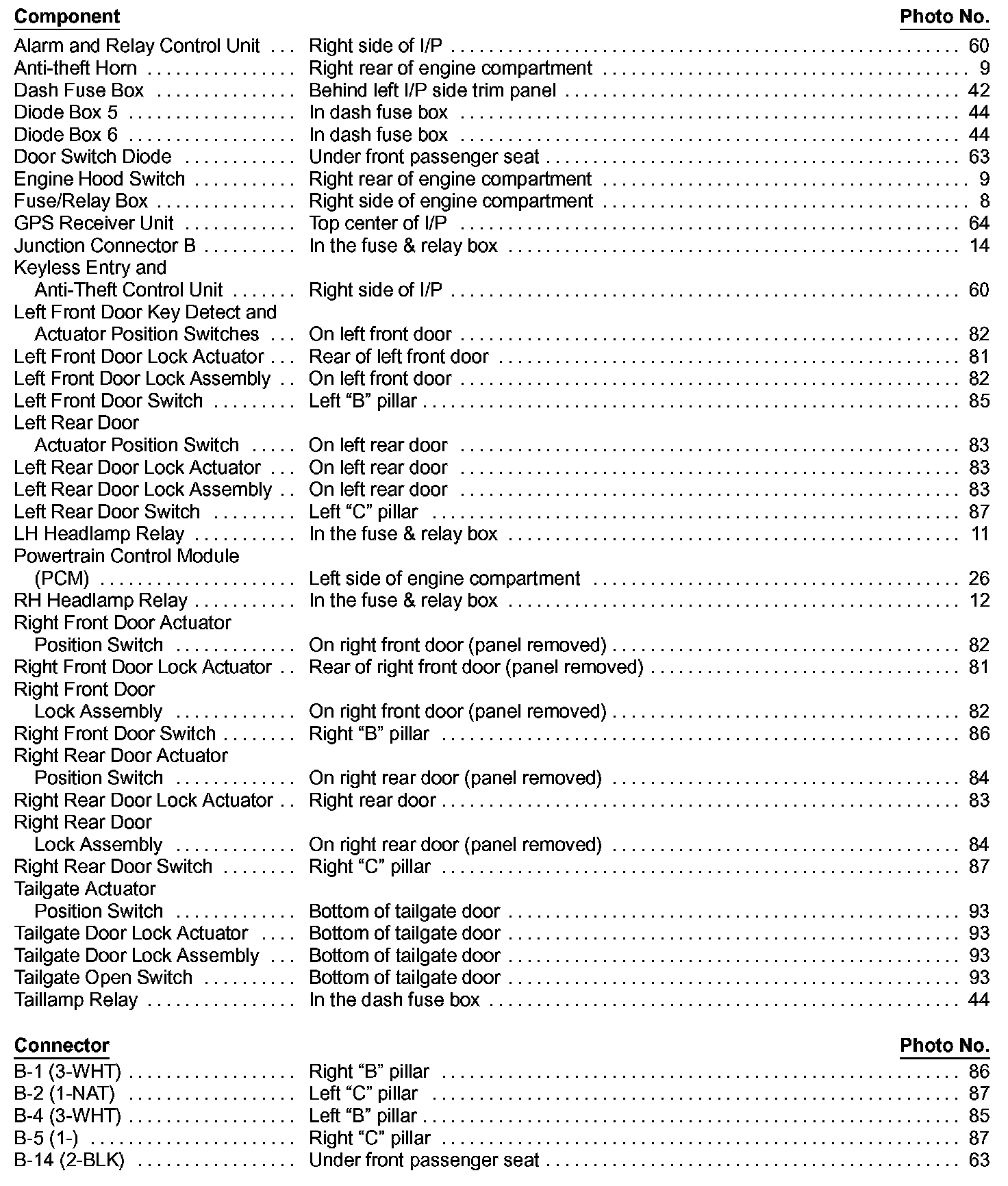

Keyless Entry And Anti-Theft System Component Location Index Image 133-10:

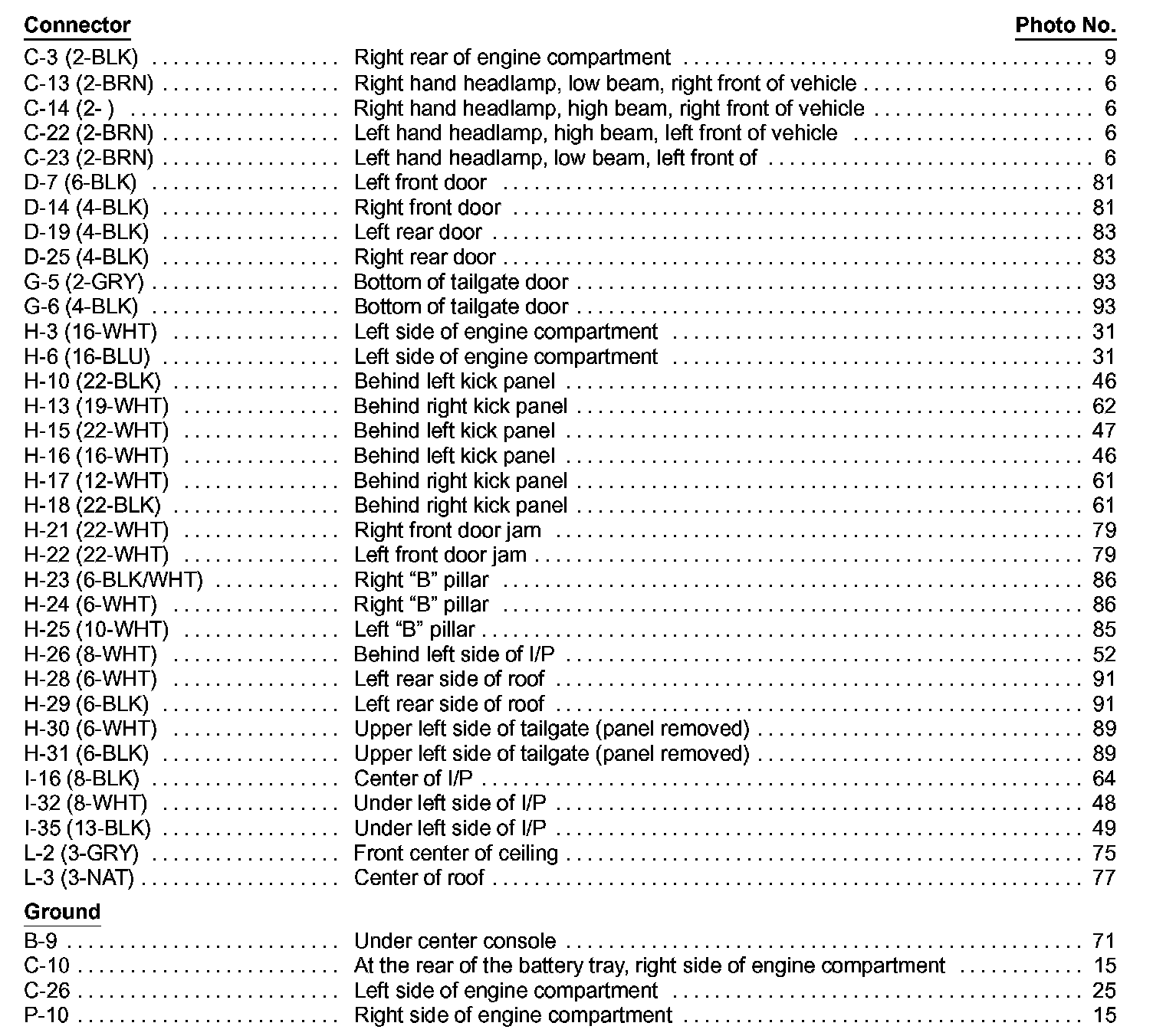

Keyless Entry And Anti-Theft System Component Location Index Image 133-11:

60. Right Side of I/P (Glove Box Removed):

Component Location Index photographs can be found at Diagnosis and Repair/Location/Components
Component Locations
