Procedure Using Tech 2

This test is conducted check MIL and Low Fuel Lamp for its working.
Tech2 must be used for this test.

Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Run the engine at idle.

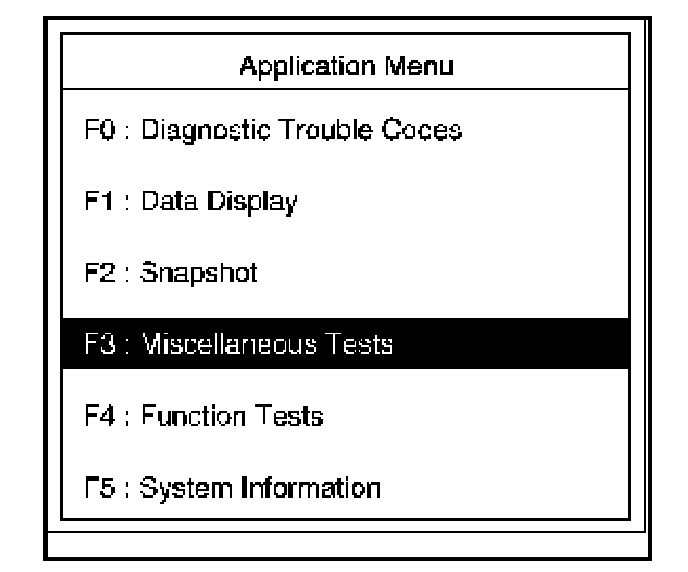

3. Select F3: Miscellaneous Test in the Application Menu.

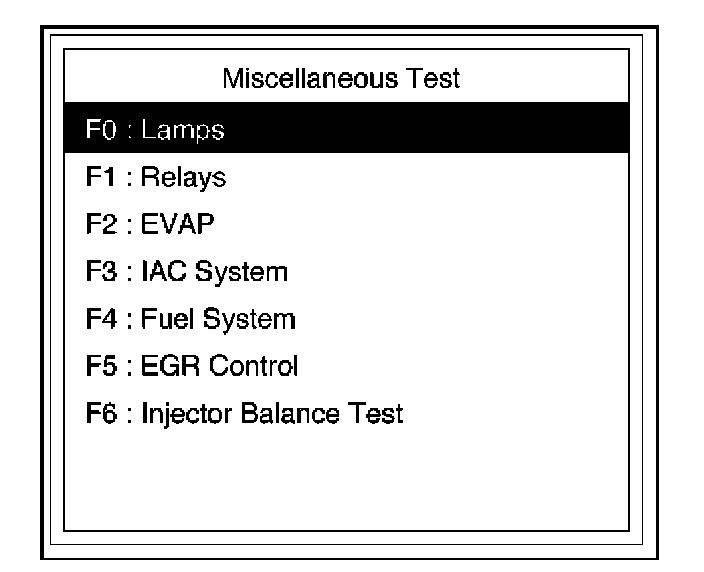

4. Select F0: Lamps Test in the Miscellaneous Test.

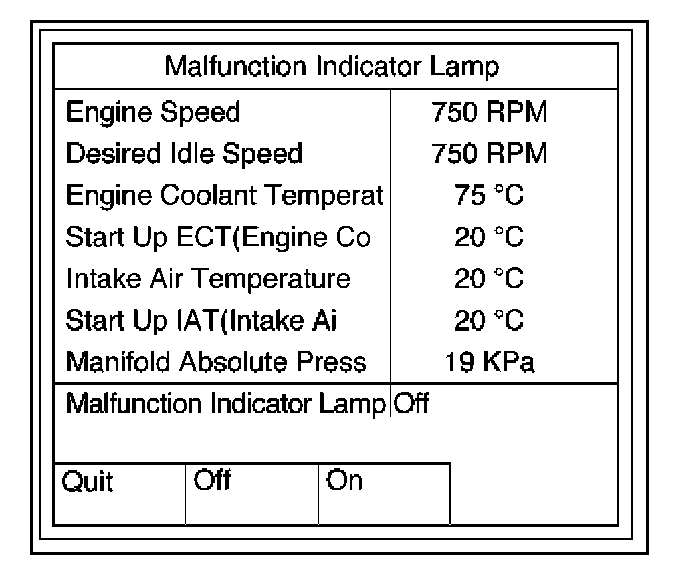

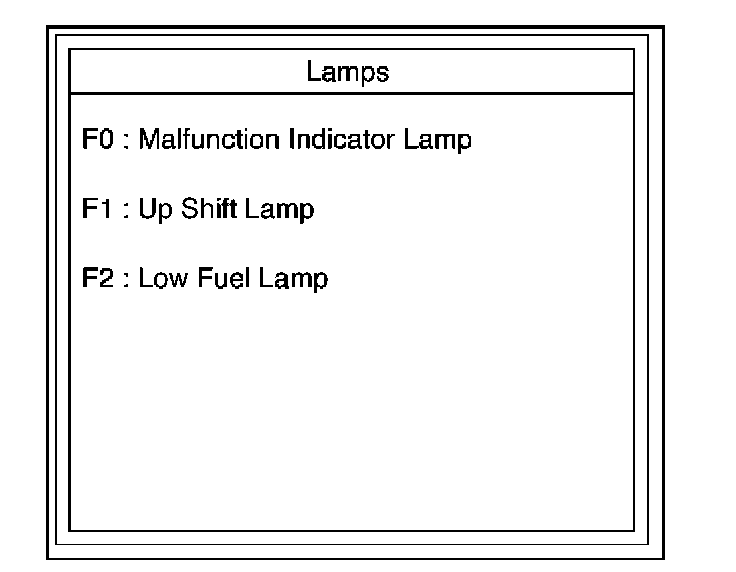

5. Select F0: Malfunction Indicator Lamp.
6. Push "On" soft key.
7. Make sure Lamp illuminates.
8. If lamp illuminates, the Lamp is operating correctly.

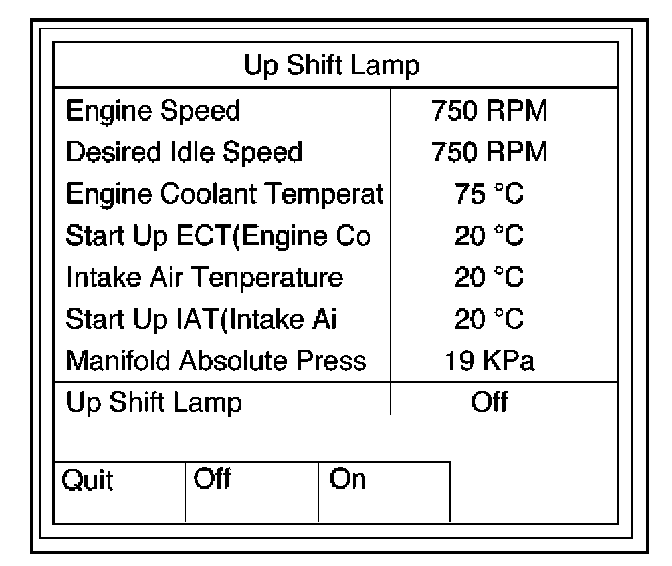

9. Select F1: Up Shift Lamp

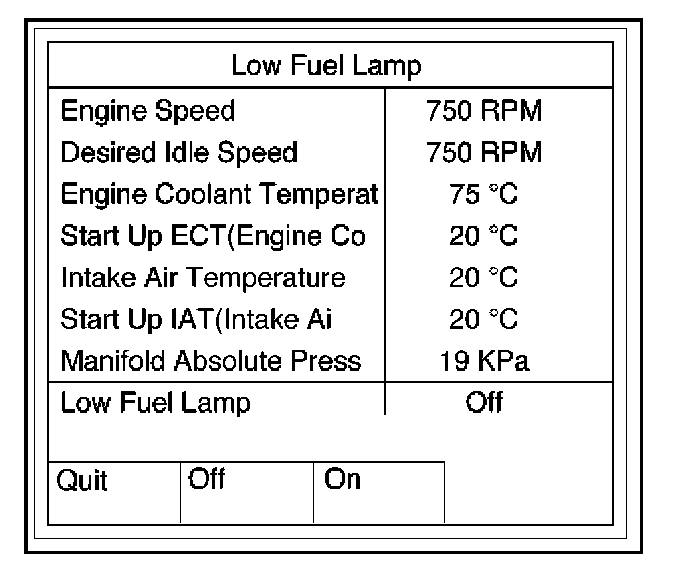

10. Select F2:Low Fuel Lamp
9. Push "On" soft key.
11. Make sure Lamp illuminates.
12. It Lamp illuminates, the Lamp is operating correctly.
