Cruise Control Module: Service and Repair

Removal
1. Disconnect the battery ground cable.
2. Remove the dash side trim panel (RH).
3. Disconnect the connector.

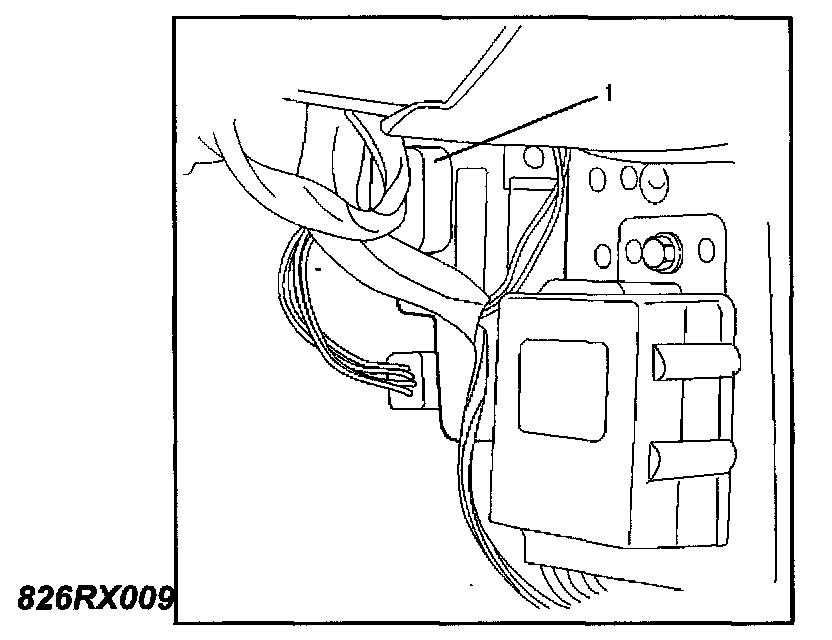

4. Remove a fixing nut to remove the cruise control unit (1)

Installation
To install, follow the removal steps in the reverse order.
