4WD Control Unit

REMOVAL
1. Remove lower cluster assembly and front console assembly.
2. Remove nut.
3. Remove 4WD control unit.

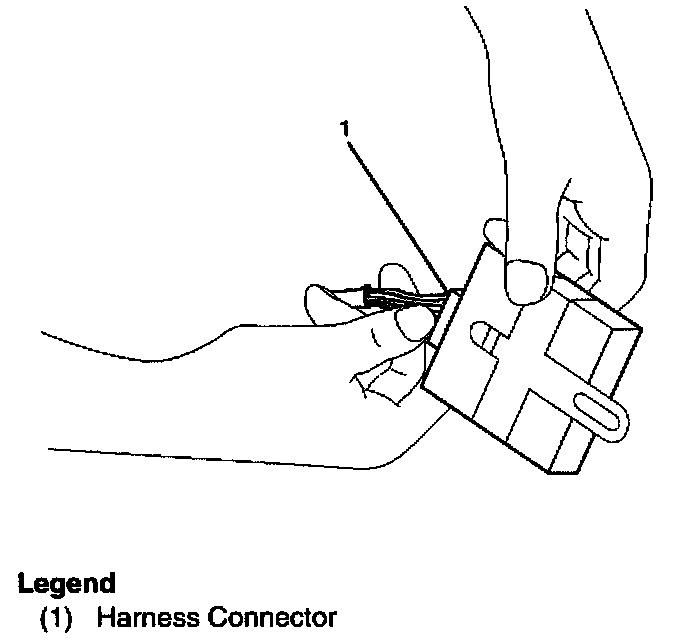

4. Disconnect harness connector (1).

INSTALLATION
1. Connect harness connector, then install 4WD control unit.
2. Install lower cluster assembly and front console assembly.
