Isuzu
>>
2000
>>
Trooper LS V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
Connector Locations

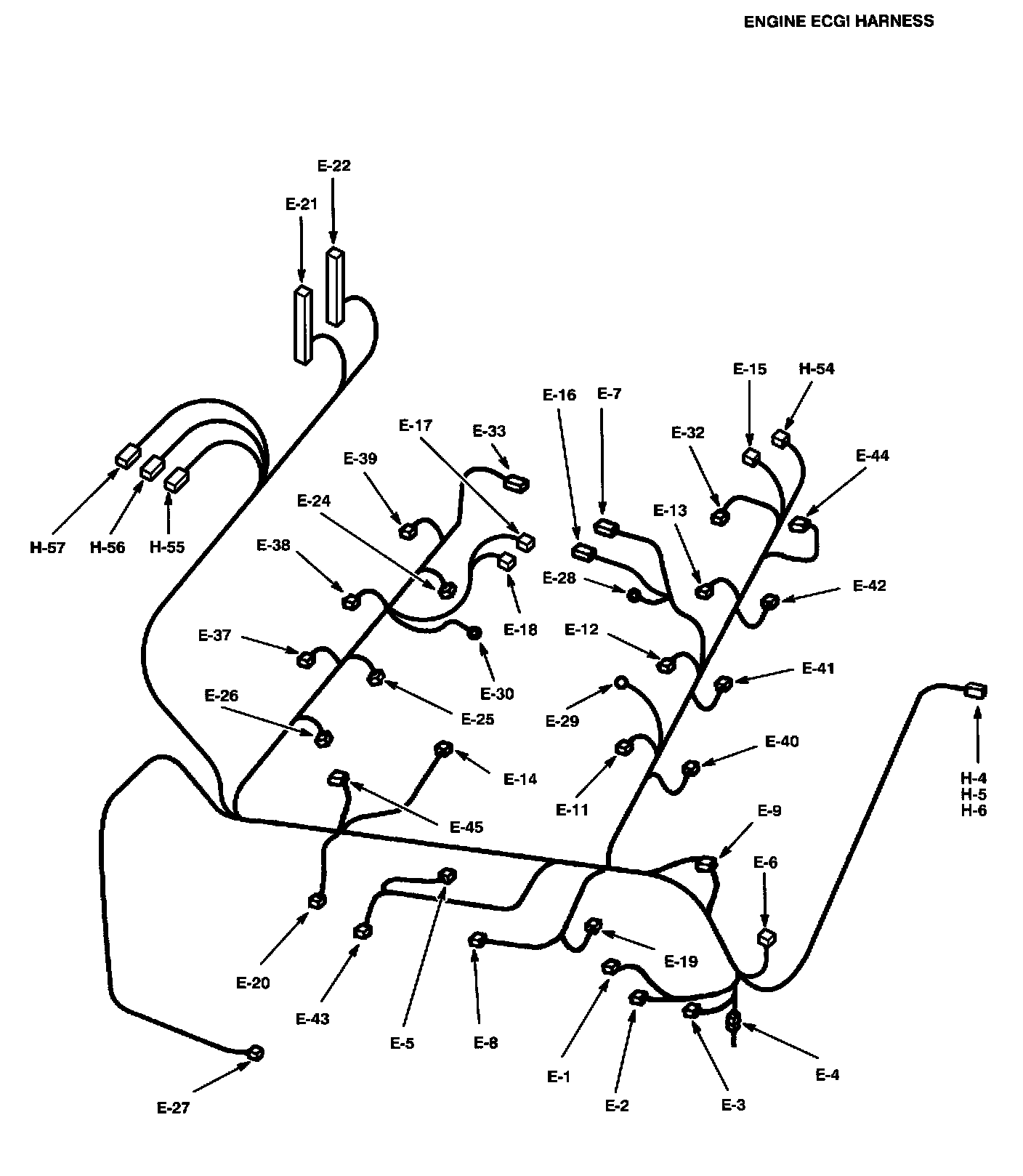

Connector & Harness Routing:
