Relay Box: Locations

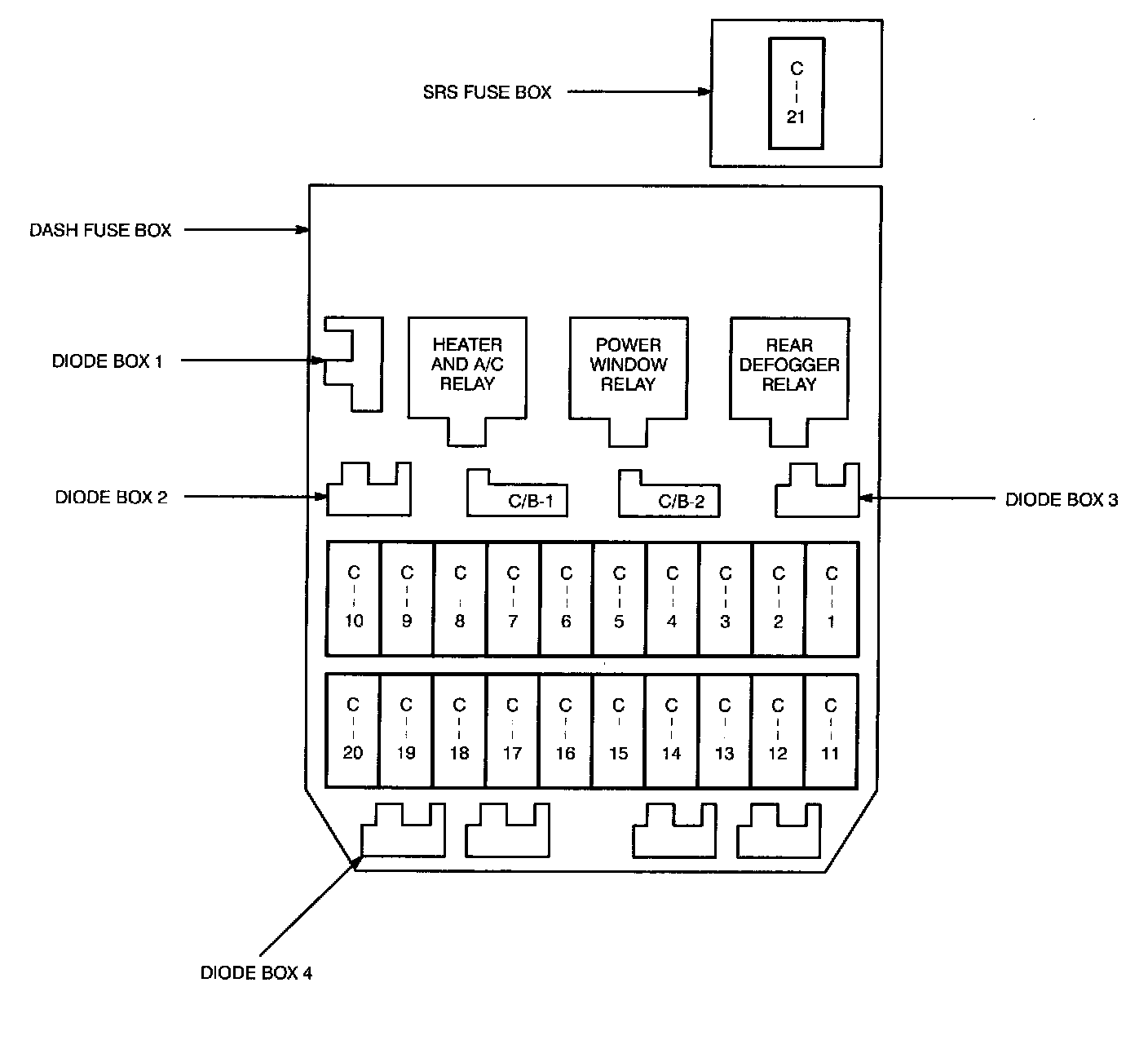

Dash and SRS Fuse Boxes:

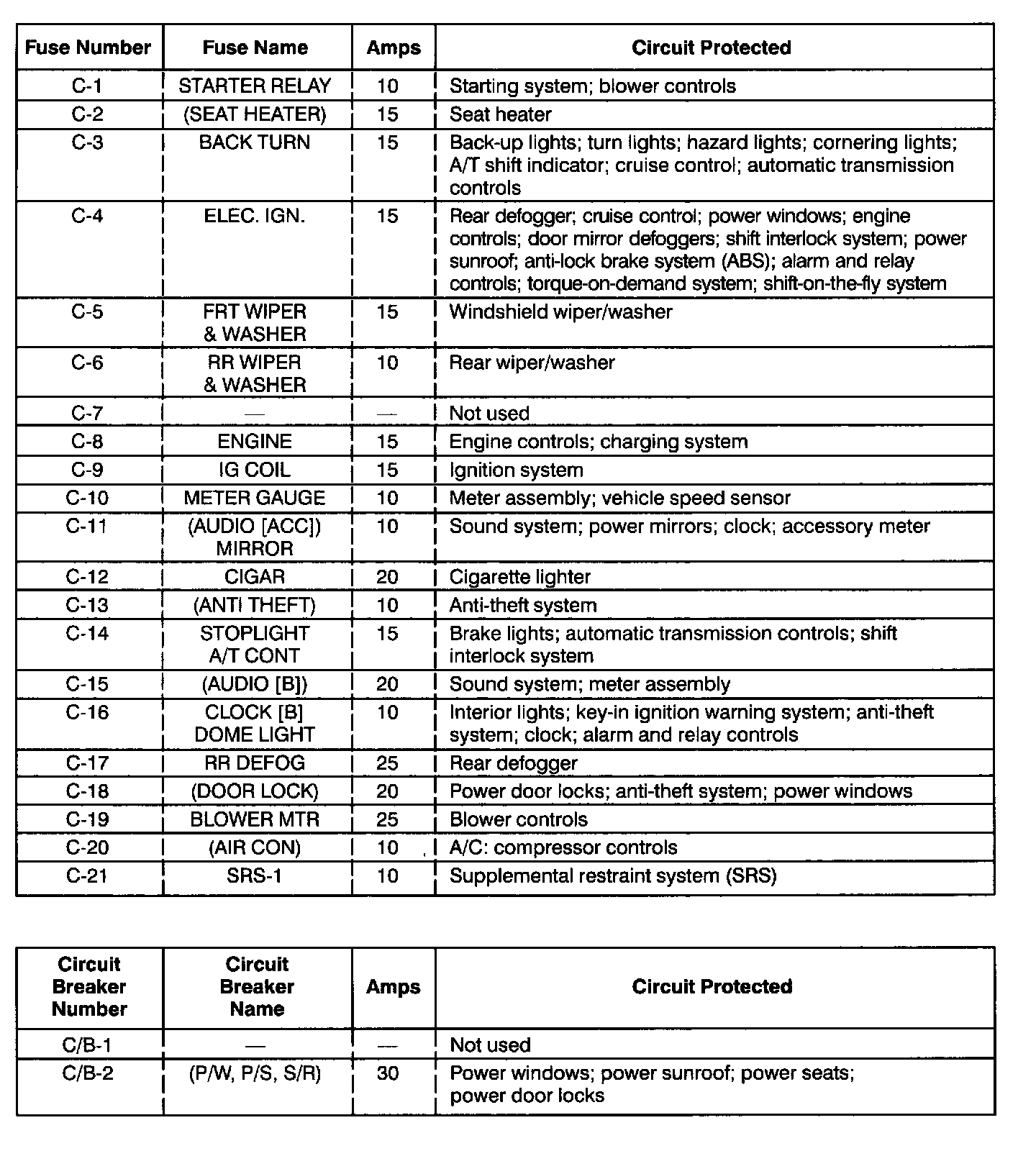

Dash and SRS Fuse Boxes Fuse Chart:

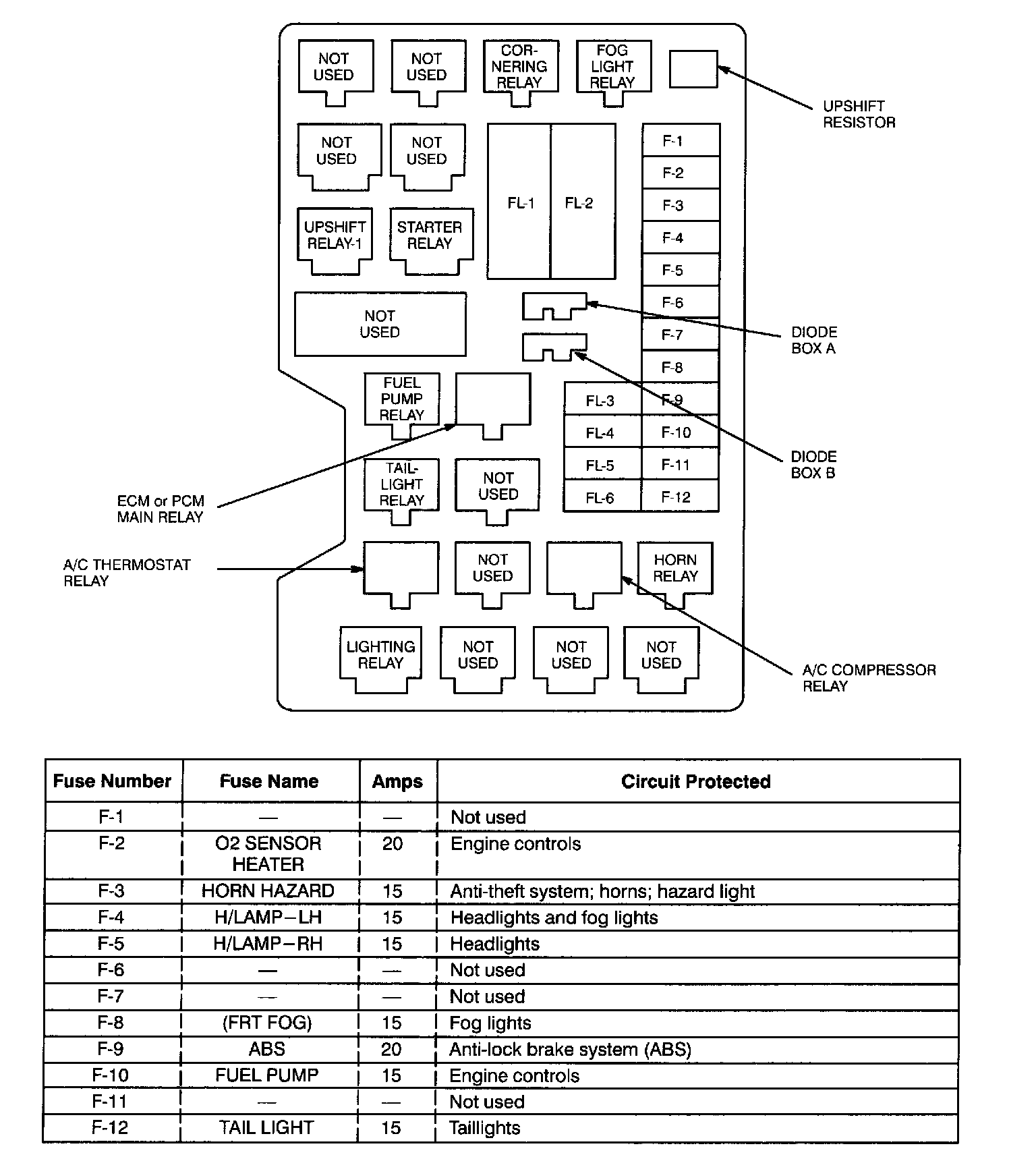

Fuse/Relay Box Fuse Chart (Part 1 Of 2):

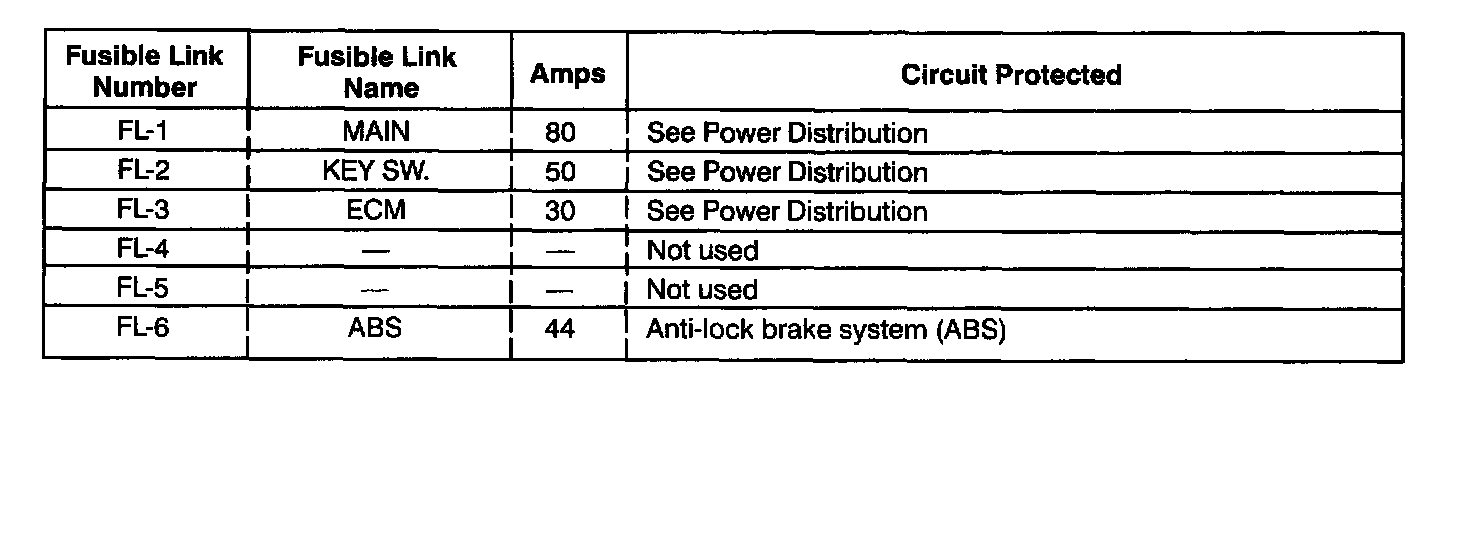

Fuse/Relay Box Fuse Chart (Part 2 Of 2):

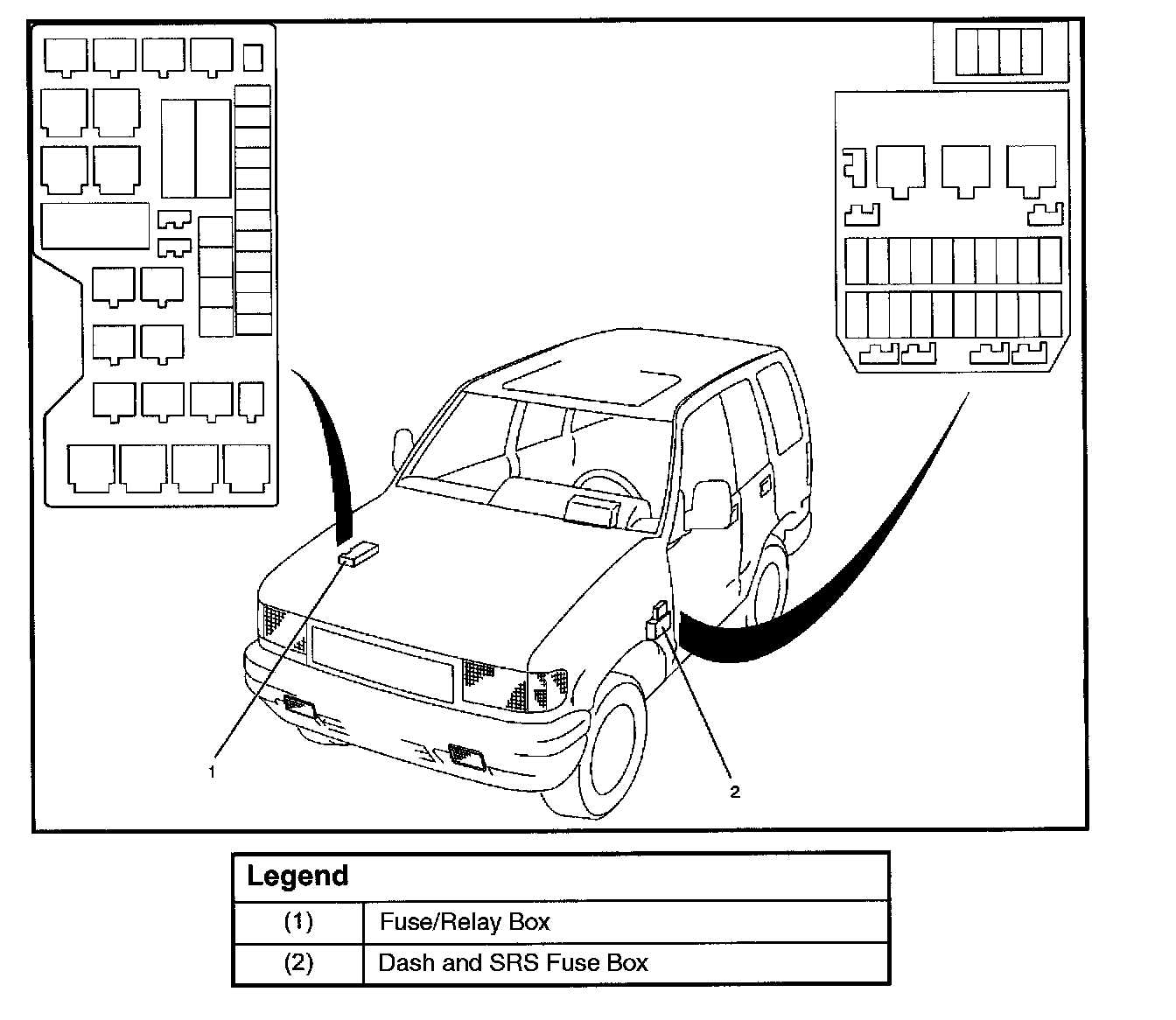

Fuse/Relay Box & Dash/SRS Fuse Box Locations:
