System Relay: Testing and Inspection

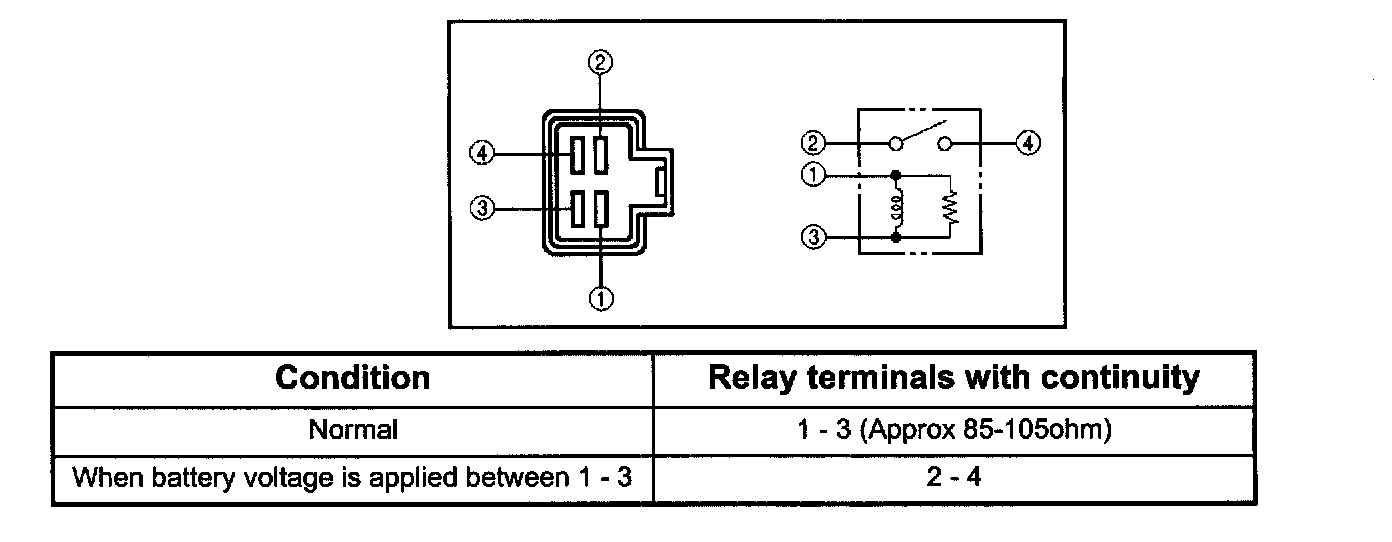

Heater and A/C (B-36), Thermostat (X-5) and Compressor (X-7) Relay






1. Disconnect relays and check for continuity and resistance between relay terminals.
- For handling of these relays, refer to Heater & A/C Relay.
