Manual Transmission/Transaxle

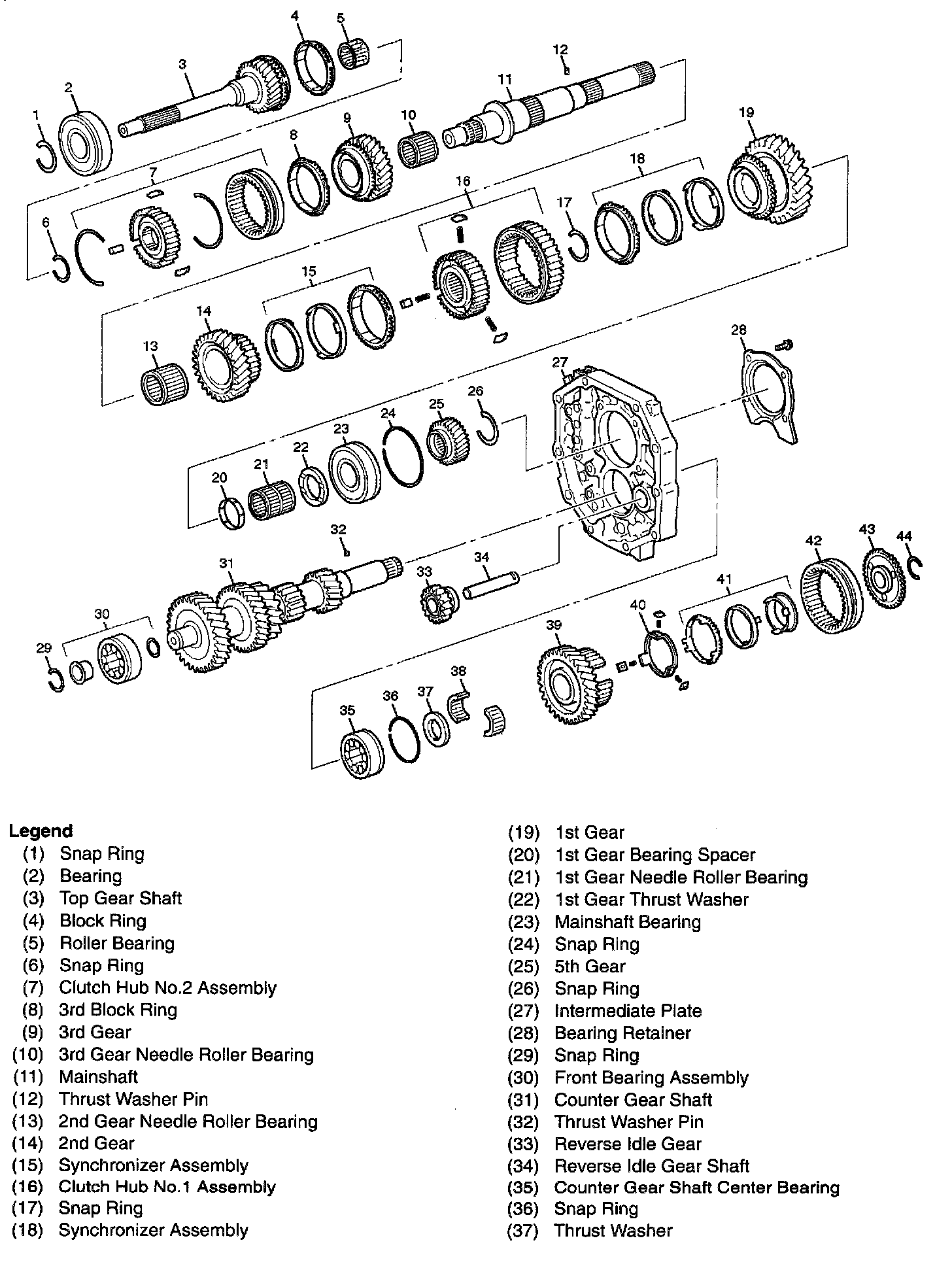

Part 1 Of 2:

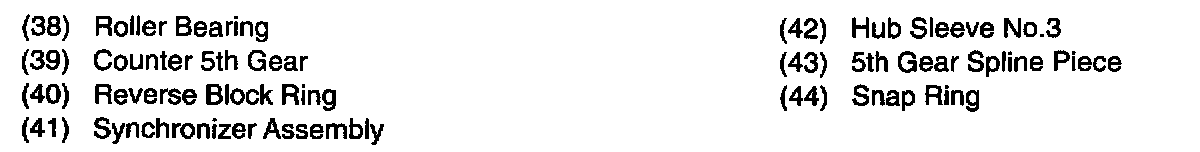

Part 2 Of 2:

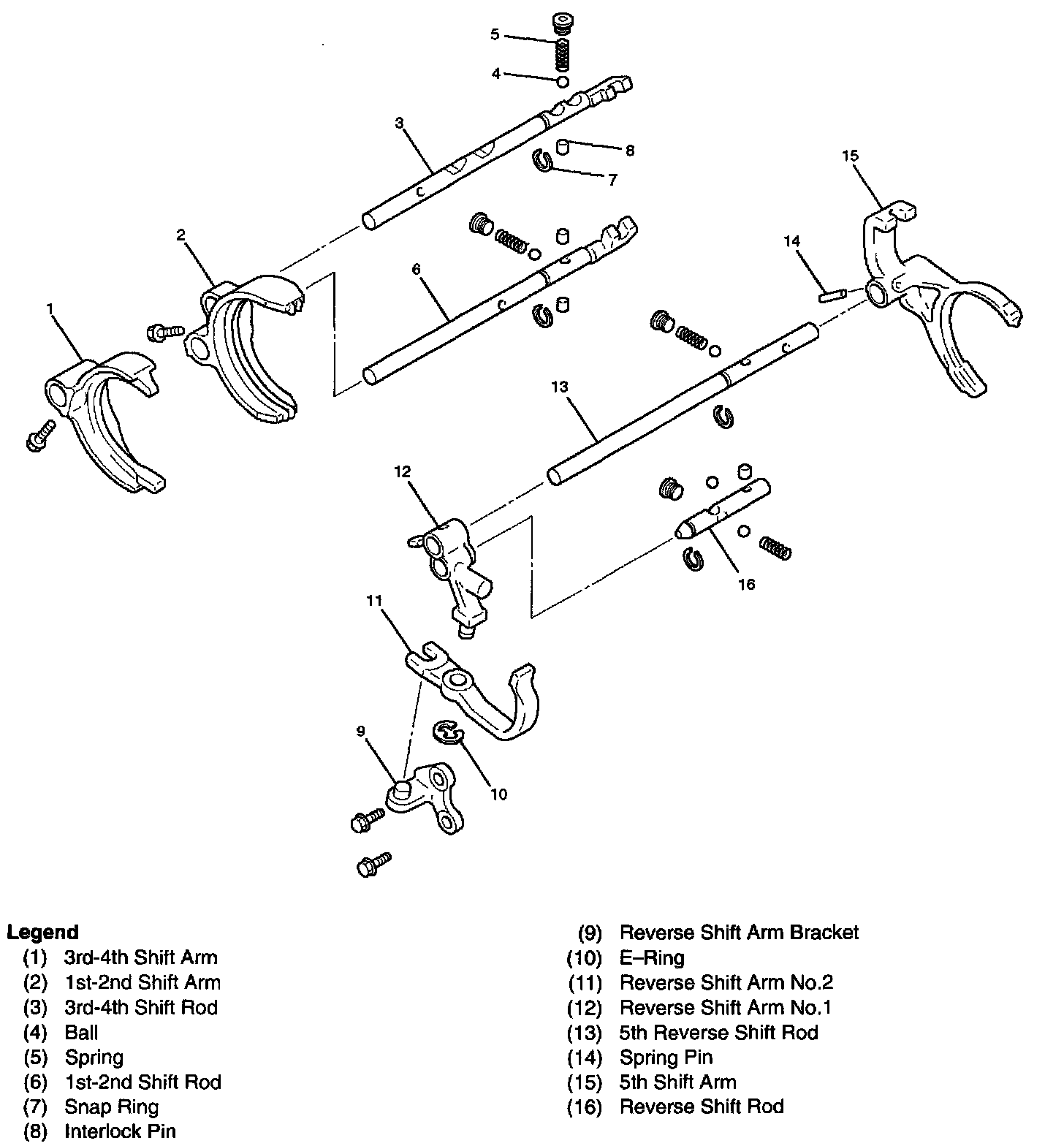

Shift Forks:

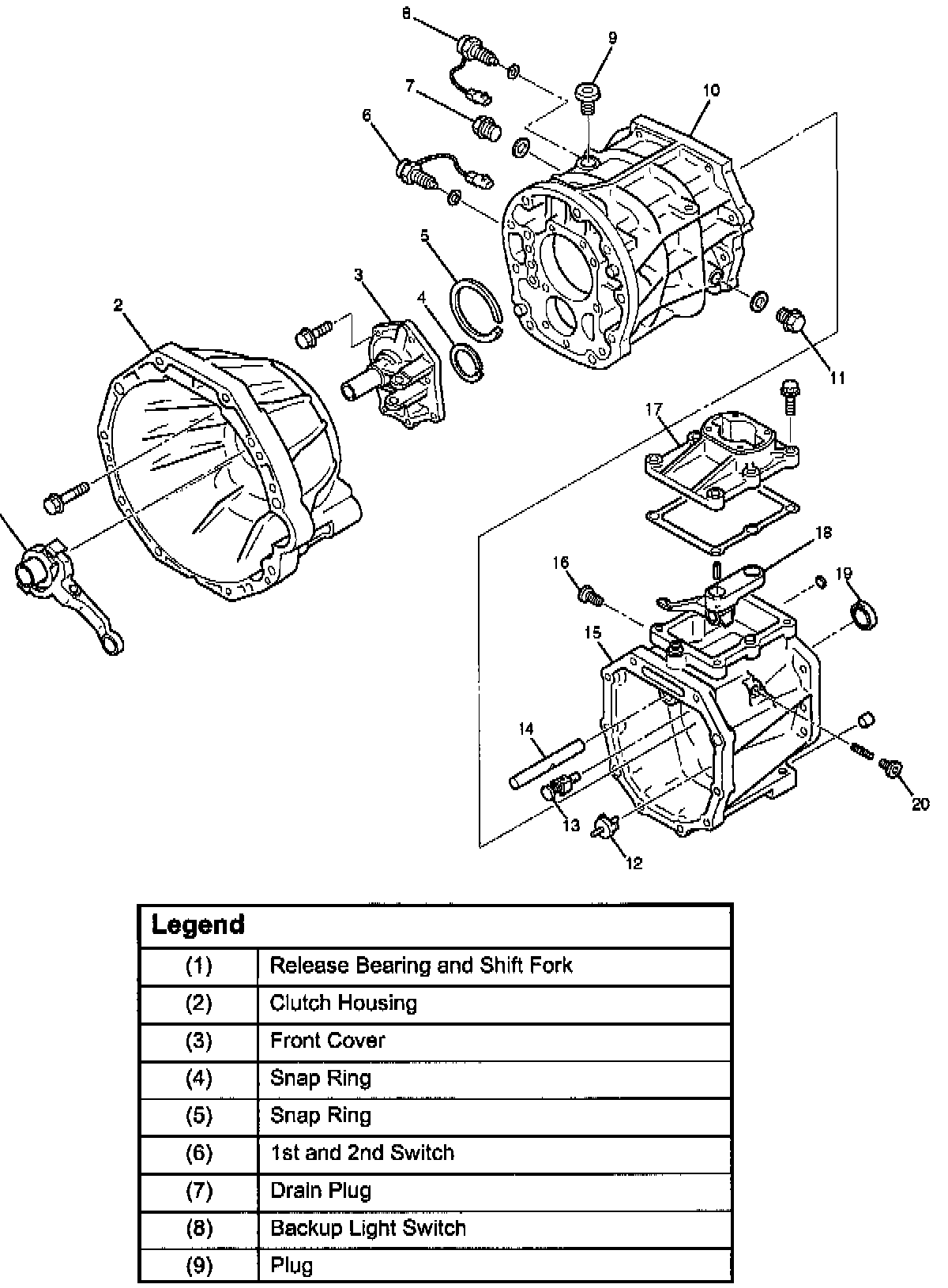

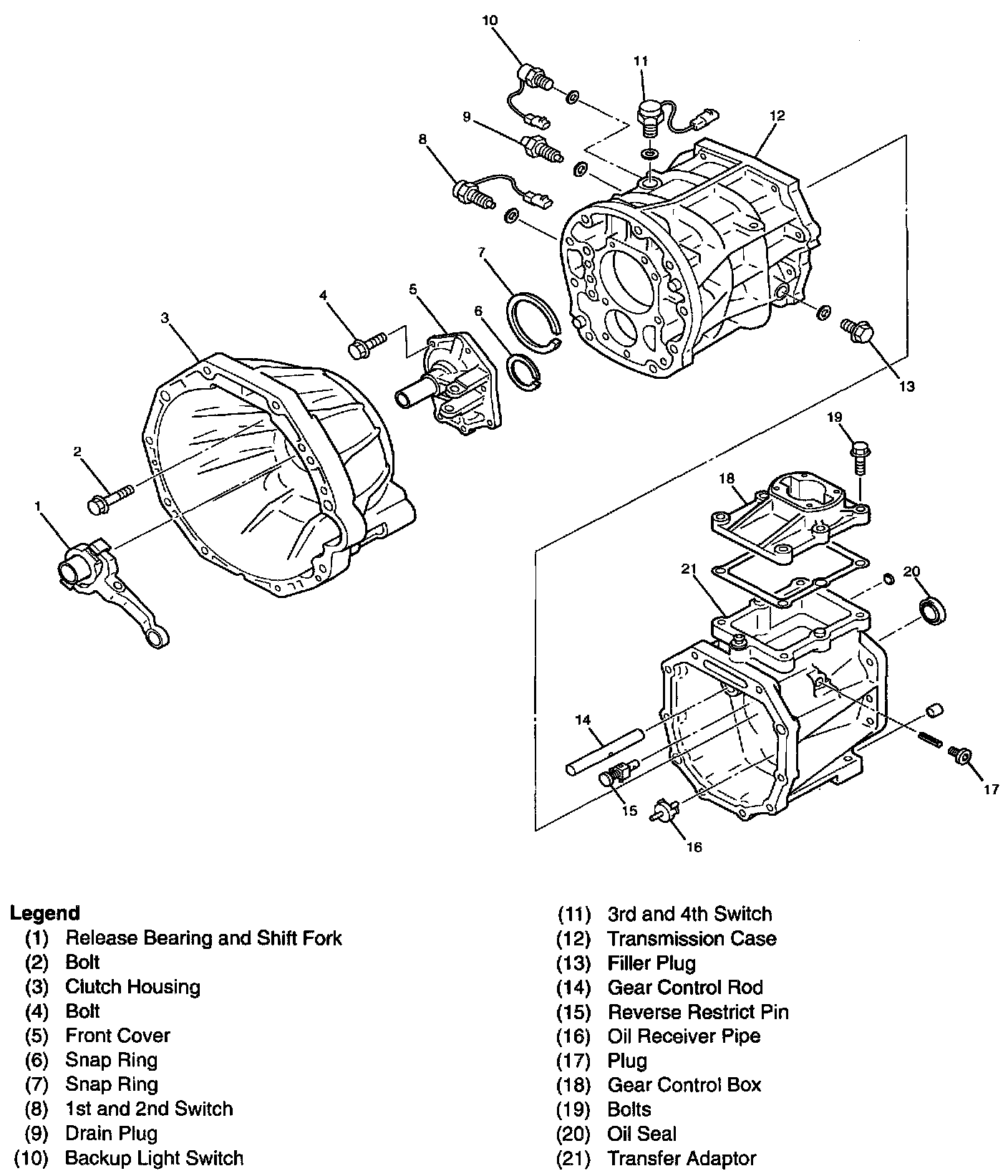

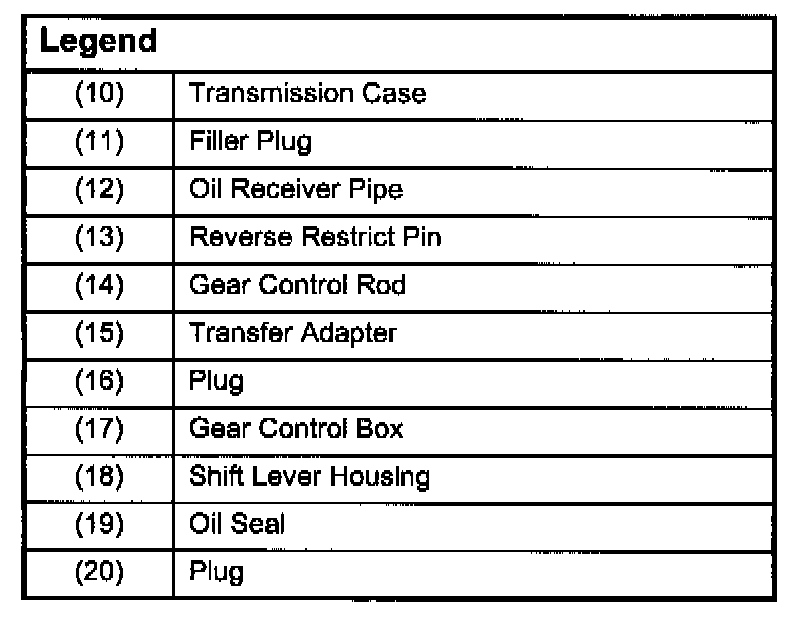

Housing:




Part 5 Of 6:




Part 6 Of 6:





DISASSEMBLED VIEWS FOR OVERHAUL PROCEDURE
