Transmission Control Systems: Locations

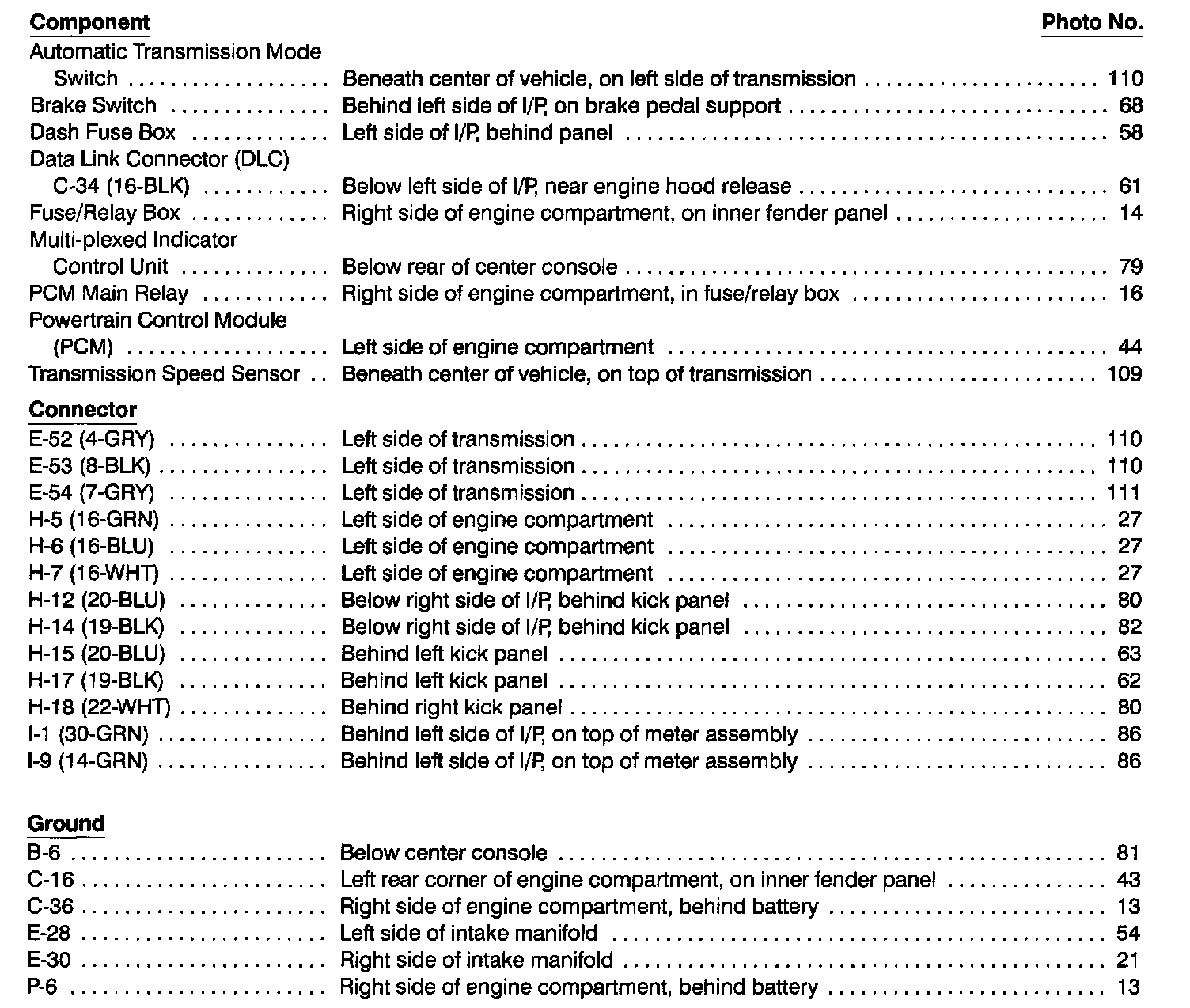

Automatic Transmission Controls Index:

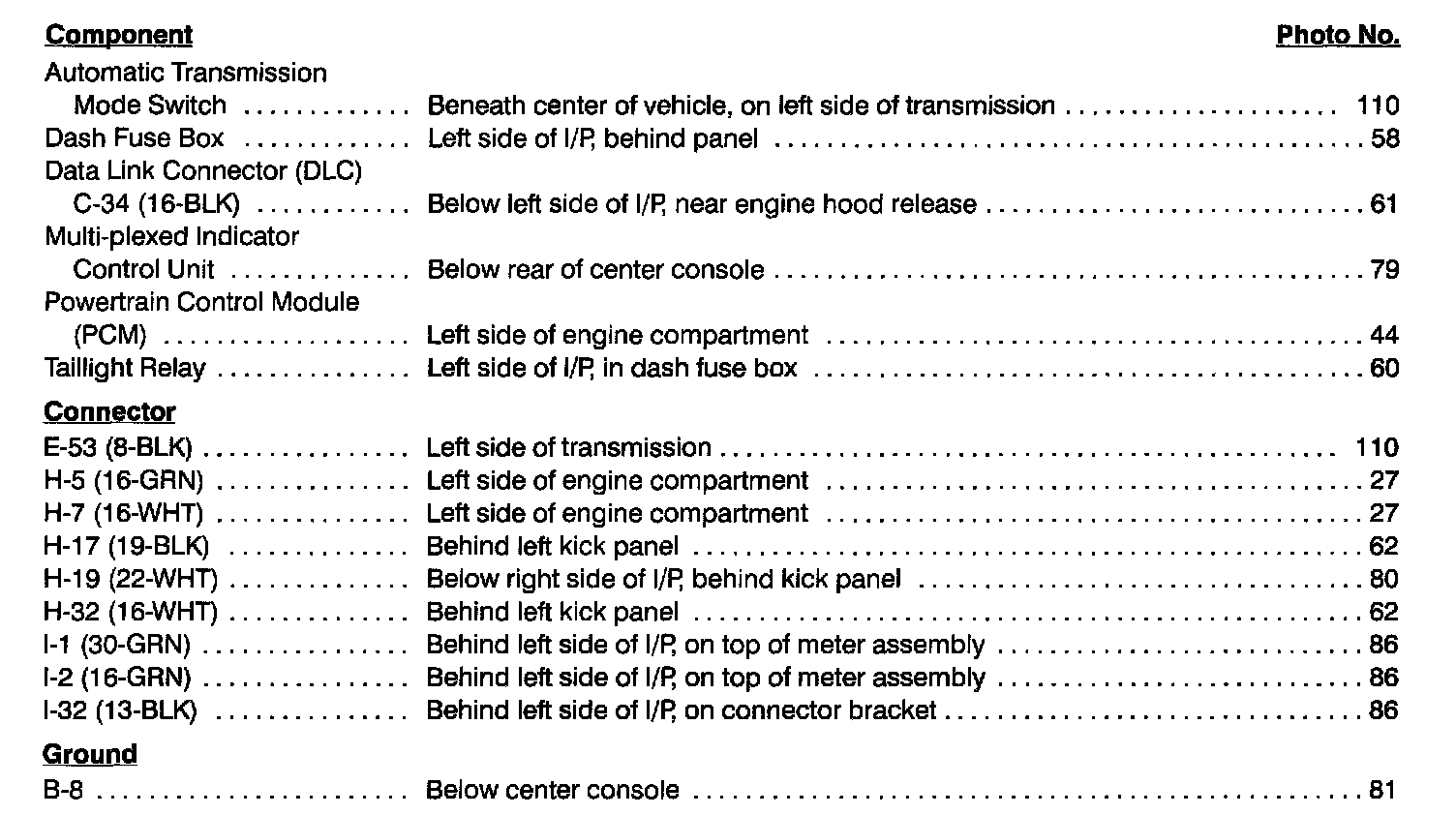

Multi-Plexed Indicator Unit (3.2L) Index:

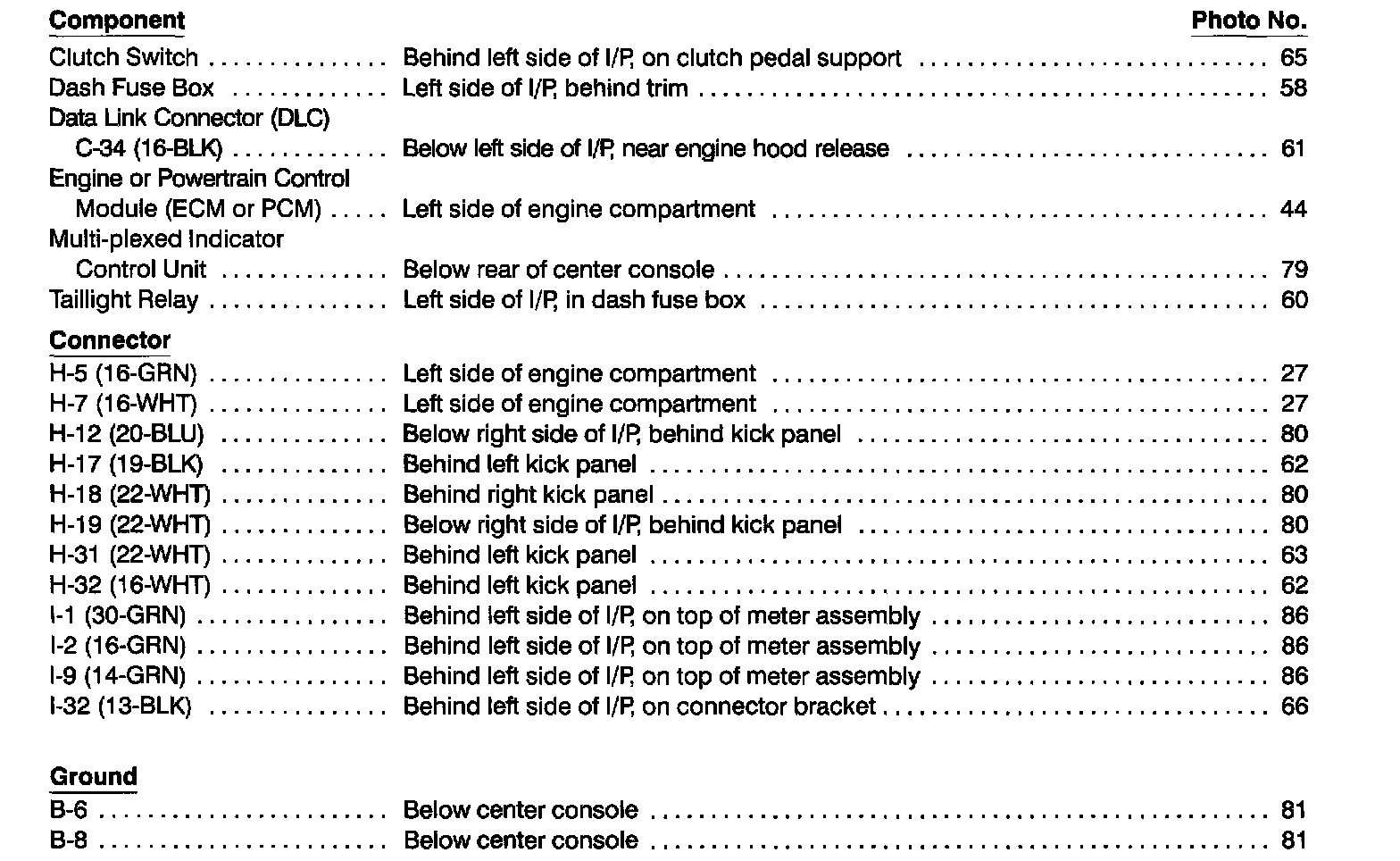

A/T Shift Indicator Index:

Component Location Index photographs can be found at Component Locations.
Locations
