Home >> Isuzu >> 2000 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Specifications

Power and Ground Distribution: Specifications

Diode Specifications And Configurations:

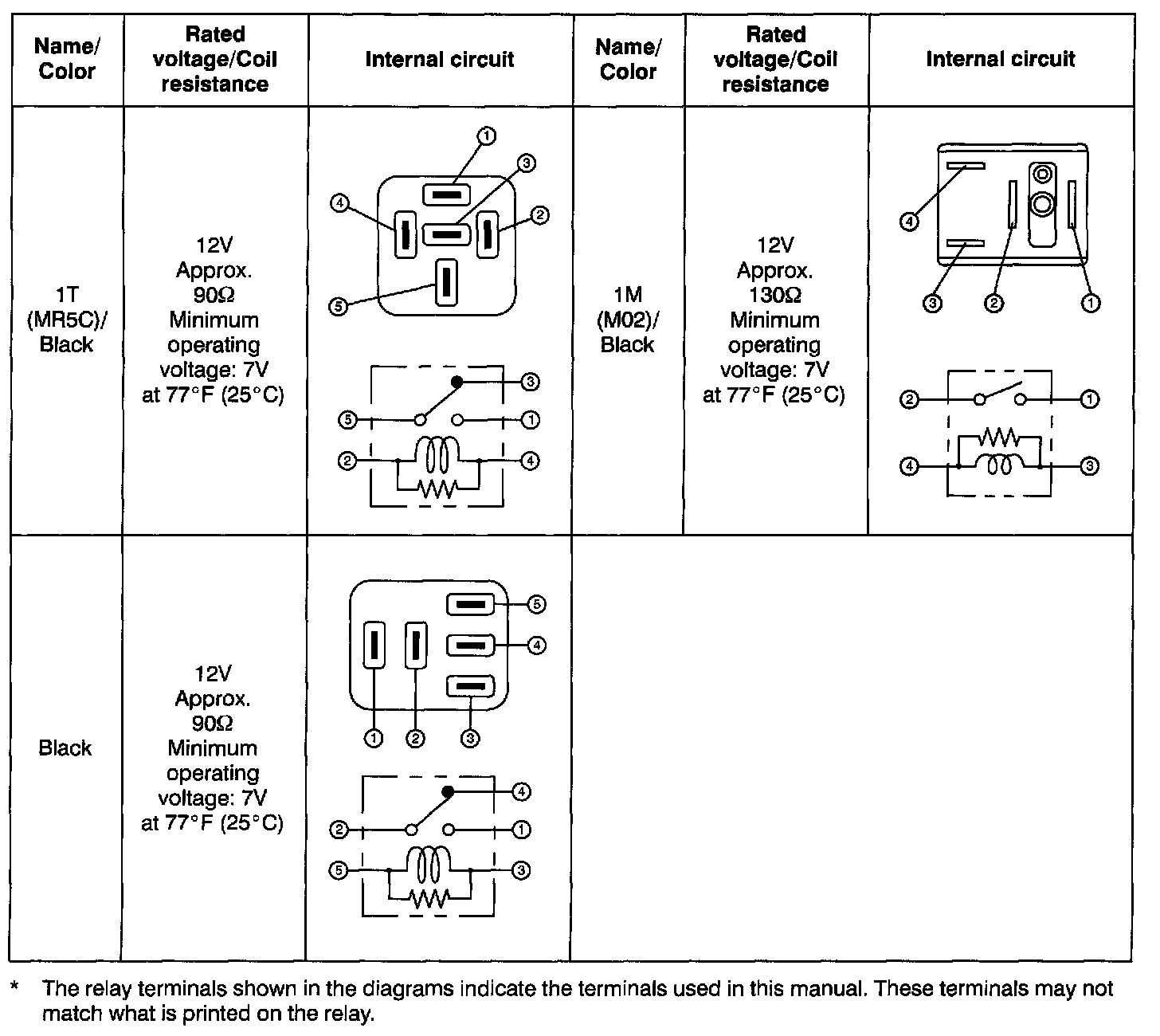

Relay Specifications And Configurations:
