Home >> Isuzu >> 2000 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Locations

Relay Box: Locations

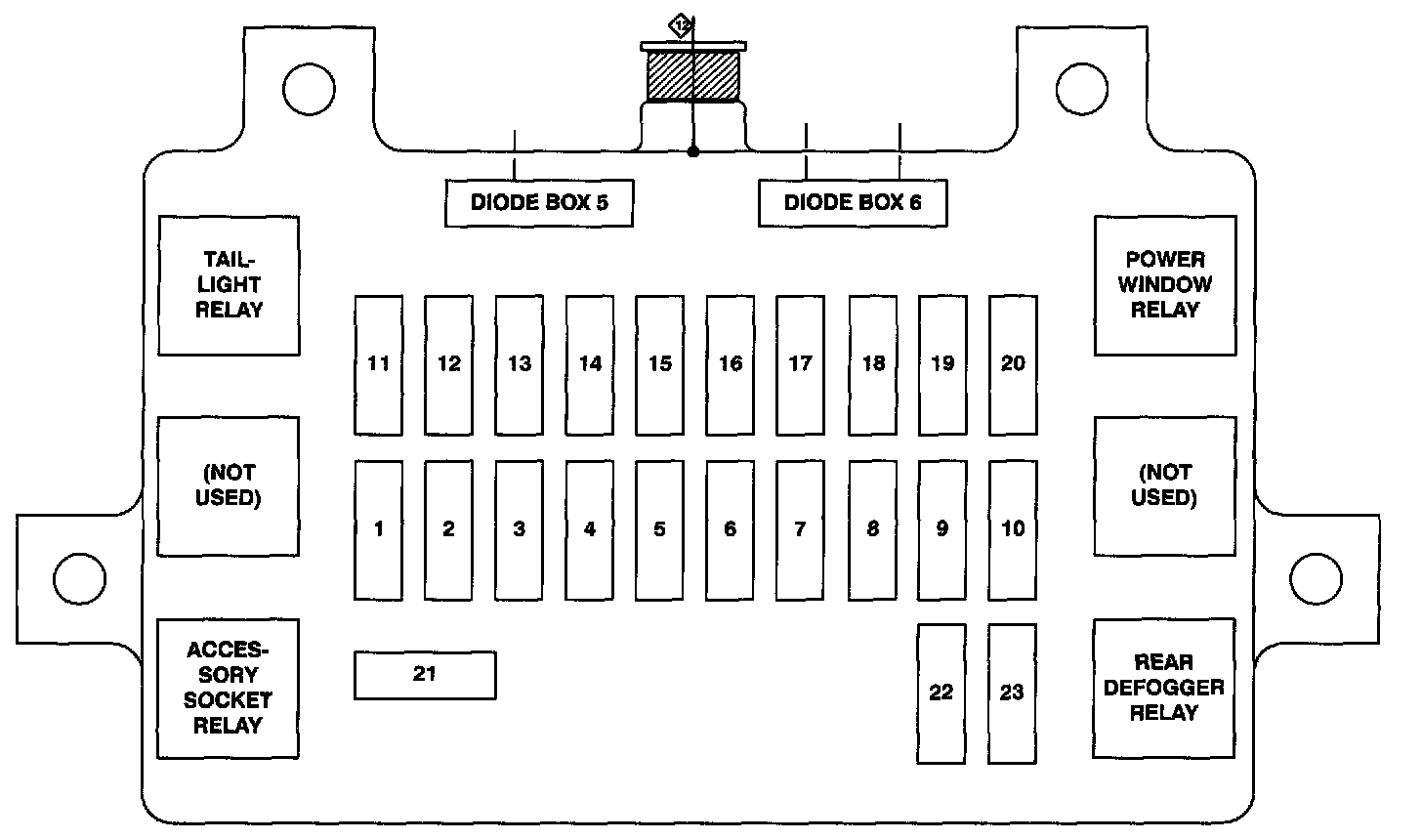

Dash Fuse Box:

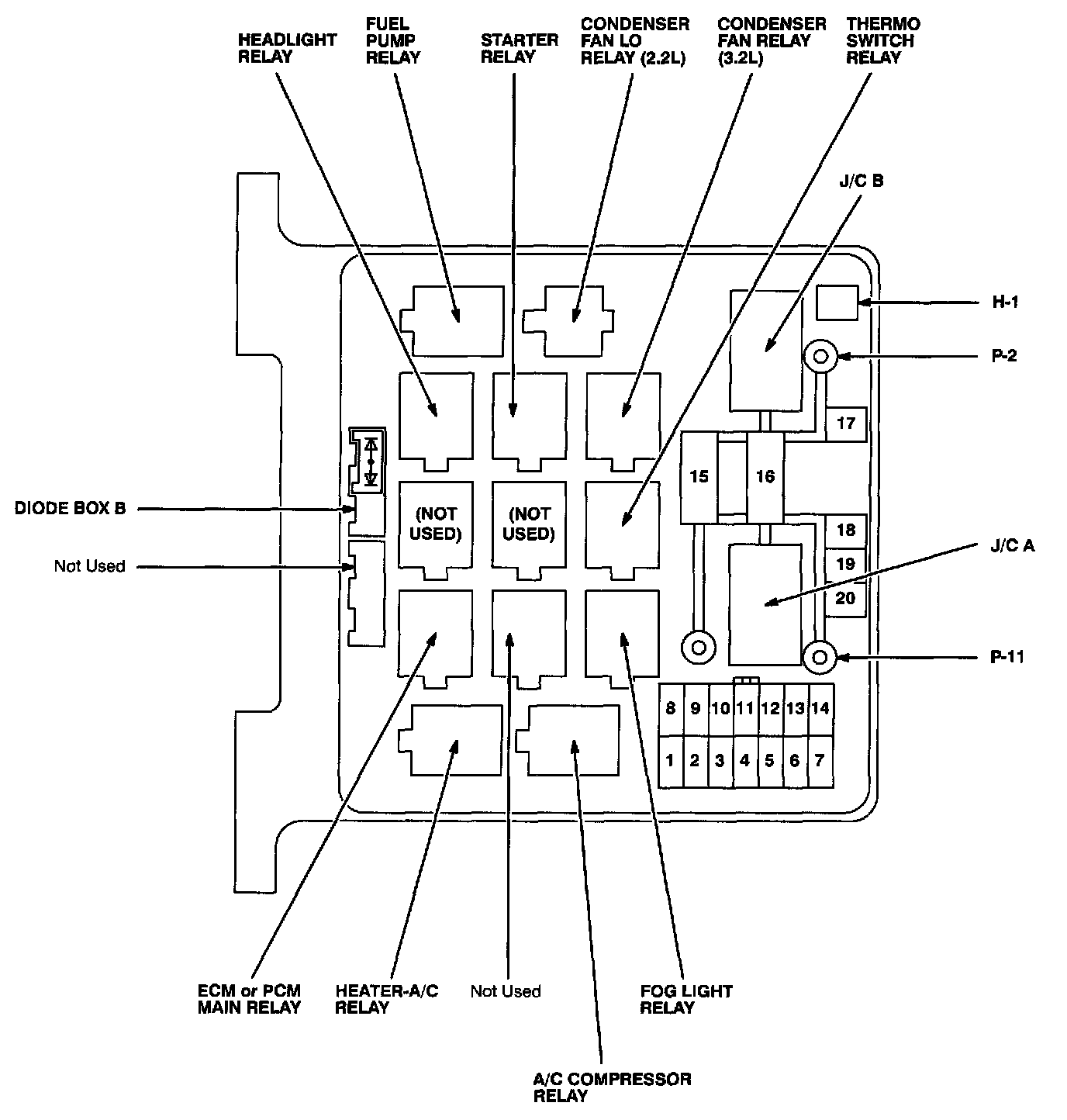

Fuse/Relay Box - Engine Room:

Relay/Fuse Box Locations:
