Home >> Isuzu >> 2000 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Locations >> Component List >> Grounds

Grounds

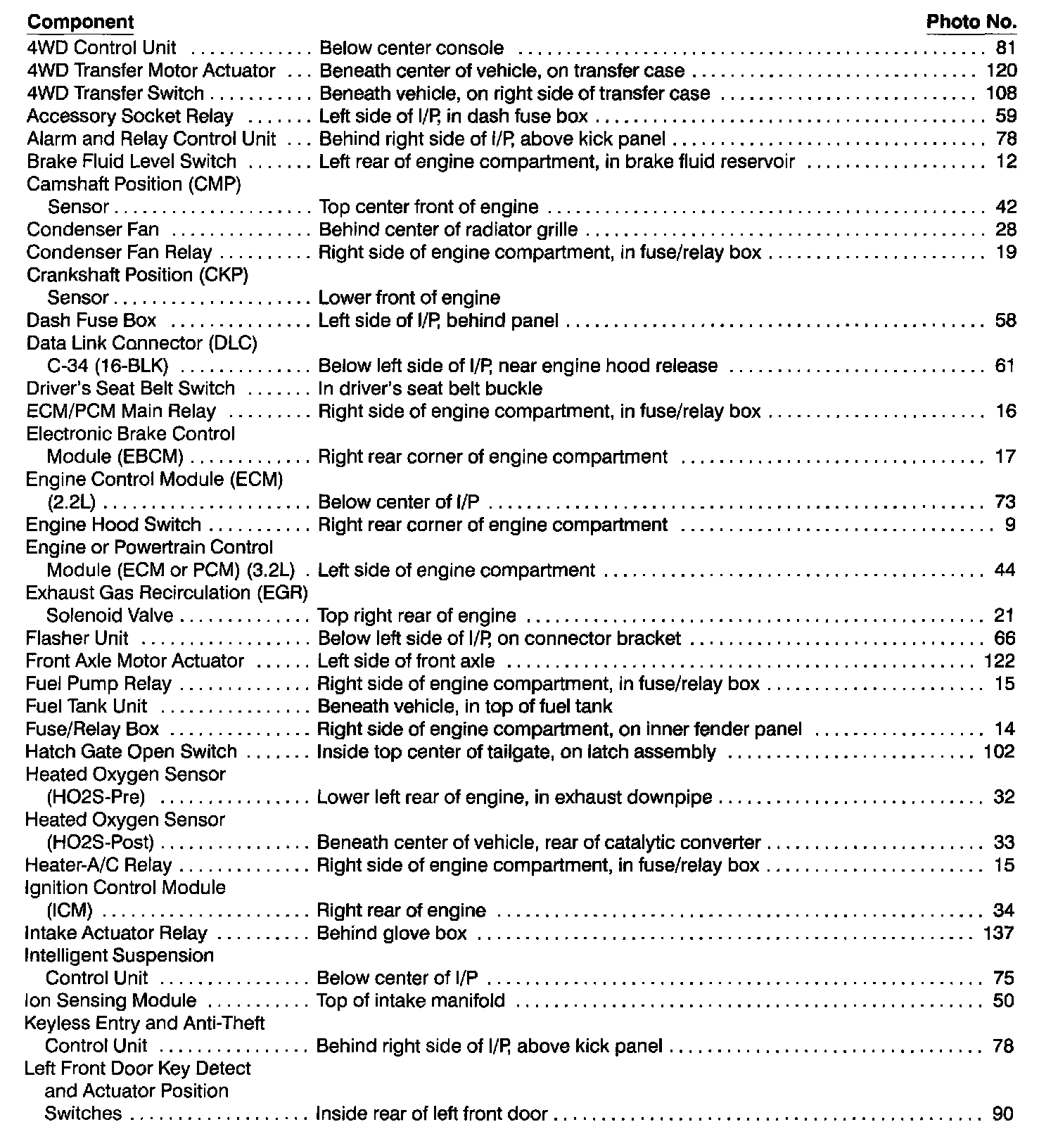

Ground Distribution Index (1 Of 3):

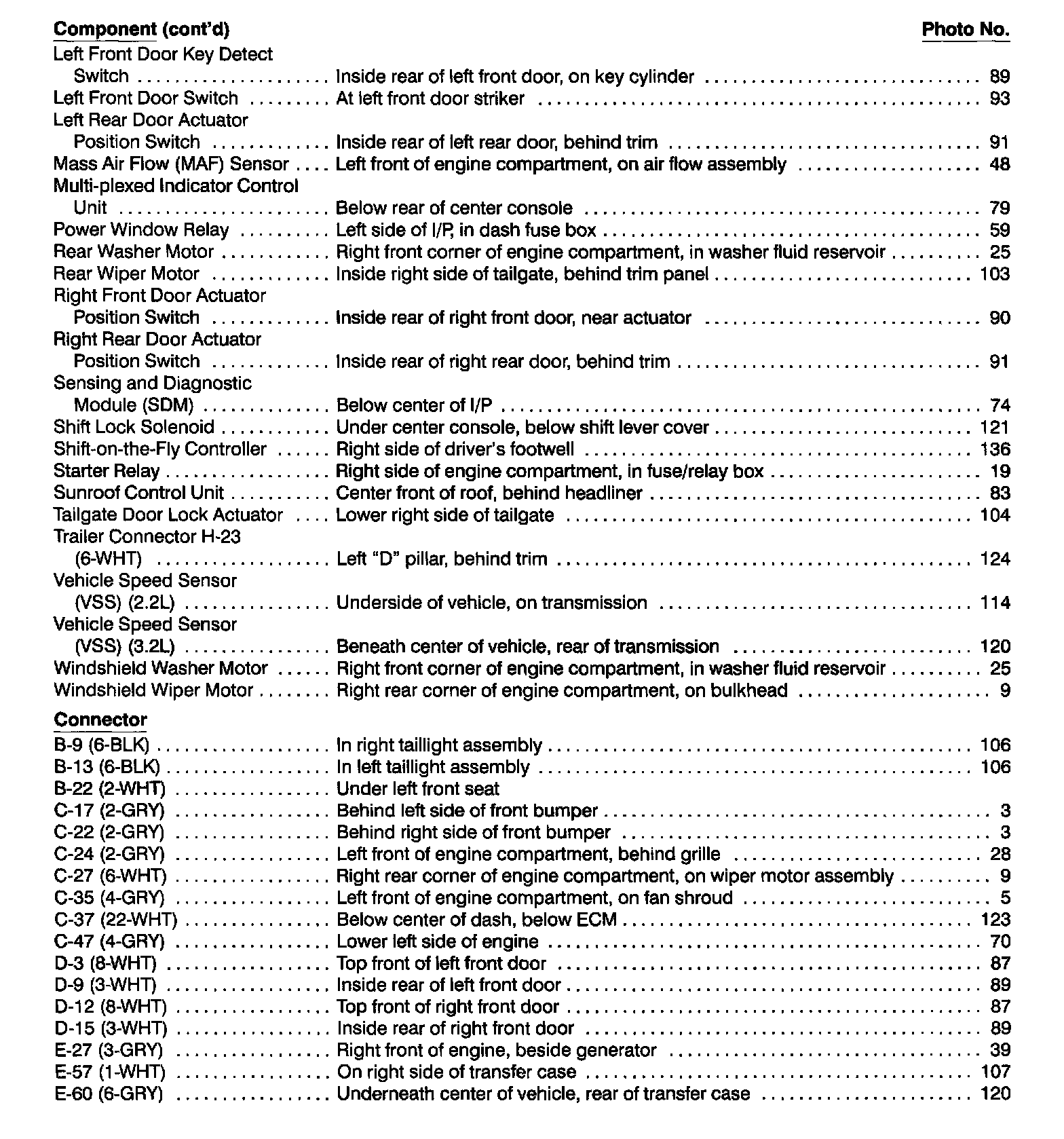

Ground Distribution Index (2 Of 3):

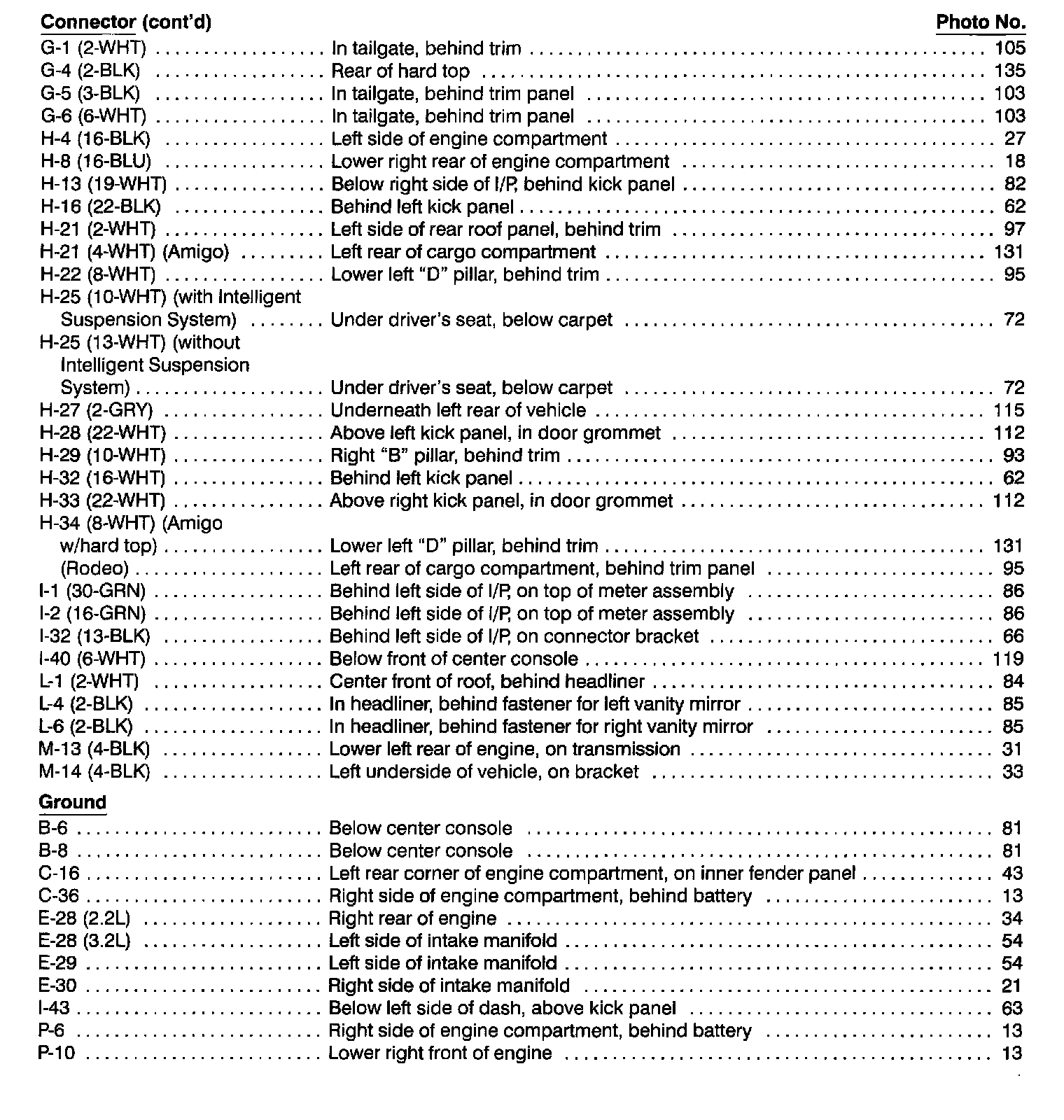

Ground Distribution Index (3 Of 3):
