Catalytic Converter

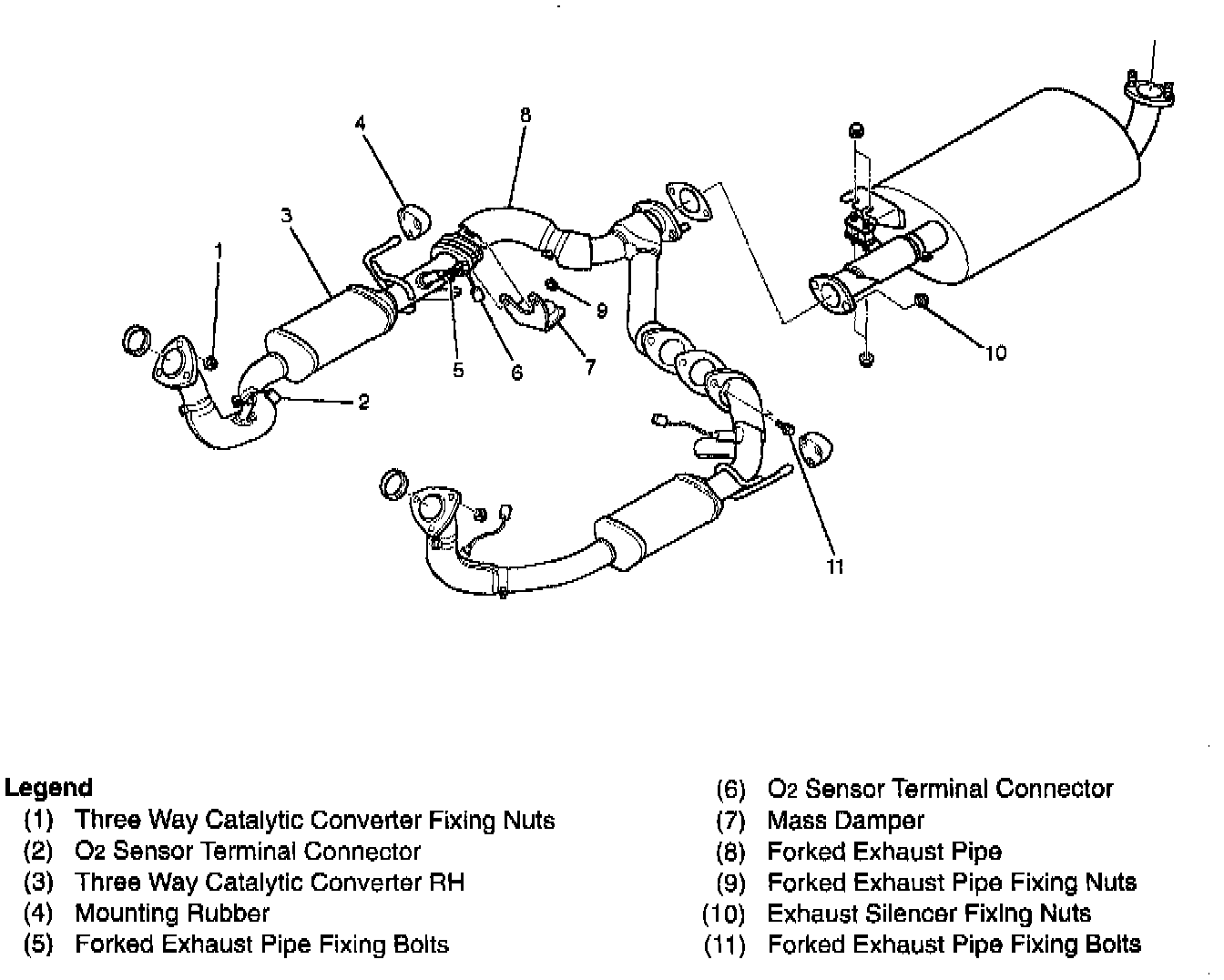

TWC RH and Forked Exhaust Pipe and Associated Parts:

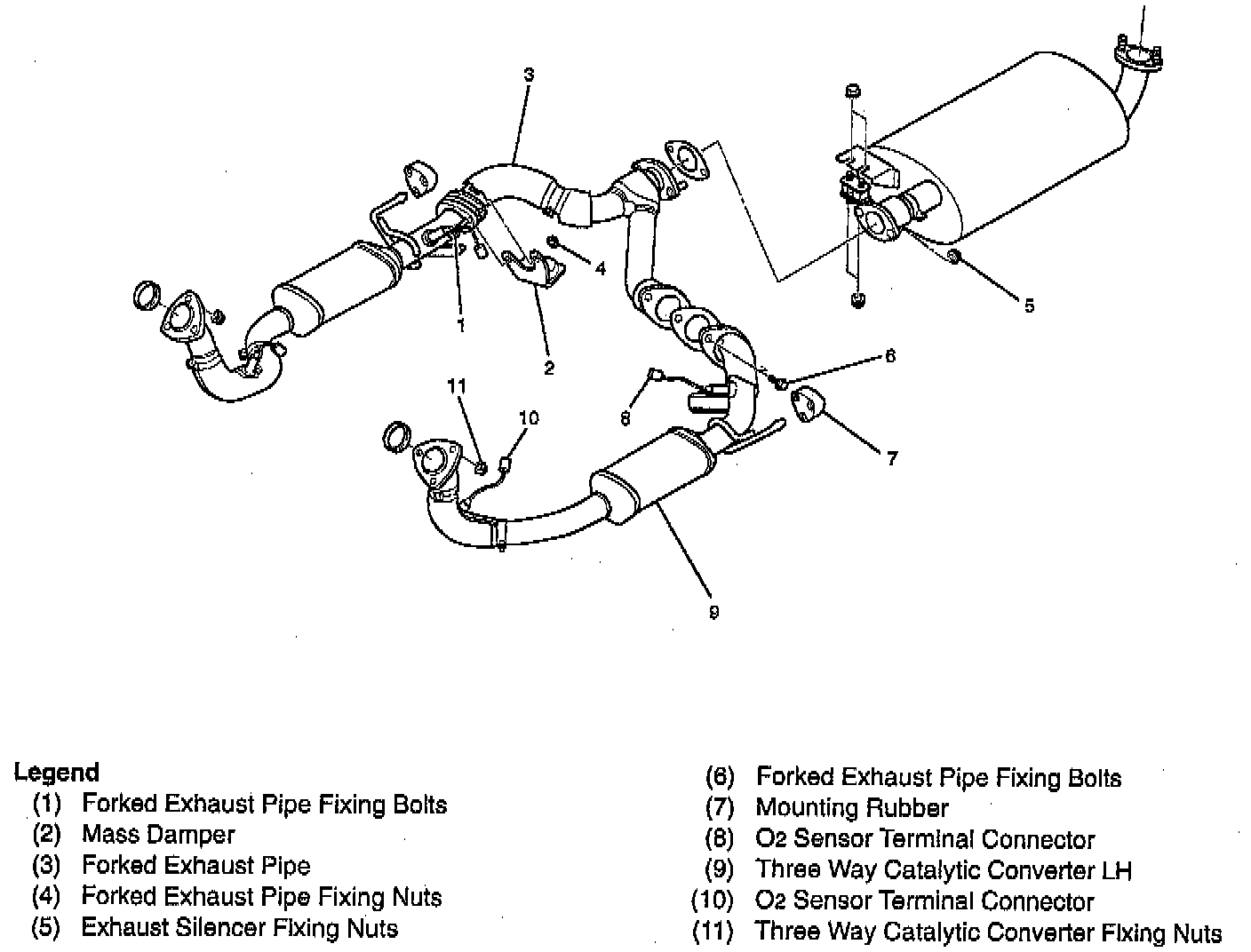

TWC LH and Forked Exhaust Pipe and Associated Parts:

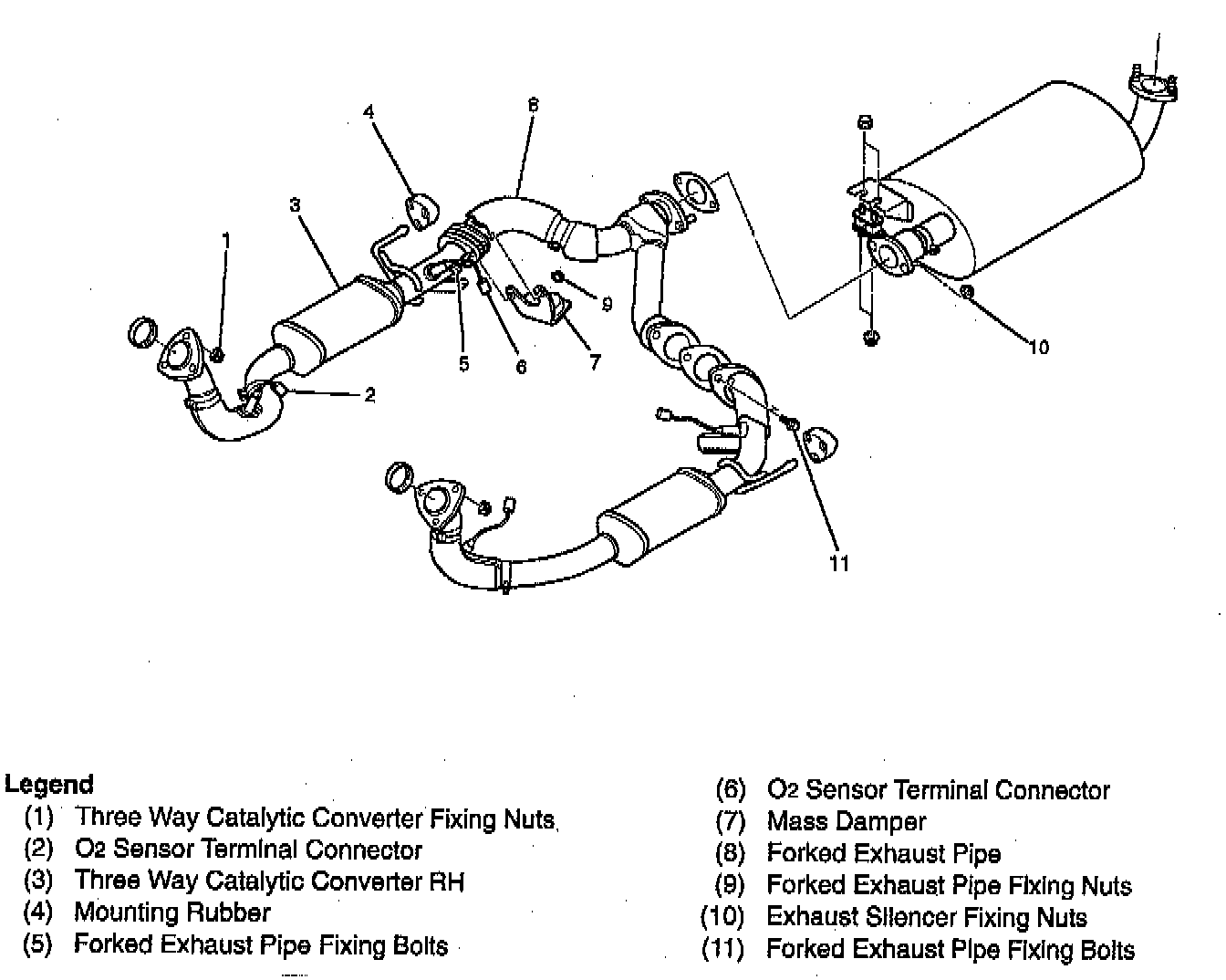

TWC RH and Forked Exhaust Pipe and Associated Parts:

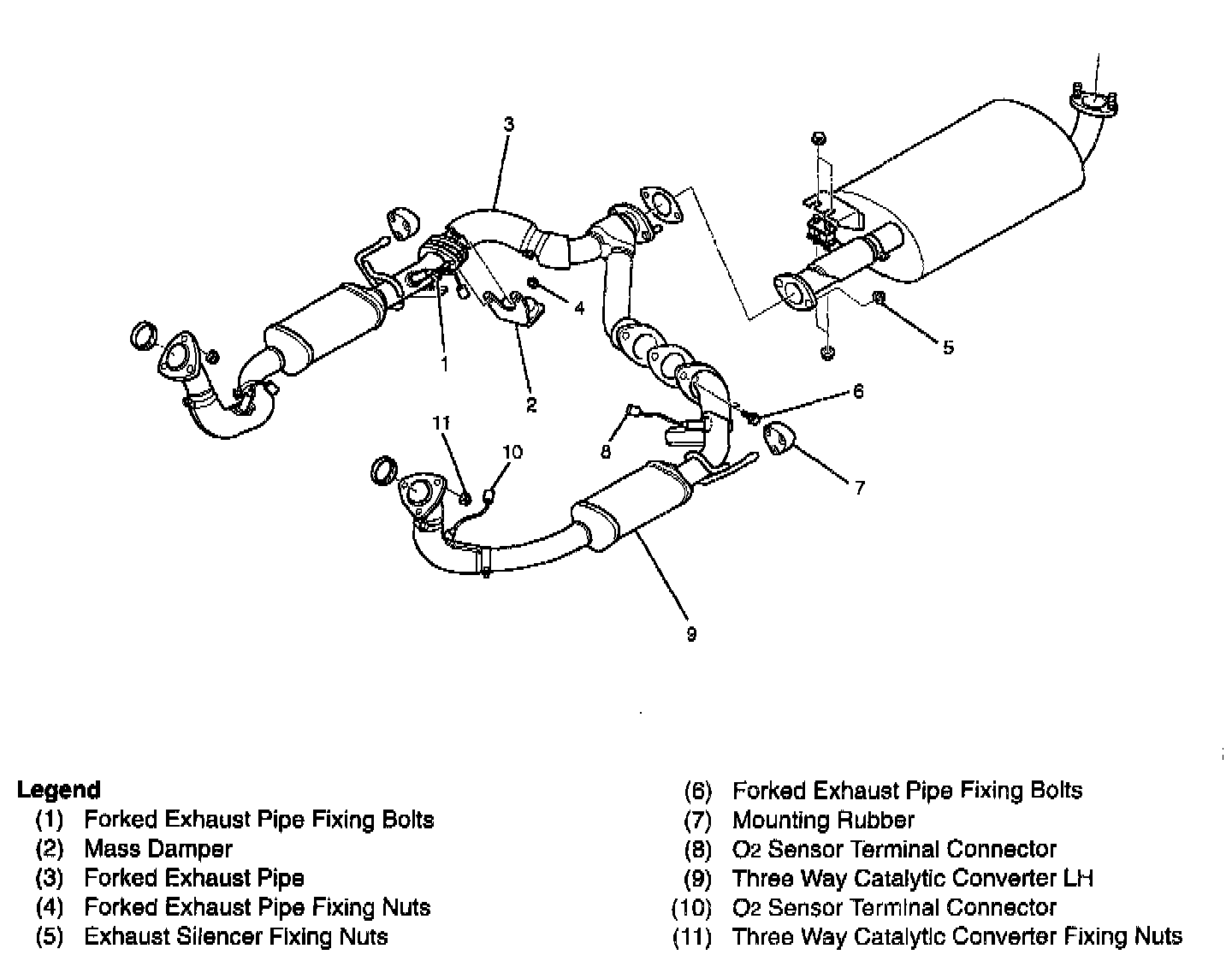

TWC LH and Forked Exhaust Pipe and Associated Parts:
