Home >> Isuzu >> 2000 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

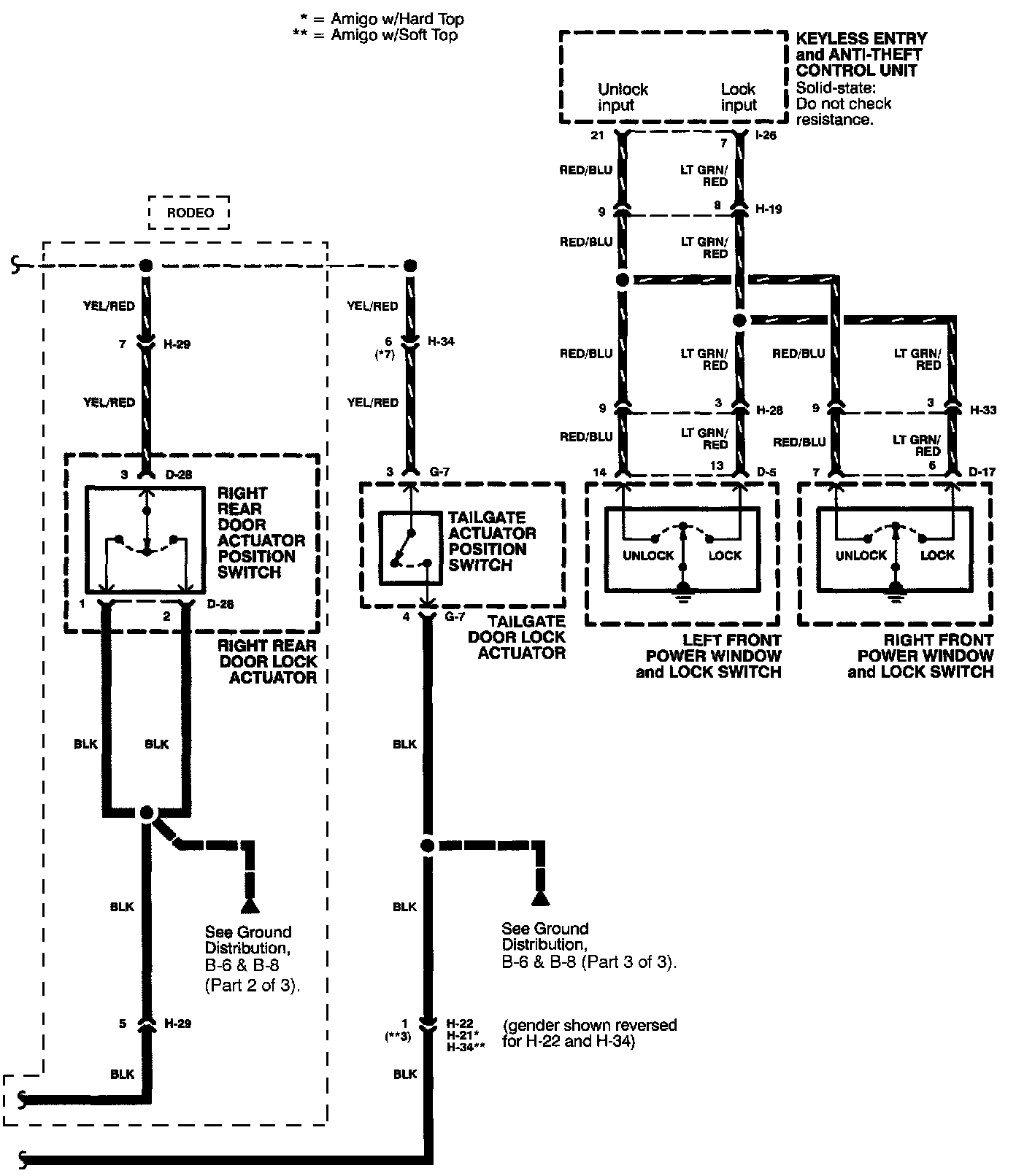

Keyless Entry & Anti-Theft System (1 Of 8):

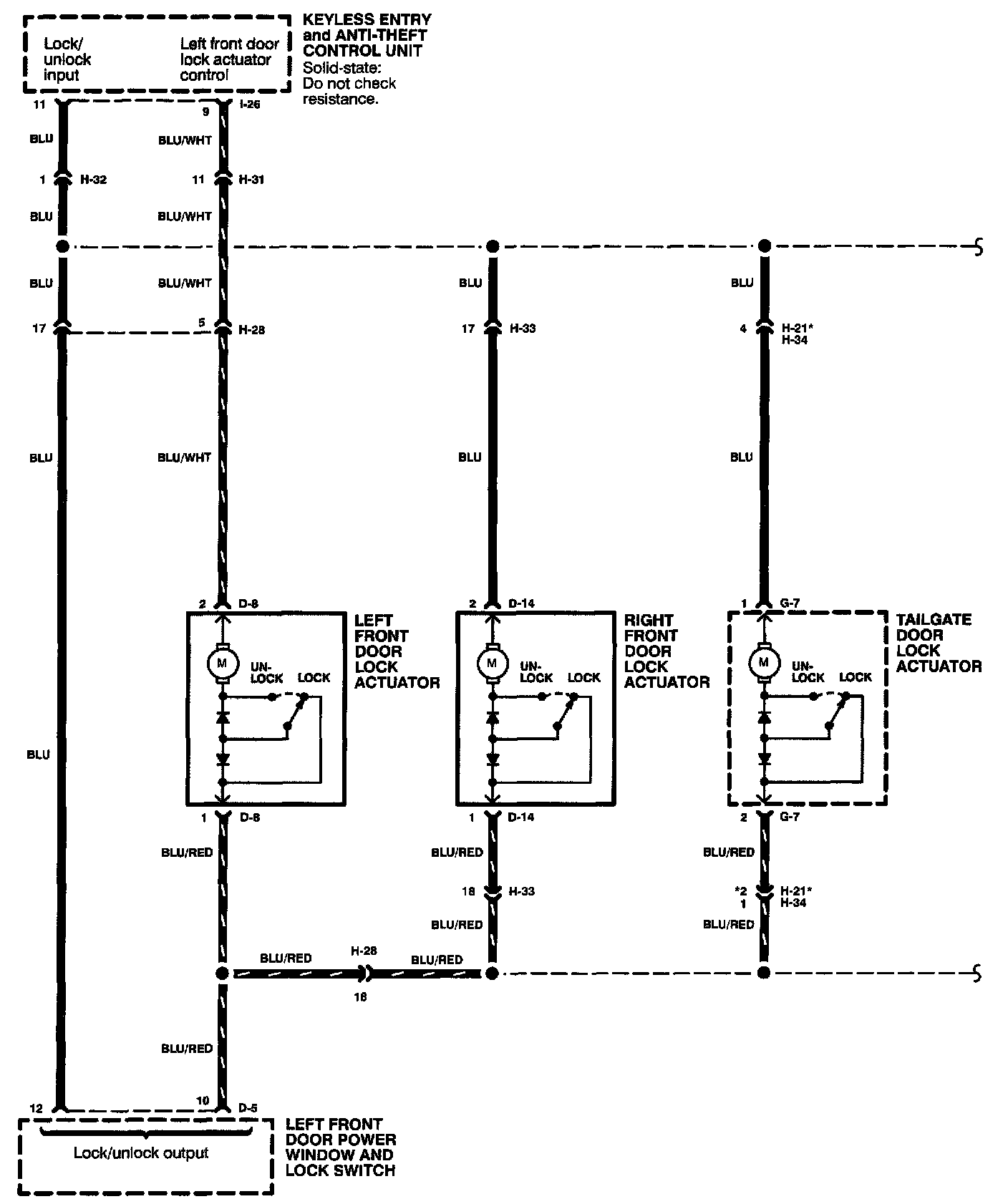

Keyless Entry & Anti-Theft System (2 Of 8):

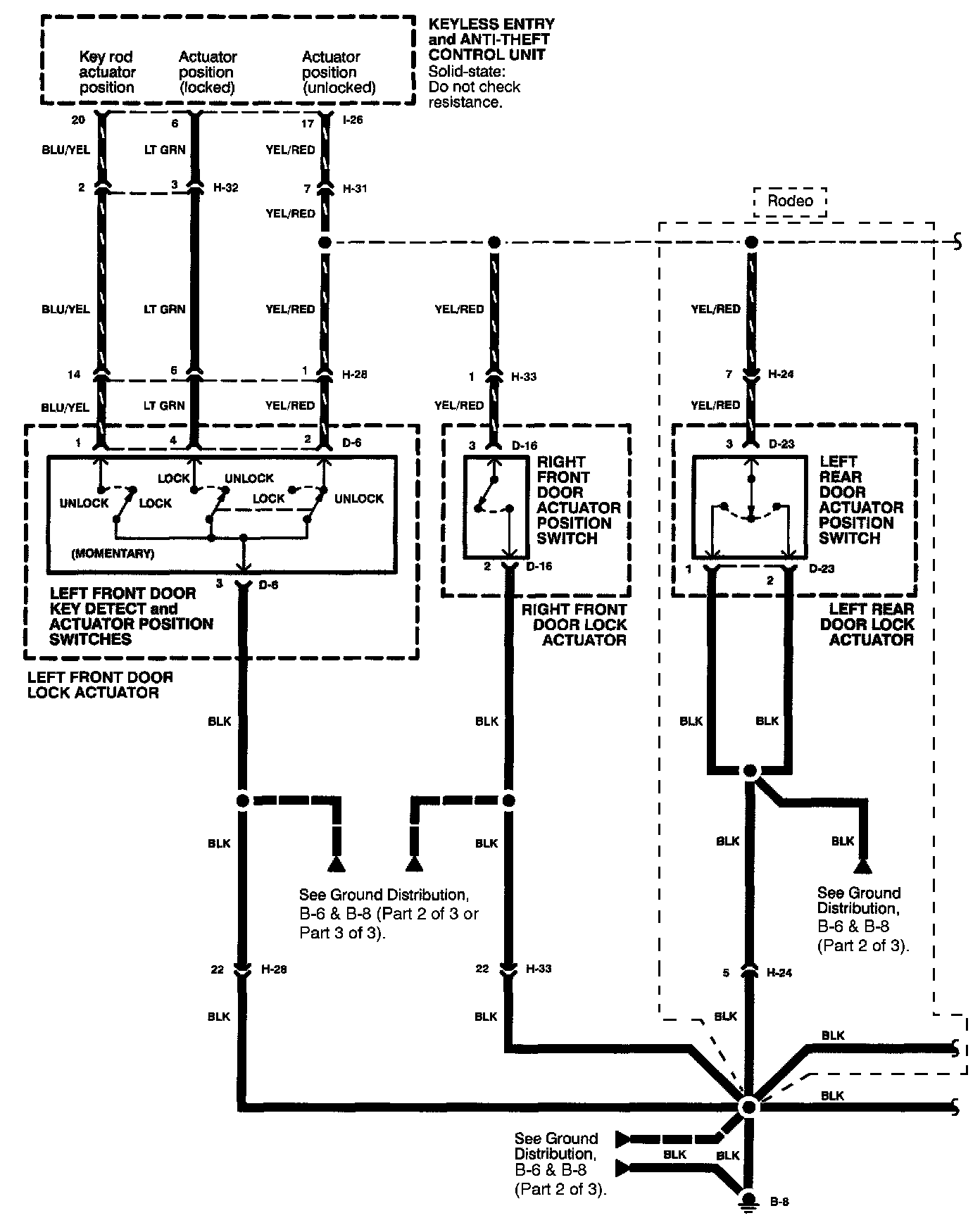

Keyless Entry & Anti-Theft System (3 Of 8):

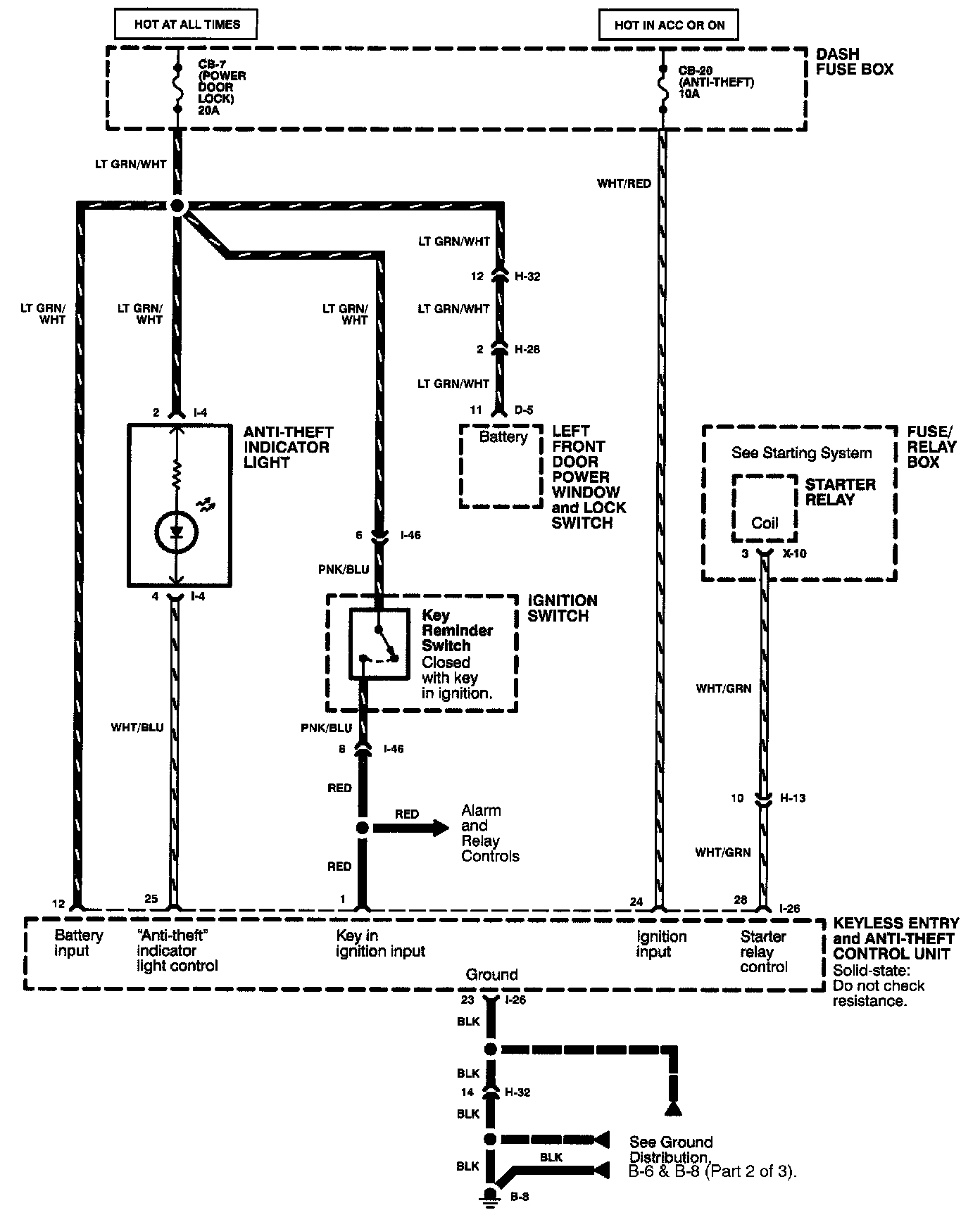

Keyless Entry & Anti-Theft System (4 Of 8):

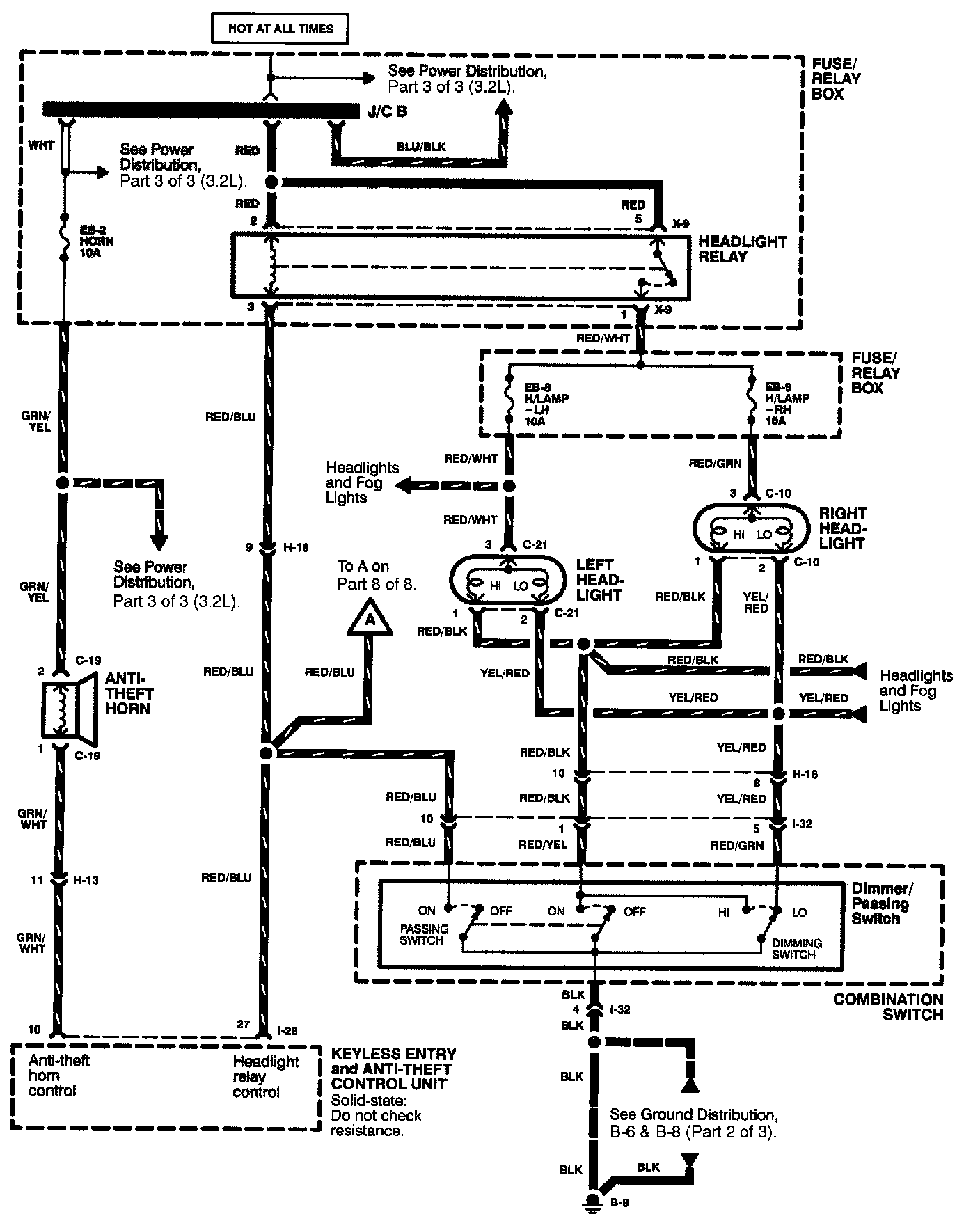

Keyless Entry & Anti-Theft System (5 Of 8):

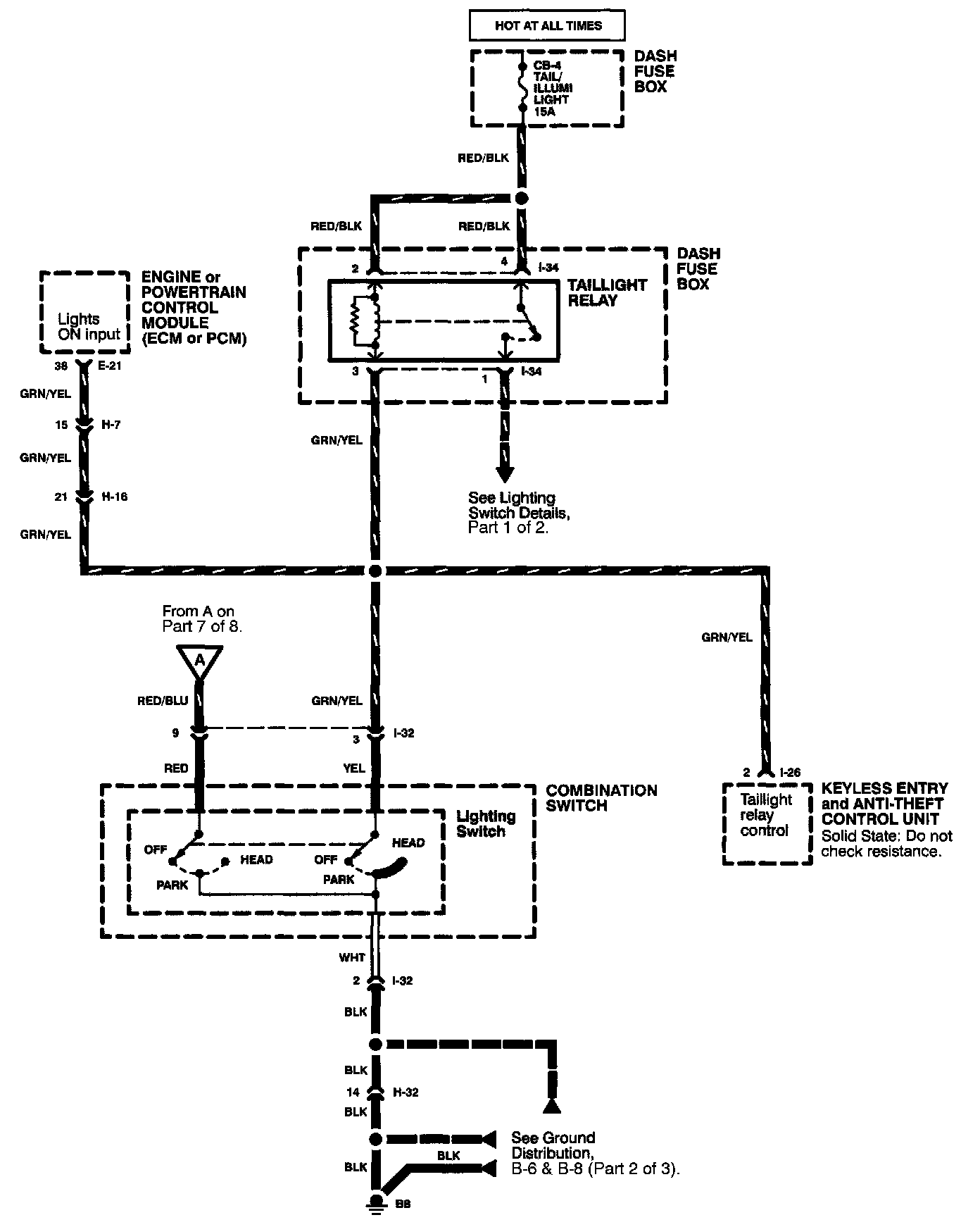

Keyless Entry & Anti-Theft System (6 Of 8):

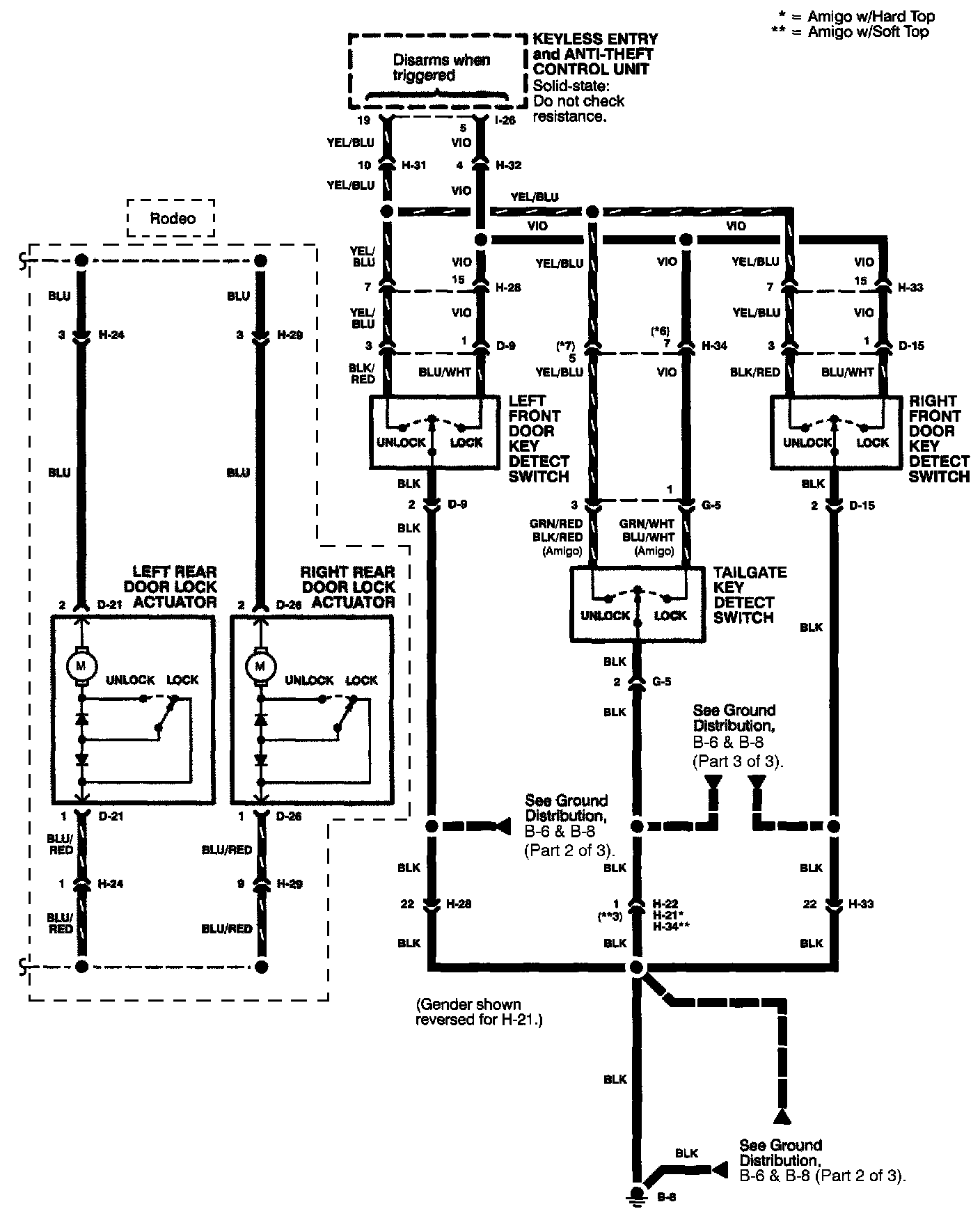

Keyless Entry & Anti-Theft System (7 Of 8):

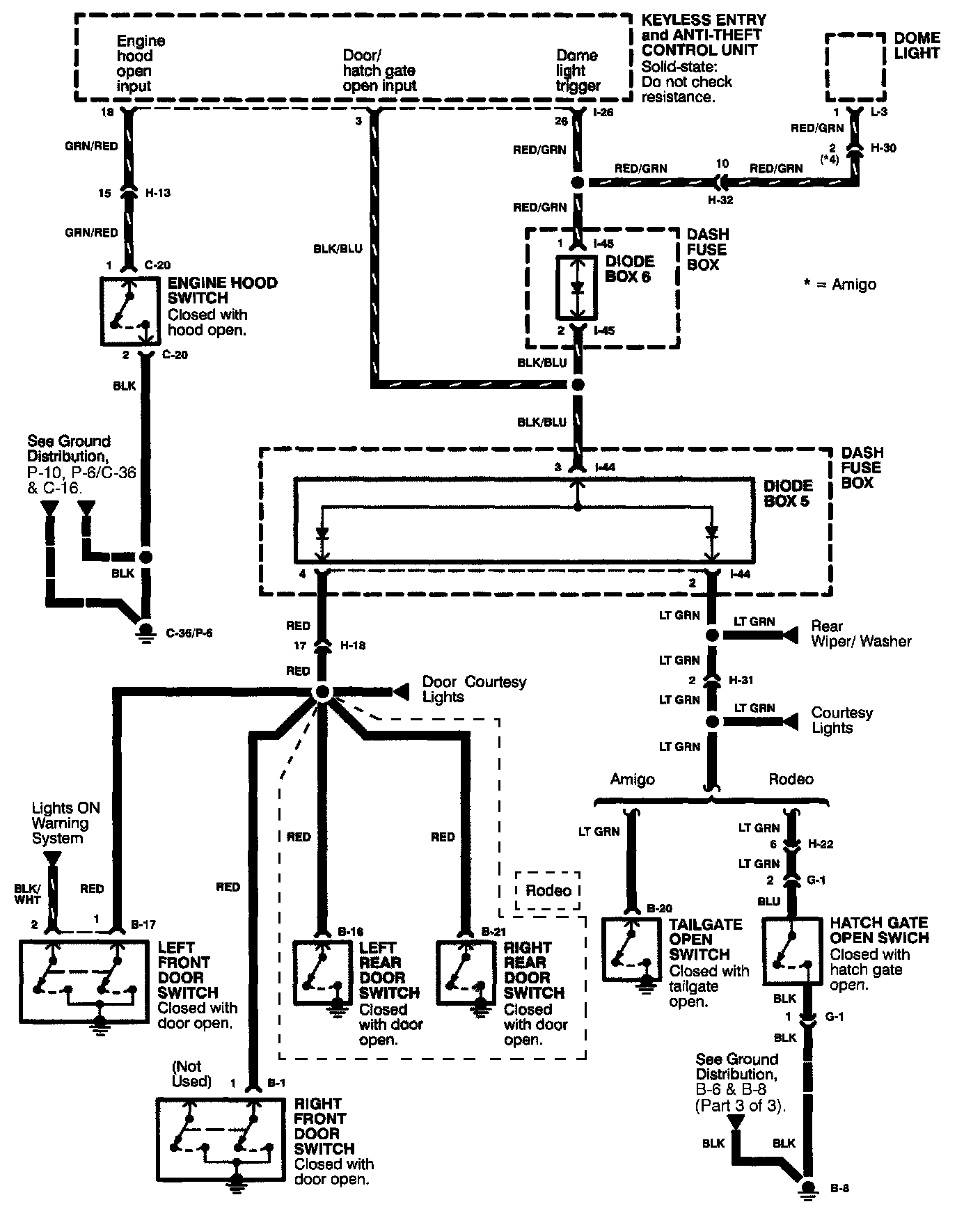

Keyless Entry & Anti-Theft System (8 Of 8):
