Home >> Isuzu >> 1999 >> Rodeo LSE 2WD V6-3.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine >> Torque Specifications

Torque Specifications

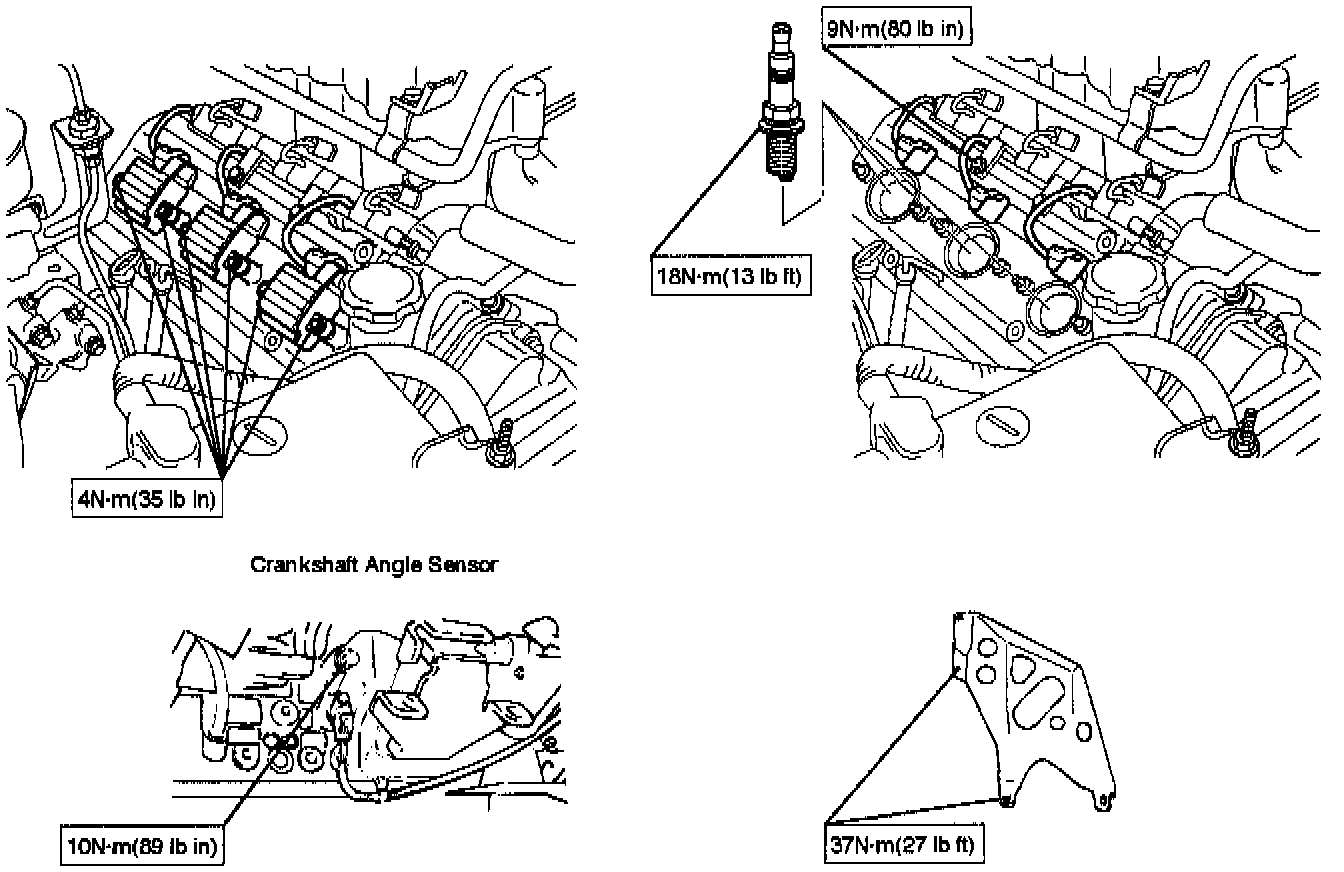

Ignition Coil, Spark Plug, Crankshaft Angle Sensor And Under Cover:

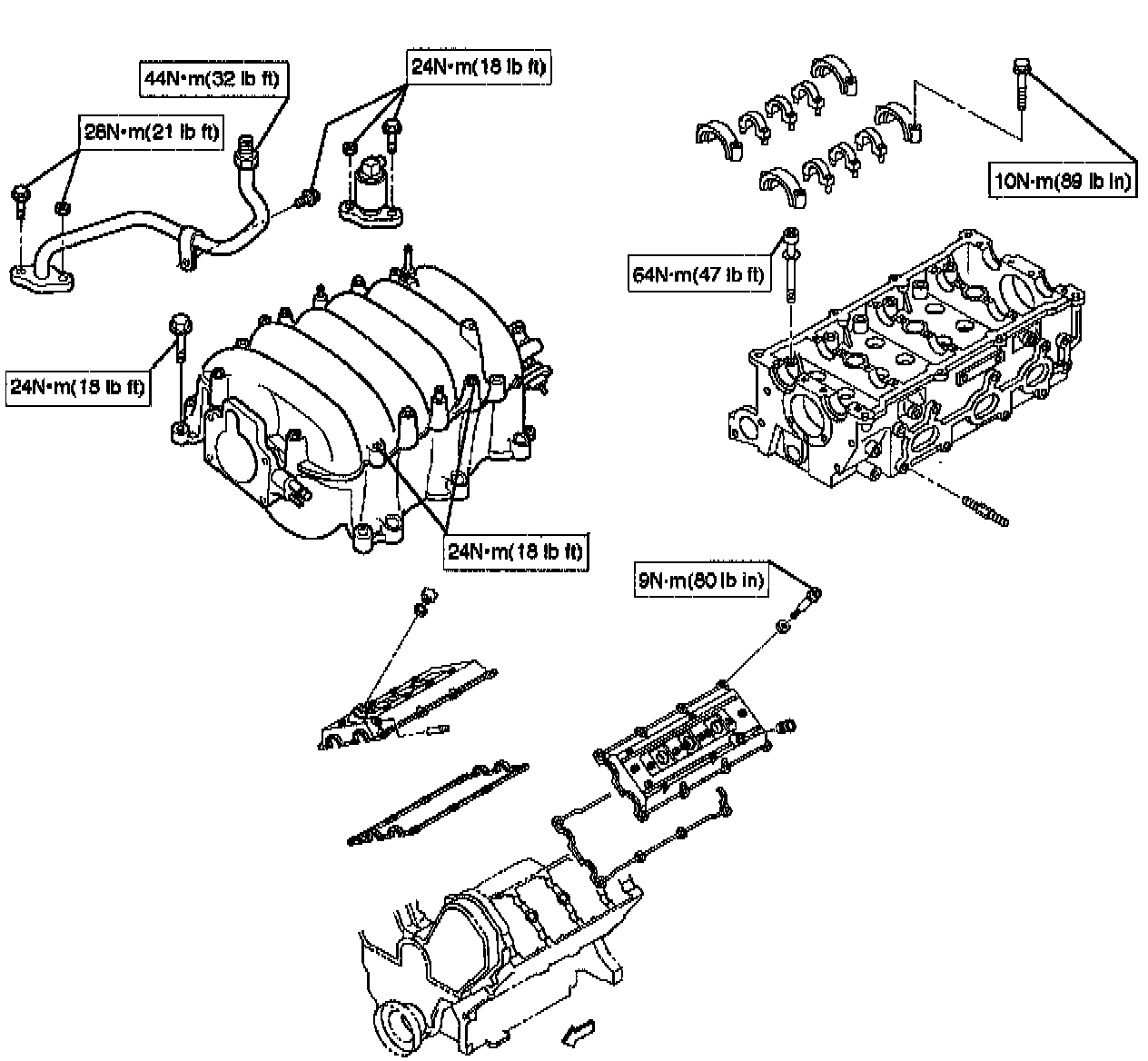

Cylinder Head Cover, Cylinder Head, Camshaft Bracket, Common Chamber, EGR Valve And EGR Pipe:



Crankshaft Main Bearing, Flywheel, Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer And Water Pump:

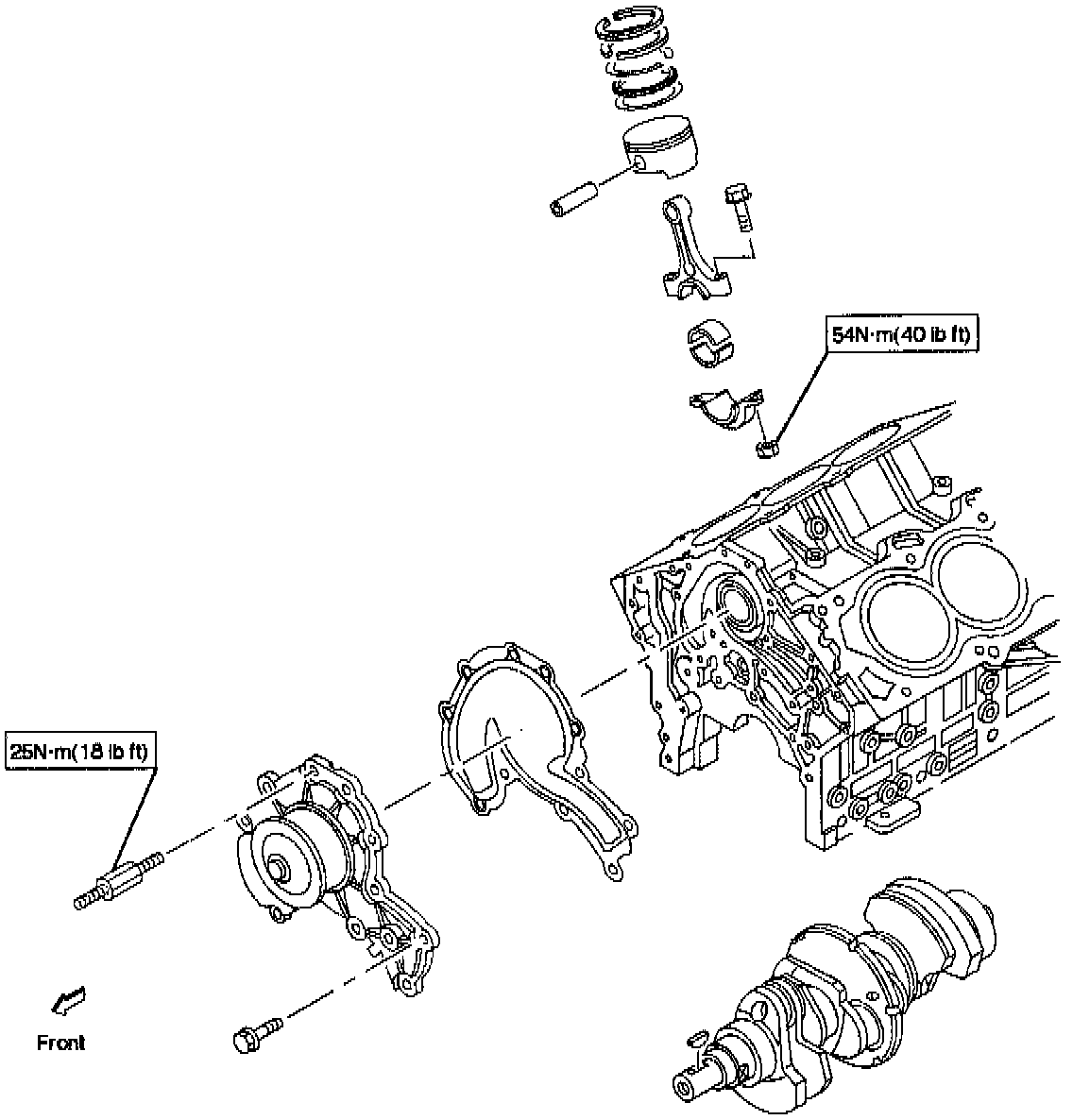

Connecting Rod And Water Pump:

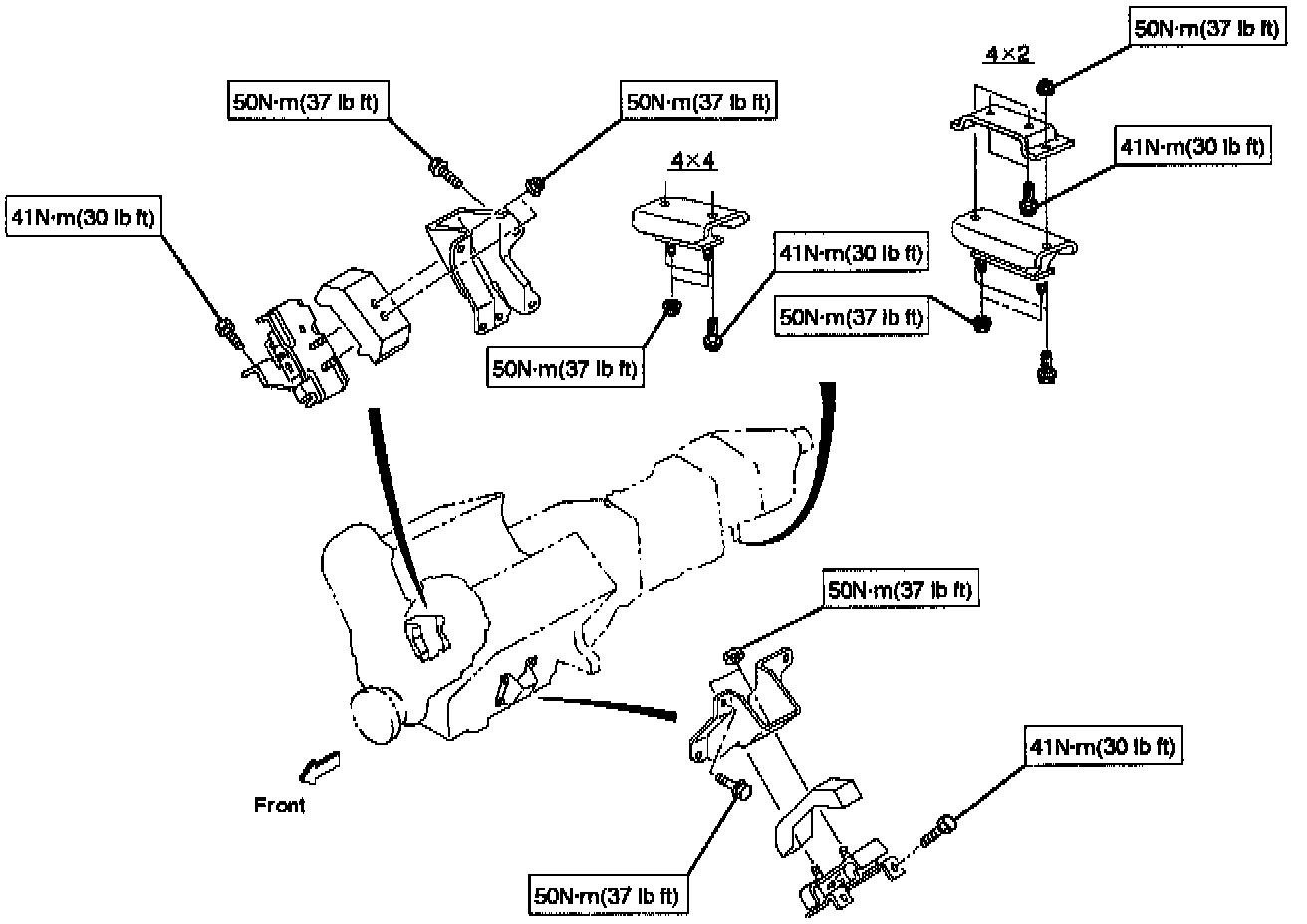

Engine Mount:
