Axle Shaft Assembly
Axle Shaft Assembly

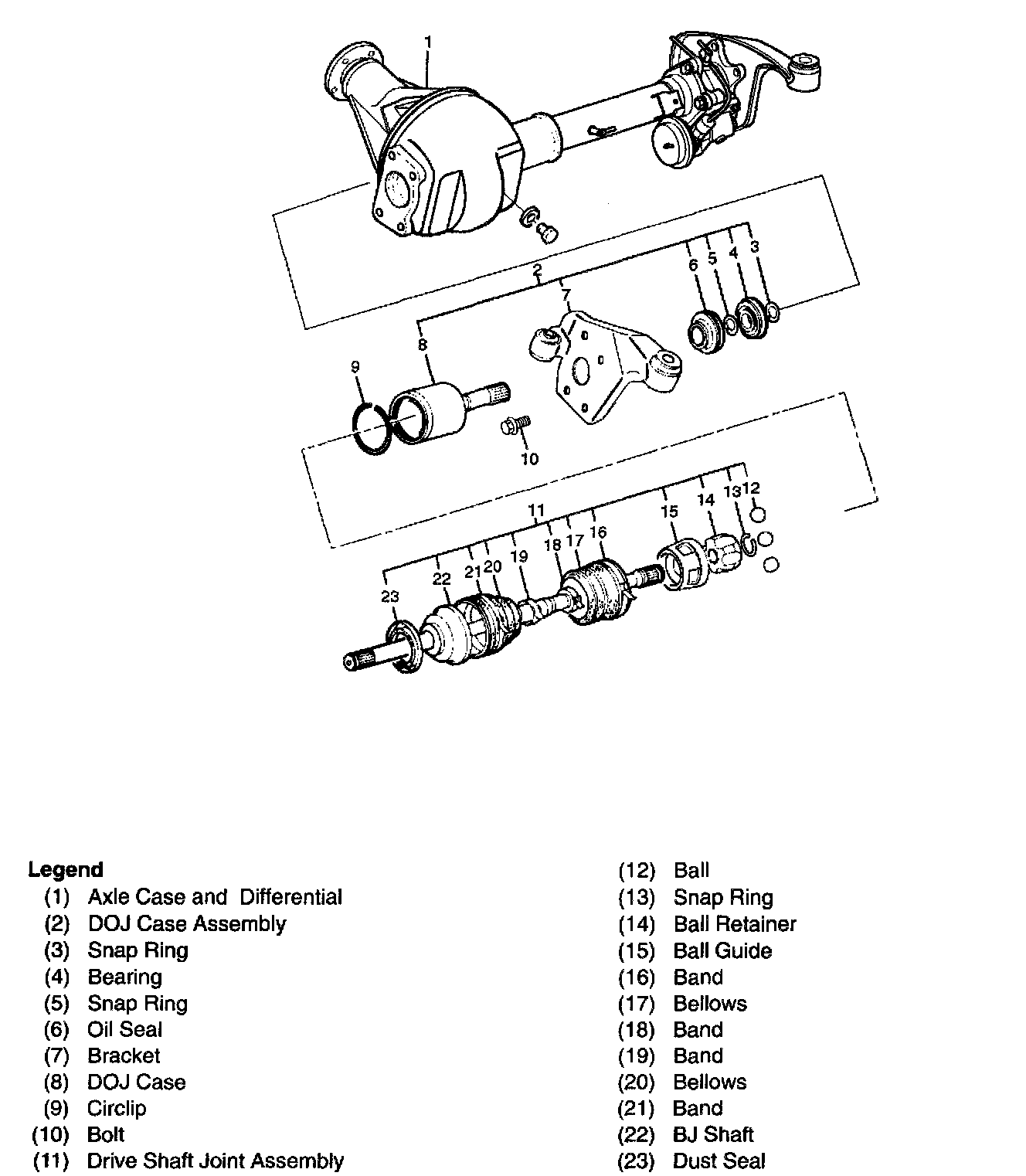

Left Front Axle Shaft, Drive Shaft And Shift On The Fly System:
LEFT VIEW

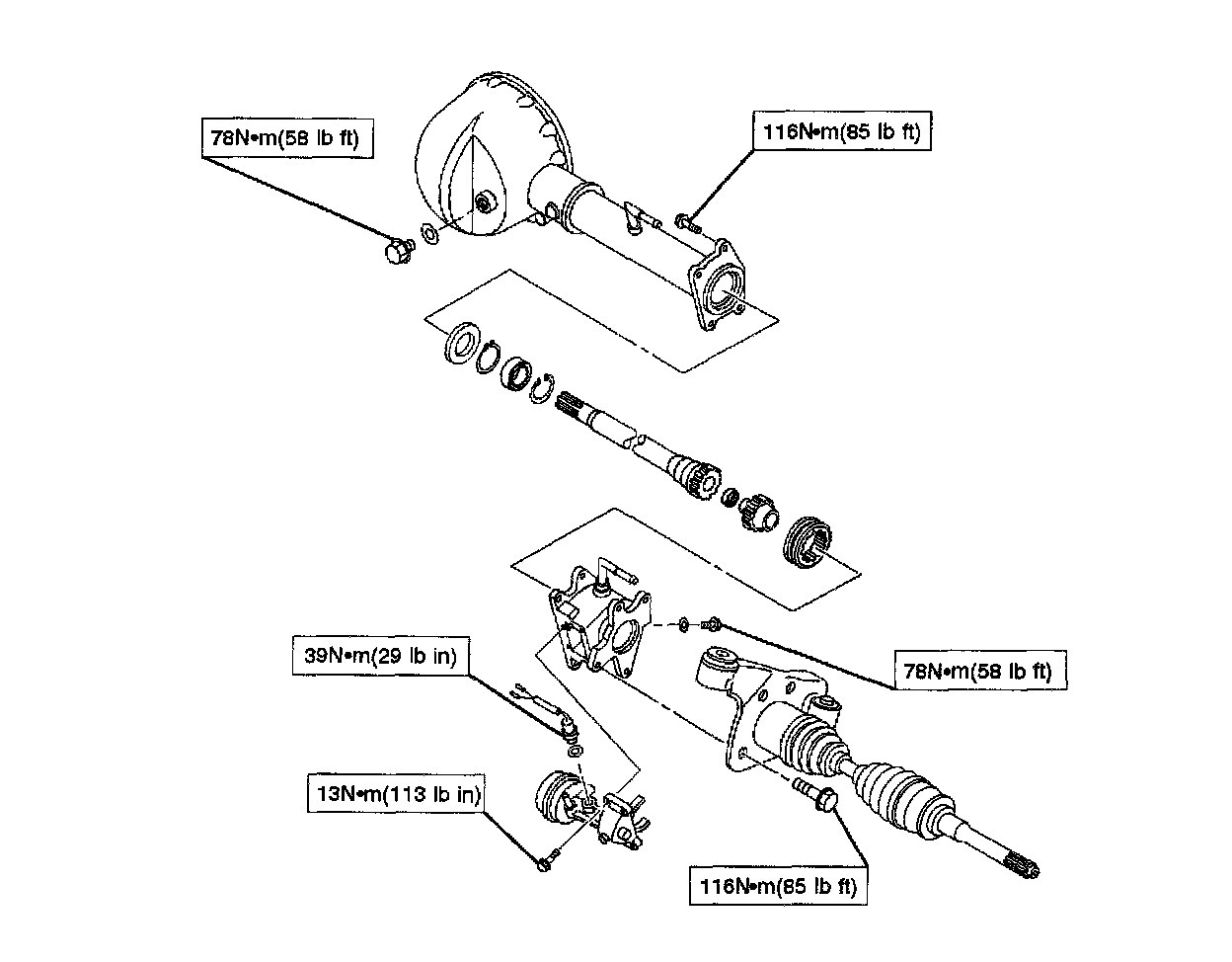

Right Front Drive Shaft:
RIGHT VIEW
