Engine Control Module

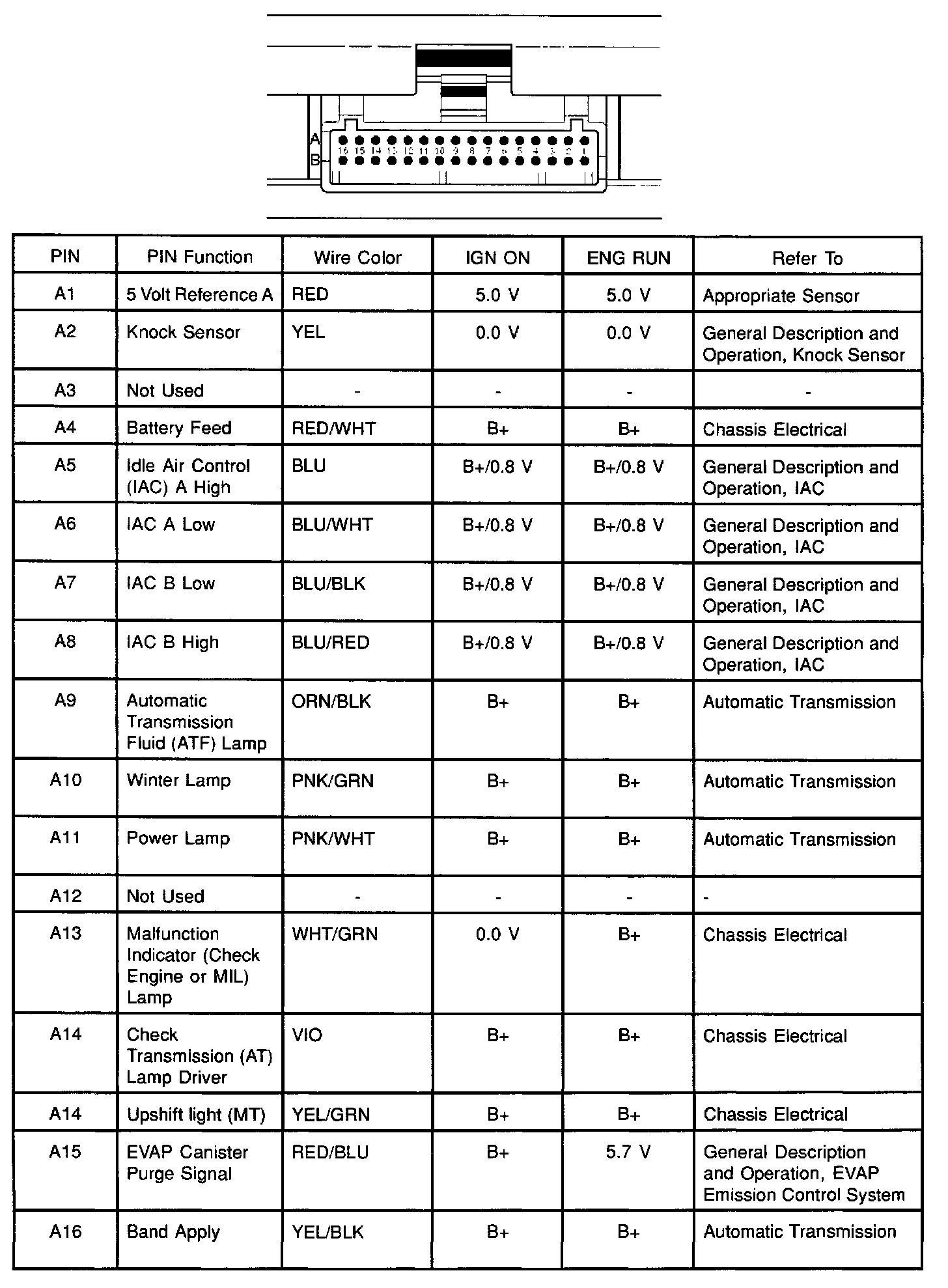

PCM Pinout Table, 32-Way Red Connector - Row A:

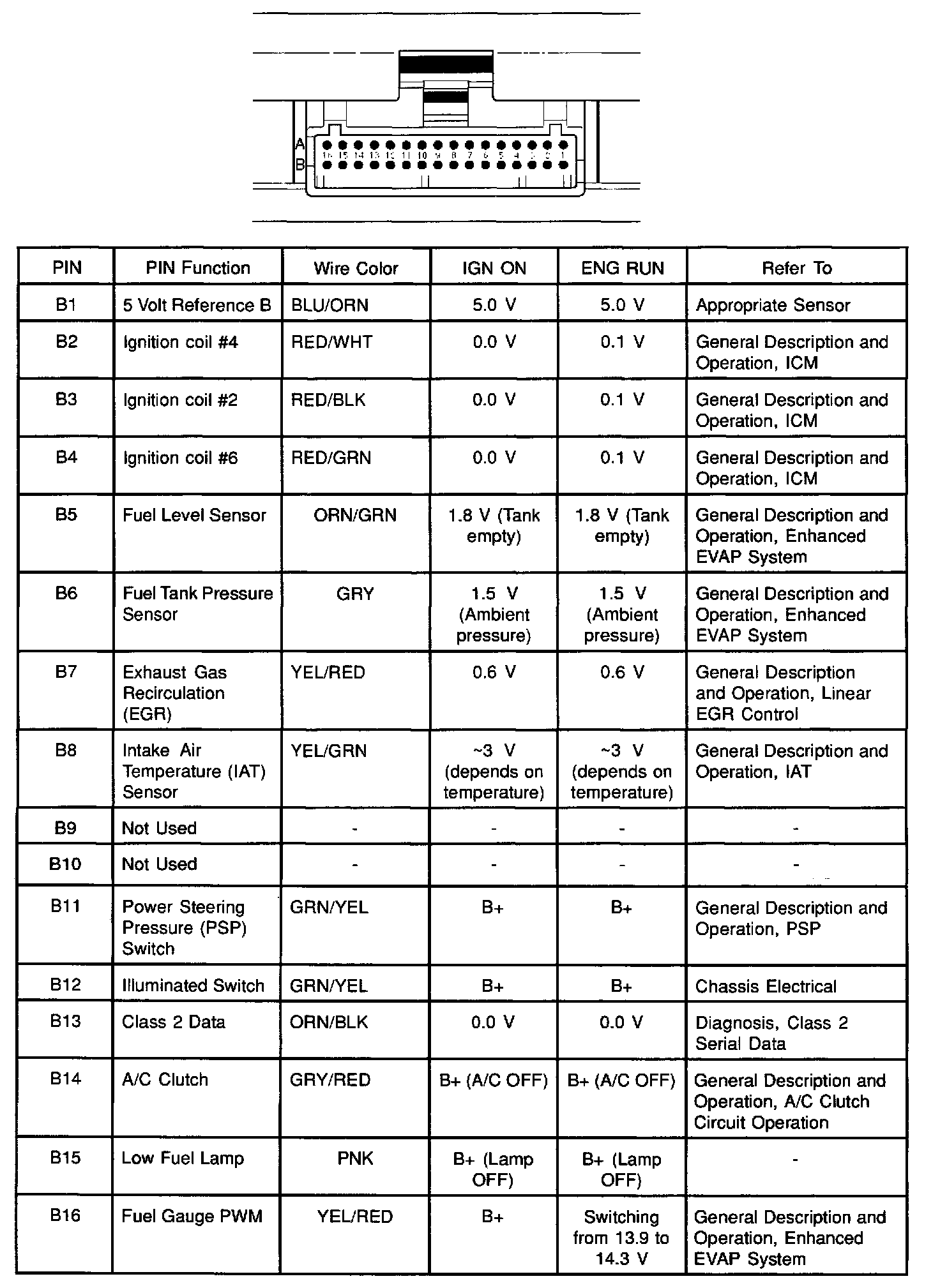

PCM Pinout Table, 32-Way Red Connector - Row B:

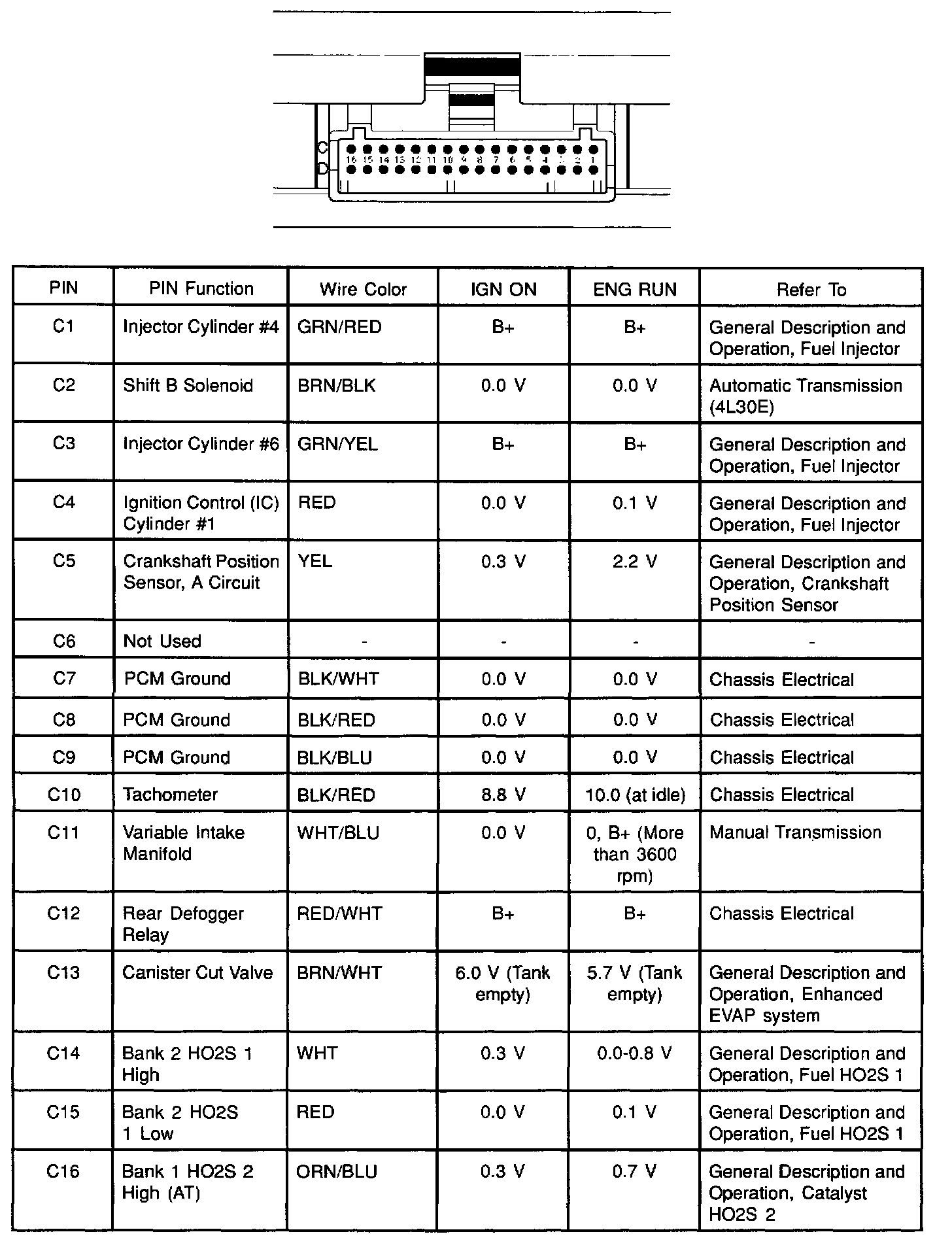

PCM Pinout Table, 32-Way White Connector - Row C:

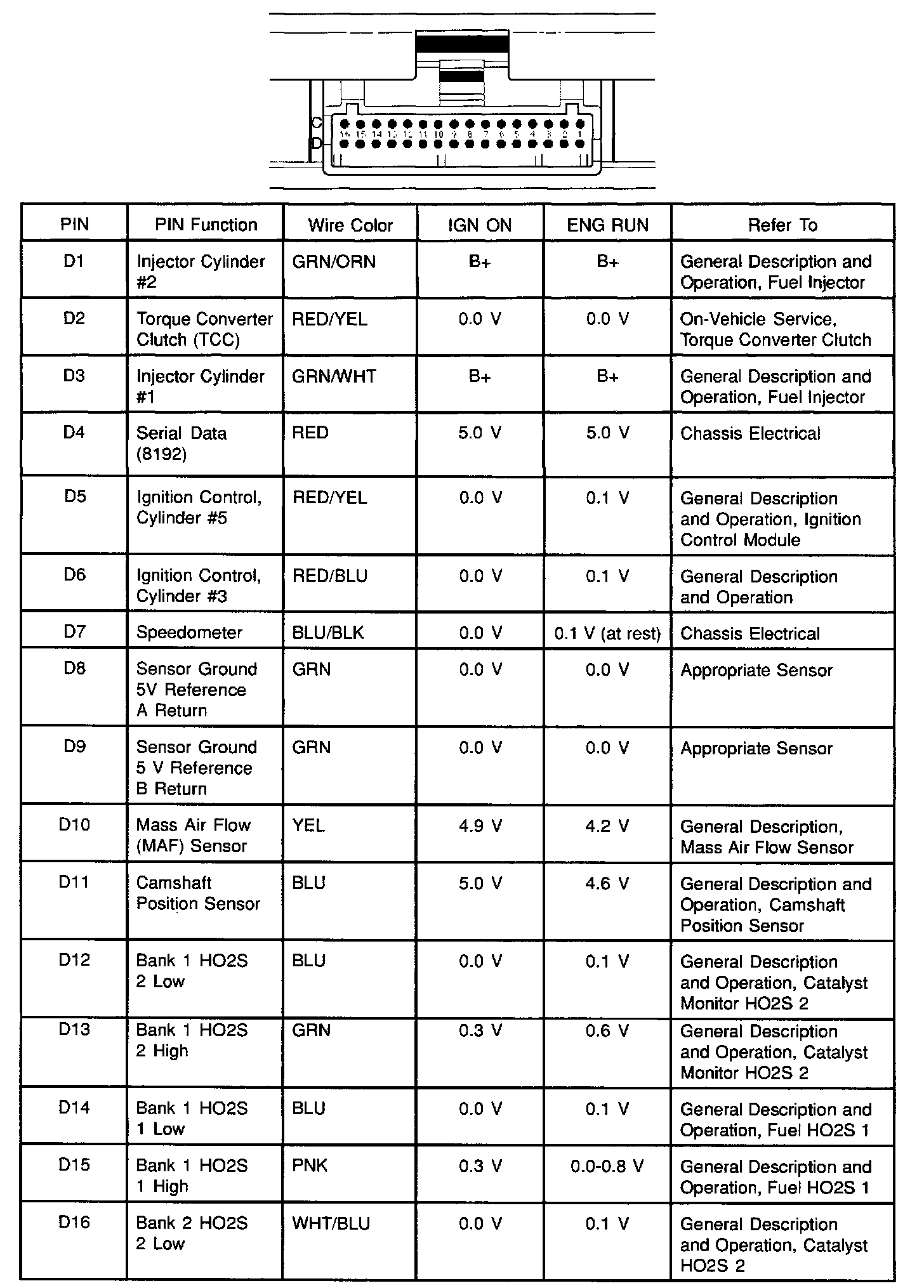

PCM Pinout Table, 32-Way White Connector - Row D:

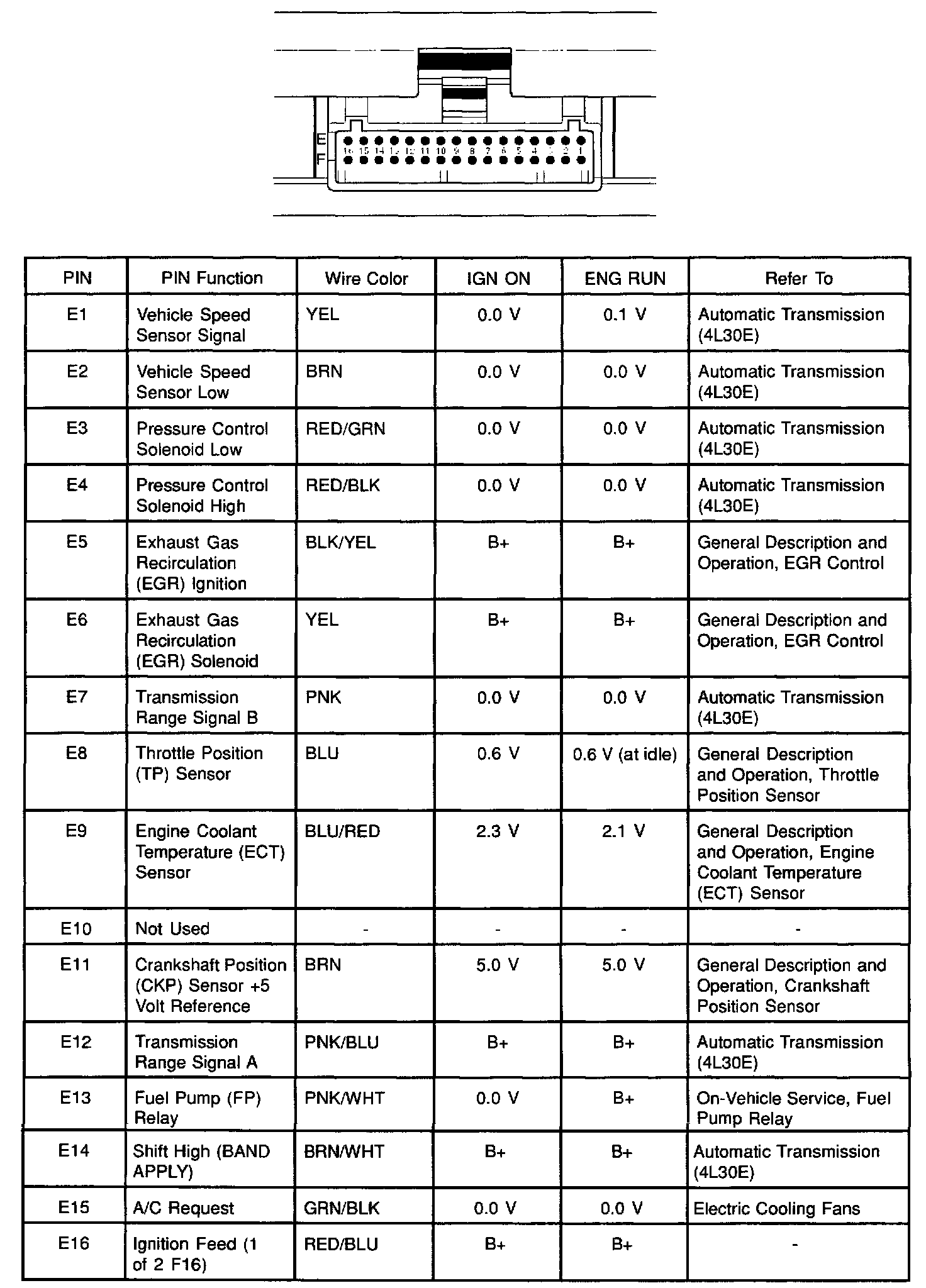

PCM Pinout Table, 32-Way Blue Connector - Row E:

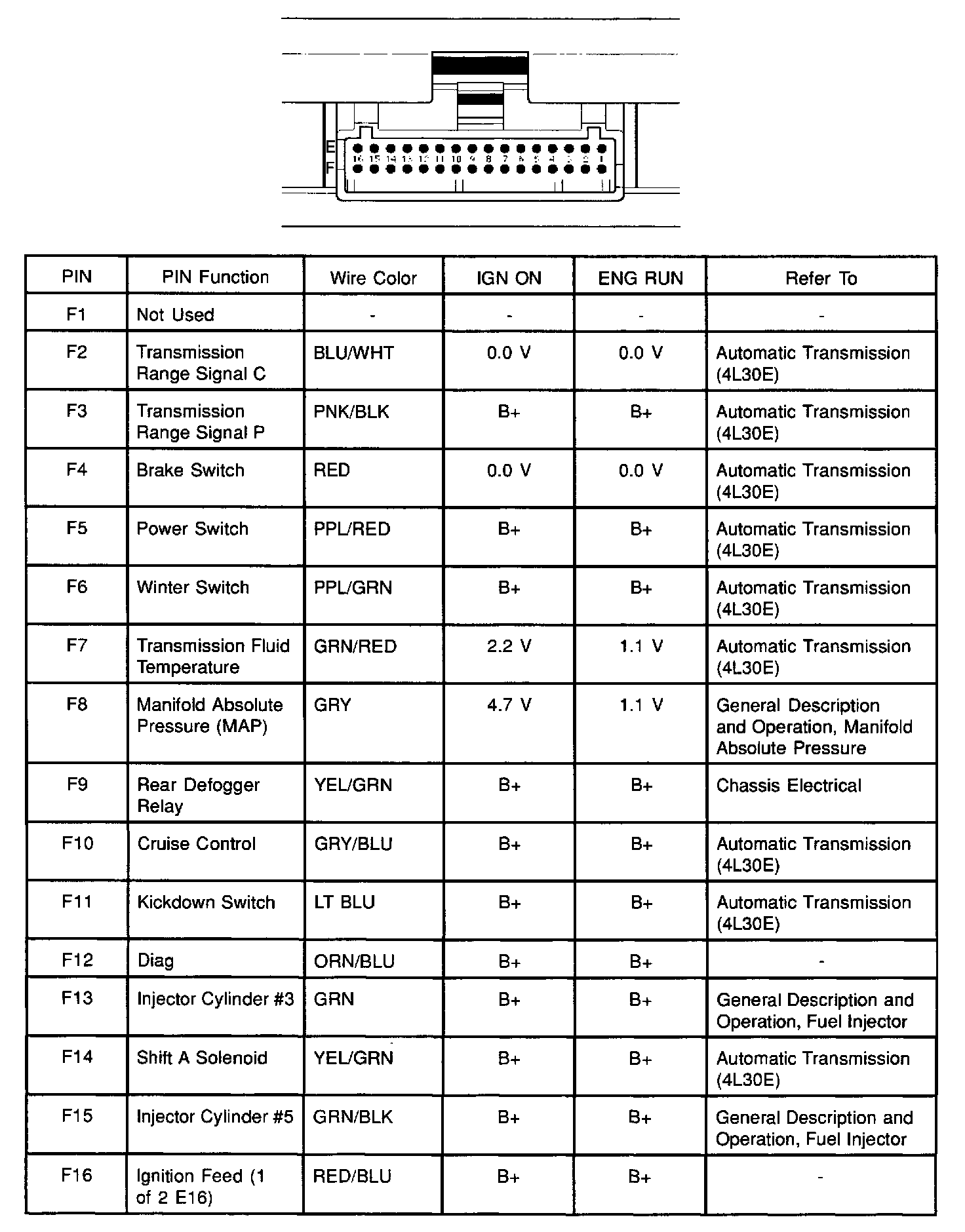

PCM Pinout Table, 32-Way Blue Connector - Row F:
