Home >> Isuzu >> 1998 >> Trooper S V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Cylinder Block Assembly >> Torque Specifications

Torque Specifications






Cylinder block side bolts 39 Nm (29 ft. lbs.)

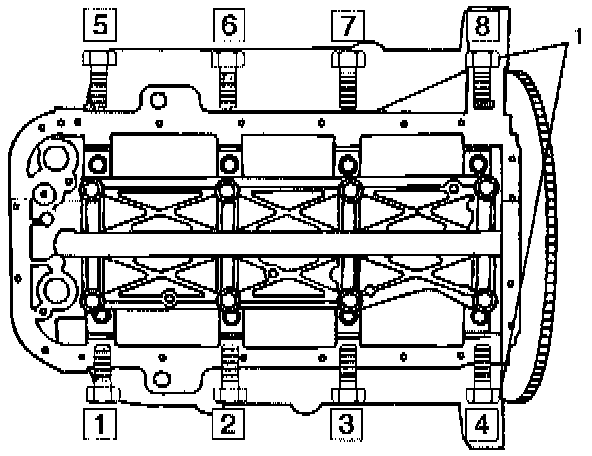

NOTE: Tighten crankcase bolts in sequence shown in the illustration.
