Pinout Values and Diagnostic Parameters

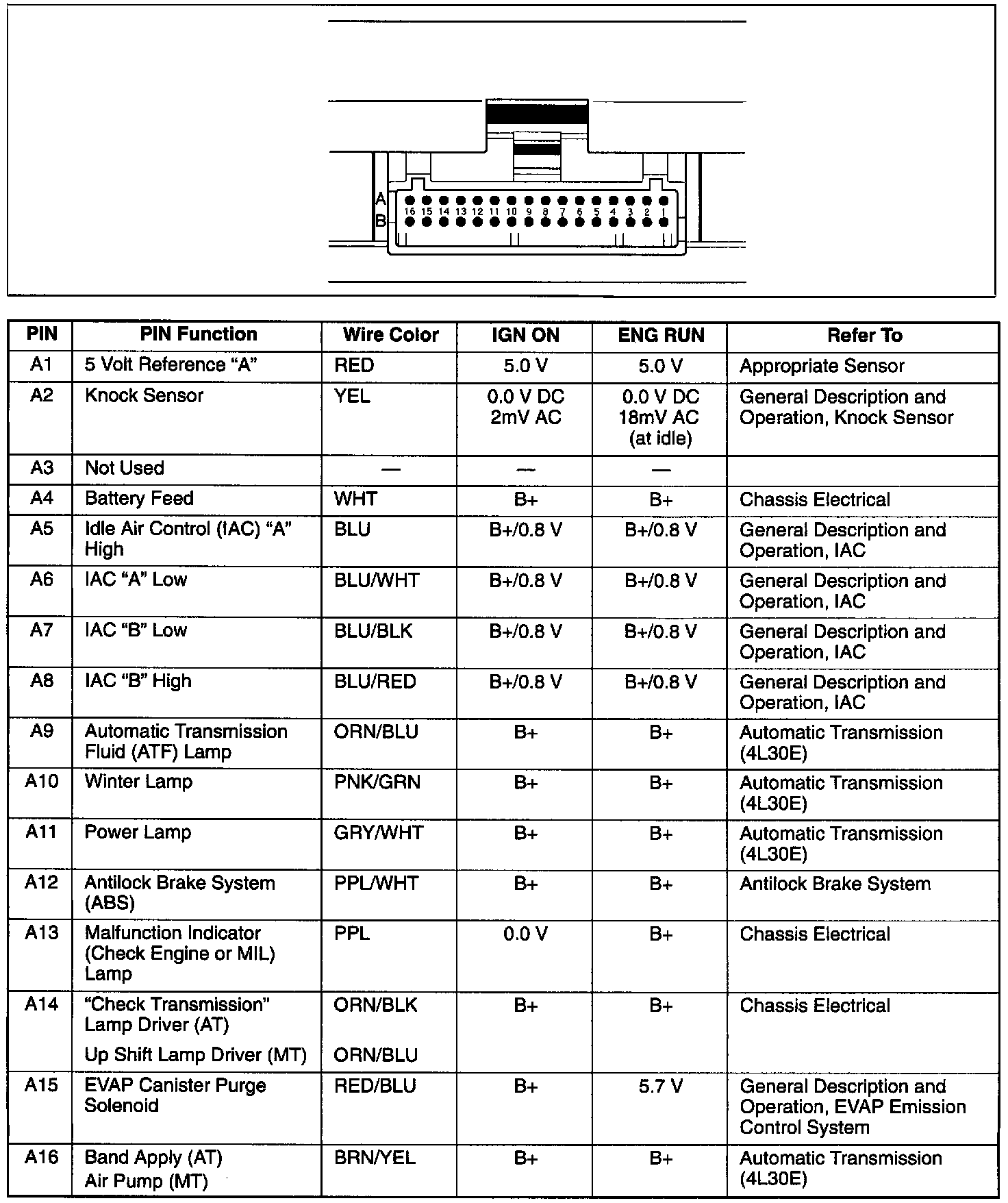

32-Way Red Connector - Row "A"

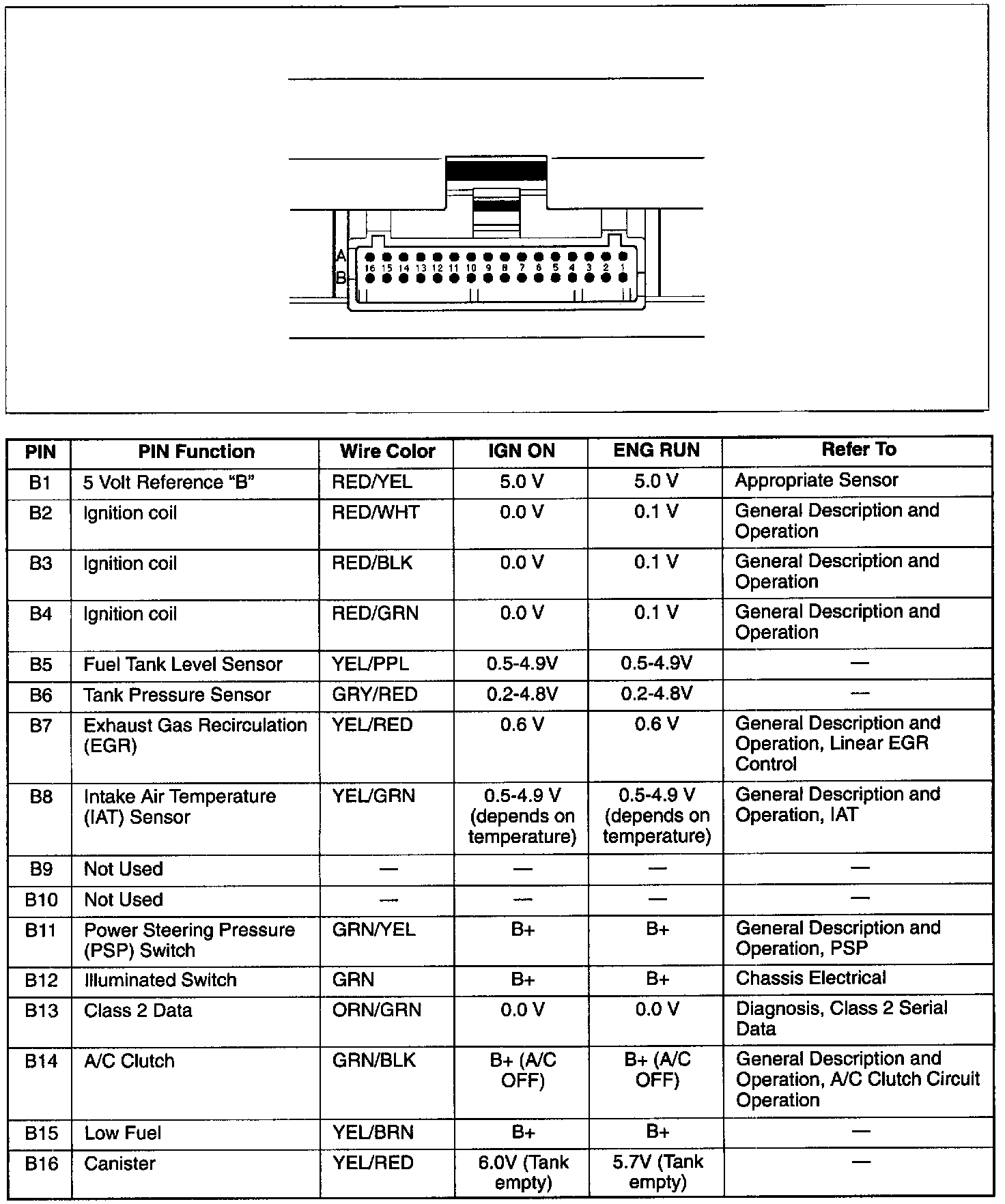

32-Way Red Connector - Row "B"

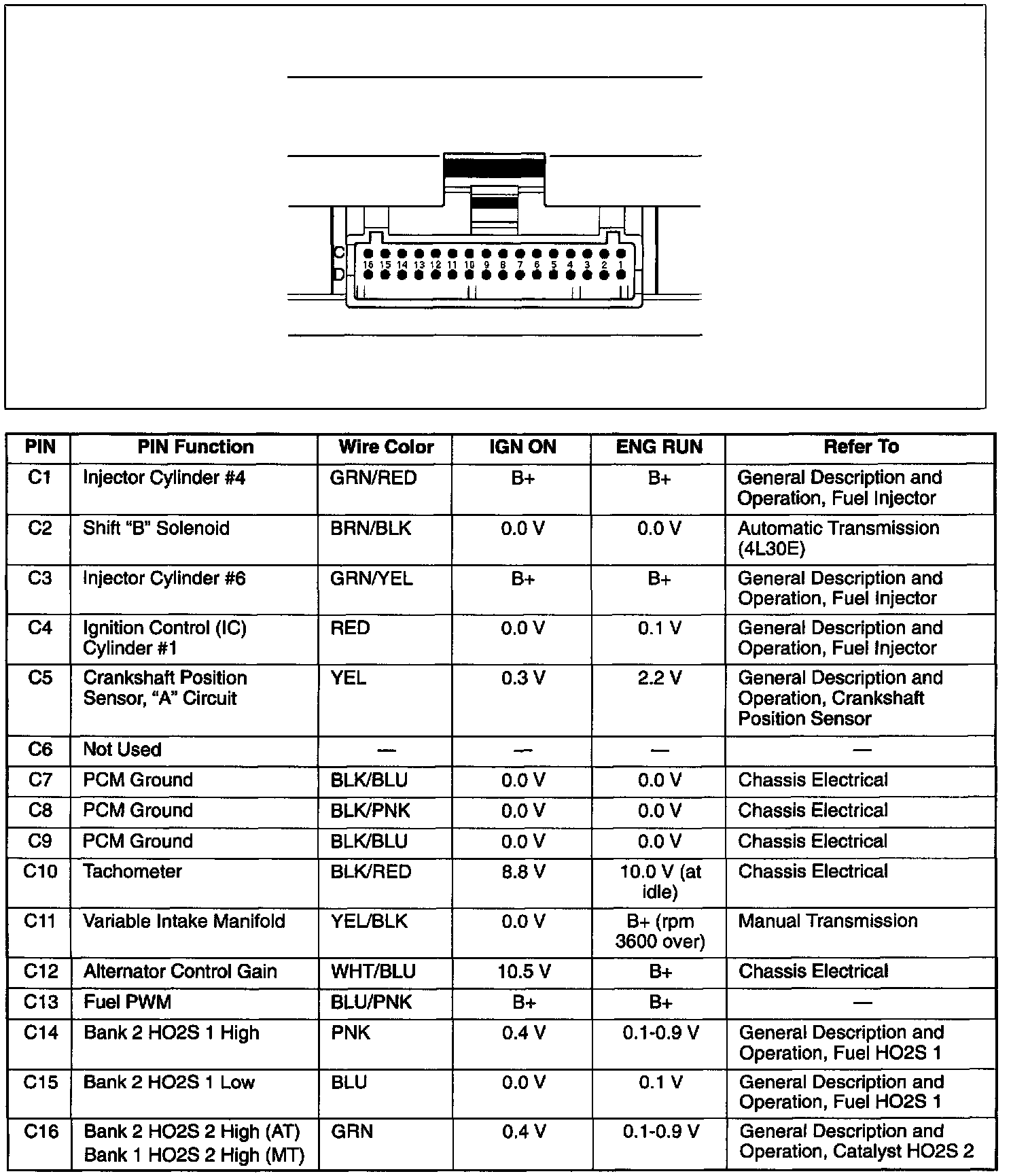

32-Way White Connector - Row "C"

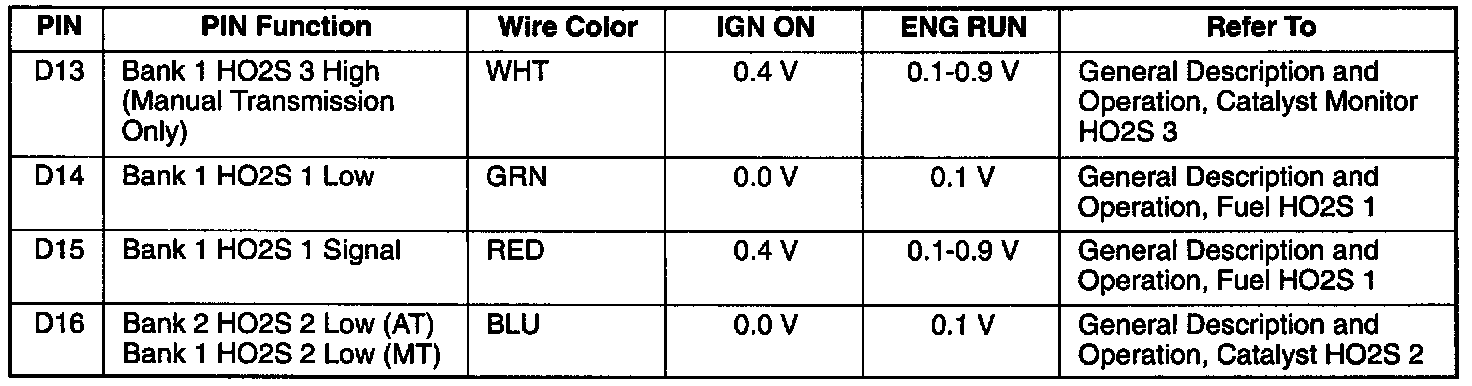

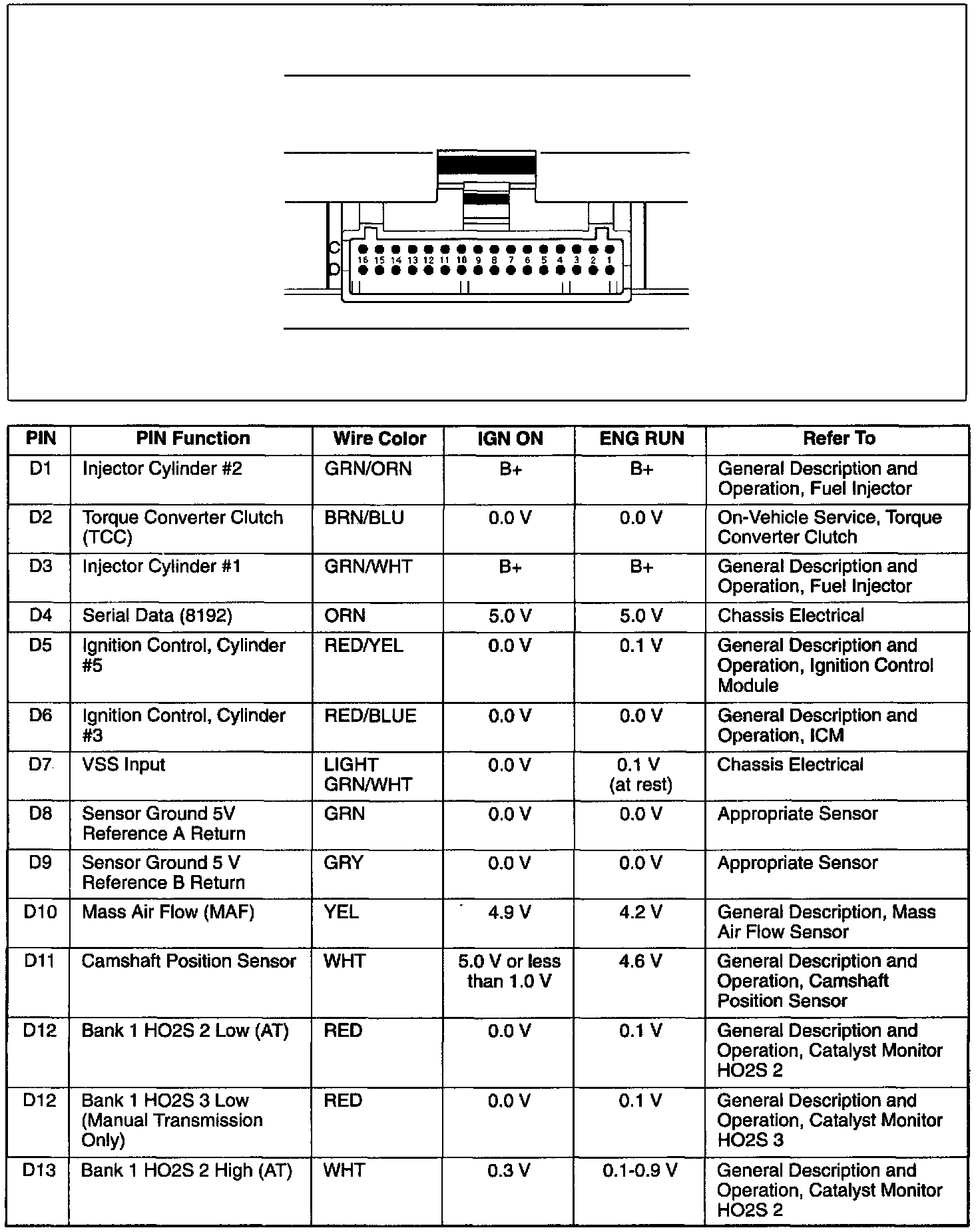

32-Way White Connector - Row "D"

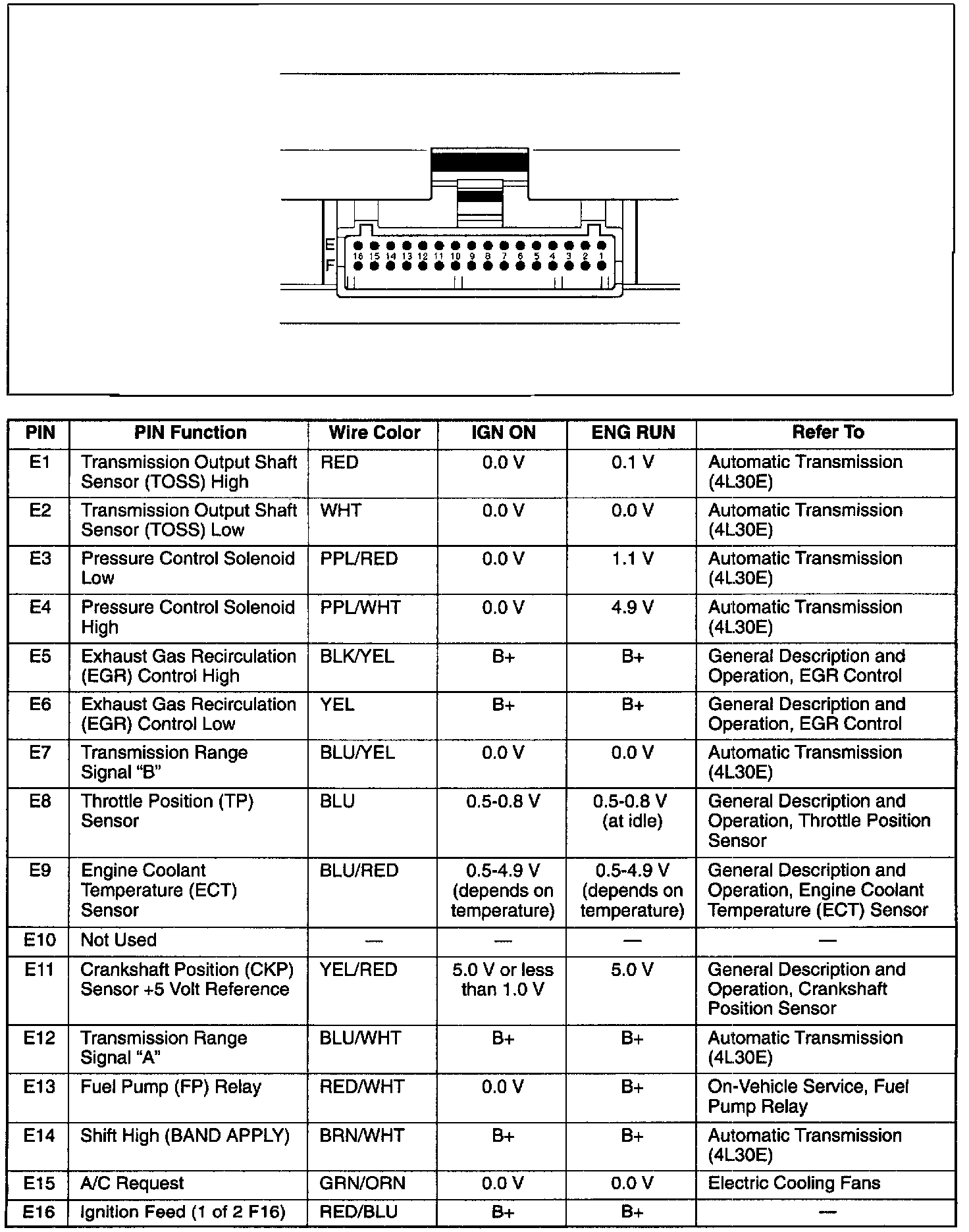

32-Way Blue Connector - Row "E"

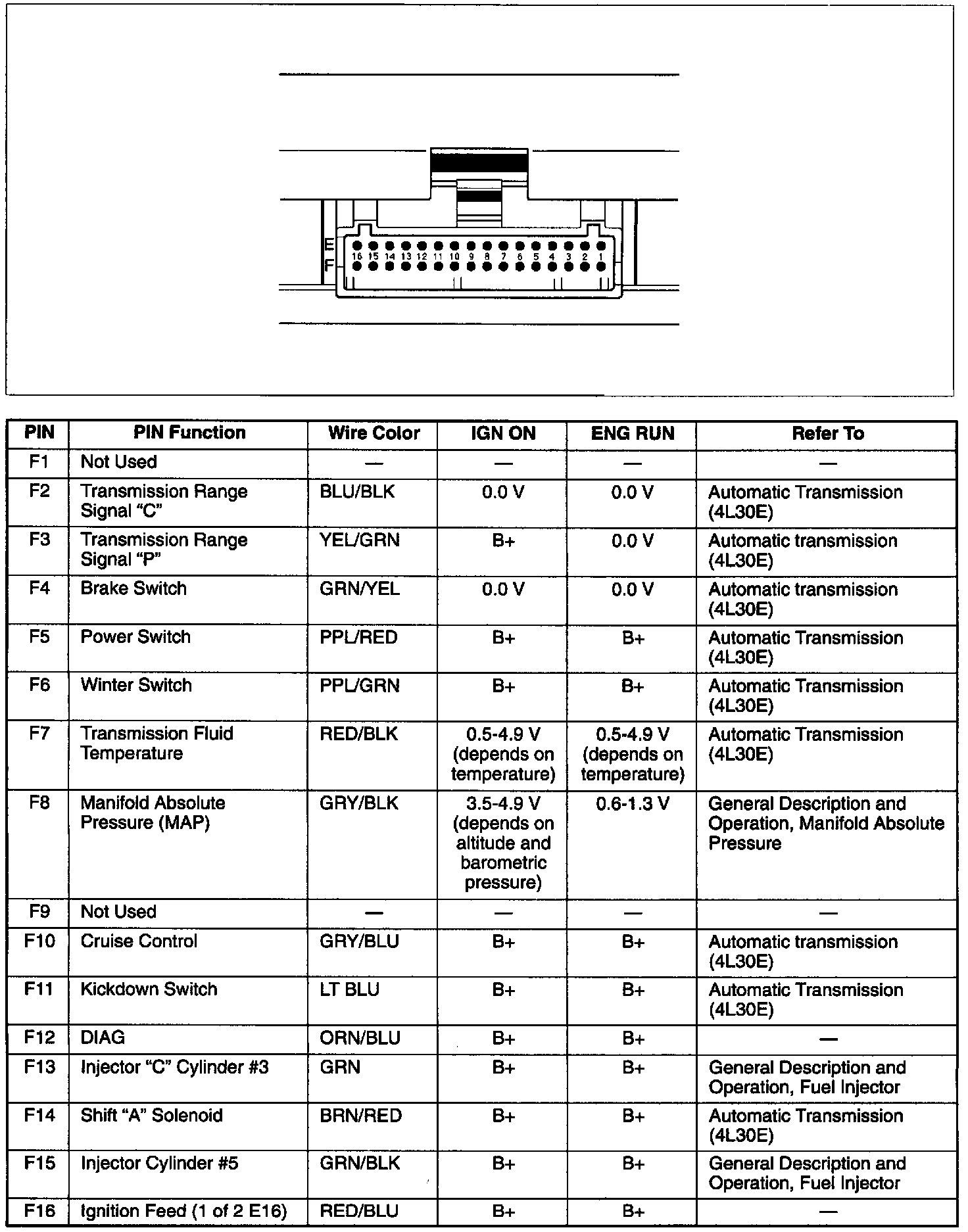

32-Way Blue Connector - Row "F"
