Home >> Isuzu >> 1998 >> Trooper LS V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> System Diagram

System Diagram

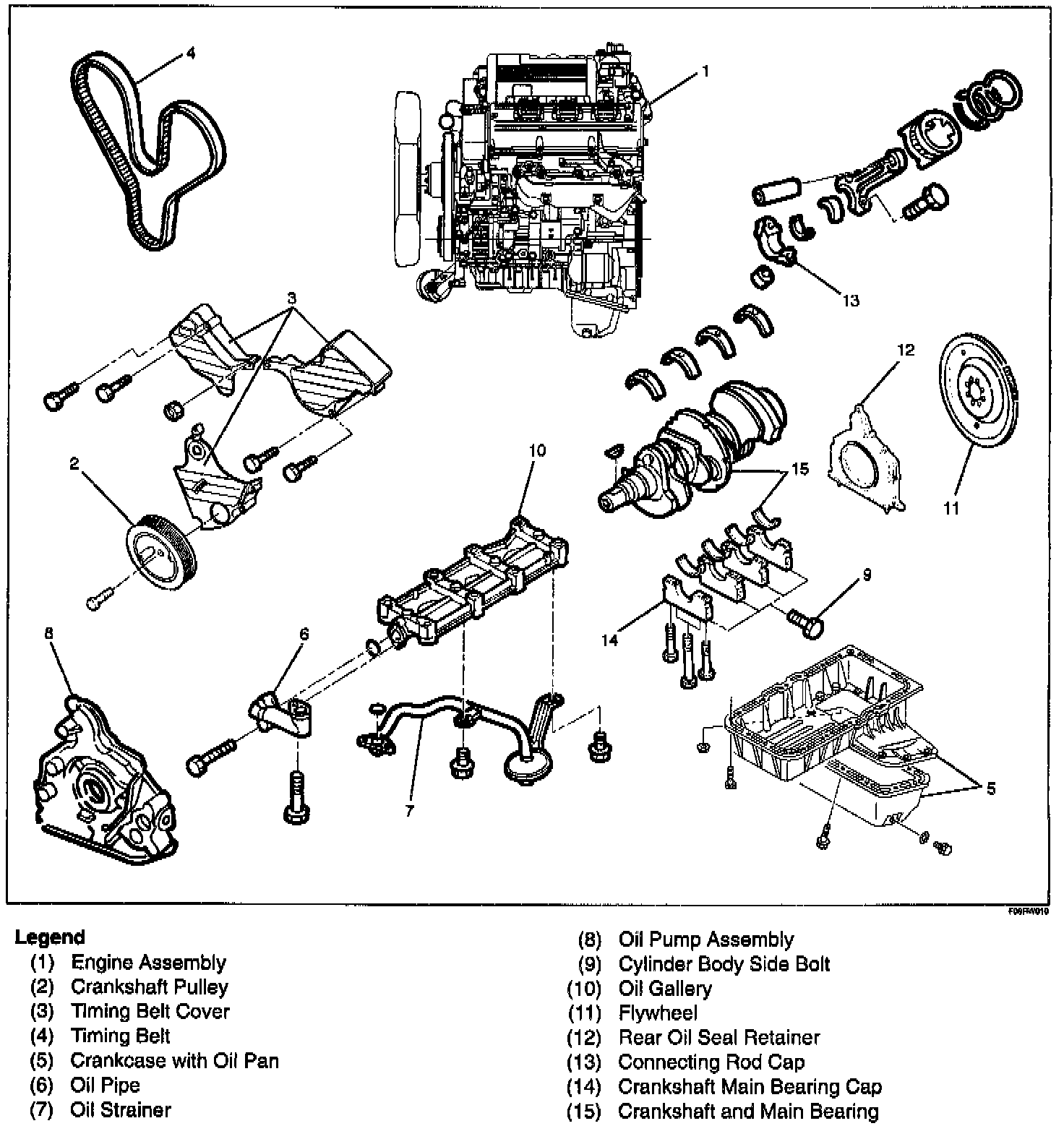

Crankshaft And Associated Parts:











CRANKSHAFT AND ASSOCIATED PARTS
