Connecting Rod Alignment

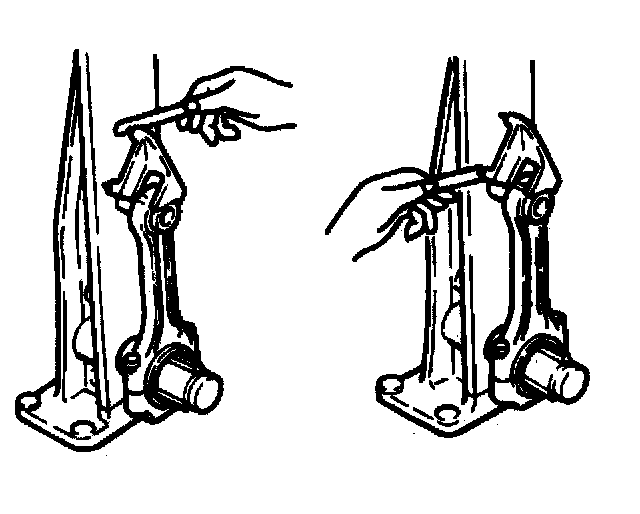

Check the connecting rod alignment. If either the bend or the twist exceeds the specified limit, the connecting rod must be replaced.

Bend per 100 mm (3.937 inch)
Limit 0.15 (0.0059)
Twist per 100 mm (3.937 inch)
Limit 0.20 (0.0078)
