Torque

Camshaft bracket bolts (in sequence) 10 Nm (89 inch lbs.)

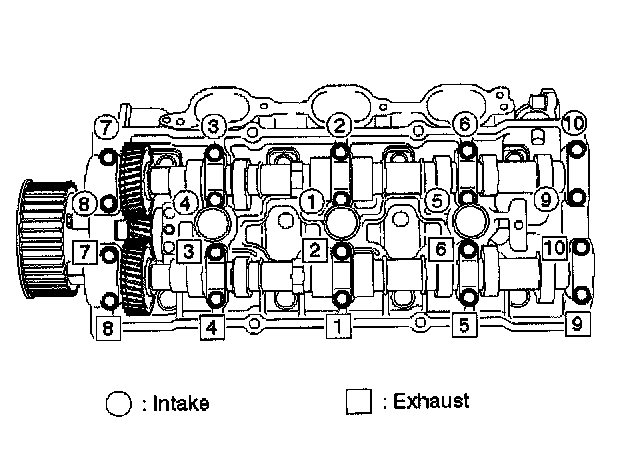

NOTE: Tighten twenty bolts in numerical order on one side bank as shown in the illustration.


Camshaft drive gear assembly bolts (3 bolts) 10 Nm (89 inch lbs.)




Camshaft drive gear assembly pulley bolt 98 Nm (72 ft. lbs.)

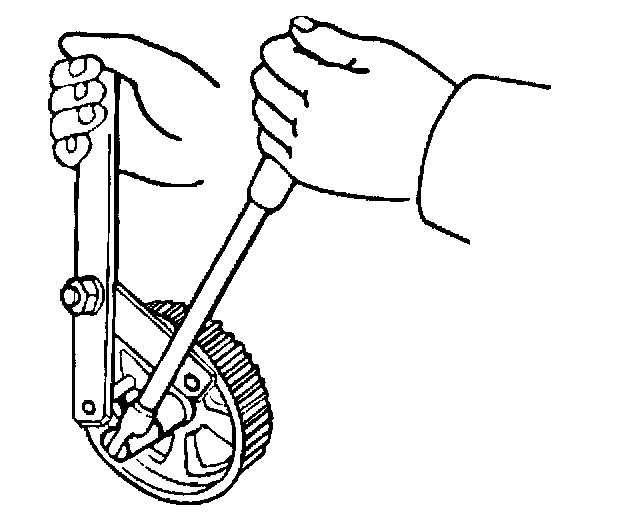

NOTE: Use the J-43041 universal holder while tightening the bolt.
