Home >> Isuzu >> 1998 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Locations

Vehicle Speed Sensor: Locations

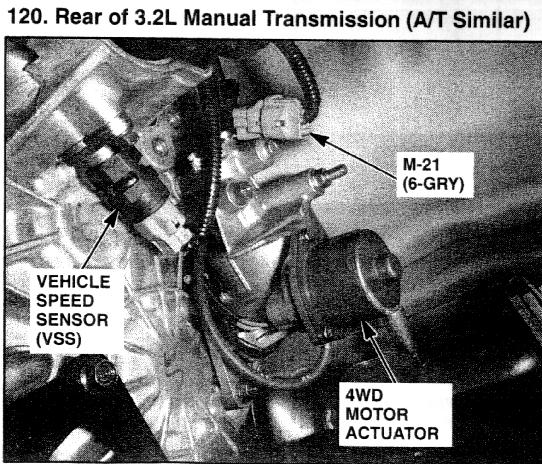

Rear of 3.2L Manual Transmission - Shown for 2WD and 4WD models. (A/T Similar)

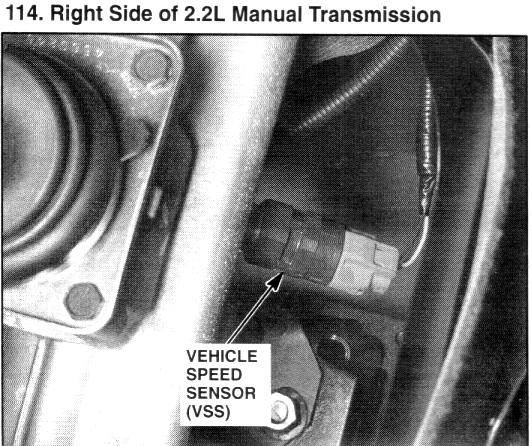

Right side of 2.2L Manual Transmission - Shown for 2WD and 4WD models.
