Installation Procedure

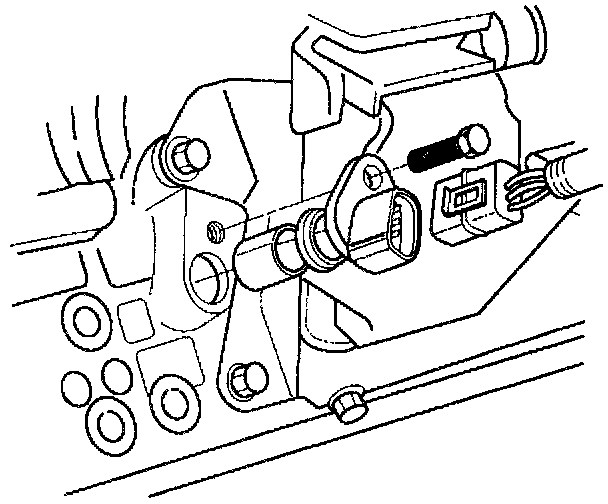

1. Install the CKP sensor in the engine block.
2. Install the CKP sensor mounting bolt.

Tighten: Tighten the mounting bolt to 9 N.m (78 lb in.).

3. Connect the electrical connector to the CKP sensor.
4. Connect the negative battery cable.
