Home >> Isuzu >> 1998 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

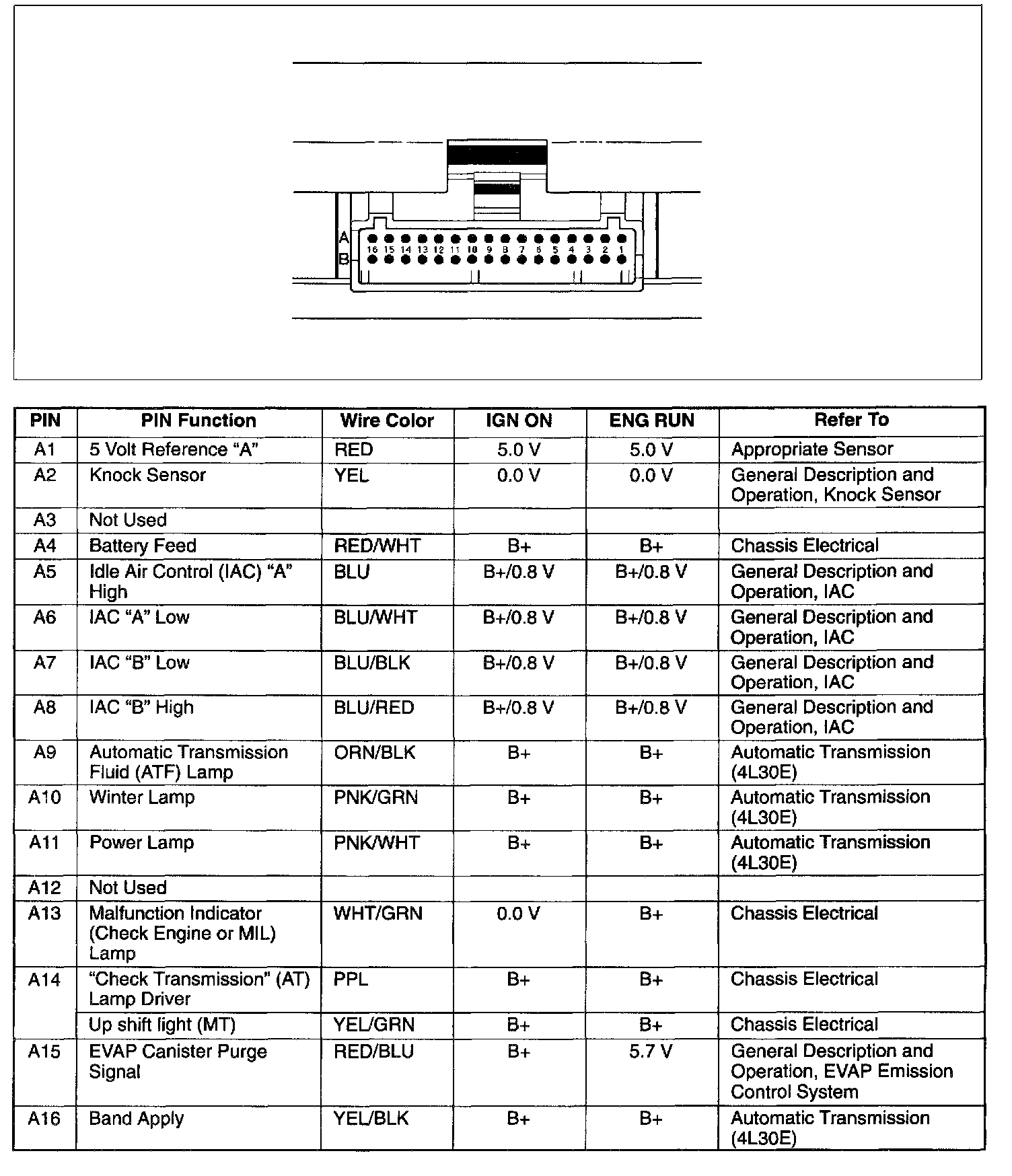

Pinout - 32 Pin Red Connector Row A 3.2L:

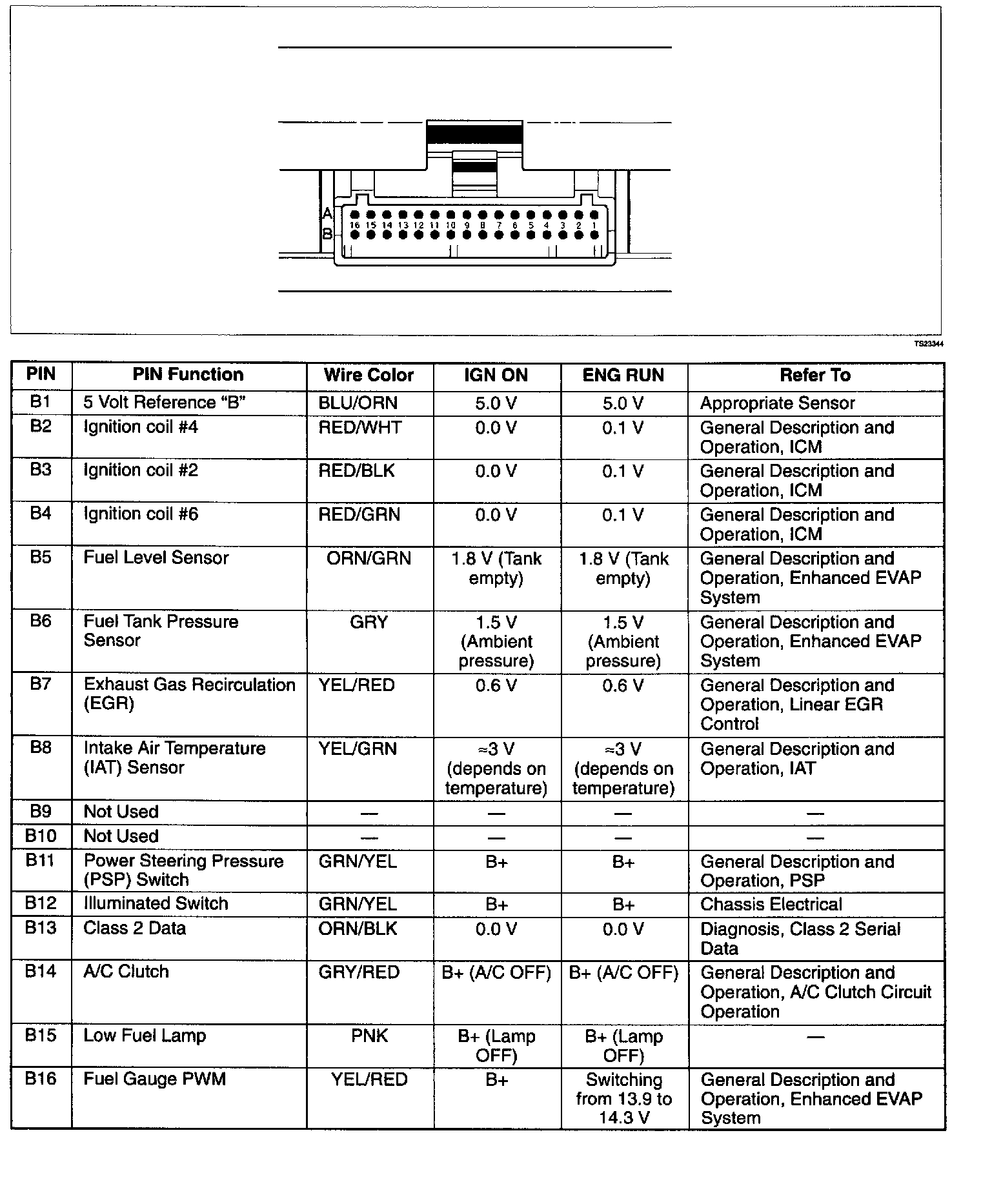

Pinout - 32 Pin Red Connector Row B 3.2L:

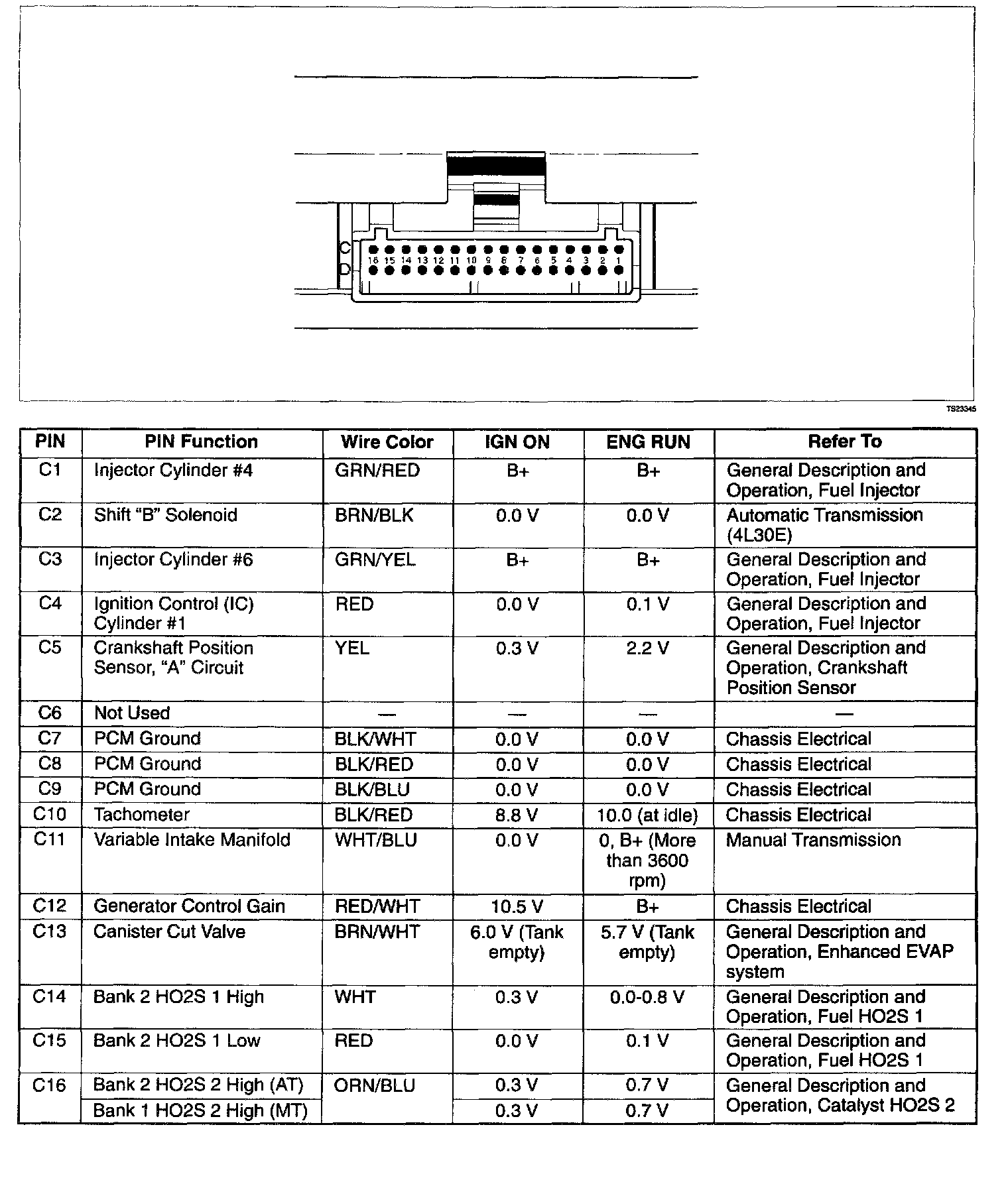

Pinout - 32 Pin White Connector Row C 3.2L:

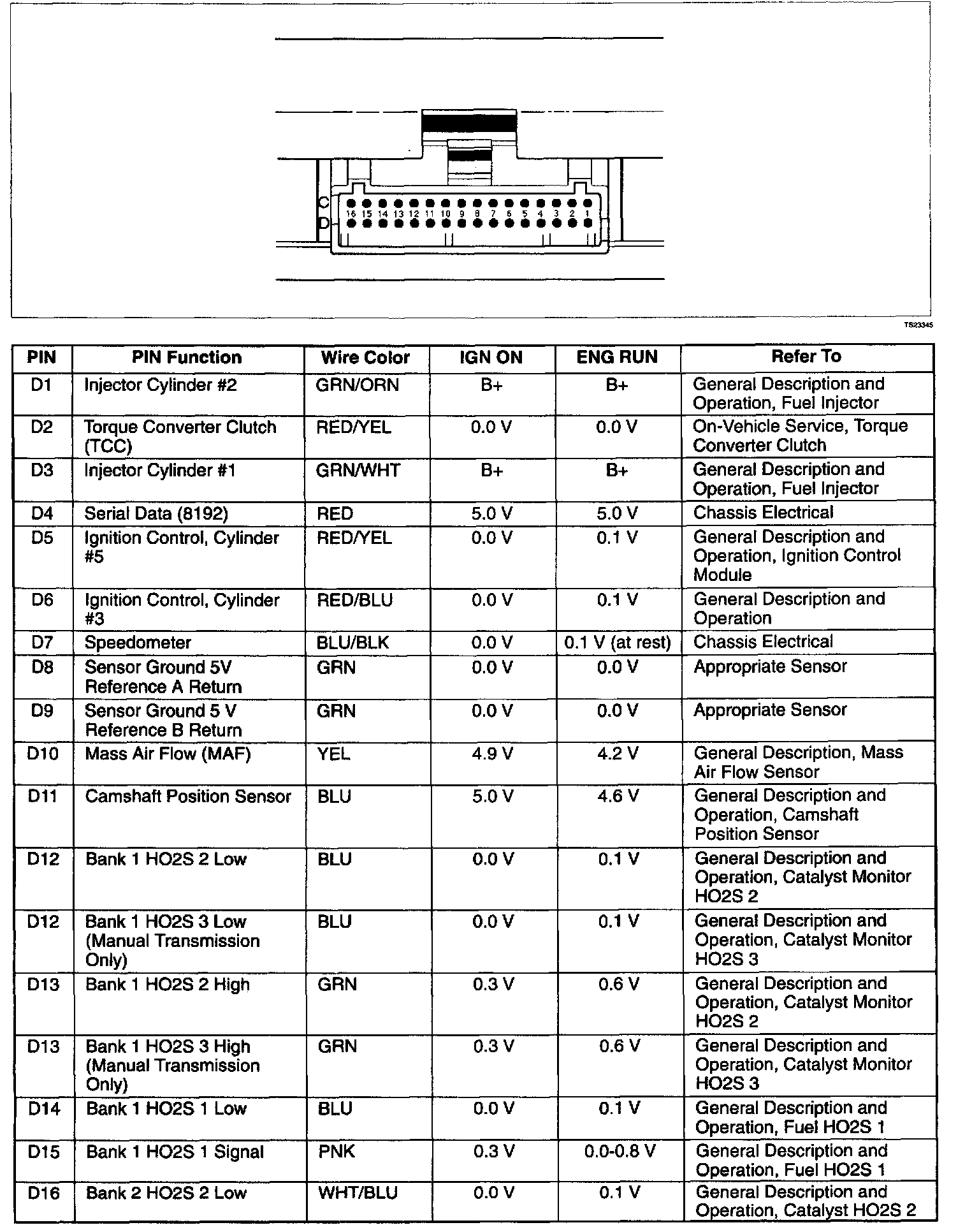

Pinout - 32 Pin White Connector Row D 3.2L:

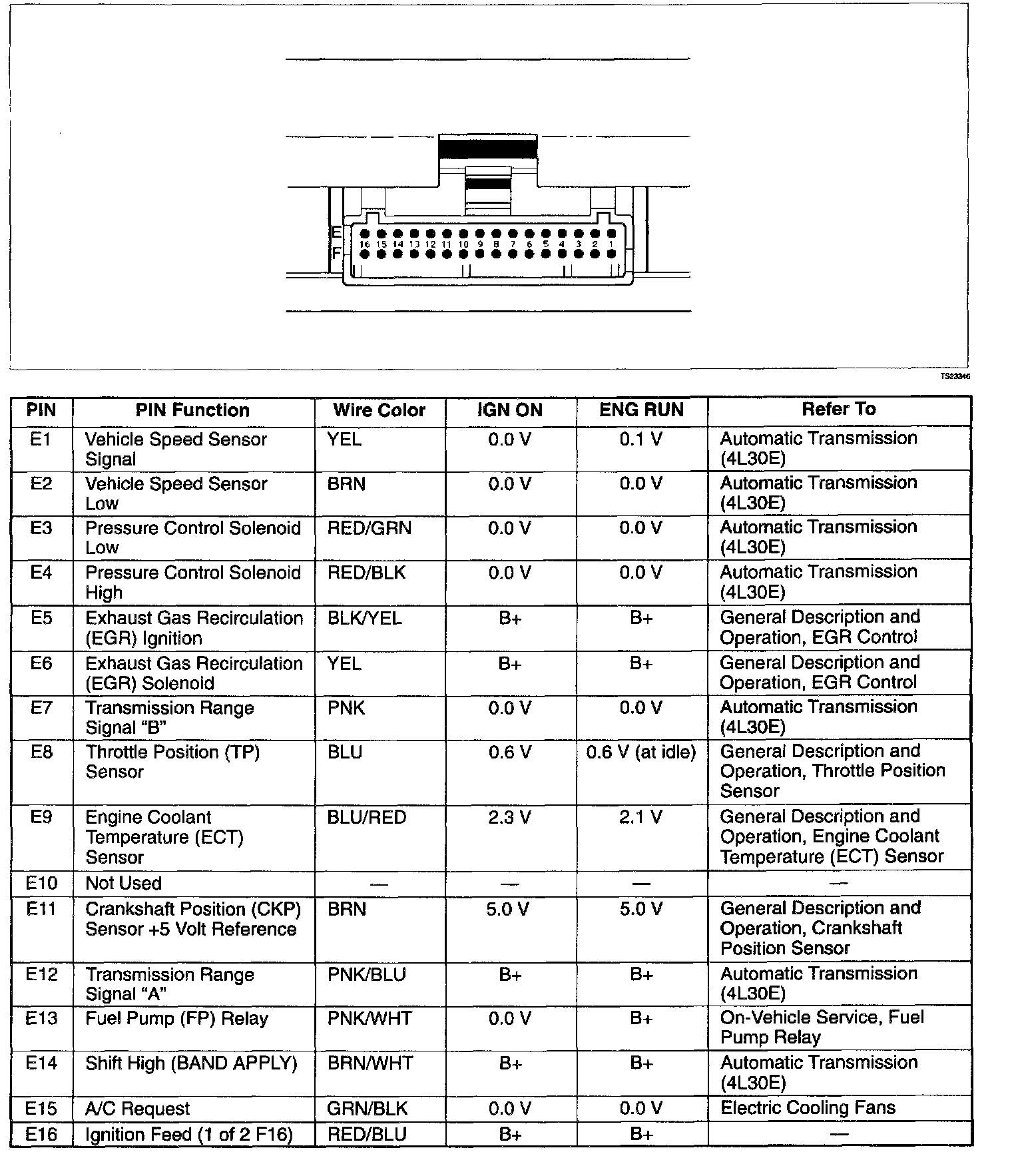

Pinout - 32 Pin Blue Connector Row E 3.2L:

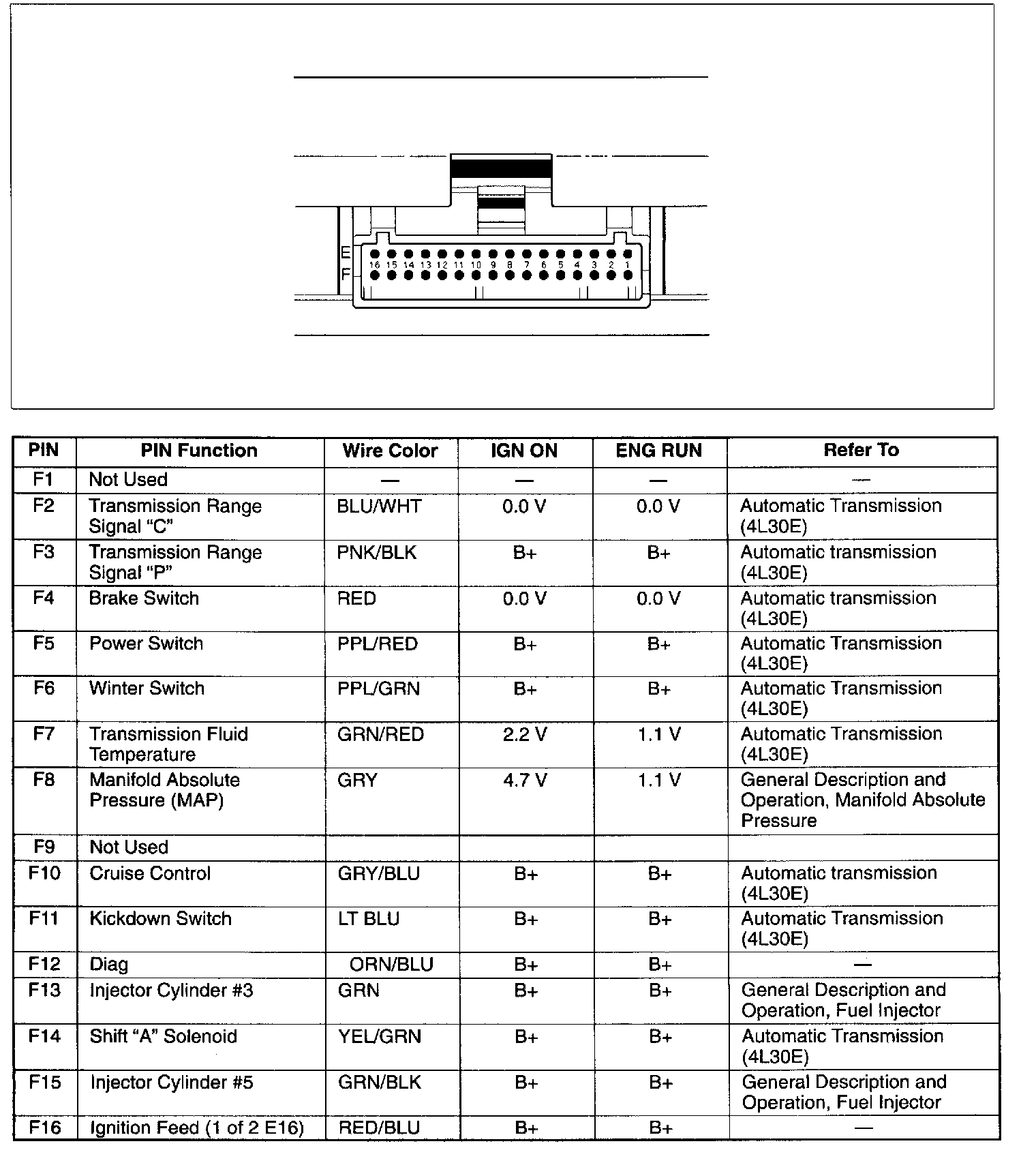

Pinout - 32 Pin Blue Connector Row F 3.2L:
