Torque Specifications

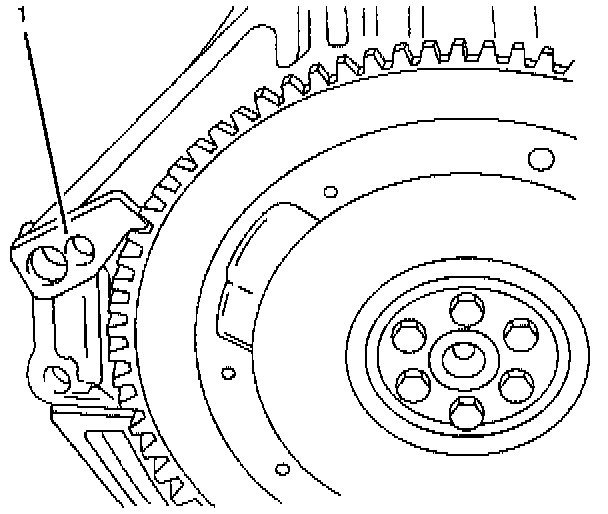

Use stopper (J-42618) to hold the crankshaft and to prevent from rotating.
Tighten the flywheel bolts in 3 steps:
1st step 65 Nm (48 ft. lbs.)
2nd step 30°
3rd step 15°
NOTE: Do not reuse the bolt.
Use stopper (J-42618) to hold the crankshaft and to prevent from rotating.
Tighten the flywheel bolts in 3 steps:
1st step 65 Nm (48 ft. lbs.)
2nd step 30°
3rd step 15°
NOTE: Do not reuse the bolt.
