Torque Specifications

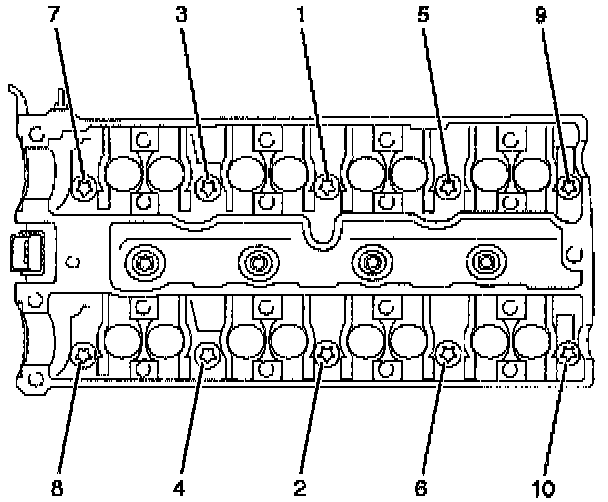

Torque Sequence:









Tighten cylinder head bolts by the four step tightening method. Tighten to the specified torque.
1st step: 25 Nm (18 ft. lbs.)
2nd step: 90°
3rd step: 90°
4th step: 90°
