Vehicle Speed Sensor: Service and Repair

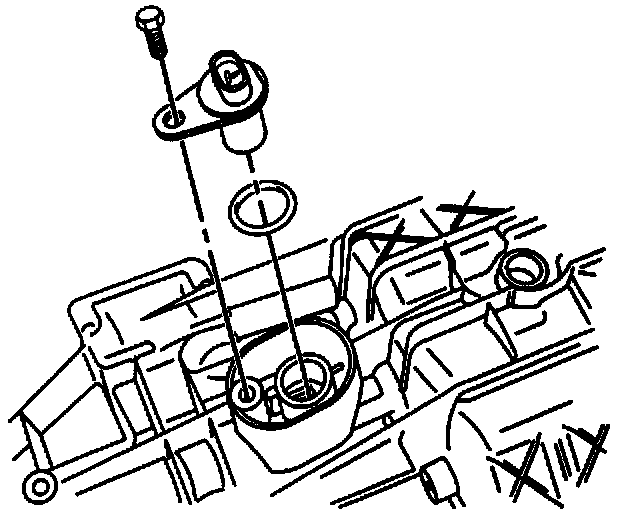

Figure 2 Speed Sensor:

REMOVE OR DISCONNECT
1. Harness connector.
2. Vehicle speed sensor bolt.
3. Vehicle speed sensor.
4. 0-ring seal.

INSTALL OR CONNECT
1. New 0-ring seal - Coat the seal with a thin film of transmission fluid.
2. Vehicle speed sensor.
3. Vehicle speed sensor bolt.

Tighten Bolt securing the speed sensor to 22 Nm (16 ft. lbs.).

4. Harness connector.
5. Check transmission fluid level and add as required.
