Connector Views

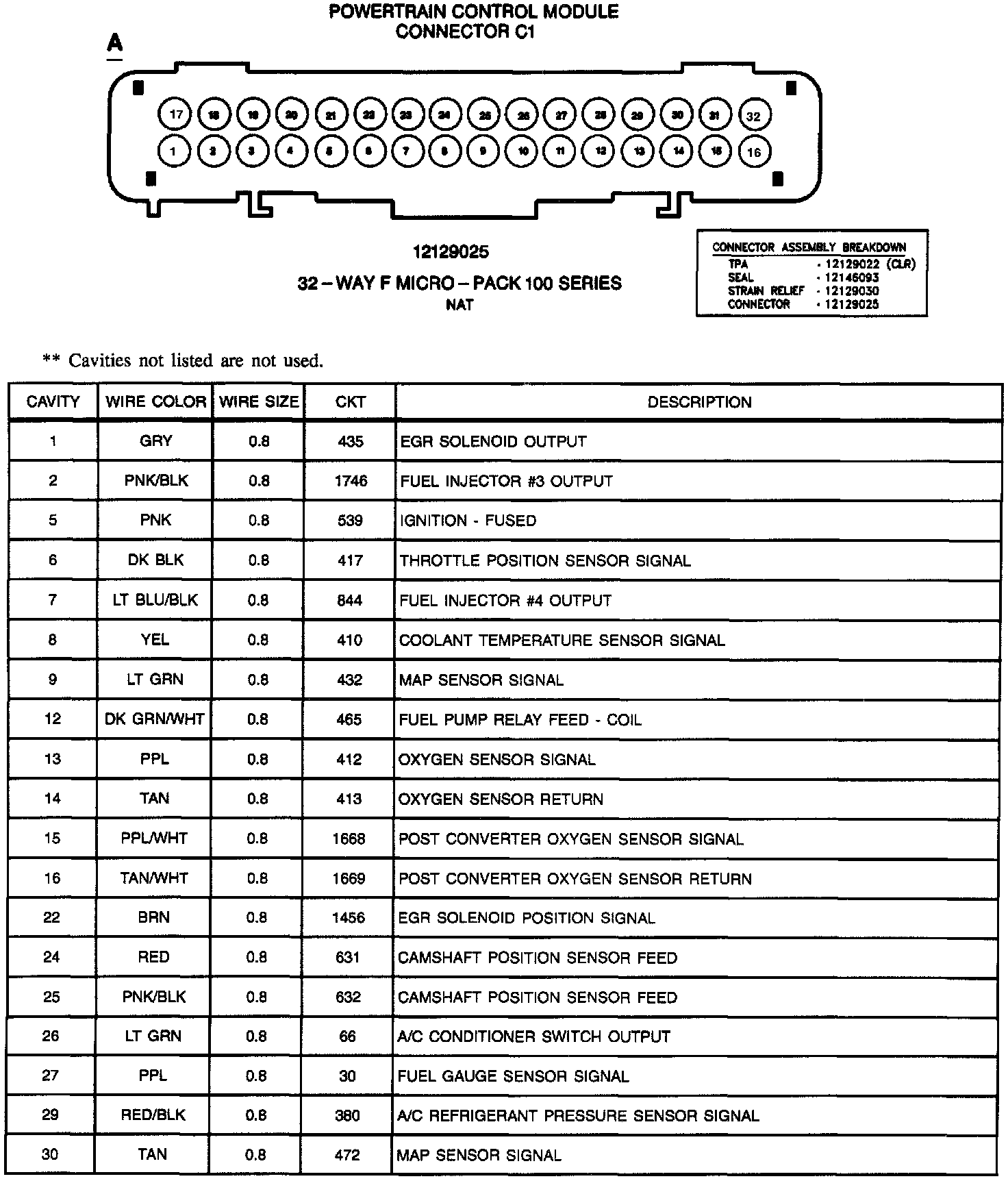

Powertrain Control Module Connector C1:

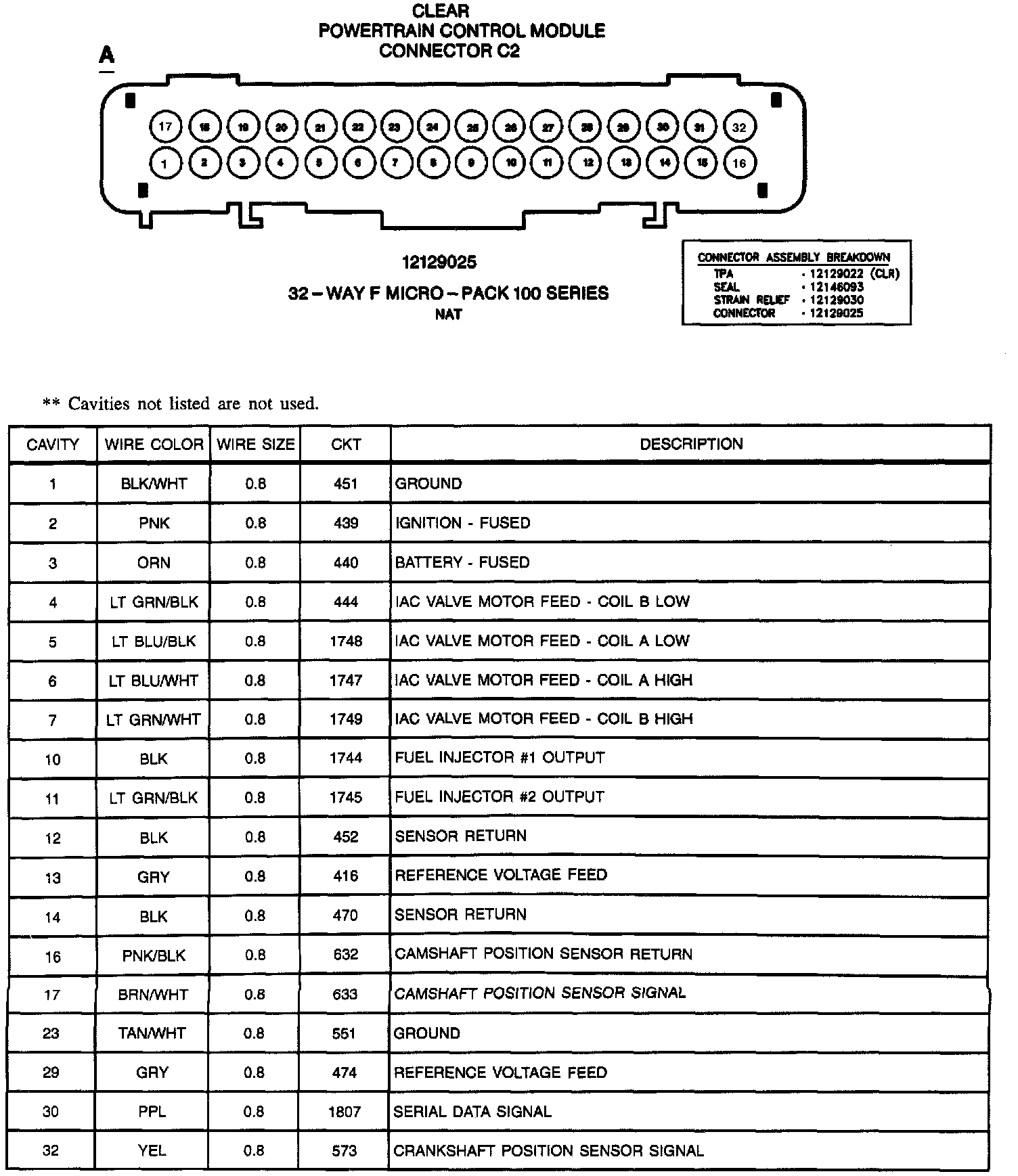

Powertrain Control Module Connector C2 (Clear):

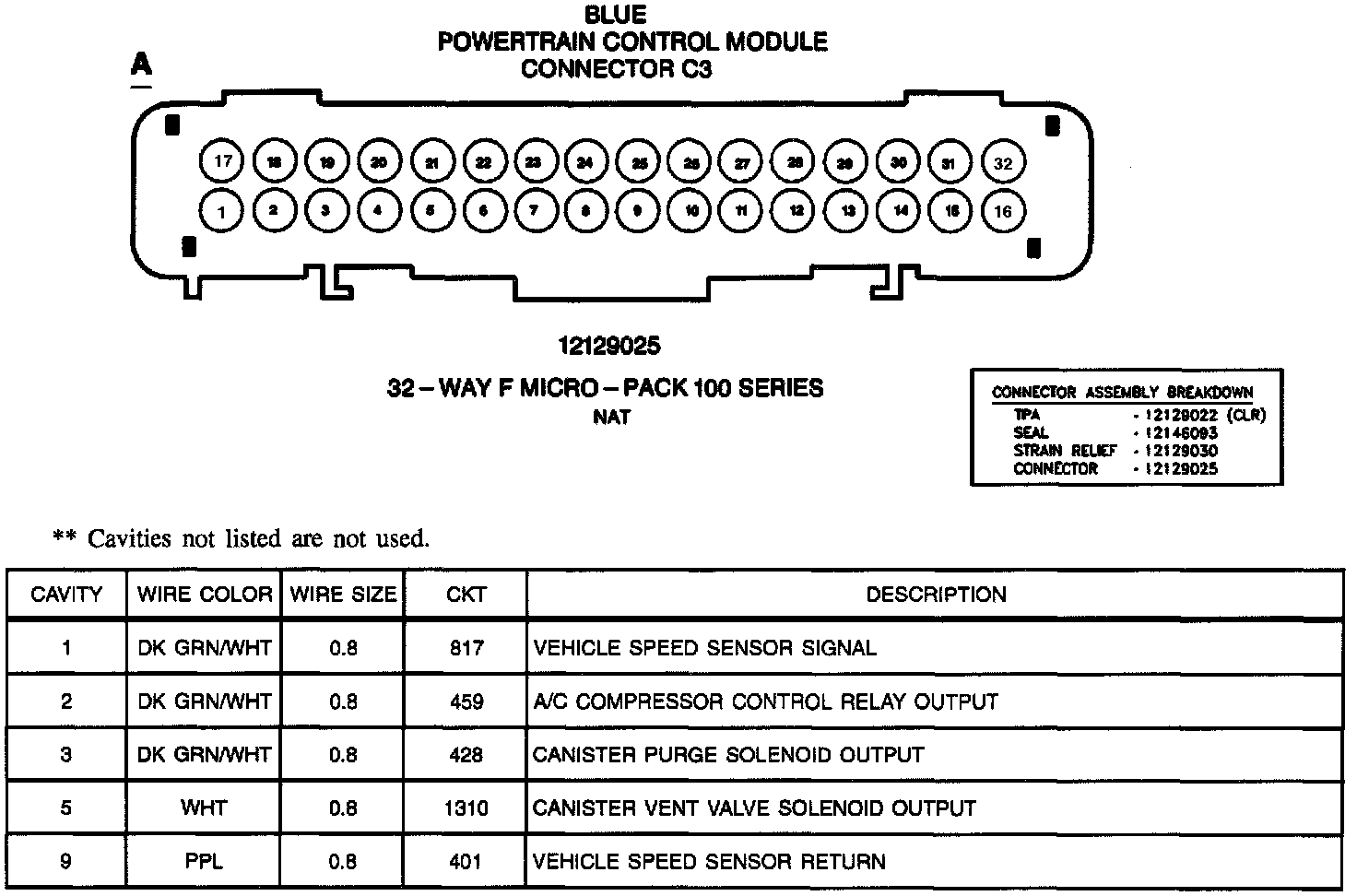

Powertrain Control Module Connector C3 (Blue):
