Home >> Isuzu >> 1996 >> Hombre L4-2.2L CPC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Ignition Control Module >> C1

C1

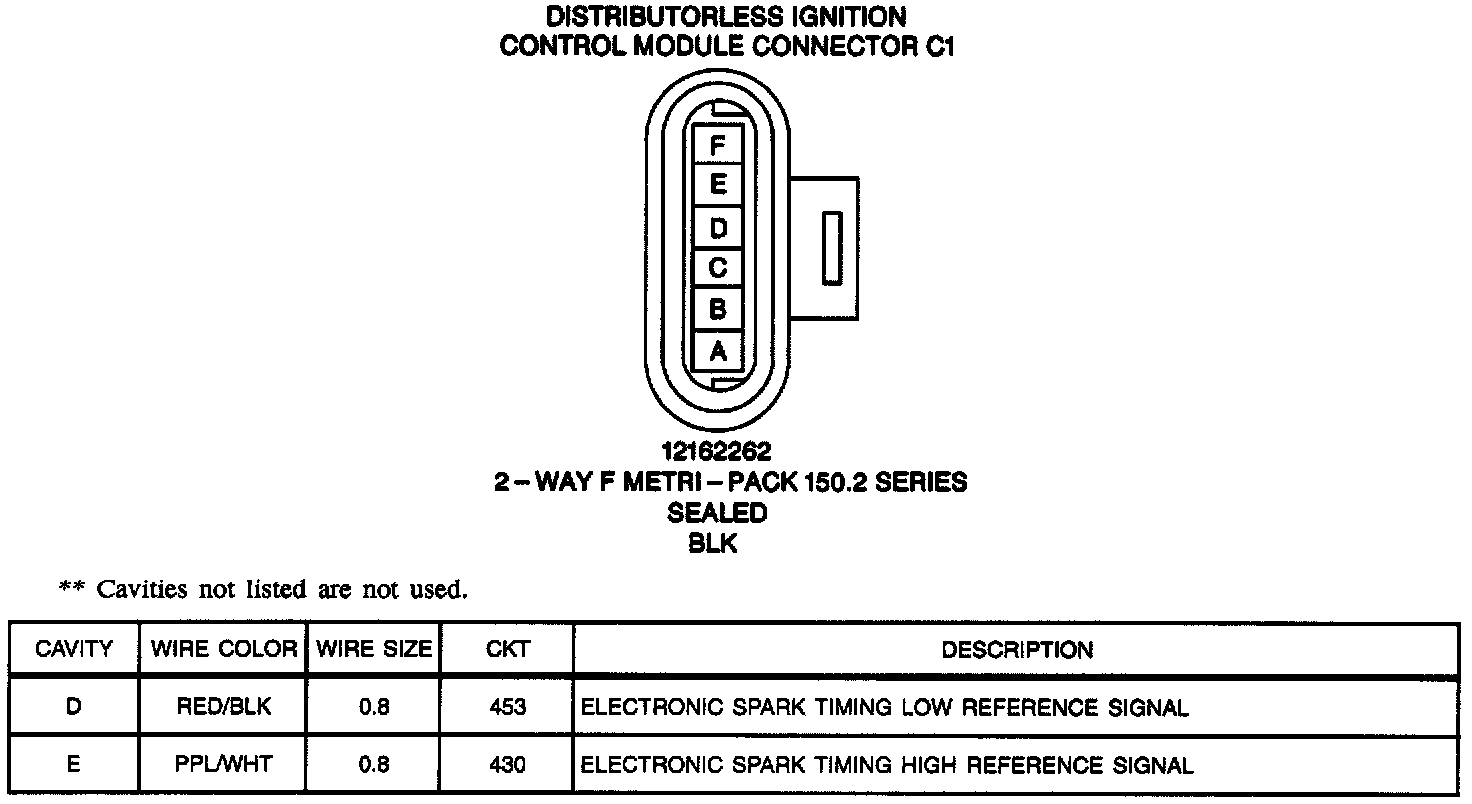

Distribution Ignition Control Module Connector C1:
