Torque Specifications

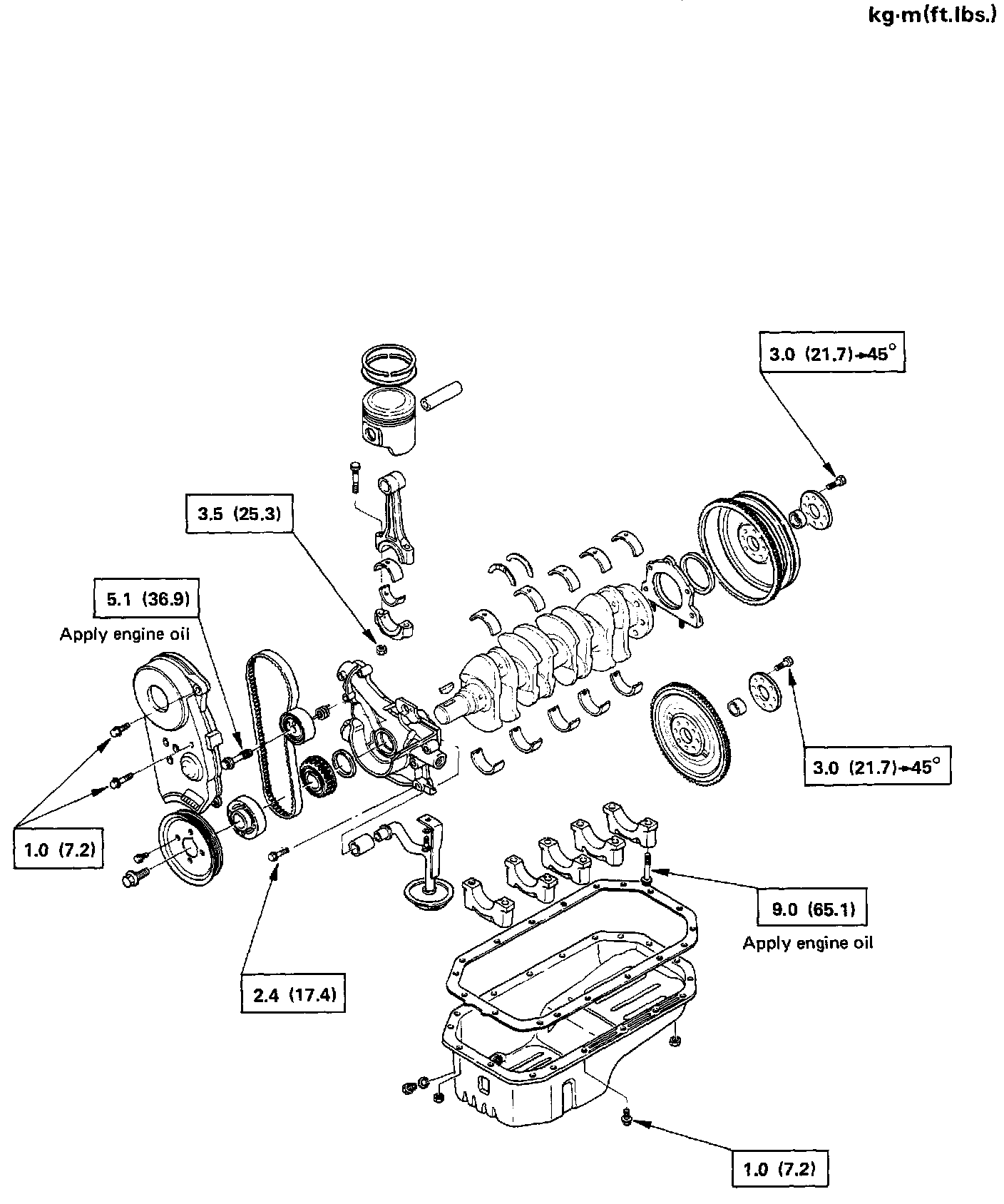

Torque Specifications:

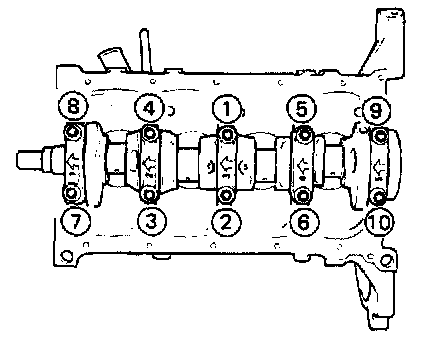

Crankshaft Main Bearing Cap Bolts Removal Sequence:

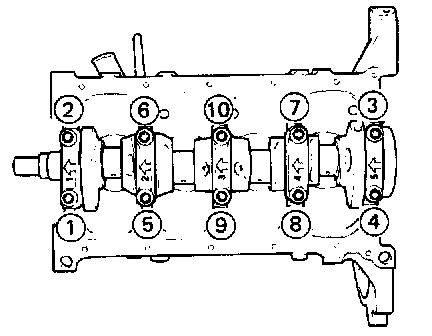

Crankshaft Main Bearing Cap Bolts Torque Sequence:

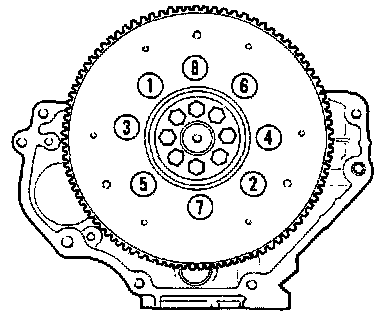

Flywheel Torque Sequence:
