Home >> Isuzu >> 1988 >> I-Mark L4-1471cc 1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Electrical Diagrams >> Less Turbo

Less Turbo

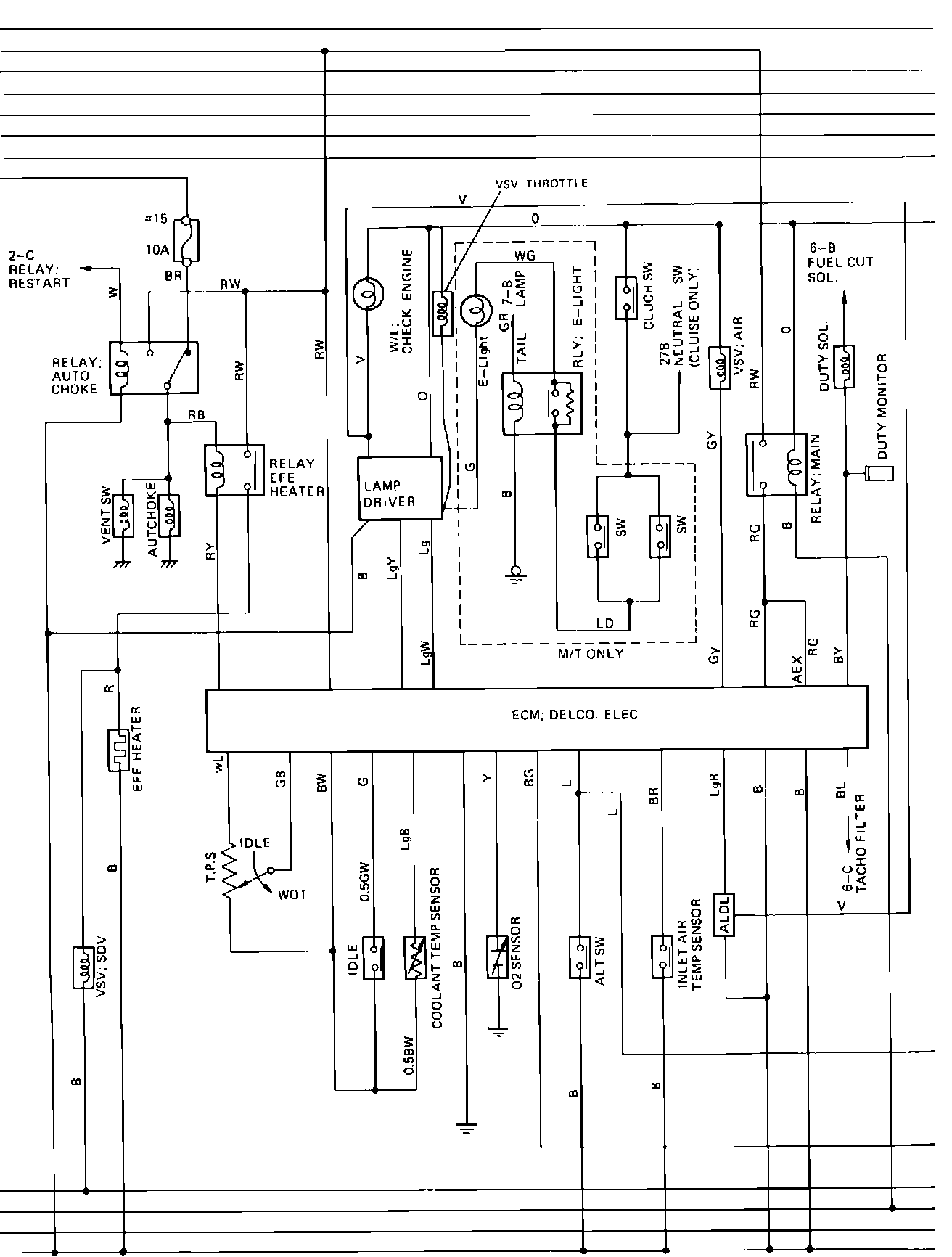

Electronic Control Module Wiring Circuit. Less Turbo:
