Transmission Control Systems: Diagrams

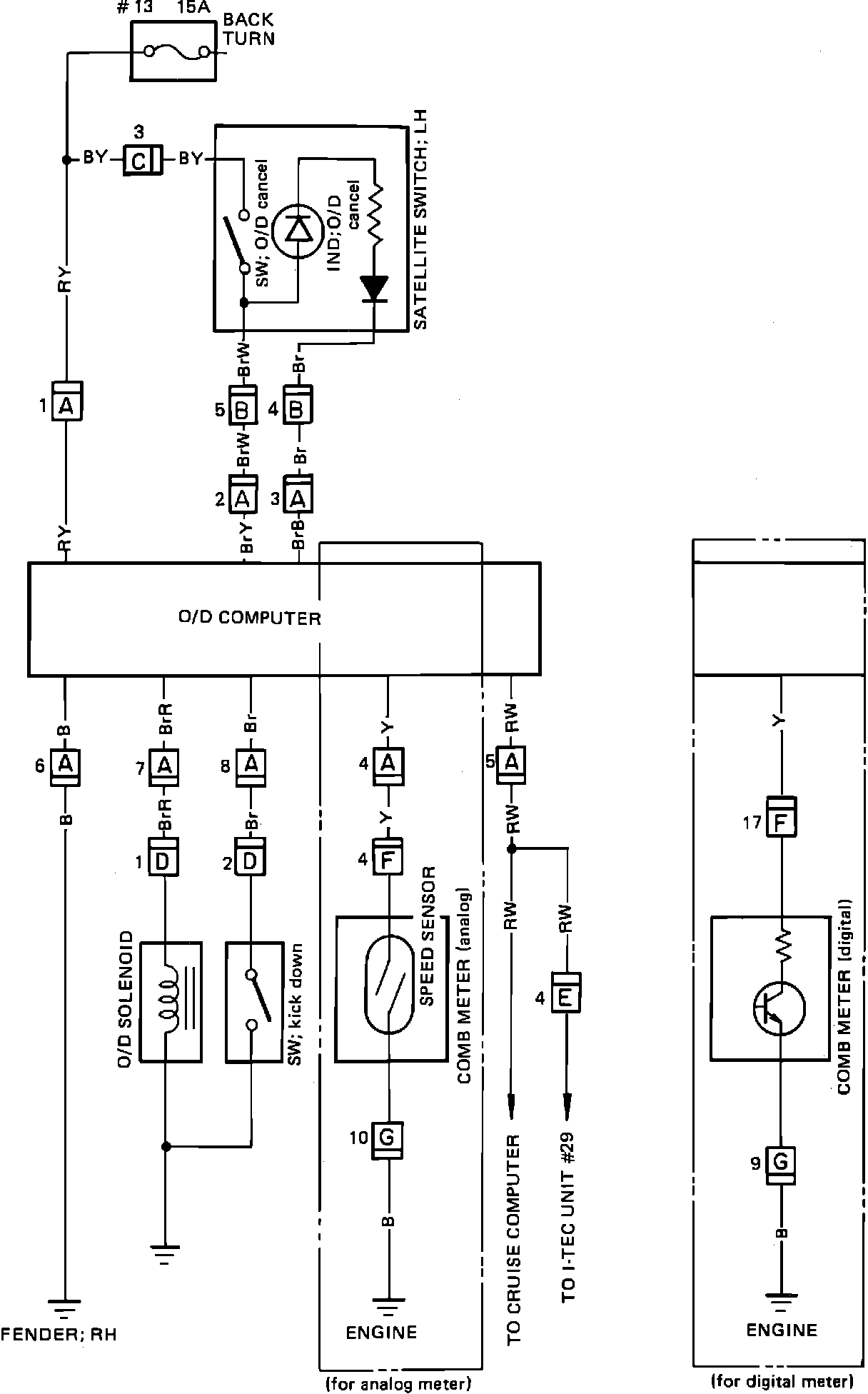

Injector Blower, Overdrive & Overdrive Lock Up:
Injector Blower, Overdrive & Overdrive Lock Up:
Injector Blower, Overdrive & Overdrive Lock Up:
