Oxygen Sensor
>>
Testing and Inspection
>>
Testing Using Waveform Analysis
Testing Using Waveform Analysis

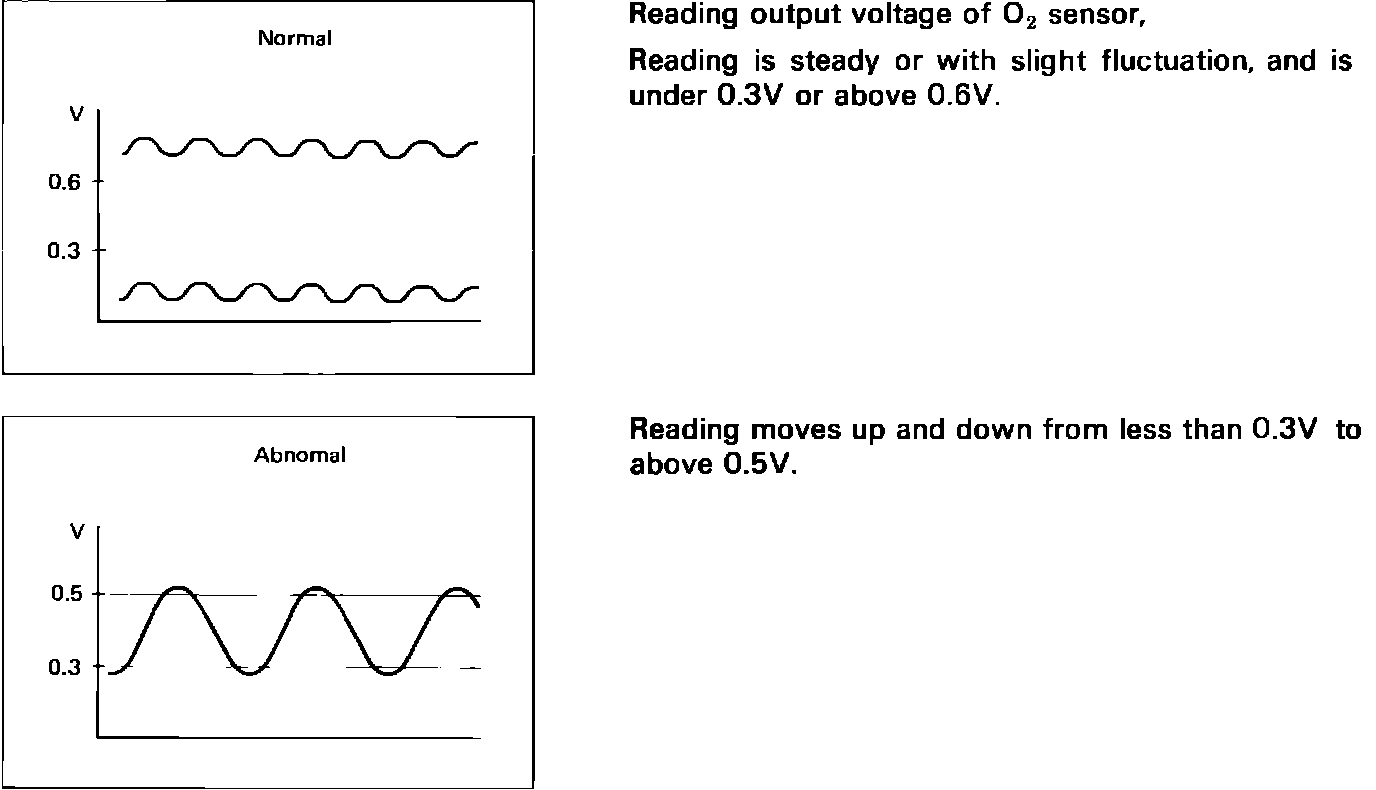

Fig. 212 Testing Oxygen Sensor Using Waveform Analysis:
