Knock Sensor: Testing and Inspection

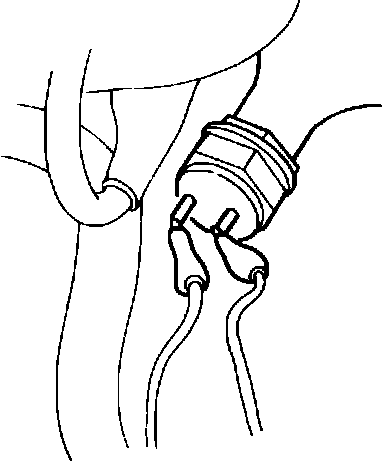

Fig. 226 Checking Knock Sensor:

1. Connect ohmmeter as shown in Fig. 226.
2. Resistance readings should be between 650-800 ohms.
3. If not within specifications, replace the knock sensor.
