Timing Component Alignment Marks: Locations

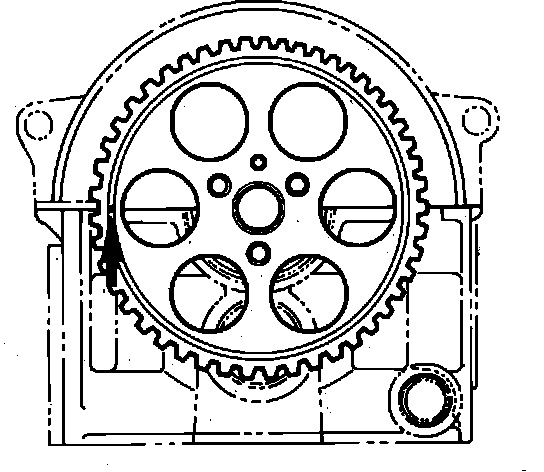

Fig. 15 Aligning camshaft pulley:

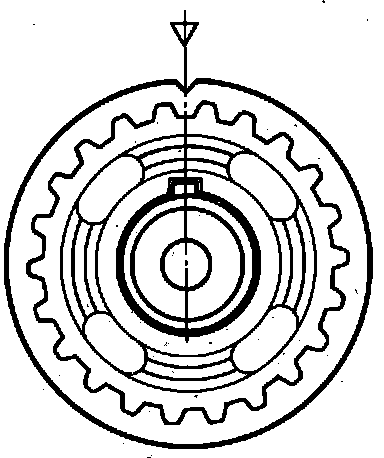

Fig. 16 Installing crankshaft pulley:

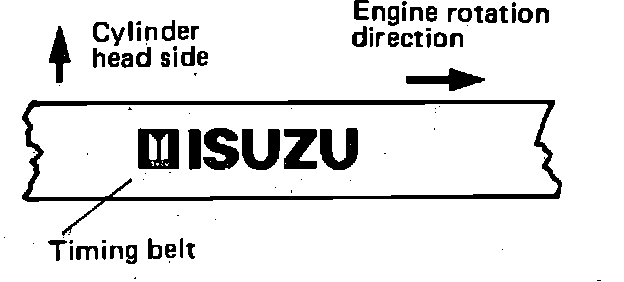

Fig. 17 Installing timing belt:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information: Service and Repair
