Home >> Infiniti >> 1990 >> M30 V6-181 3.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Shift Interlock Control Module >> Locations

Shift Interlock Control Module: Locations

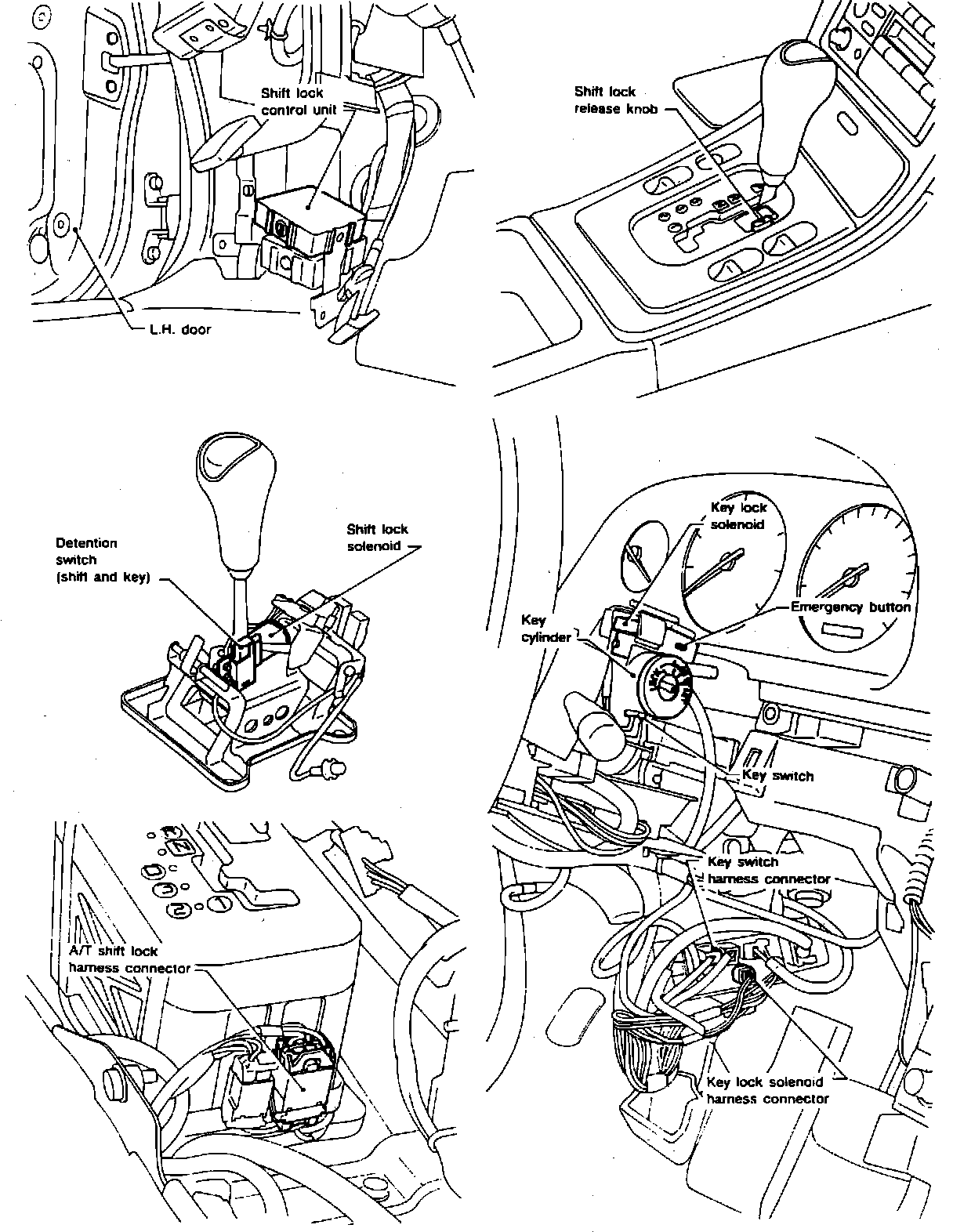

Automatic Transmission Shift Lock Component Locations:




Behind LH Side Of I/P, Left Of Steering Column
