System Specifications

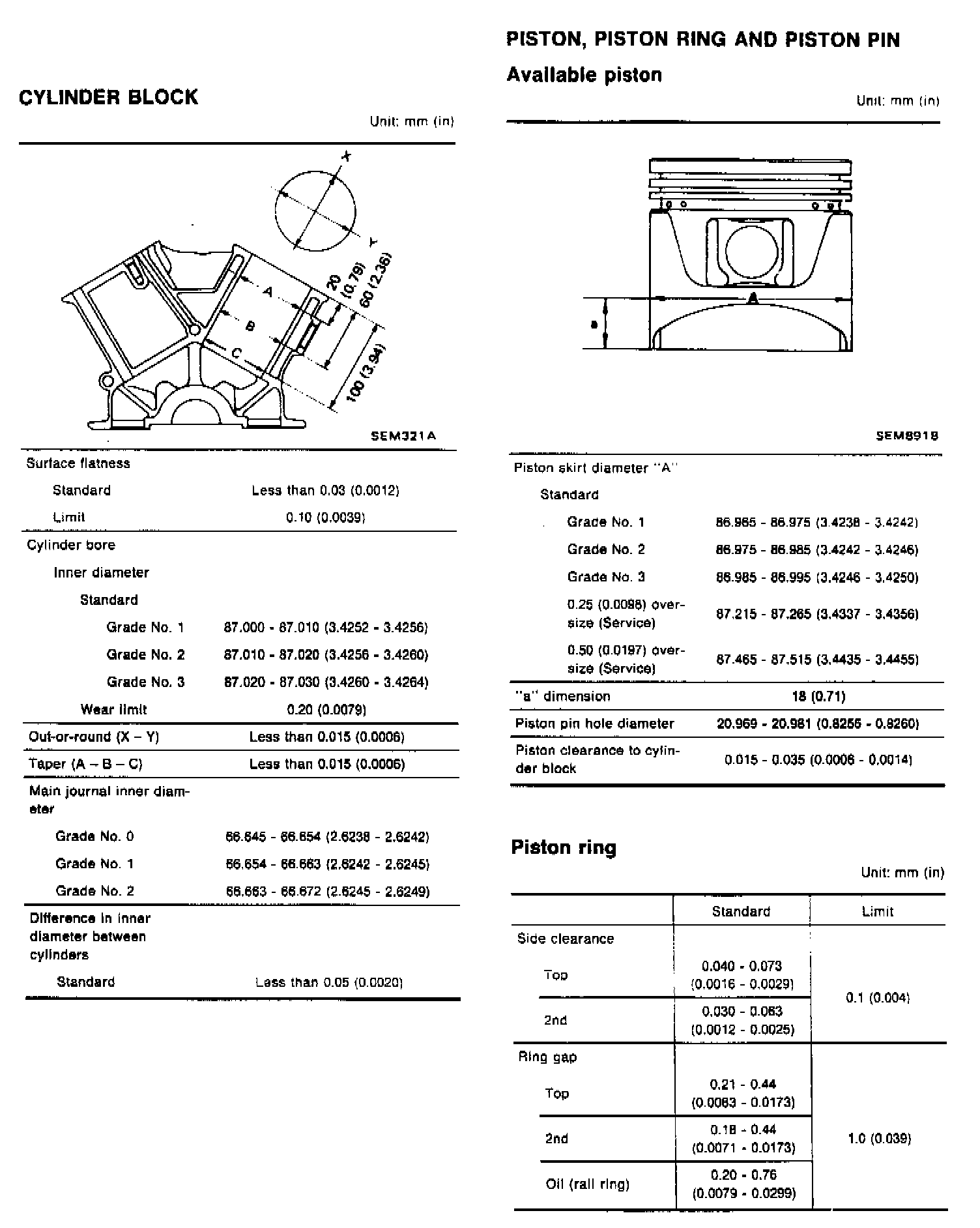

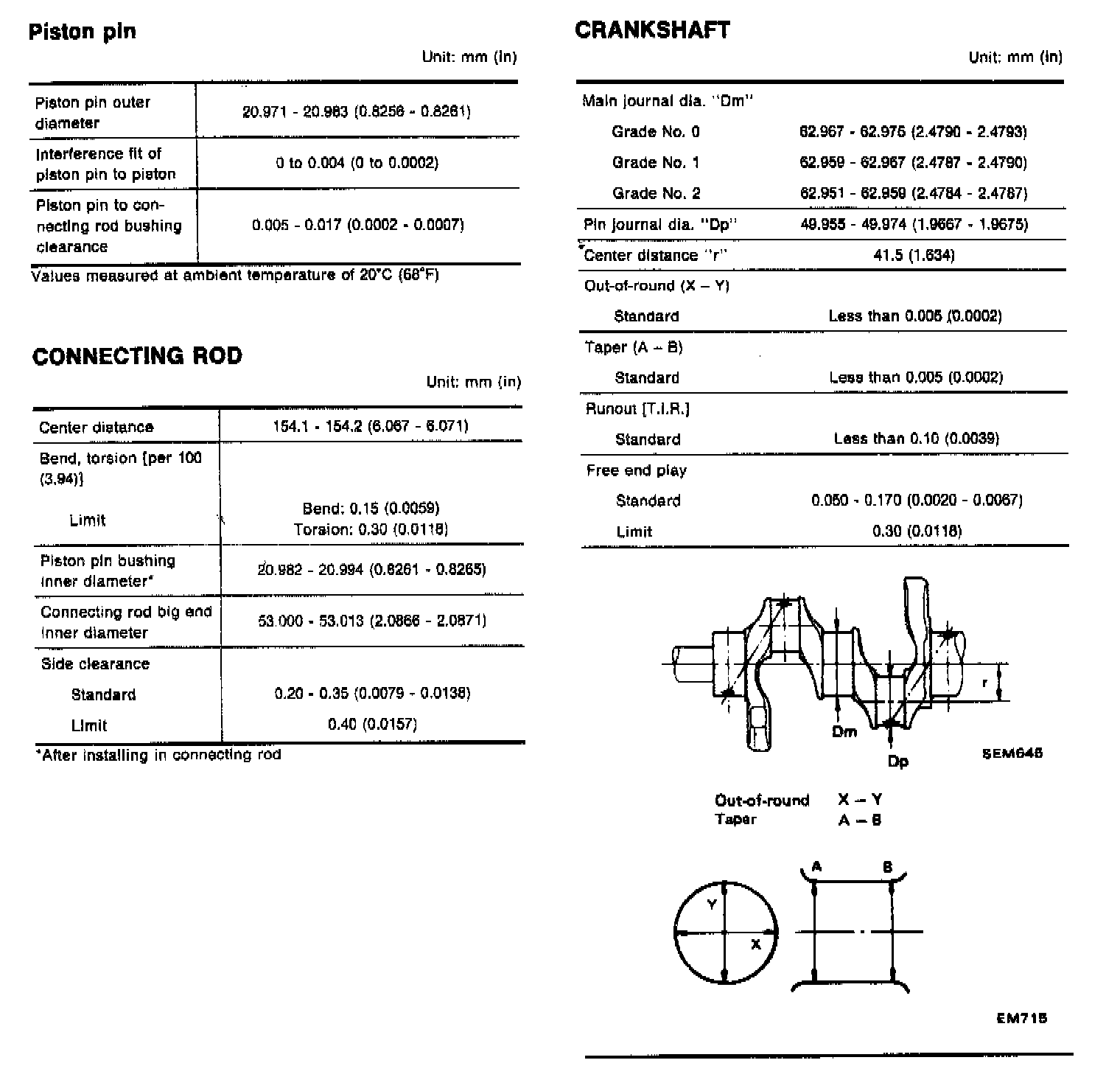

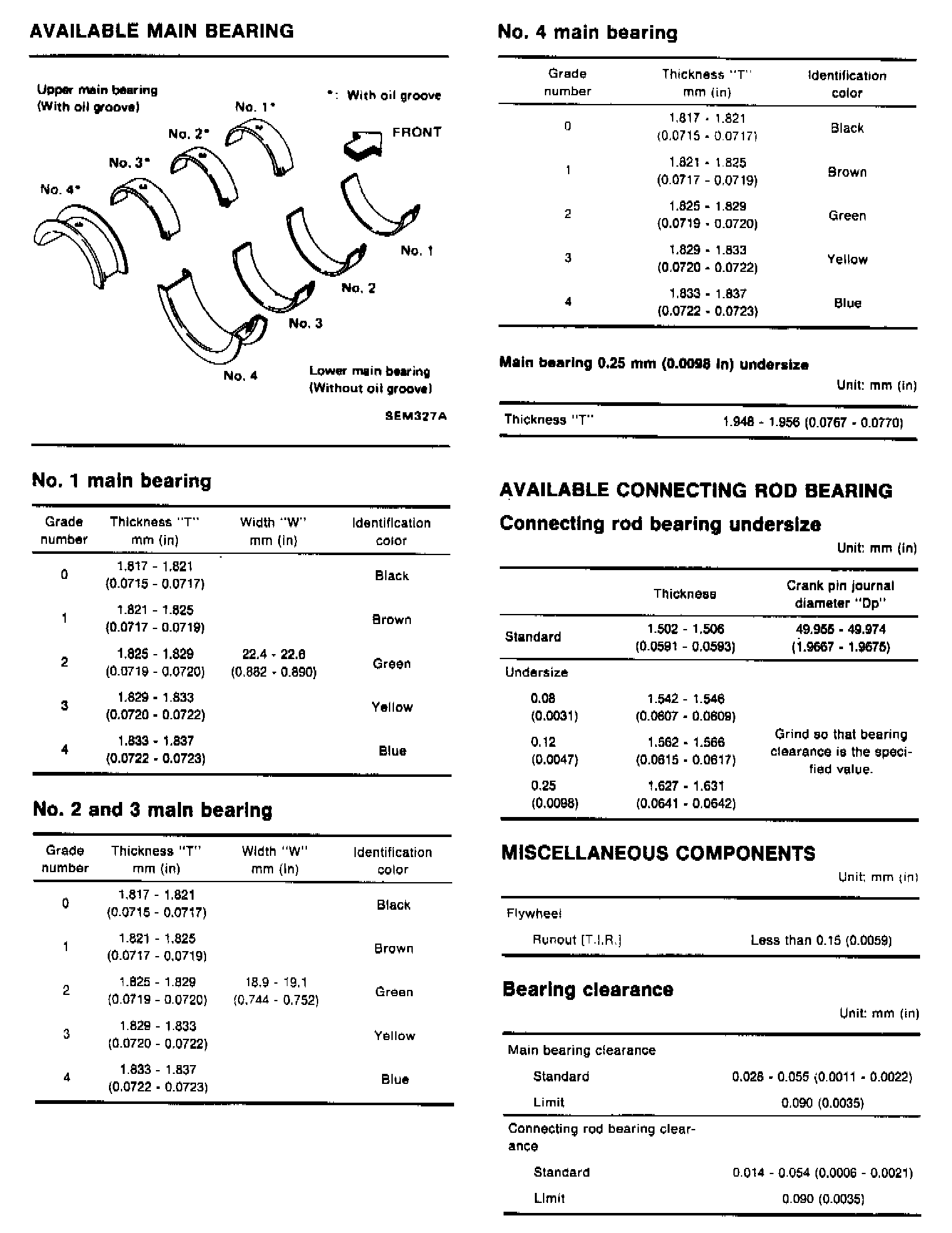

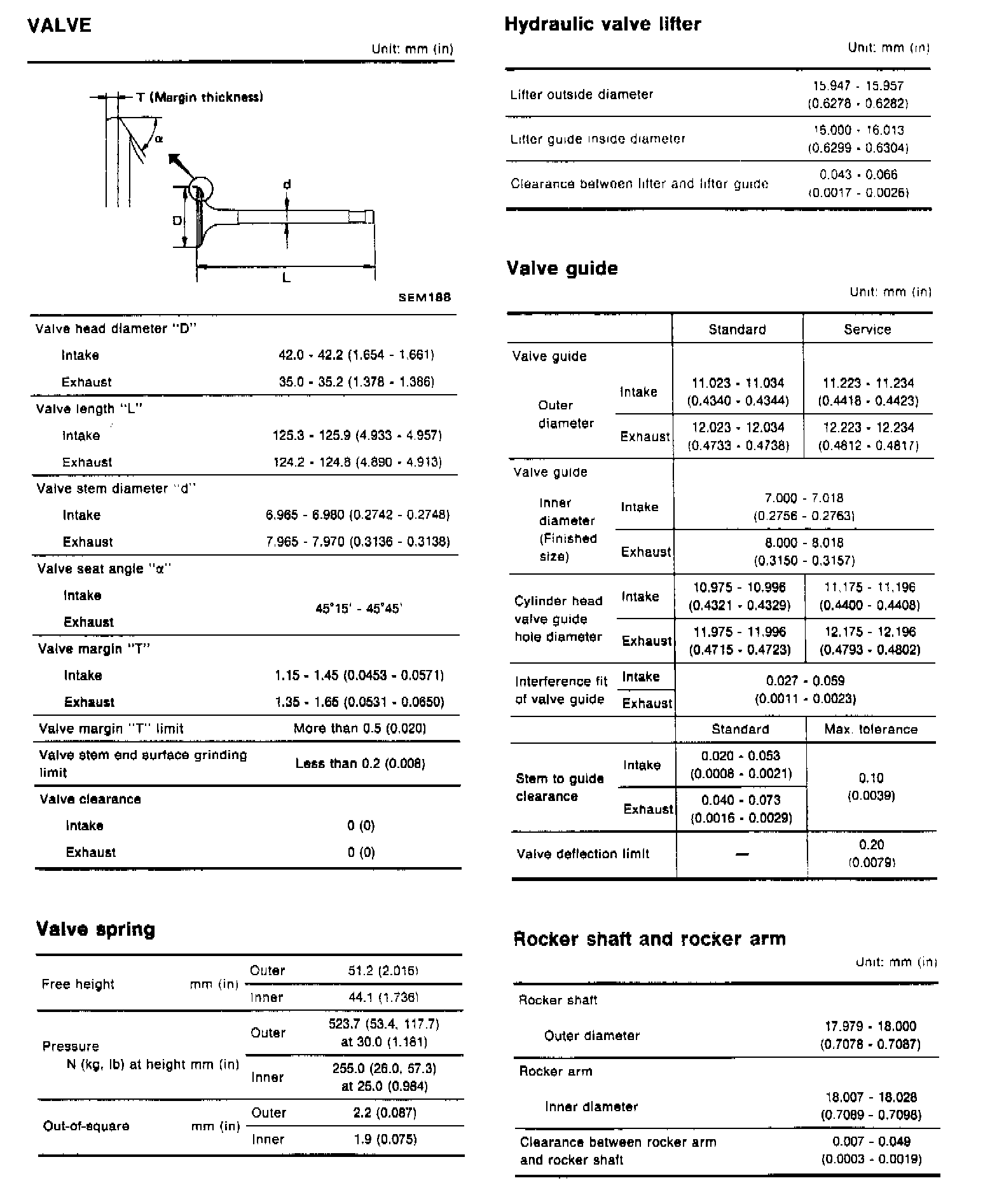

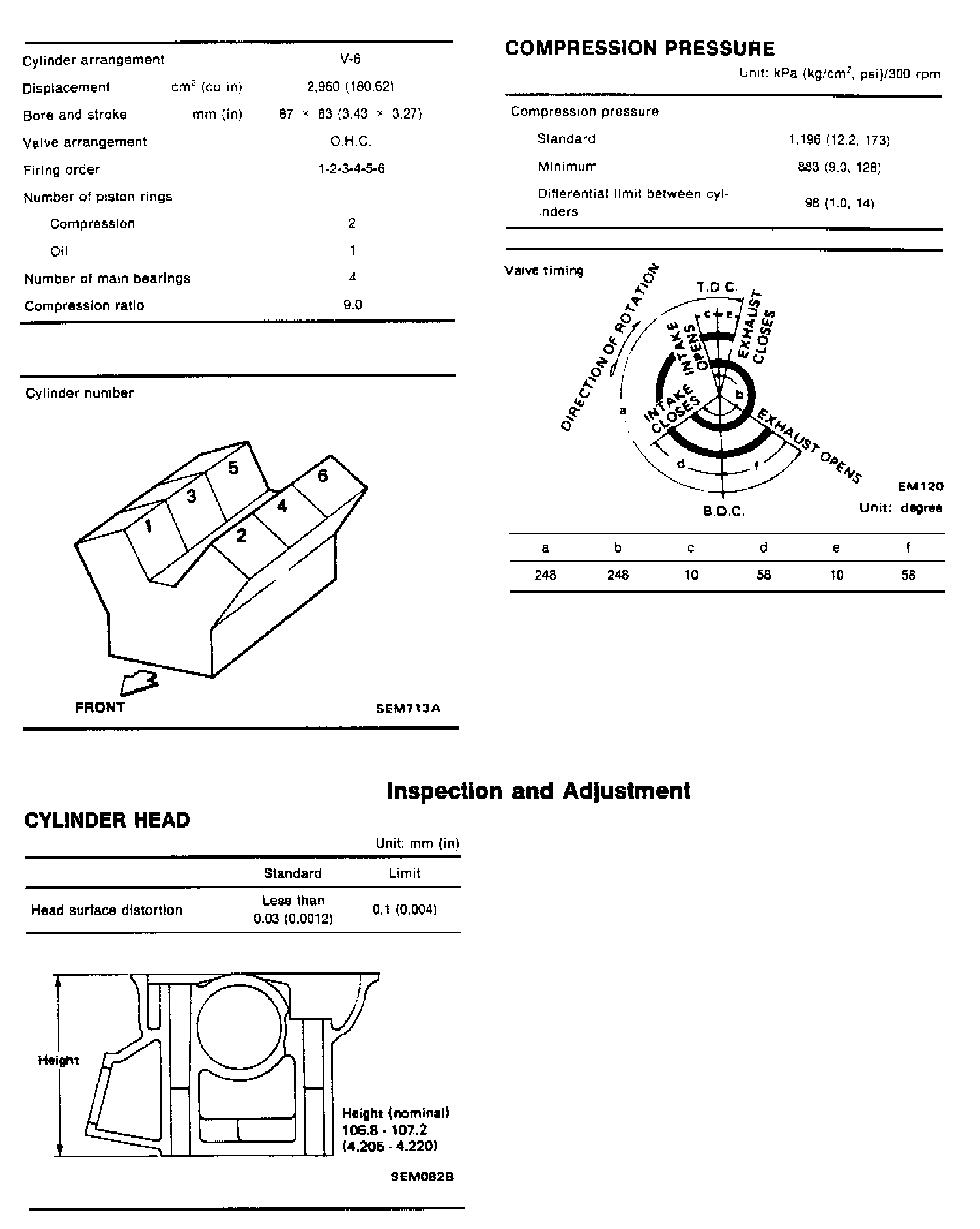

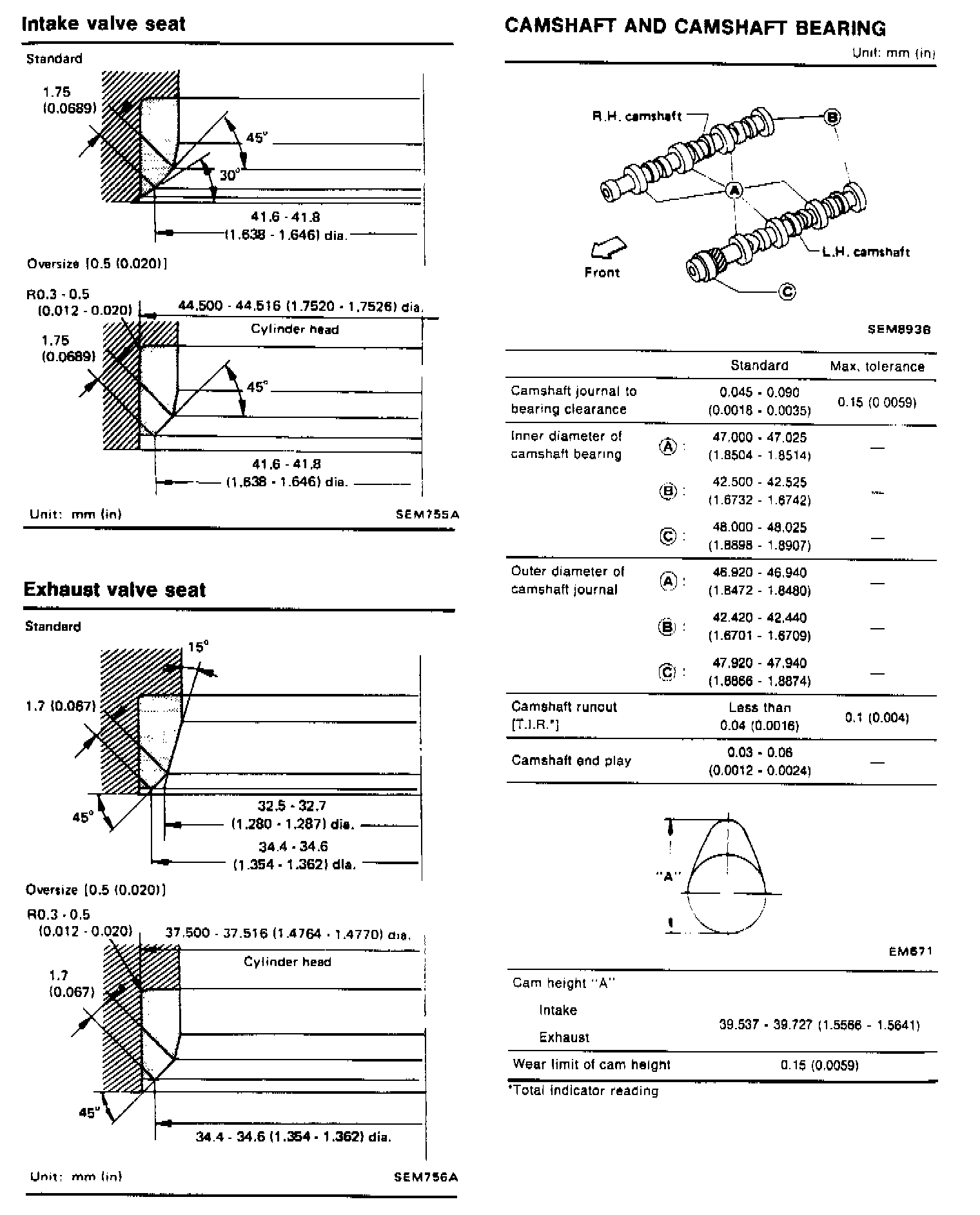

ENGINE SPECIFICATIONS

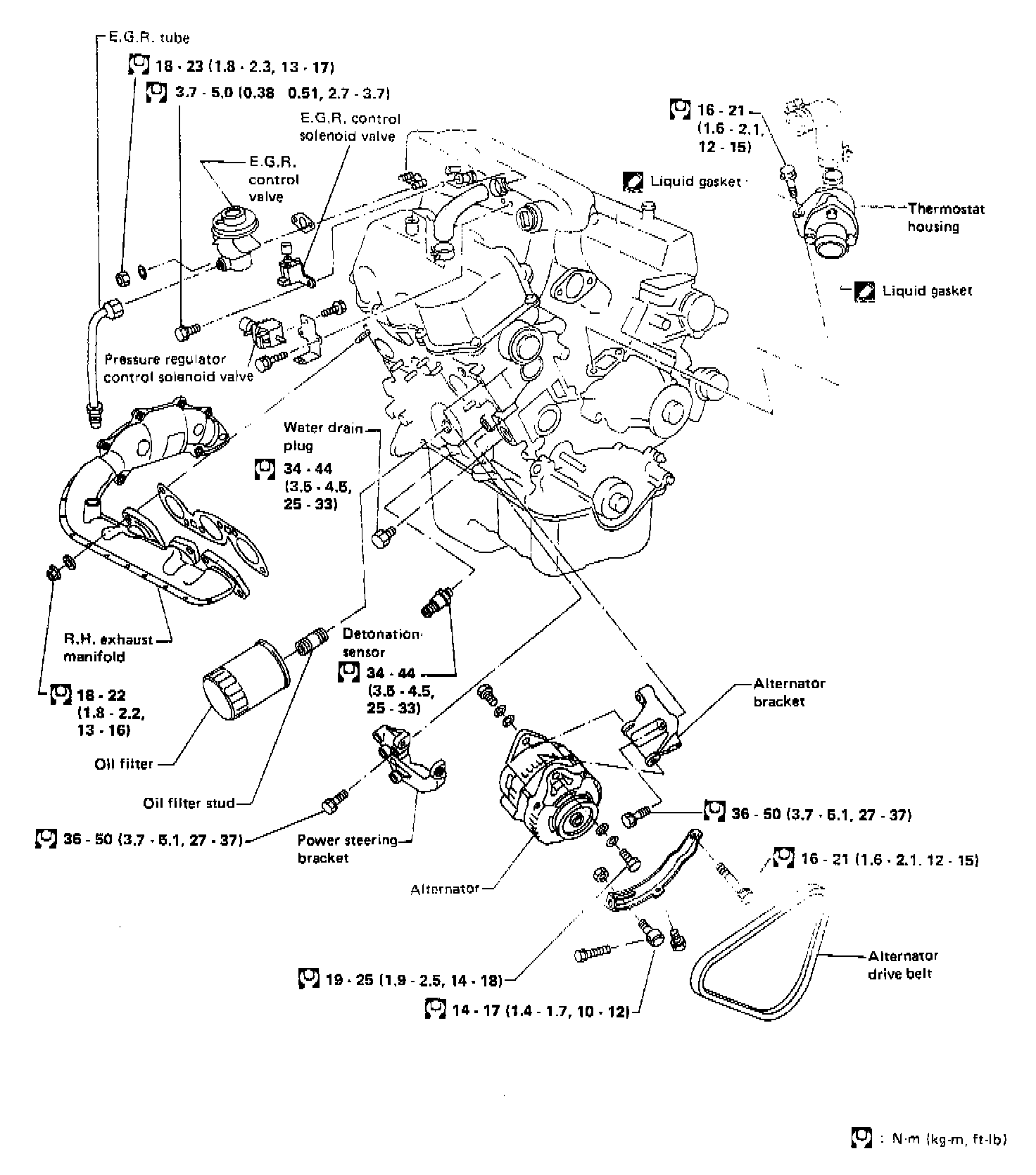

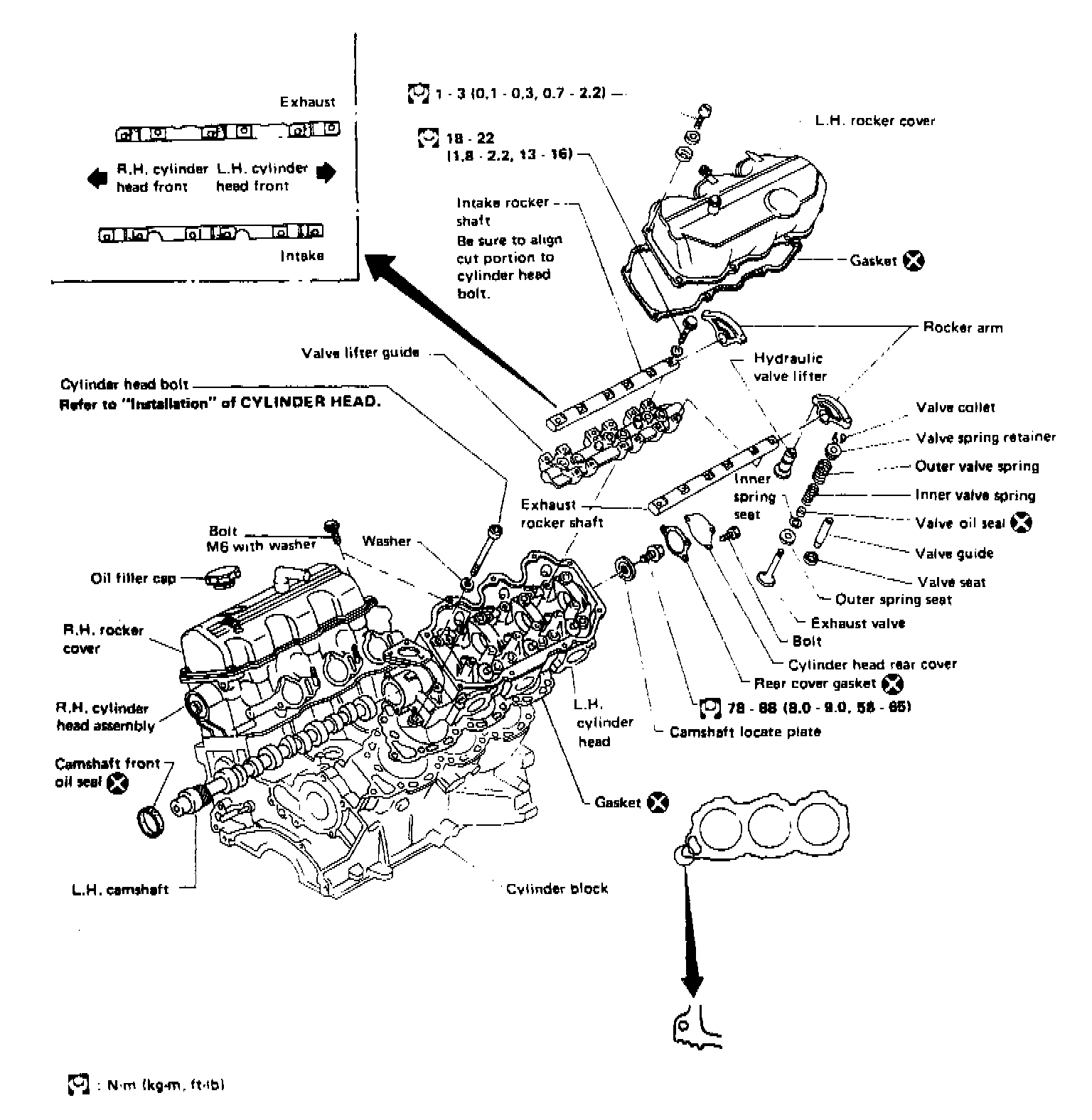

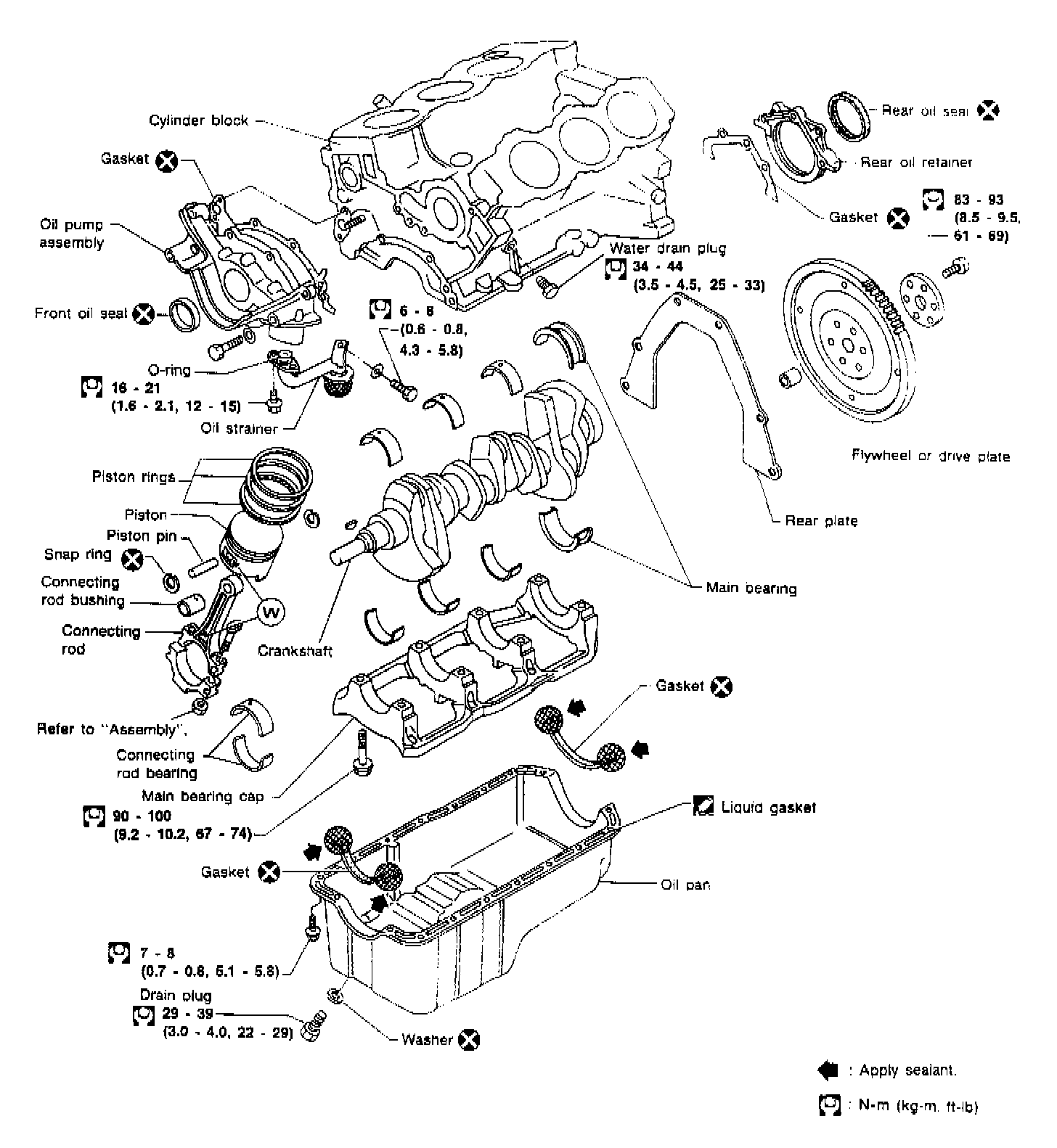

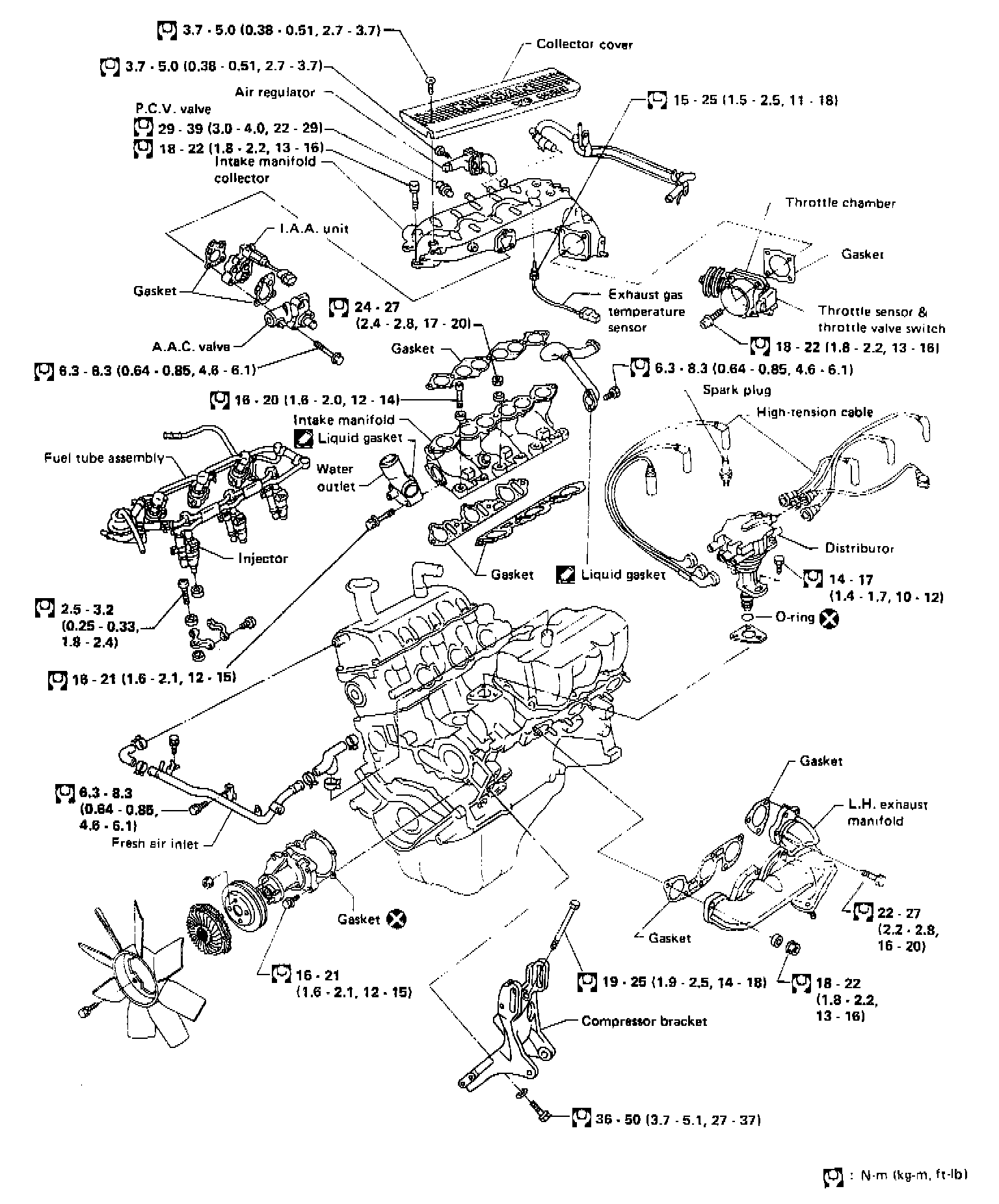

TIGHTENING SPECIFICATIONS

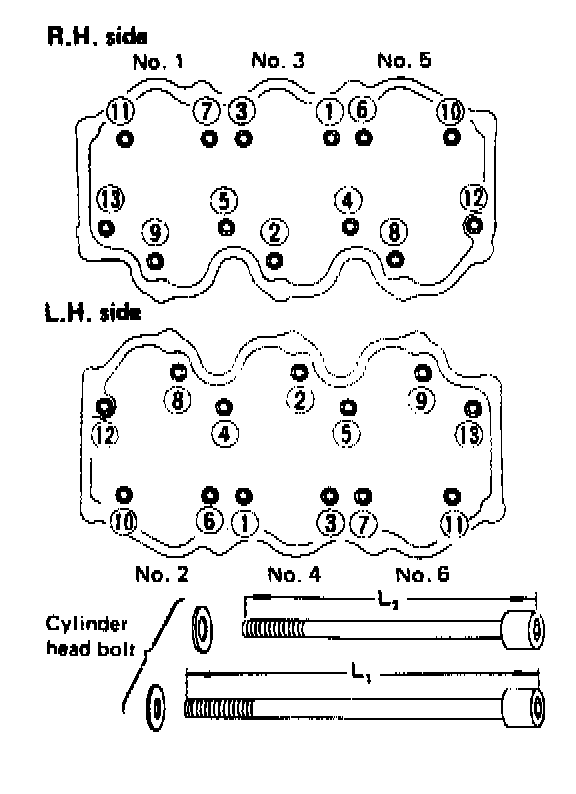

CYLINDER HEAD TIGHTENING SEQUENCE

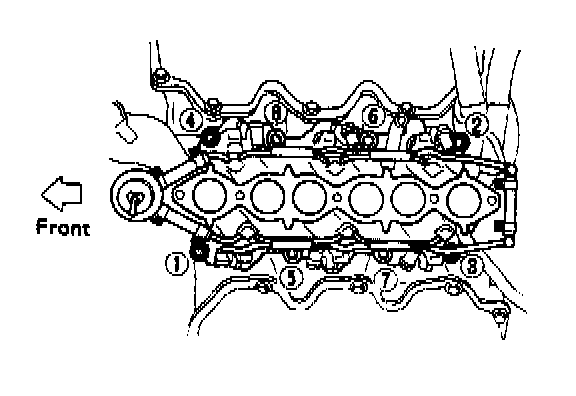

INTAKE TIGHTENING SEQUENCE

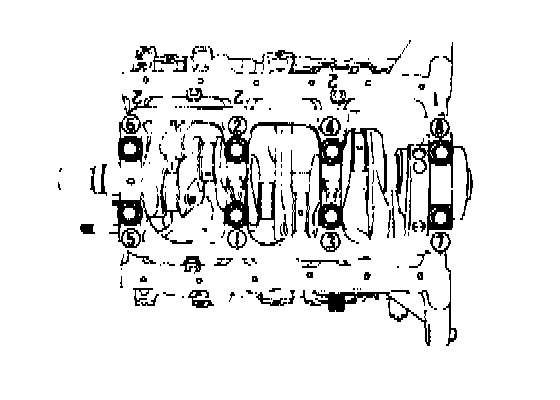

MAIN BEARING TIGHTENING SEQUENCE
