Ignition Control Module: Testing and Inspection

1. Disconnect power transistor harness connector.
2. Check continuity between terminals using suitable digital ohmmeter, Figs. 2 and Figs. 4.

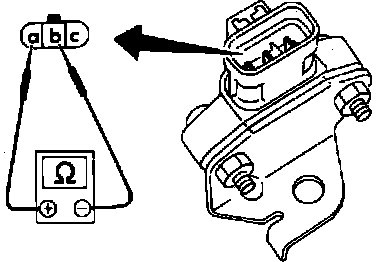

Fig. 2 Power Transistor Terminal:

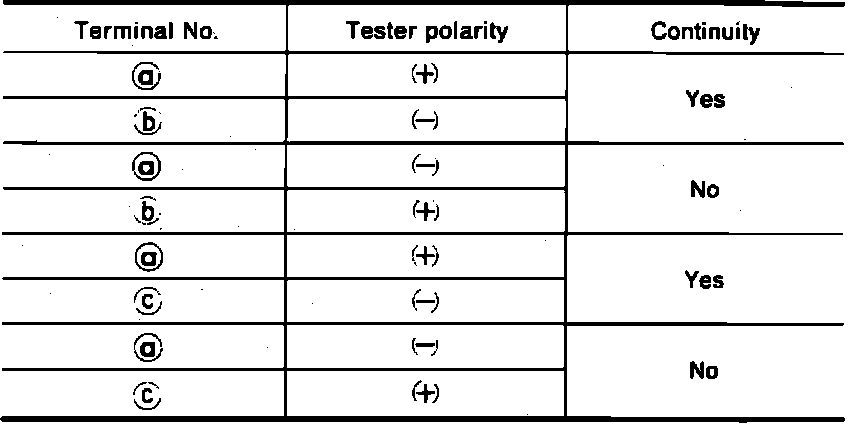

Fig. 4 Power Transistor Testing Sequence:

3. If continuity is not as specified, replace power transistor.
