Distributor: Service and Repair

Distributor Installation
(1) Set cylinder #1 to TDC on compression stroke.

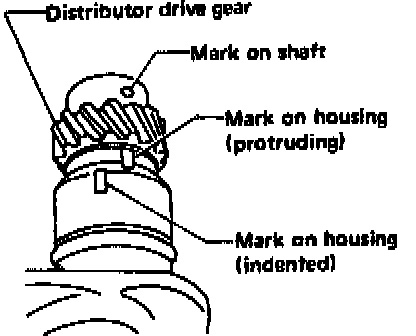

(2) Align mark on shaft with protruding mark on housing.

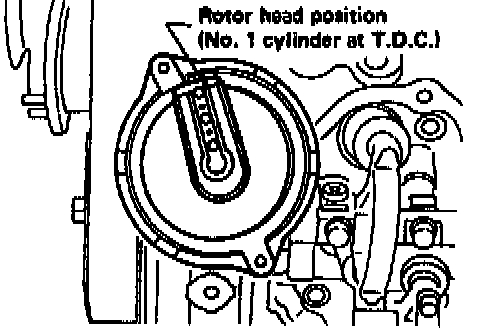

(3) After installing, confirm that distributor rotor head is set as shown in figure.
