Component Testing Procedure

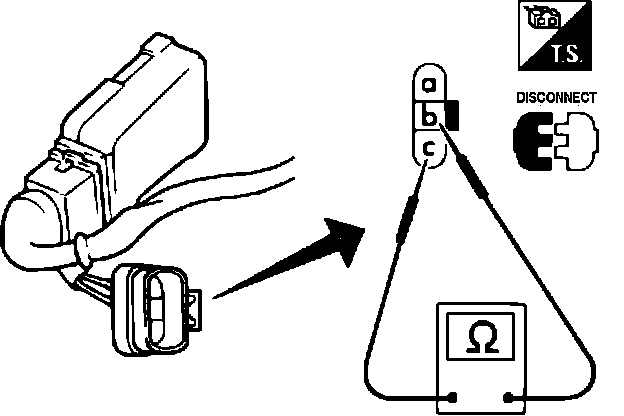

Fig. 211 Throttle Sensor Terminal Identification:

1. Disconnect throttle sensor harness connector.
2. Measure resistance between terminals B and C, Fig. 211.
3. Check resistance as follows:
a. Accelerator pedal completely released, resistance should be approximately 1000 ohms.
b. Accelerator pedal partially released, resistance should be 1000-9000 ohms.
c. Accelerator pedal completely depressed, resistance should be approximately 9000 ohms.
