Pinout Values and Diagnostic Parameters

Fig. 7 E.C.U. Harness Connector:

Remove the E.C.U. harness protector, then test E.C.U. voltage using appropriate voltmeter. Perform test with connectors connected. Refer to Figs. 7 through 8, for proper voltage.

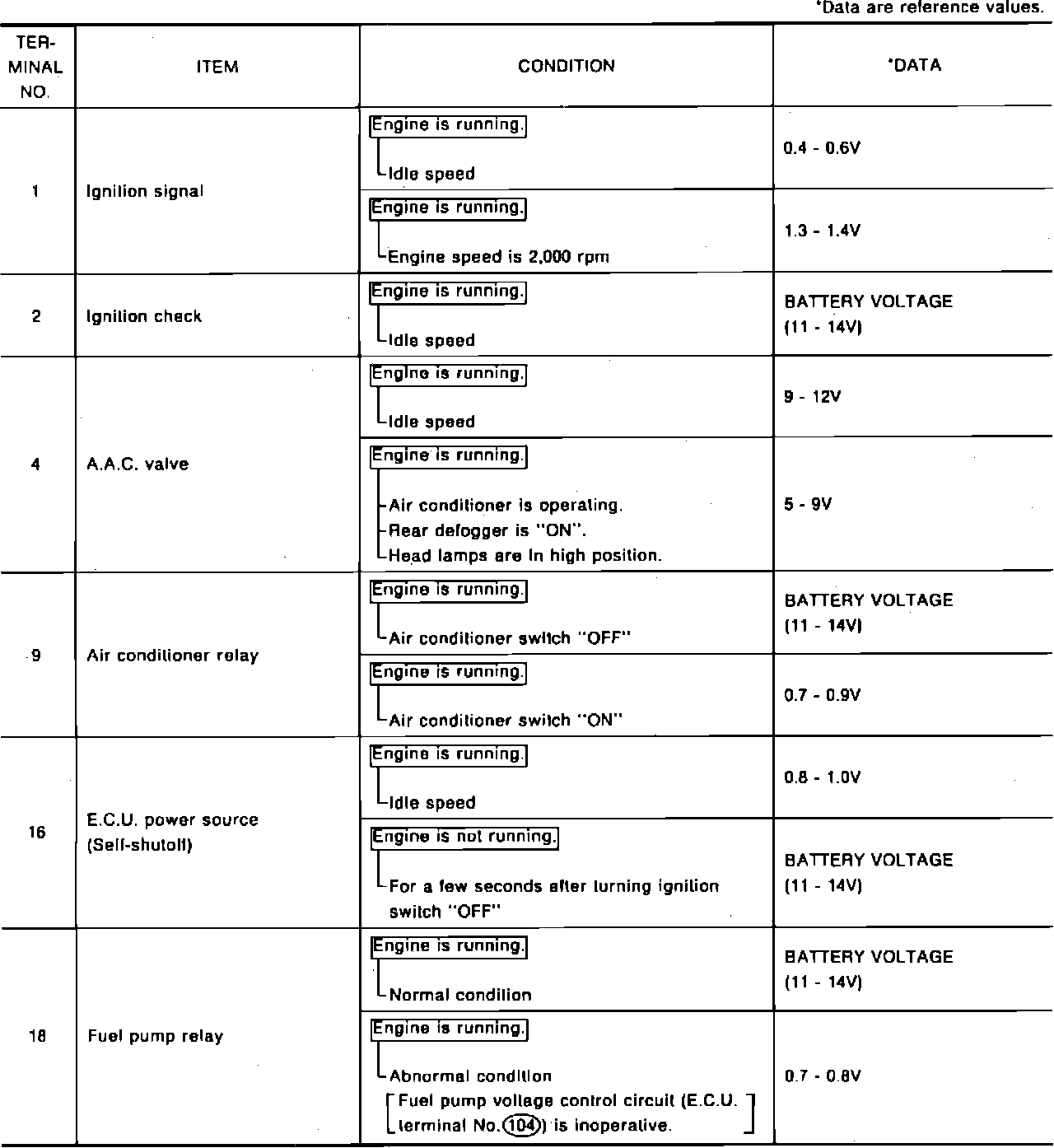

Fig. 8 E.C.U. Voltage Testing Procedure (Part 1 Of 4):

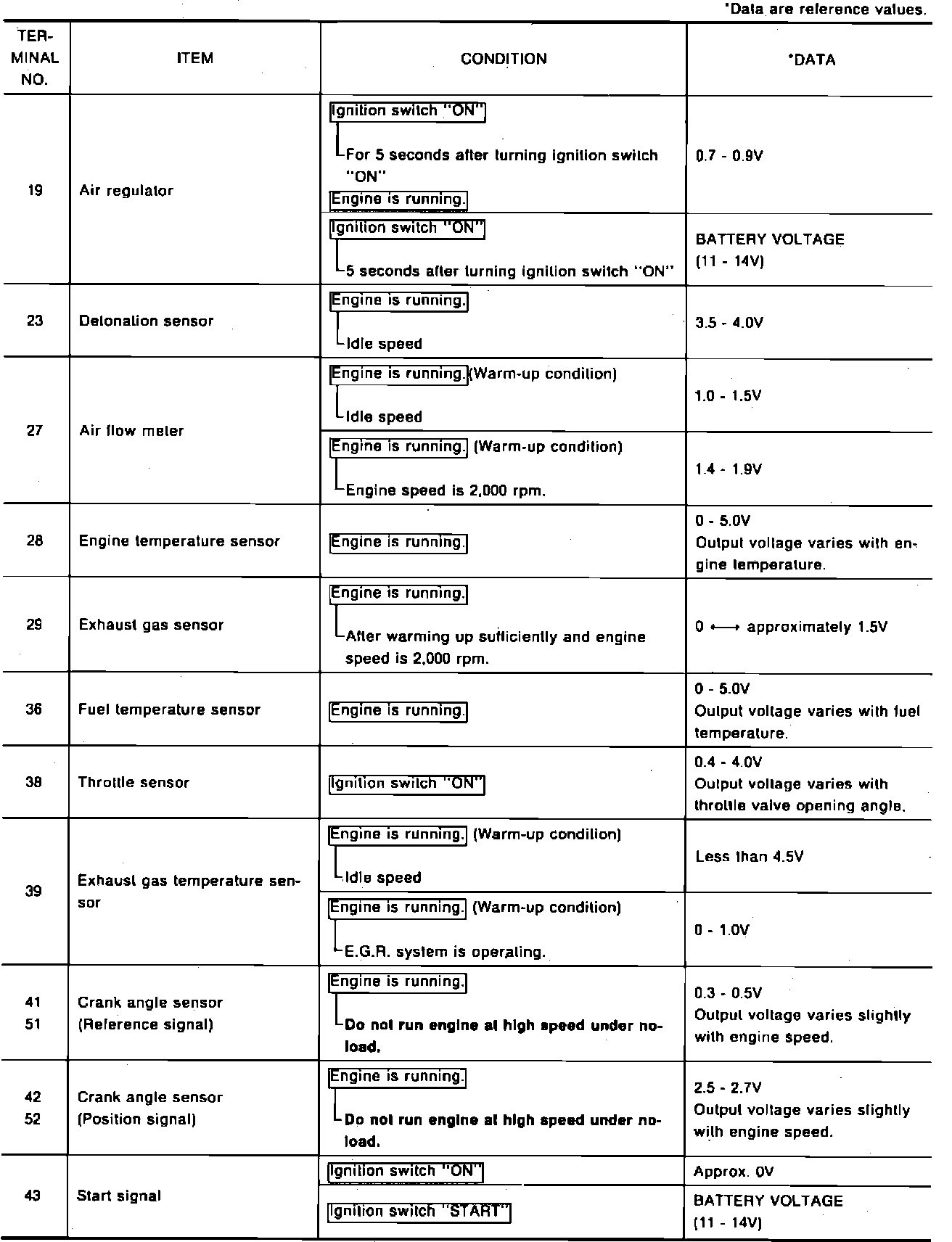

Fig. 8 E.C.U. Voltage Testing Procedure (Part 2 Of 4):

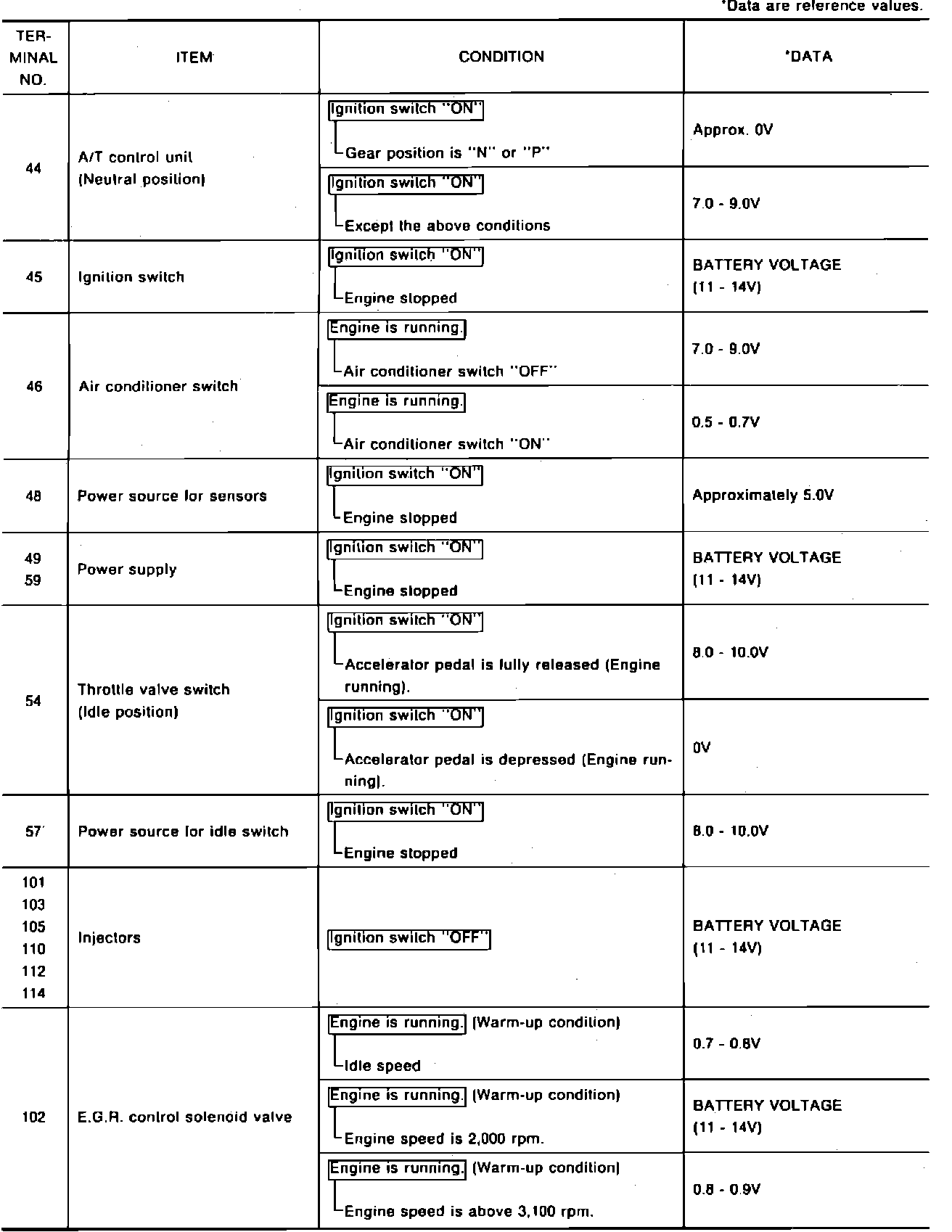

Fig. 8 E.C.U. Voltage Testing Procedure (Part 3 Of 4):
