Infiniti
>>
1990
>>
M30 V6-181 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Testing and Inspection
>>
Trouble Code Chart
Trouble Code Chart

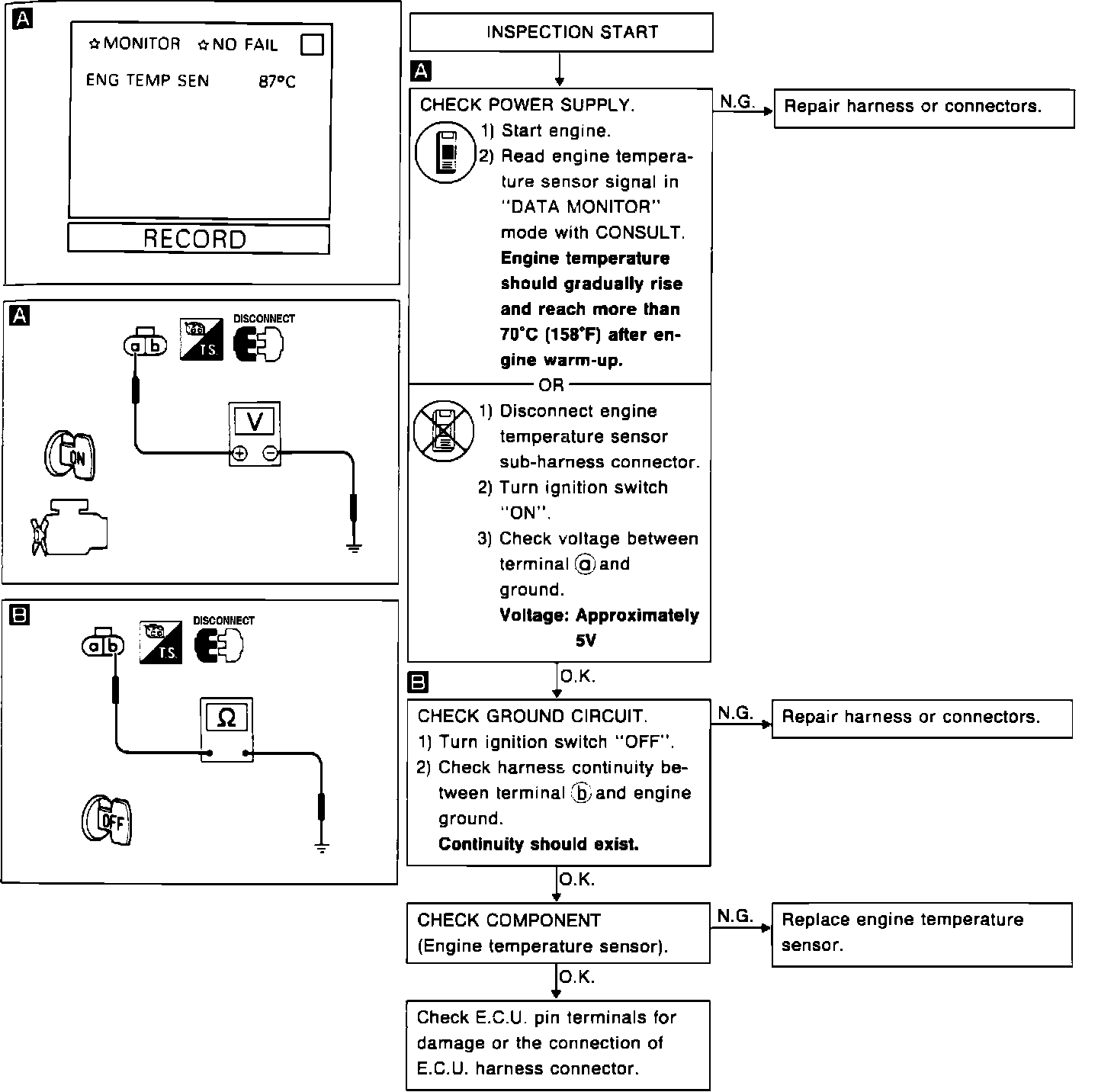

Fig. 100 Code 13, Engine Temperature Sensor (Part 1 Of 2):

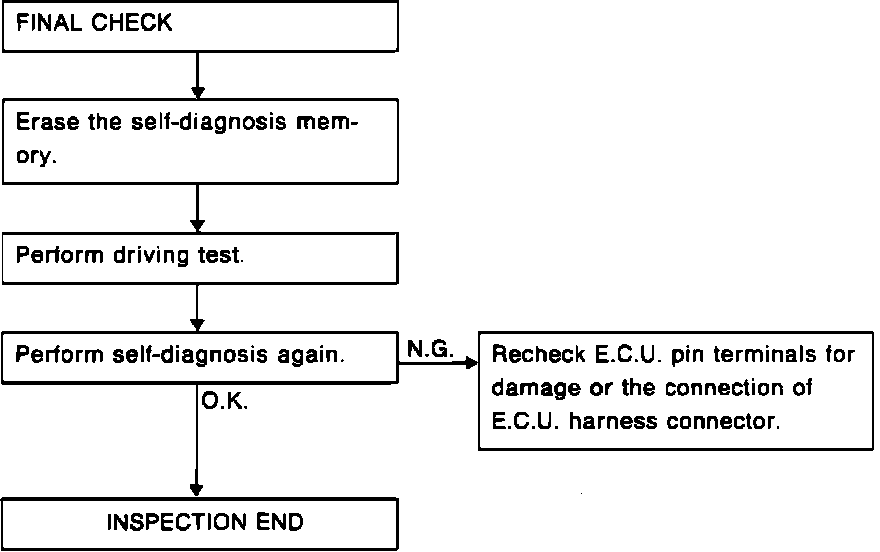

Fig. 100 Code 13, Engine Temperature Sensor (Part 2 Of 2):
