Trouble Code Chart
Trouble Code Chart

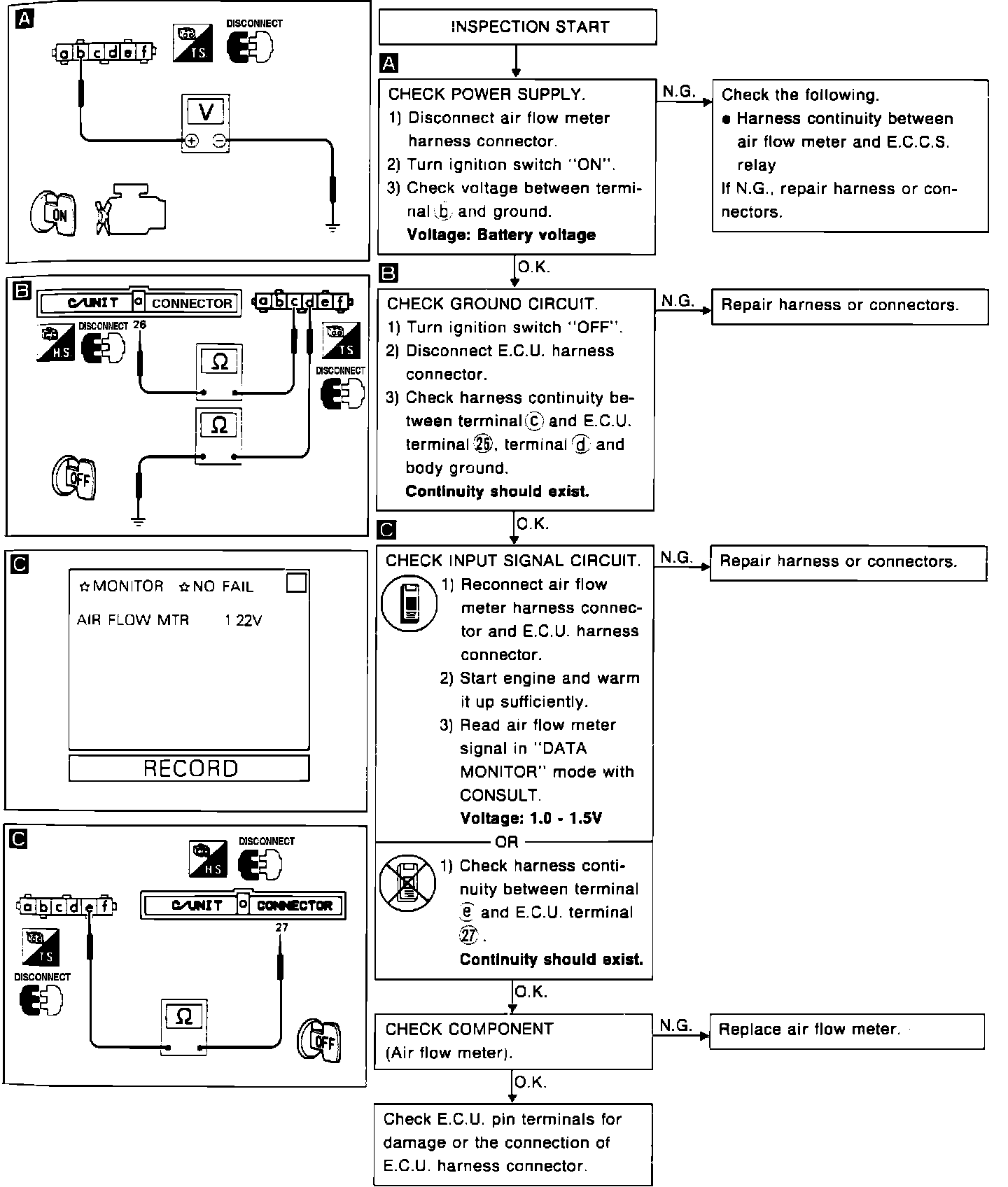

Fig. 99 Code 12, Air Flow Meter (Part 1 Of 2):
Fig. 99 Code 12, Air Flow Meter (Part 2 Of 2):
