Control Module: Diagrams

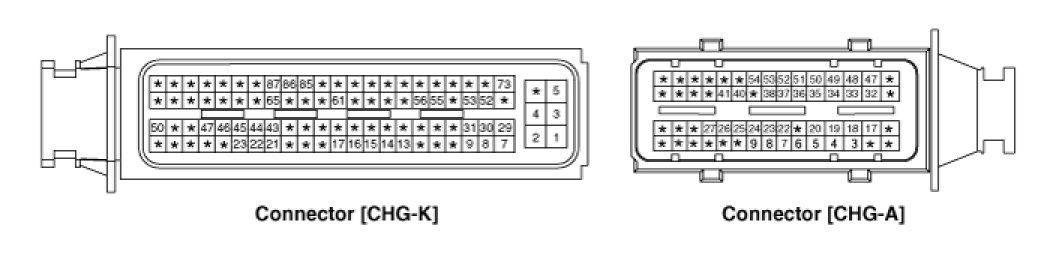

1. TCM connector and terminal function





2. TCM terminal function

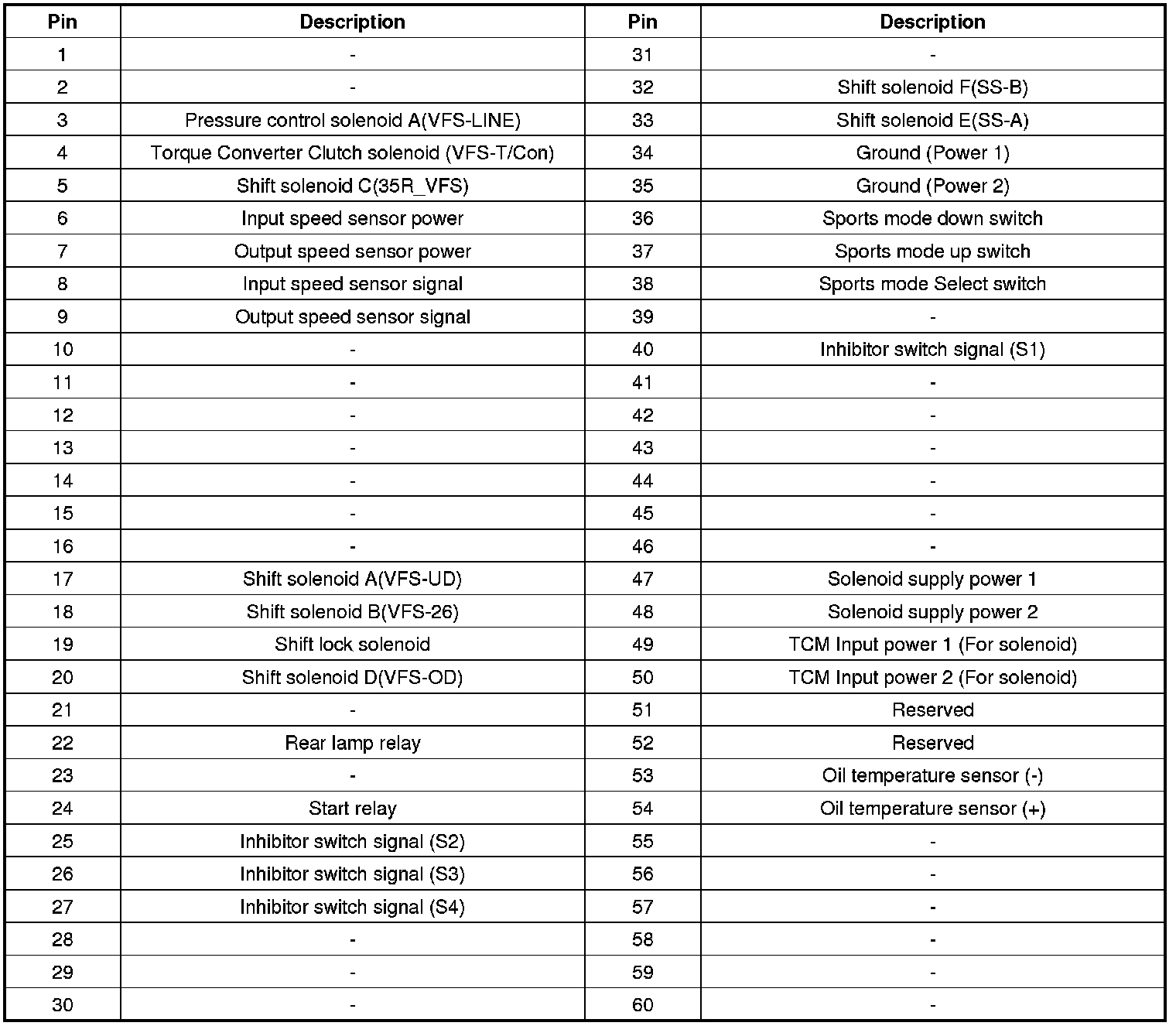

Connector [CHG-A]

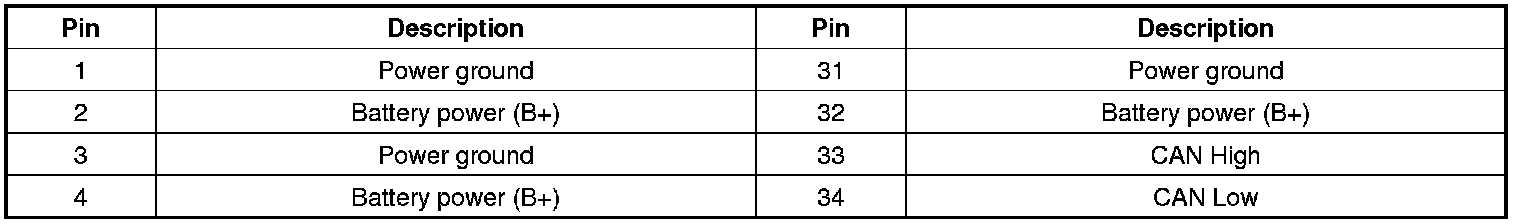

Connector [CHG-K]

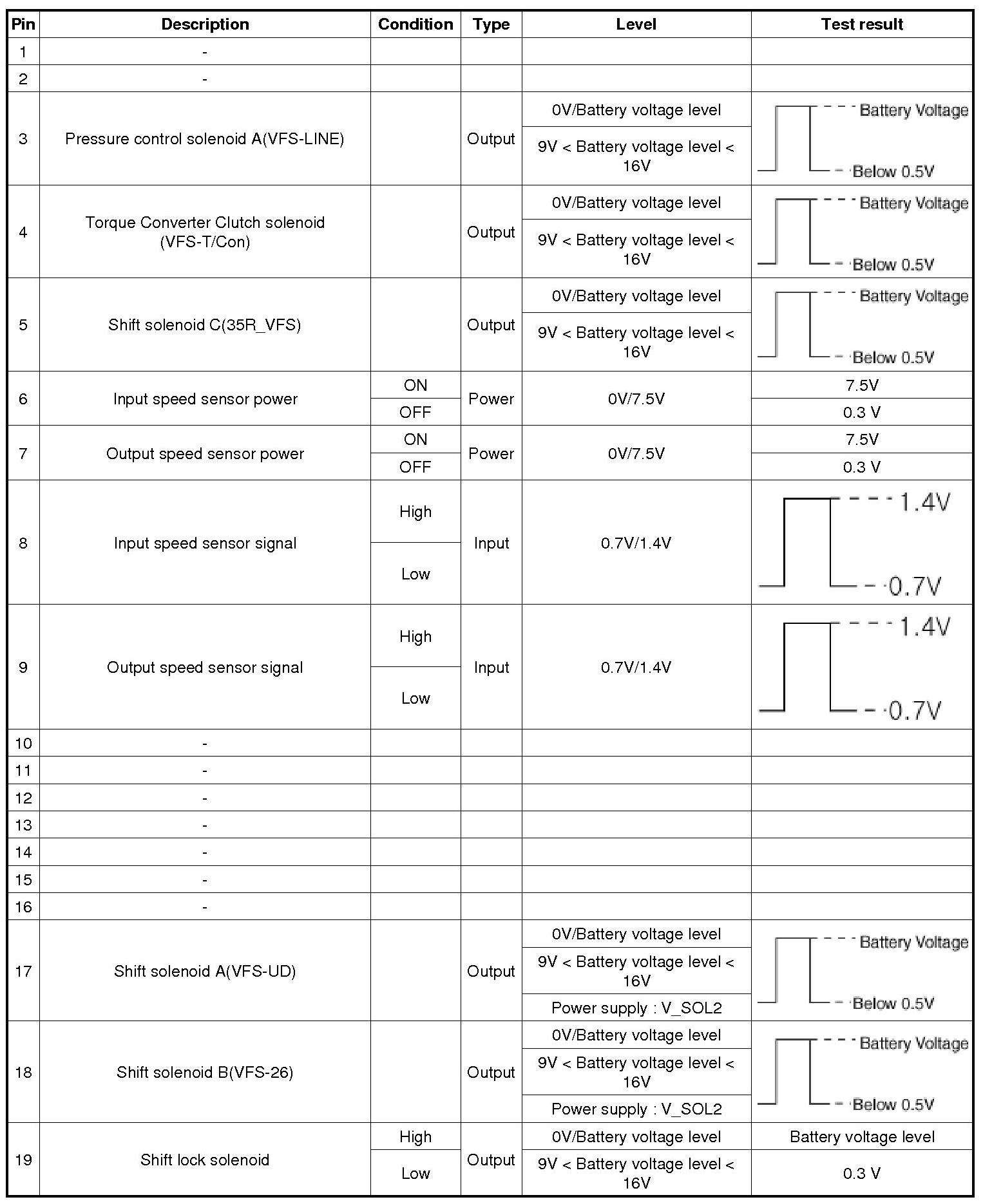

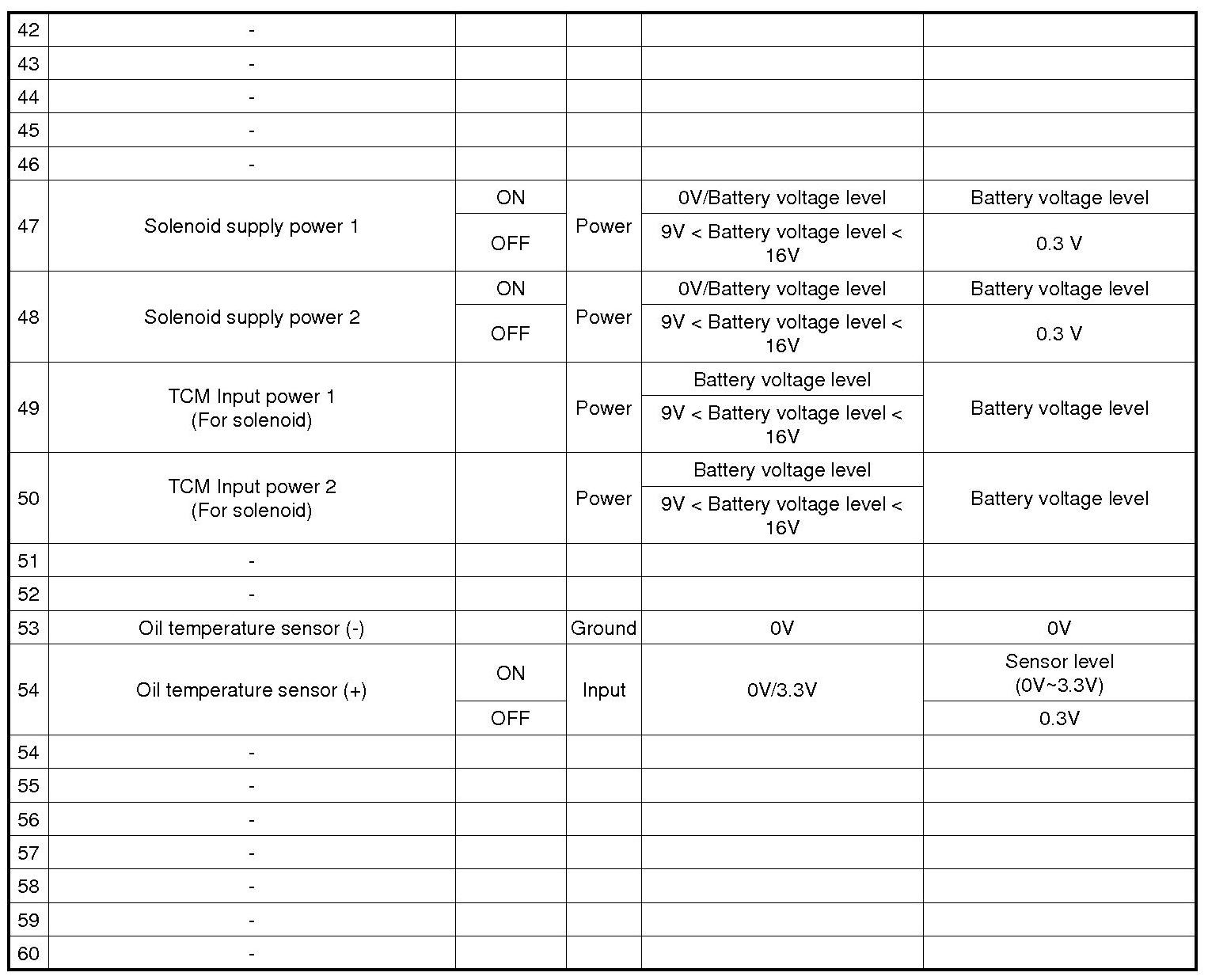

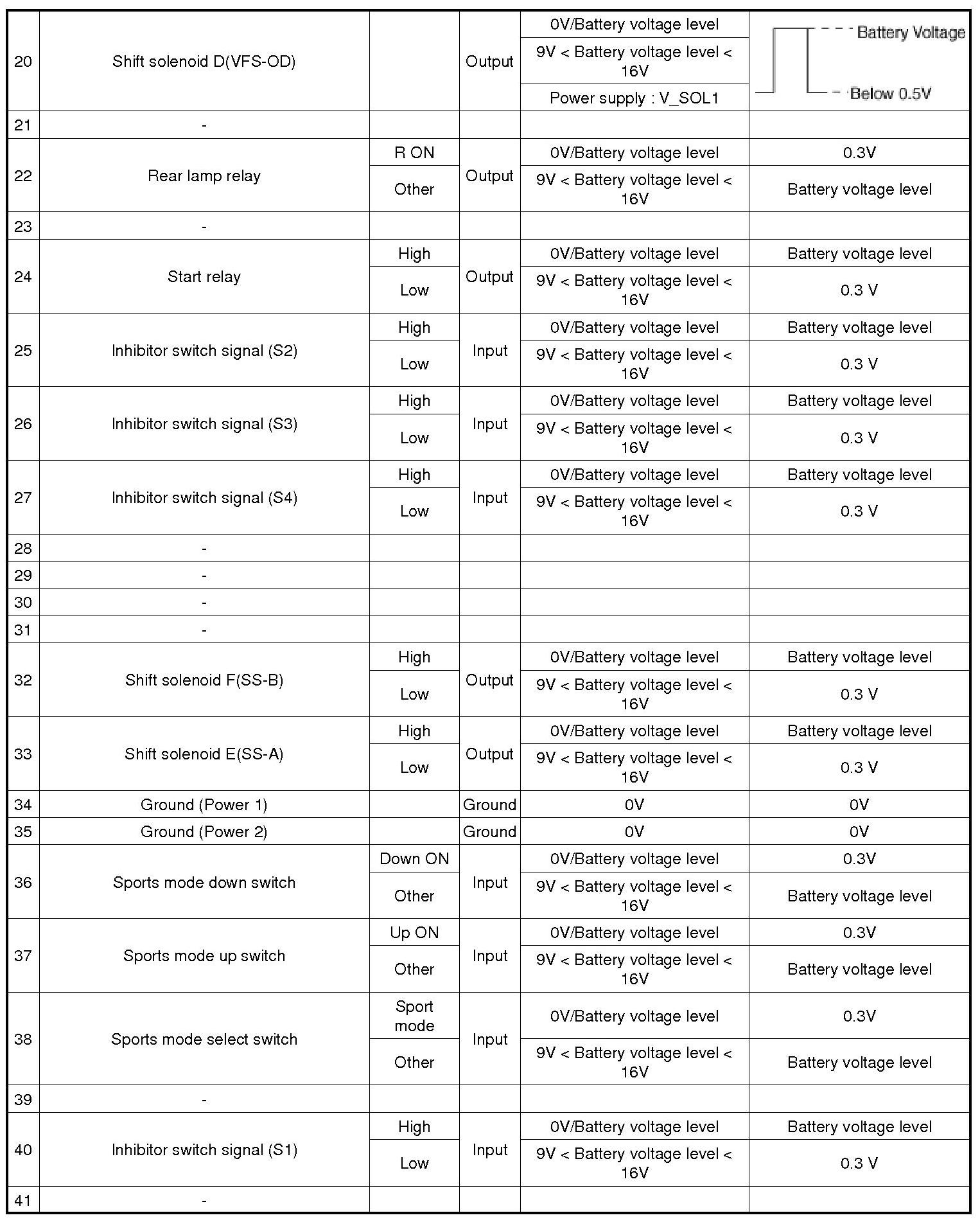

3. TCM Terminal input/ output signal

Connector [CHG-A]

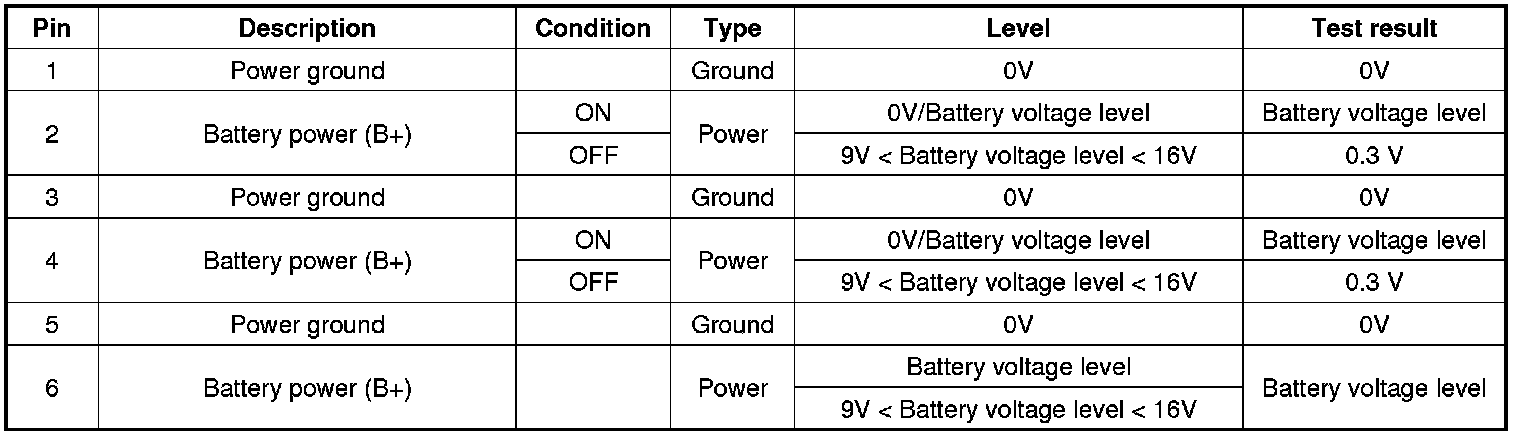

Connector [CHG-K]
