Body Control Module: Diagrams





BCM Connector Terminals

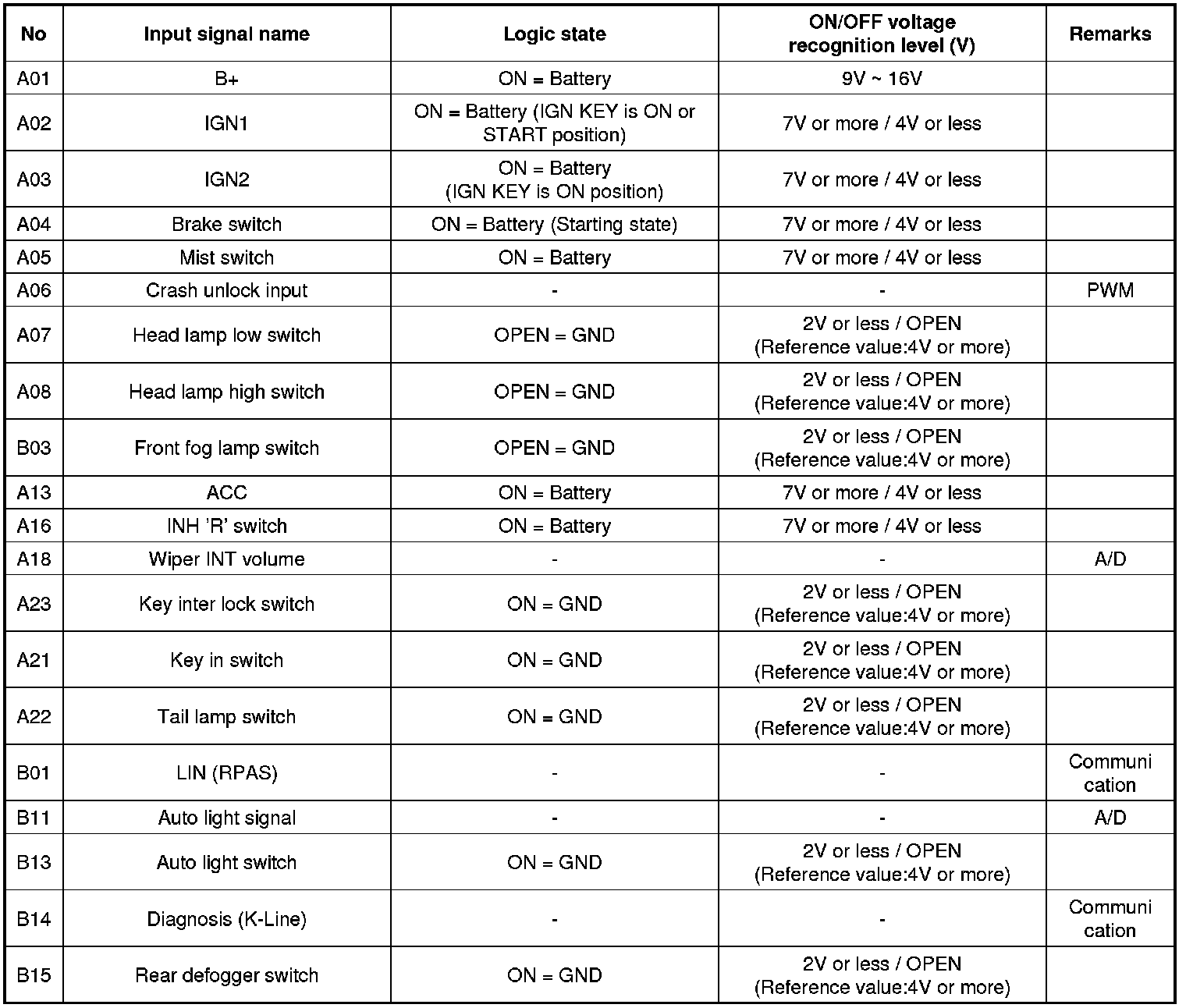

BCM Input Signal SPEC






Pin Arrangement

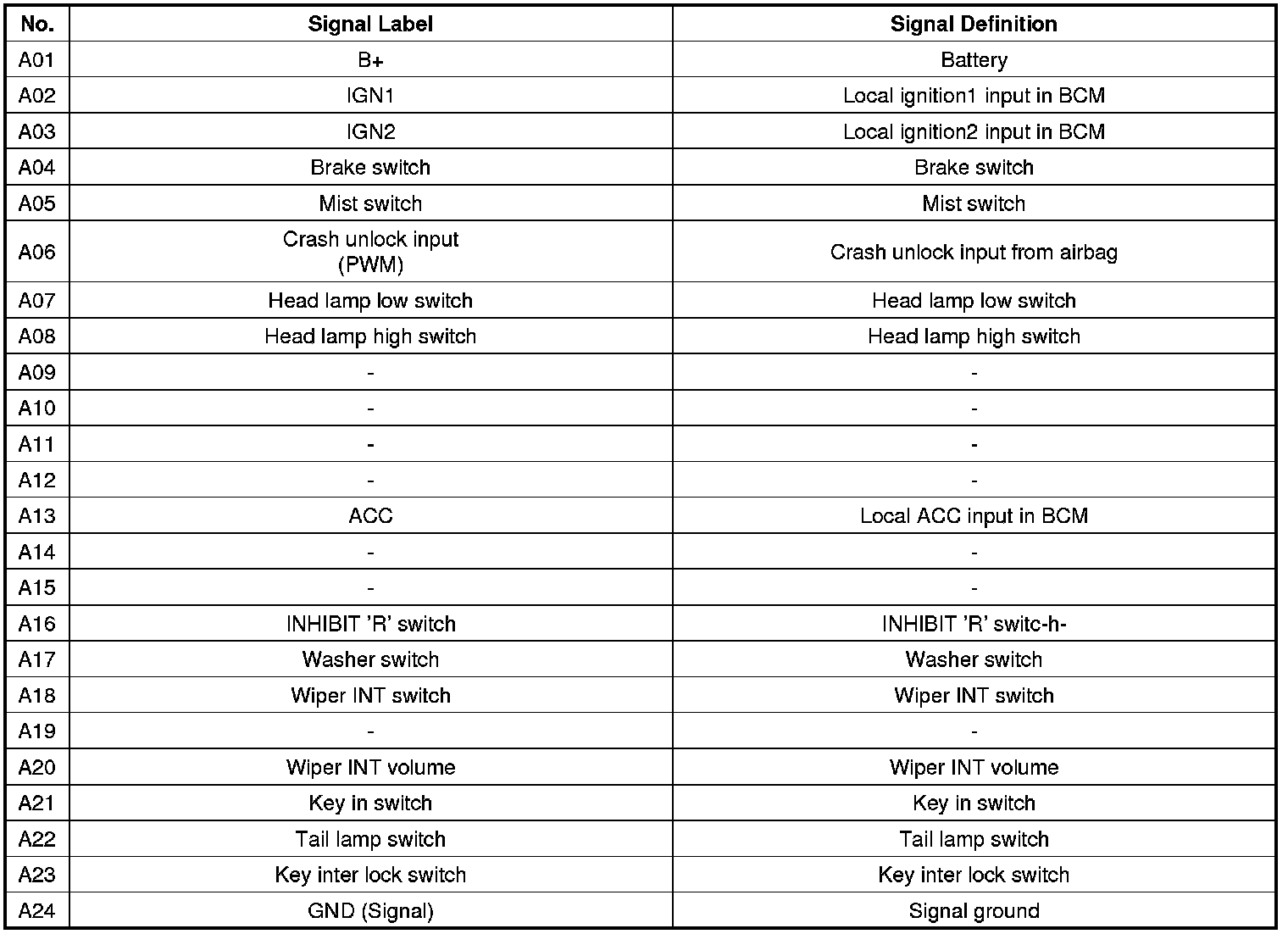

Connector A

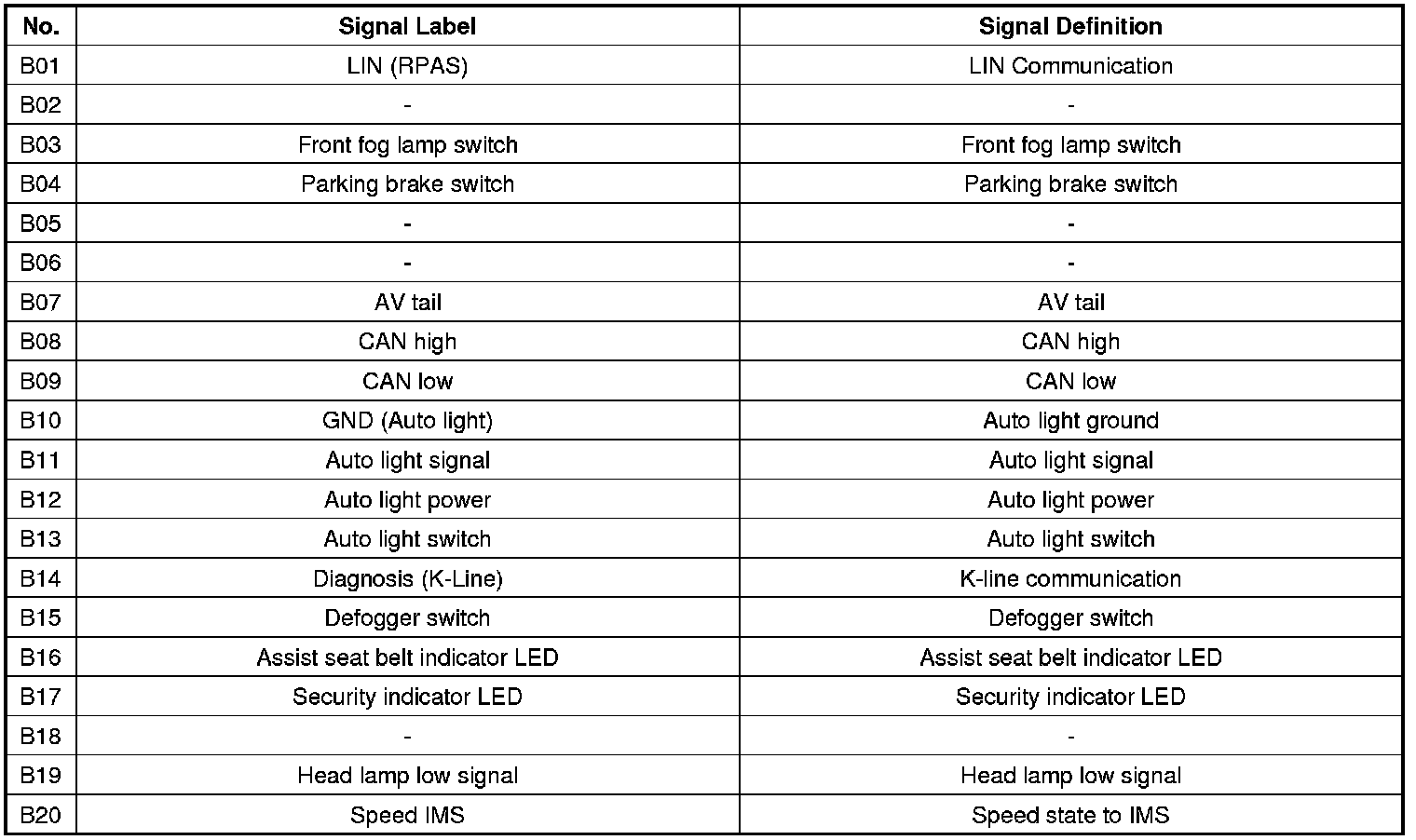

Connector B

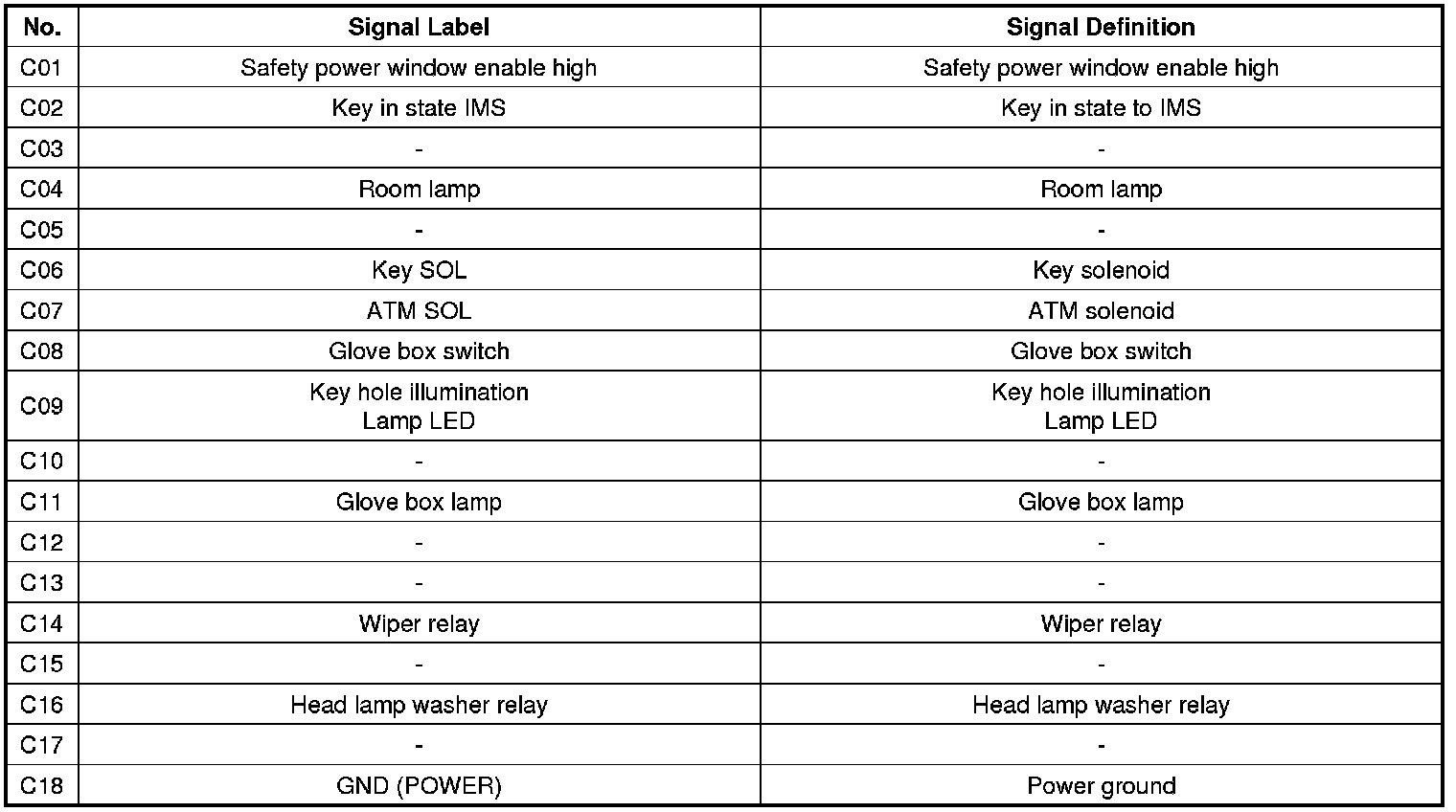

Connector C






Circuit Diagram
