Control Module: Diagrams

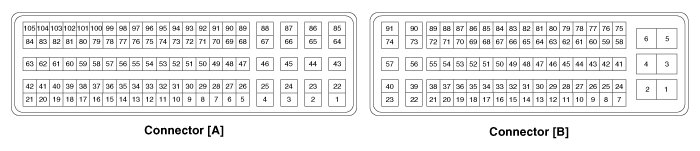

1. TCM connector and terminal function

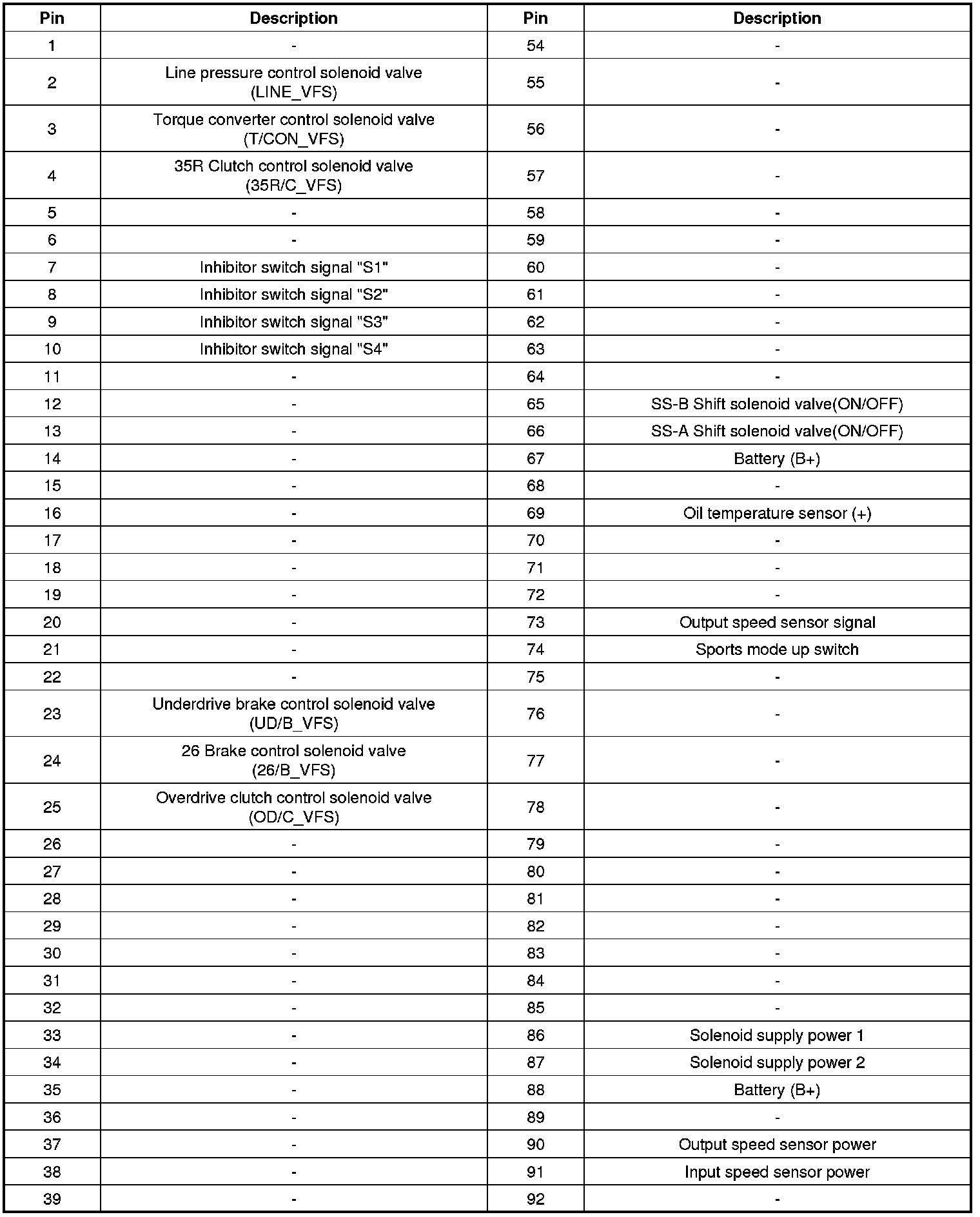

2. TCM Terminal Function

Connector [A]










3. TCM Terminal Input/ Output Signal

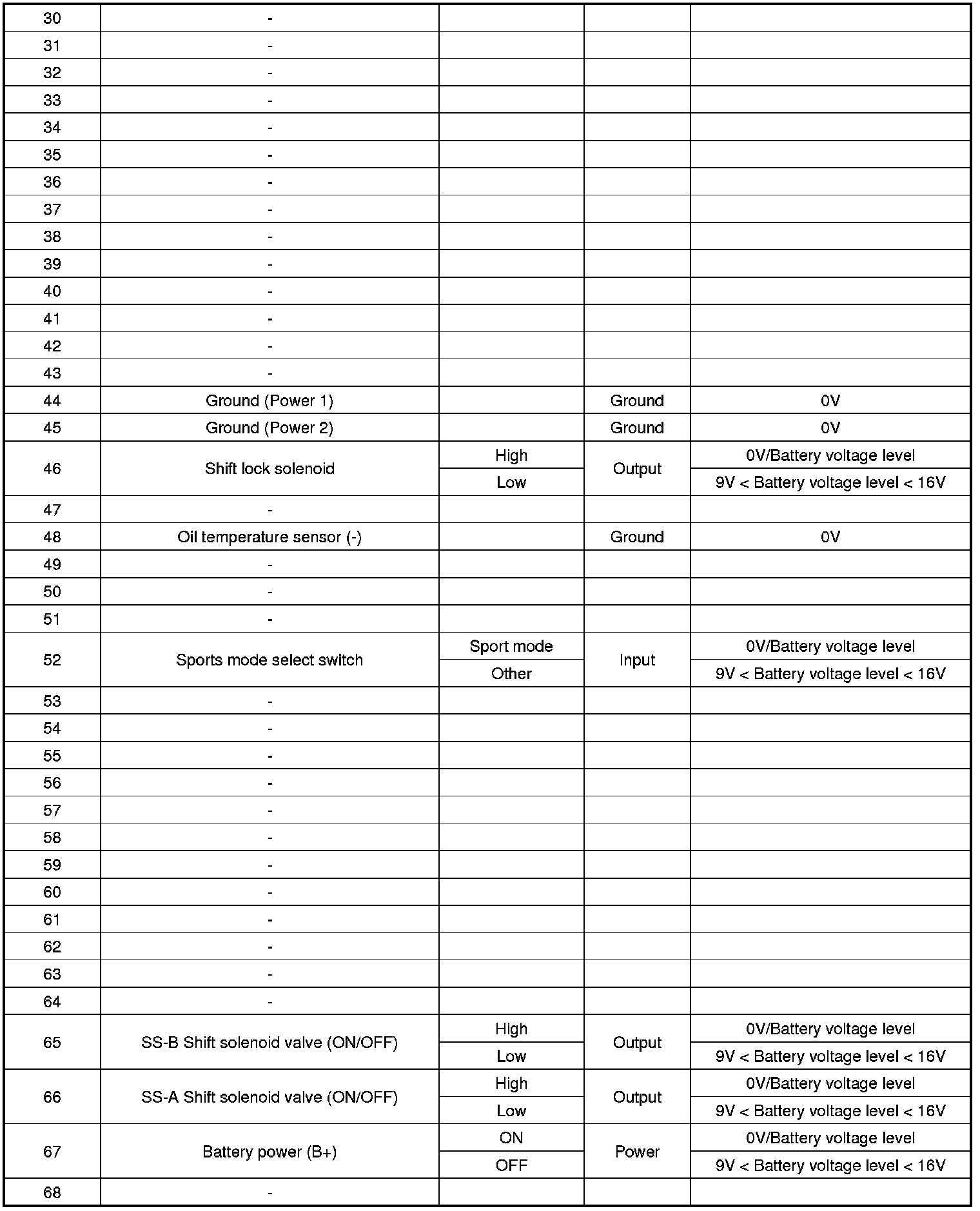

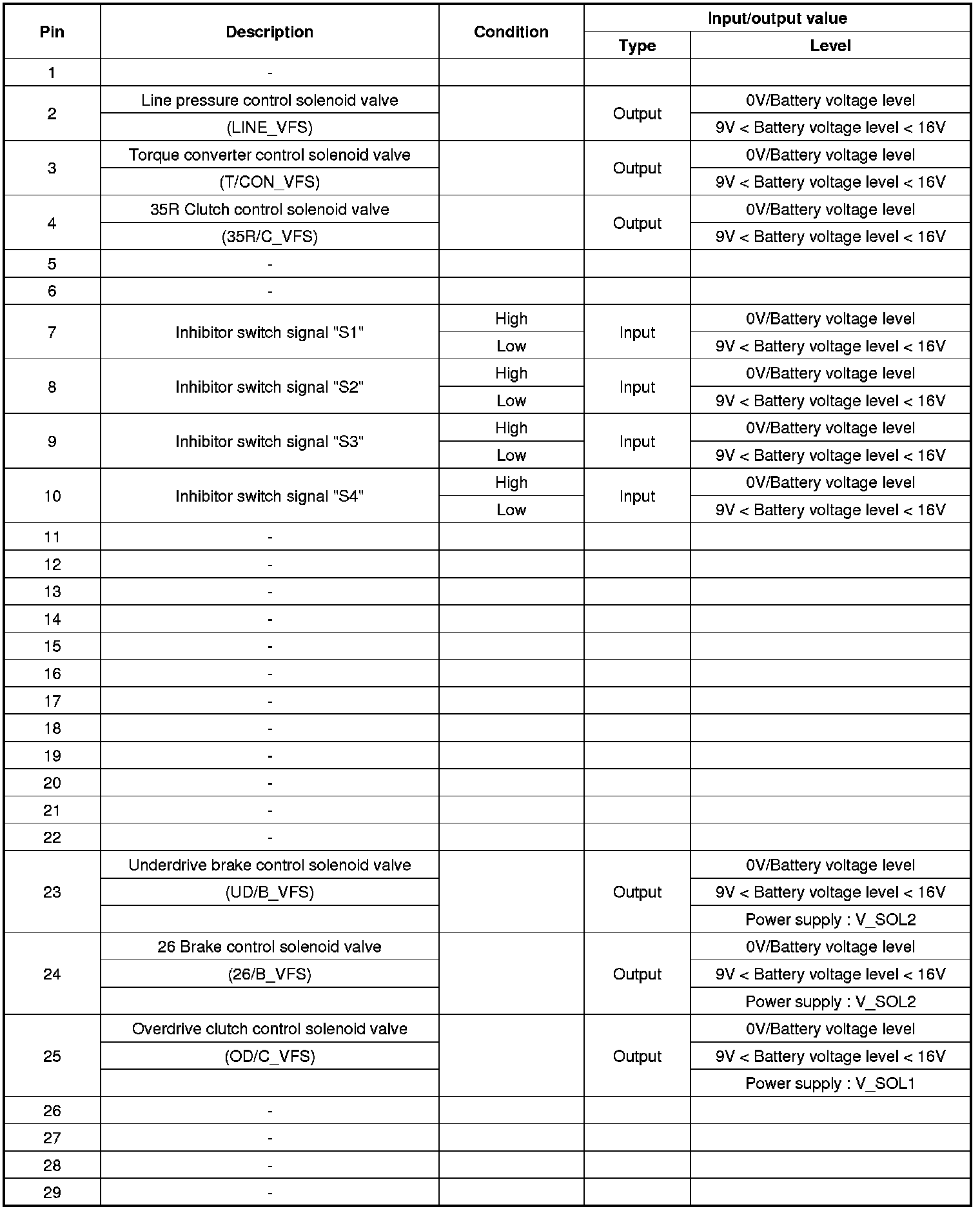

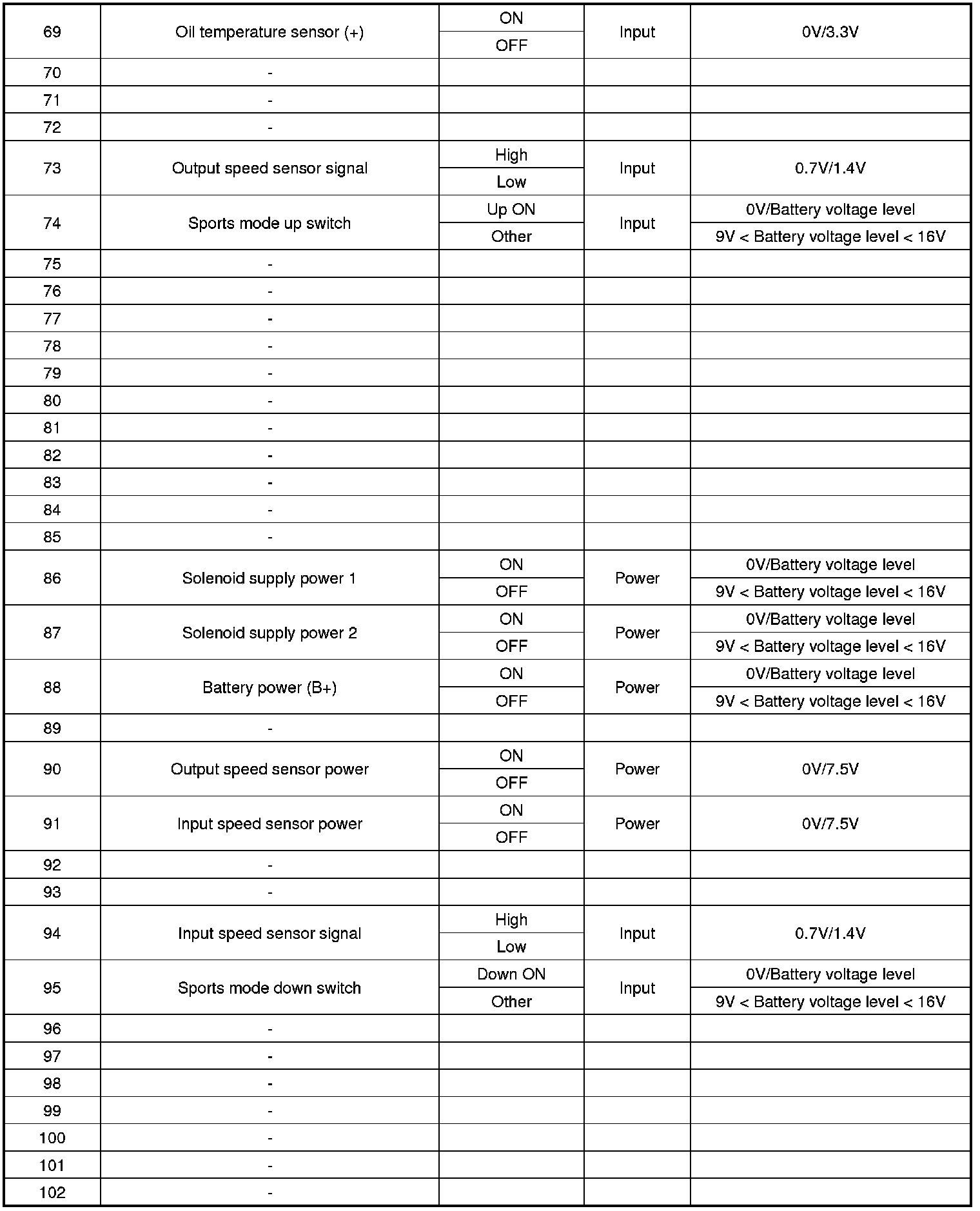

Connector [A]
