Home >> Hyundai >> 2013 >> Genesis Coupe V6-3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Fuel Injector Control Module >> Diagrams

Fuel Injector Control Module: Diagrams





IDB Terminal And Input/Output signal

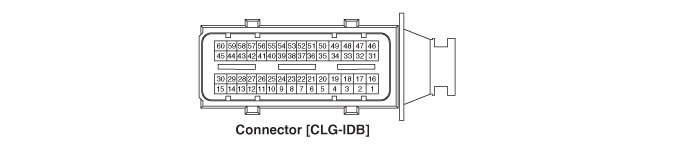

IDB Harness Connector

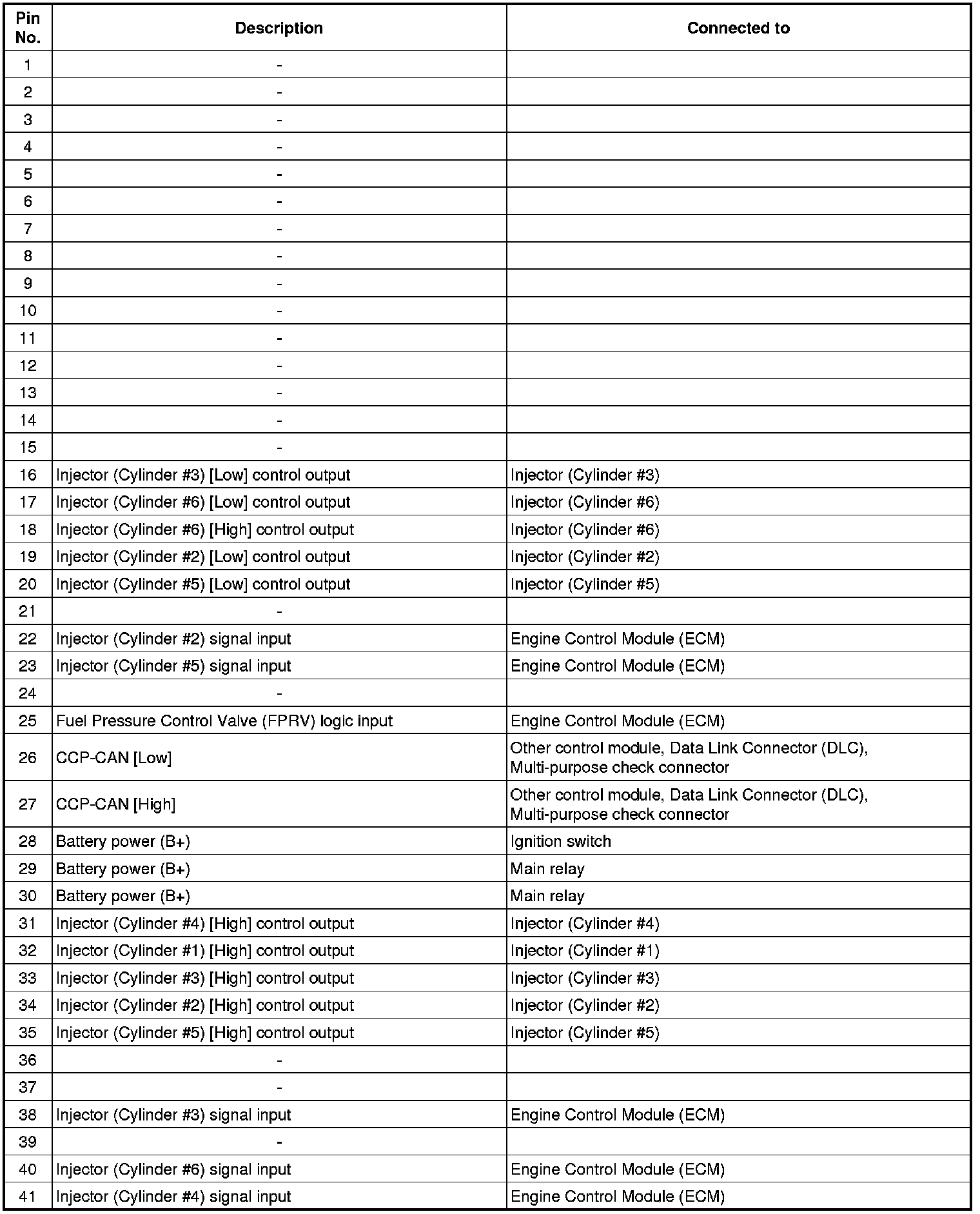

IDB Terminal Function
Connector [CLG-IDB]

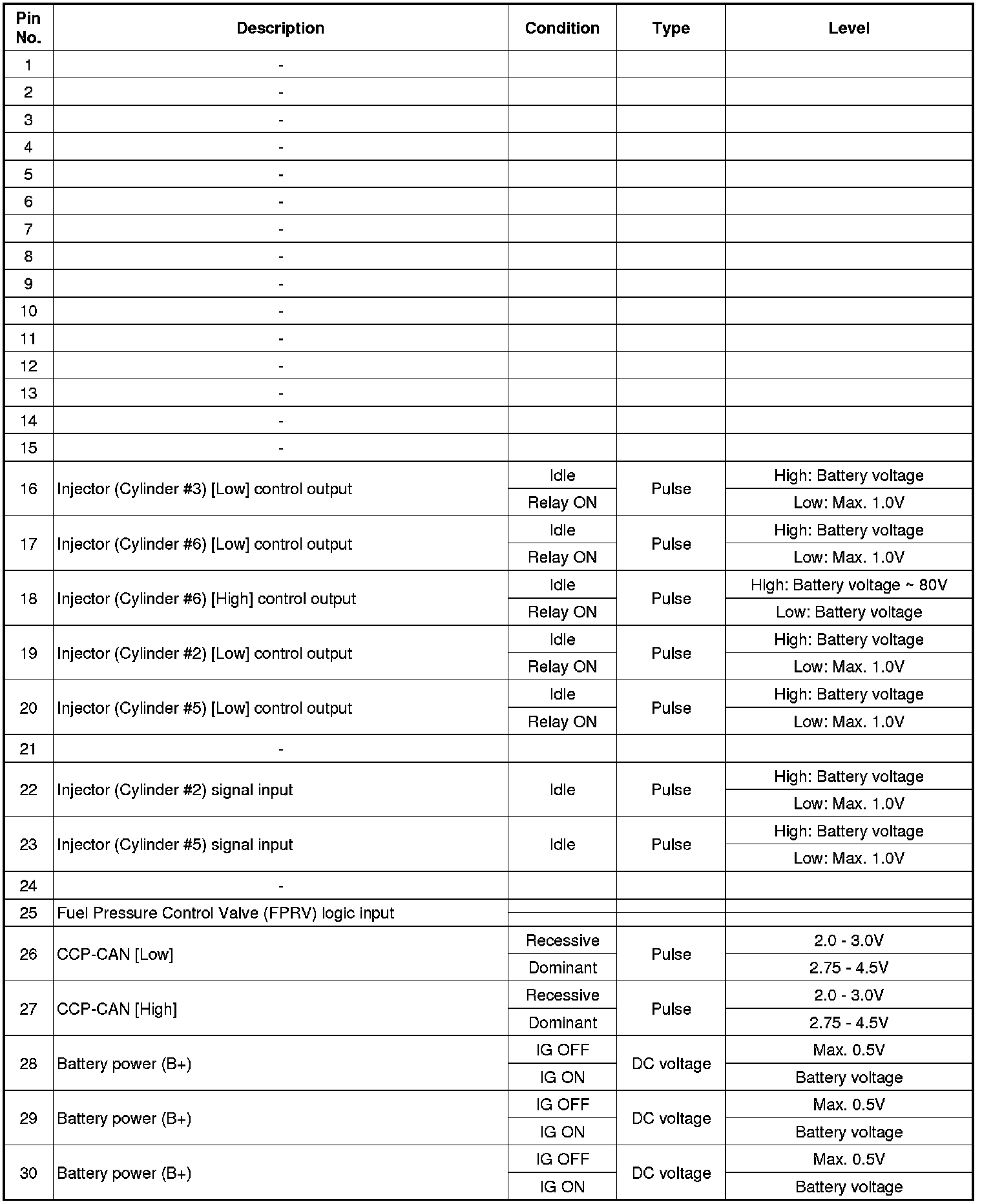

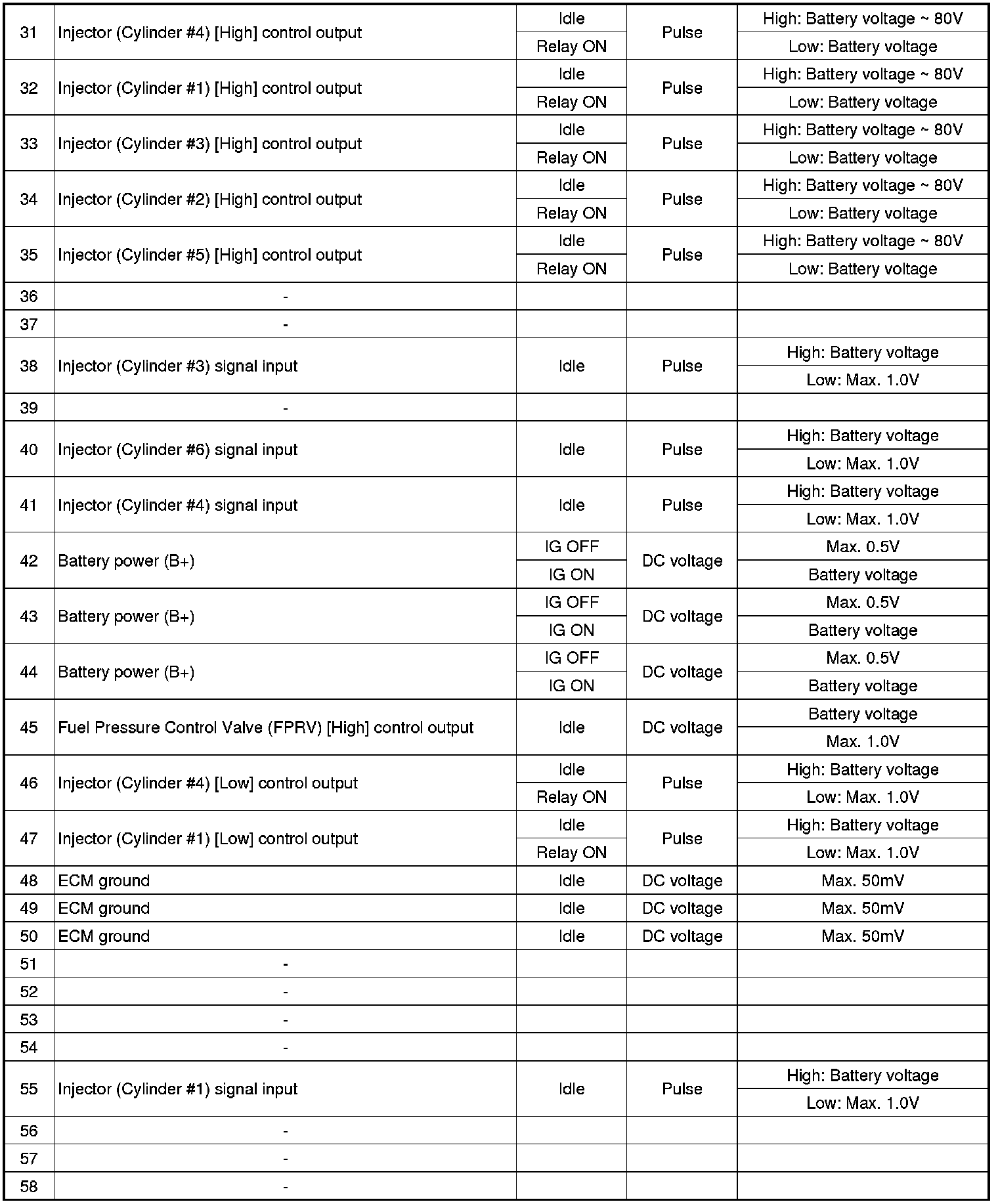

IDB Terminal Input/Output Signal
Connector [CLG-IDB]

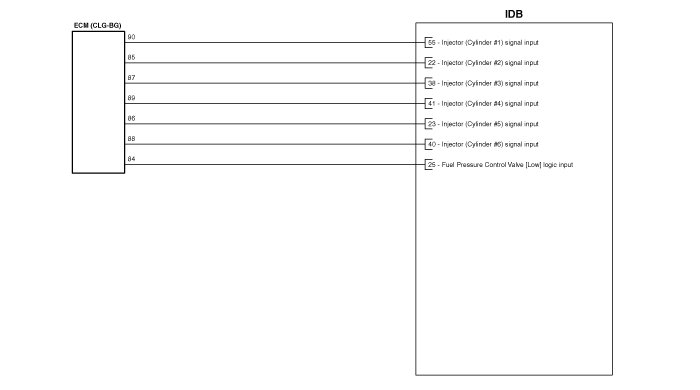

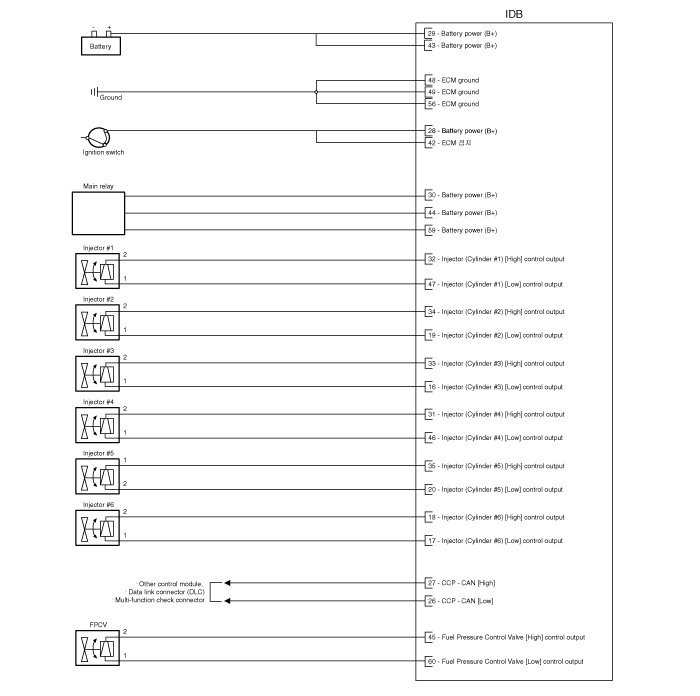

Circuit Diagram
